PerformanceData

Introduction

This section wants to show some key performance indicators collecting during the JEM tests (on machine with 4 cores, 4GB of memory, SUN JDK 1.6).

The goal is to provide some the resources consumption during the submit of the job inside JEM and the time spent to start the process which will execute the job, by the different JCL implementations.

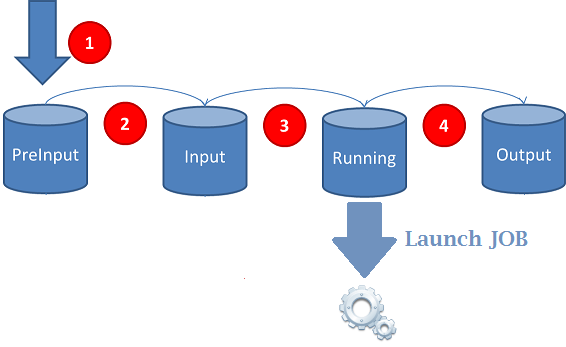

Here is the picture which shows all the steps to submit the job and the number will be used explain the performance indicators.

The steps are:

1. submitting the JOB into JEM
2. JCL parsing and checking
3. Input queue and process creation to execute the job
4. process destroy

Submitting (1)

When you submit the job, it's important to know the time spent to put the job into the JEM queue and the amount of memory that the submitter used.

The memory usage is important mainly on the environment where you try to concentrate few machines to submit into JEM and when the submitter waits for the job ending.

JEM provides 4 kinds of submitter (see here for more details.

Let's have a look about the data:

Submitter	Technology	Time	Memory
jem_submit	Java	1305 ms	~67 MB
jem_localhost_submit	Java	382 ms	~57 MB
jem_http_submit	Java	1632 ms	~72 MB
jem_submit_js	NodeJS	343 ms	~19 MB

where

• time is the average time spent to put the job into JEM queue in milliseconds
• memory is the average of resident set size used by the submit process

Executing a job (2,3,4)

To evaluate the performance to execute a job, here you can see the data on different phases,explained as following:

1. Time spent to parse and check the JCL (tagged as JCLCheck)
2. Time spent to stay into input queue (tagged as InputQueue)
3. Time spent to create the process to execute the job (tagged as ProcessCreation)
4. Time spent to destroy the process, used to execute the job (tagged as ProcessDestroy)

All the previous phases are influenced by the different JCL you use for your job. All the out-of-the-box JCL are tested: ANT, SpringBatch and JBoss JBPM.

Average time

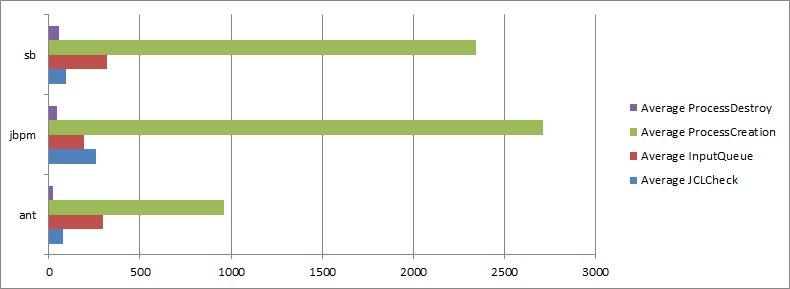

Let's have a look at the average time spent on different phases for different JCL:

Let's go into the figures:

Type	JCLCheck	InputQueue	ProcessCreation	ProcessDestroy
SpringBatch	92 ms	320 ms	2344 ms	58 ms
JBoss JBPM	258 ms	193 ms	2712 ms	45 ms
ANT	75 ms	298 ms	963 ms	22 ms

Minimum time

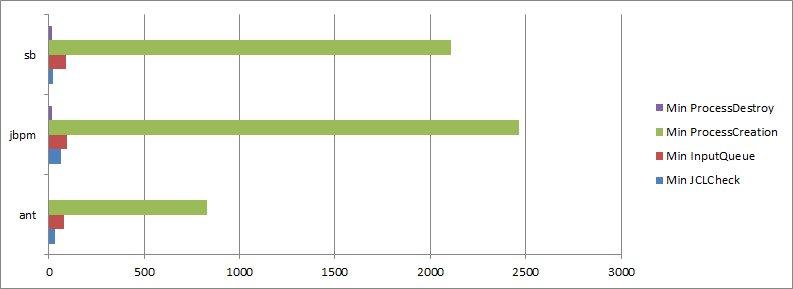

Let's have a look at the minimum time spent on different phases for different JCL:

Let's go into the figures:

Type	JCLCheck	InputQueue	ProcessCreation	ProcessDestroy
SpringBatch	22 ms	88 ms	2106 ms	15 ms
JBoss JBPM	62 ms	94 ms	2465 ms	15 ms
ANT	31 ms	78 ms	837 ms	15 ms

Maximum time

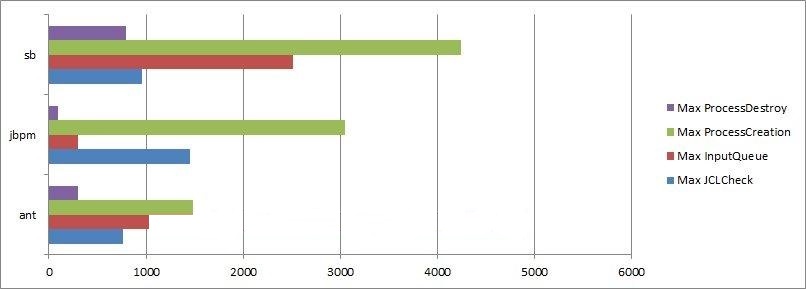

Let's have a look at the maximum time spent on different phases for different JCL:

Let's go into the figures:

Type	JCLCheck	InputQueue	ProcessCreation	ProcessDestroy
SpringBatch	962 ms	2513 ms	4242 ms	795 ms
JBoss JBPM	1452 ms	297 ms	3042 ms	94 ms
ANT	764 ms	1054 ms	1482 ms	297 ms
