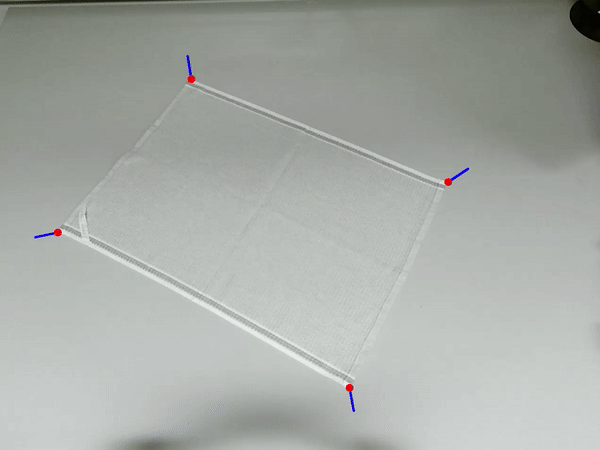

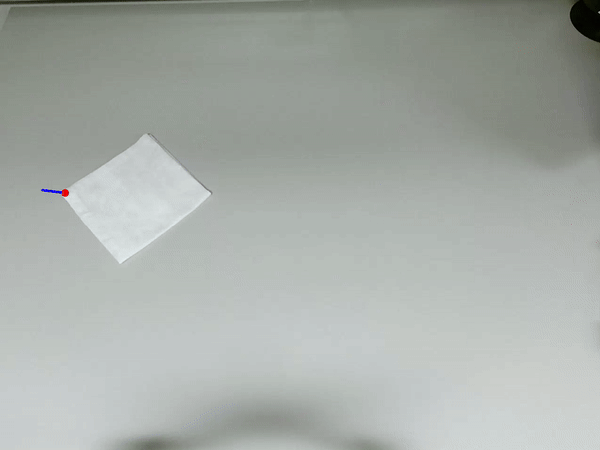

CeDiRNet-3DoF: Center Direction Network for Grasping Point Localization on Cloths

🥇 Winning method from the Cloth Manipulation and Perception Challange from ICRA 2023

🥈 Second place on Cloth Competition from ICRA 2024

Visual Cognitive System Lab, ViCoS - UL, FRI - Ljubljana

Domen Tabernik, Jon Muhovič, Matej Urbas, Danije Skočaj

[Paper] [Pre-print paper] [arXiv] [BibTeX]

Citation

If using CeDiRNet-3DoF or ViCoS Towel Dataset please cite our paper using the following BibTeX entry:

@article{TabernikRAL2024,
  author={Tabernik, Domen and Muhovič, Jon and Urbas, Matej and Skočaj, Danijel},
  journal={IEEE Robotics and Automation Letters},
  title={Center Direction Network for Grasping Point Localization on Cloths},
  year={2024},
  volume={9},
  number={10},
  pages={8913-8920},
  doi={10.1109/LRA.2024.3455802}
}

Benchmark on ViCoS Towel Dataset and available models:

Model	Backbone	Input modalaties	Training datasets	Performance (F1@20px)	DOWNLOAD
CeDiRNet-3DoF	ConvNext-L	RGB	ViCoS Towel Dataset + MuJoCo	78.4%	MODEL
CeDiRNet-3DoF	ConvNext-L	RGB-D	ViCoS Towel Dataset + MuJoCo	81.4%	MODEL
CeDiRNet-3DoF	ConvNext-B	RGB	ViCoS Towel Dataset + MuJoCo	78.0%	MODEL
CeDiRNet-3DoF	ConvNext-B	RGB-D	ViCoS Towel Dataset + MuJoCo	80.8%	MODEL
CeDiRNet-3DoF	Localization network only	RGB	Synthetic	-	MODEL
DINO	ConvNext-B	RGB	ViCoS Towel Dataset + MuJoCo	72.7%	-
DeformDETR	ConvNext-B	RGB	ViCoS Towel Dataset + MuJoCo	71.6%	-
Mask R-CNN	ResNext101	RGB	ViCoS Towel Dataset + MuJoCo	68.3%	-
Lips et at. 2024	ConvNext-B	RGB	ViCoS Towel Dataset + MuJoCo	65.7%	-
DETR	ConvNext-B	RGB	ViCoS Towel Dataset + MuJoCo	61.2%	-
CenterNet++	ResNext101	RGB	ViCoS Towel Dataset + MuJoCo	49.4%	-
YOLOv7	yolov7x	RGB	ViCoS Towel Dataset + MuJoCo	48.3%	-

For benchmark on additional models see our RA-L 2024 paper.

ViCoS Towel Dataset

DOWNLOAD - Real-world samples (10GB)

DOWNLOAD - Synthetic/MuJoCo samples (4GB)

We introduce ViCoS Towel Dataset for benchmarking grasping models, composed of 8000 RGB-D images using:

• 10 towels from Household Cloth Objects:
• 10 different configurations of towels
• 5 backgrounds
• 8 lightnings
• with and without clutter

We also provide a dataset with over 12000 synthetic images generated using MuJoCo for pre-training.

Installation

Dependency:

• Python >= 3.8
• PyTorch >= 1.9
• segmentation_models_pytorch and timm
• opencv-python
• numpy, scipy, scikit_image, scikit_learn

See requirements.txt for a detailed list of pip package dependencies.

Recommended using Conda and installing dependencies as:

conda create -n=CeDiRNet-py3.8 python=3.8
conda activate CeDiRNet-py3.8

# install correct pytorch version for CUDA, e.g., for CUDA 11.1:
pip install torch==1.9.1+cu111 torchvision==0.10.1+cu111 torchaudio==0.9.1 -f https://download.pytorch.org/whl/torch_stable.html

pip install -r requirements.txt

Usage

Inference of images from folder:

python infer.py --input_folder /path/to/images --img_pattern "*.png" --output_folder out/ --config src/config/config_infer.json --model path/to/checkpoint.pth

# Usage: infer.py [-h] [--input_folder INPUT_FOLDER] [--img_pattern IMG_PATTERN]
#                 [--output_folder OUTPUT_FOLDER] [--config CONFIG]
#                 [--model MODEL] [--localization_model LOCALIZATION_MODEL]
#
# Process a folder of images with CeDiRNet.
#
# optional arguments:
#   -h, --help            show this help message and exit
#   --input_folder INPUT_FOLDER
#                         path to folder with input images
#   --img_pattern IMG_PATTERN
#                         pattern for input images
#   --output_folder OUTPUT_FOLDER
#                         path to output folder
#   --config CONFIG       path to config file
#   --model MODEL         path to model checkpoint file
#   --localization_model LOCALIZATION_MODEL
#                         (optional) path to localization model checkpoint file
#                         (will override one from model)

Pre-train on synthetic MuJoCo data:

# move to src folder
cd src

export DATASET=mujoco
export MUJOCO_DIR="../dataset/MuJoCo/"  # path to MuJoCo images from ViCoS Towel dataset
export OUTPUT_DIR="../exp"              # optionally provided path to output dir used in src/config/mujoco/train.py (defaults to '../exp')
export USE_DEPTH=False

# download the localization network to ./models/ folder
./scripts/download_localization_model.sh

python train.py --config model.kwargs.backbone=tu-convnext_large \
                         train_dataset.batch_size=8 \
                         train_dataset.hard_samples_size=16 \
                         pretrained_center_model_path="../models/localization_checkpoint.pth" \
                         display=True

For training and evaluation on ViCoS Towel Dataset:

# move to src folder
cd src

export DATASET=vicos_towel                                     # defines which config to use (see src/config/__init__.py)
export VICOS_TOWEL_DATASET_DIR="../dataset/ViCoSTowelDataset"  # path to 'ViCoSTowelDataset' folder
export OUTPUT_DIR="../exp"                                     # optionally provided path to output dir used in src/config/vicos_towel/*.py  (defaults to '../exp')

export USE_DEPTH=False  # export this env var to enable/disable using depth in the model
export TRAIN_SIZE=768   # export this env var to define training size (will be TRAIN_SIZE x TRAIN_SIZE)
export TEST_SIZE=768    # export this env var to define testing size (will be TRAIN_SIZE x TRAIN_SIZE)

# training on whole train set
python train.py --config model.kwargs.backbone=tu-convnext_large \
                         train_dataset.batch_size=4 \
                         n_epochs=10 \
                         pretrained_model_path="../models/localization_checkpoint.pth" \
                         display=True

# testing on whole test set for the last epoch
python test.py --config model.kwargs.backbone=tu-convnext_large \
                        eval_epoch="" \
                        train_settings.n_epochs=10 \
                        display=False

See config files in src/config for more details on configuration. Note, that using --config in command line will override settings from files.

Adding new dataset

You may add new dataset by providing config files and dataset class:

• add dataset class to src/datasets/NEW_DATASET.py and update src/datasets/__init__.py
• add train.py and test.py config files to src/config/NEW_DATASET and update src/config/__init__.py

Running experiments from paper

Scripts for running experiments related to the paper are in ./scripts/EXPERIMENTS_*.sh. Please edit the following configurations before first use:

• edit input/output paths and Conda environment in ./scripts/run_local.sh
  • set ROOT_DIR to CeDiRNet code
  • set CONDA_HOME to conda home folder that contains etc/profile.d/conda.sh
• edit GPU_LIST env var in ./scripts/EXPERIMENTS_*.sh for distributed run:

 # for distributed MULTI-GPU training set multiple servers/GPUs in the same quote,
 # e.g., parallel running 2 trainings, each with 4 GPUs:
 GPU_LIST=("server_hostname_A:0,1 server_hostname_B:0,1" \
            "server_hostname_C:0,1 server_hostname_D:0,1")

 # for distributed SINGLE-GPU inference/training set single server/GPU in the same quote,
 # e.g., parallel running 6 inferences/training, each with 1 GPU:
 GPU_LIST=("server_hostname_A:0" \
           "server_hostname_A:1" \
           "server_hostname_B:0" \
           "server_hostname_B:1" \
           "server_hostname_C:0" \
           "server_hostname_C:1")

Note that changing the number of GPUs used may require updating the batch size.

Download and extract ViCoS Towel Dataset into ./datasets subfolder and run experiments:

cd scripts/

# Run training and evaluation on ViCoS Towel Dataset:
./EXPERIMENTS_MAIN.sh

# Run ablation study
./EXPERIMENTS_ABLATION.sh

By default, scripts will use run_distributed.sh that will delegate work to different GPUs on different servers (for testing) or will execute distributed training by running train.py on each server with the appropriate WORLD_SIZE and RANK_OFFSET env vars.

For running on single server, just use localhost for server name in SERVERS and GPU_LIST.
