Official Turing Pi BMC firmware

The Turing Pi is a compact AI & edge computing cluster purposed to run cloud stacks and AI inference at the edge. Find out more on our website.

The firmware is based on a Linux 5.4 kernel and hosts a web interface with a REST API to control and manage the board. The packages bmcd, tpi and bmc-ui are part of the firmware and facilitate most of this functionality.

Table of Contents

• Table of Contents
• Reporting issues & requesting features
• BMC chip specs
• Install firmware
• Build / Development
• Quickstart
• Start DevContainer
• macOS / Darwin
  • macOS / Darwin Build Performance
• Windows
  • Build Performance
• Scripts
• Commands
• Building
  • Linux / Windows
  • OSX
  • Manual
  • Native
• Output
• Development

Reporting issues & requesting features

It is recommended to use the issue tracker of the current BMC-Firmware repository to request features or submit bug reports. We are open to all feedback and improvements. We scan the dependent repositories regularly for activity, but for visibility reasons, we will mainly use the issue tracker of this repository.

BMC chip specs

• CPU Allwinner T113-S3 (ARM Cortex-A7)
• 128 MB DDR3 RAM
• 128 MB SPI NAND flash (MX35LF1GE4AB)
• EEPROM (24C02C)
• 3 port Gigabit Ethernet Switch (RTL8370MB)
• Ethernet PHYceiver (RTL8201F-VB-CG)
• SD card slot

Install firmware

Note: If you are running a firmware version lower than < v2.0.0, you must do a one-time-only SD card upgrade to version v2.0.0.

Note 2: Prior to v2.0.0 a third-party tool 'PhoenixSuit' was required to flash firmware. This tool is obsoleted, and only the methods described on our website can be used to flash your board.

The latest firmware images can be found on the release page.

On our website you can find more information on installing firmware.

Build / Development

If you want to build the BMC firmware yourself, there is some preparation needed, which depends on your working environment.

The build process uses Buildroot for further documentation can be found here. Buildroot is not included in this repository and needs to be downloaded once before building.

This repository uses a devcontainer for a uniform development environment. The devcontainer is available in a linux and darwin version. Windows users are recommended to use WSL or Docker-Desktop.

There are several scripts available within the scripts directory to facilitate easy development and building of the firmware. See the section Scripts for more information. Furthermore, there are several special git commands available to ease development and the building process. More information about the commands are available in the Commands section.

IMPORTANT

Before starting a build the configure.sh script must be run, this script must also be rerun everything buildroot is updated.

Quickstart

1. Clone repository
2. Open in VSCode or any other editor that natively supports devcontainers
3. Start devcontainer for your platform, Windows users should use the Linux devcontainer
4. The devcontainer will auto-configure the repository git commands
5. Run git configure
6. Run git build
7. Firmware artifacts will appear in the dist directory

Start DevContainer

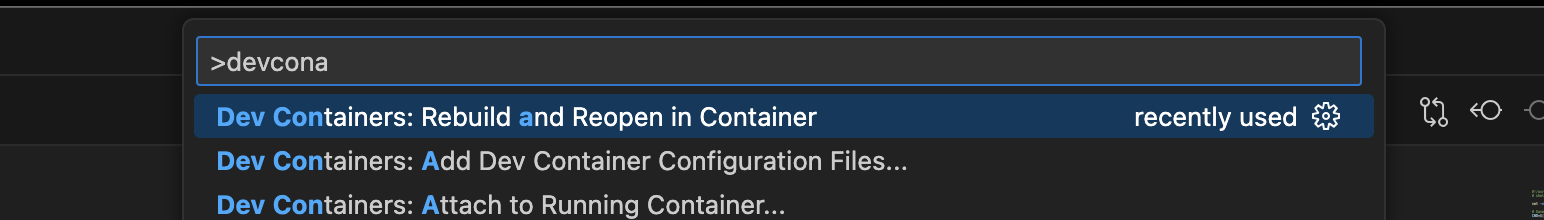

If no popup appears to notify you of starting the devcontainer you can so so by searching for the devcontainer commands in the VSCode Command Pallete which can be opened on Windows and Linux with CTRL + Shift + P and on macOS with Shift + Command + P.

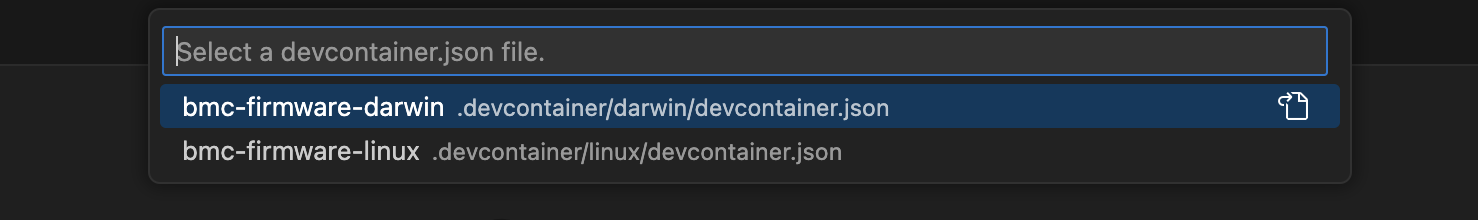

Choose Rebuild and Reopen in Container to start the devcontainer, after which you can select which OS version you want to start.

macOS / Darwin

Builds on OSX are different, and there is a devcontainer configuration specifically available for darwin. The difference is that for builds on darwin the building process takes place within a volume. The reason is APFS, the default APFS of macOS is case-insensitive. Only on a darwin machine that uses the special APFS+Case-Sensitive the default linux devcontainer can be used.

macOS / Darwin Build Performance

For the best performance on macOS Docker-Desktop is recommended with the use of the currently BETA feature of Docker VMM as Virtual Machine. The Apple Virtualization Framework can cause Docker-Desktop to crash during a build.

Windows

For building on Windows, both devcontainers can be used either the linux or darwin container. Before starting the container under Windows, you might have an issue regarding the End-Of-Line of the files.

The best way to handle this is to normalize the repository to LF line endings. Run the following command before starting the devcontainer.

git config --local include.path ../.gitconfig
git config --global core.eol lf
git config --global core.autocrlf input

Now after this you can normalize the repository.

git rm -rf --cached .
git reset --hard HEAD

This will force all the files to have the correct line endings.

Build Performance

When building on Windows with Anti-Virus software present, it is important to understand that this can severly impact build speed as each file will be scanned during the build process. Furthermore, the on-access scanner of Anti-Virus software can cause build compiliation corruption. In order to bypass this, Windows users can use the macOS / darwin devcontainer, this will build according to the same build process in a volume and the developer can use the git sync command or ./scripts/sync.sh to sync files between the host and the devcontainer.

Scripts

The repository provides several scripts to facilitate easy development. All scripts are located in the scripts directory.

Script	Description
build.sh	Script to build the firmware, firmware artifacts are placed in the dist directory, configure.sh must be run first
clean.sh	Cleanup repository removes the buildroot and dist directories
configure.sh	Configure the repository with the buildroot, this script must be run everytime is buildroot is updated or on a clean repository
init.sh	This is the devcontainer initialization script, only used by the devcontainer on startup
sync.sh	Only for macOS / darwin, synchronize changes to the host

NOTE

If an additional script is added then some extra steps are required. The provided gitconfig turns off filemode this is due to the fact that development takes place on multiple platforms. However, we want to be able to execute the scripts after we have committed them, so when writing the script giving it chmod +x and then commiting is not sufficient. In order to commit the execute bit to the repsoitory the following command must be given to commit the execute bit to the git repository.

git update-index --chmod=+x <FILE>

This will stage the execute bit to the git staging, after which it can be commited with a message chore: update file permissions.

Commands

When using the devcontainer the git repository is automatically configured to extend the git commands to include the additional aliases for development.

If you are building on a native host you need to configure this manually. This can be done by running the following command.

git config --local include.path ../.gitconfig

This command will extend the git config of the repository with the .gitconfig from the repository.

All these commands are added as subcommands of the git command. Example to run the root command you run git root.

If you want to build the firmware, run git build.

Git Command	Description
root	Display root path of repository
sha1	This will print the 8 char short sha of the current commit
configure	Configure the repository by setting up buildroot, must be run everytime buildroot is updated
build	Build the firmware
cleanup	Cleanup the repository
sync	Used by macOS / darwin users to sync the changes between the container and the host

Building

The recommended way is to build using the provided devcontainer, manual builds are also possible. All devcontainers or manual builds use the same Dockerfile in the root directory of this repository. It has all the dependencies needed to build the firmware.

The build process needs approx. 5GB to 16GB disk space. On OSX you need that amount of space reserved and free in the the Virutal Machine of Docker or Rancher Desktop.

Linux / Windows

Start the devcontainer, after the workspace is up and running you can start your development or build the firmware using either the scripts from the script directory or the provided git aliases. Because Linux and Windows have a case-sensitive filesystem the build can actually take place on the host filesystem through the devcontainer mounted repository host directory.

The workspace directory /work in the devcontainer is the repository directory on the host.

OSX

Start the devcontainer, after the workspace is up and running you can start your development or build the firmware using either the scripts from the script directory or the provided git aliases. MacOS uses APFS which is a case-insensitive filesystem, this causes build problems. For this reason the workspace directory /work of the devcontainer is a docker volume which bypasses the filesystem restriction. The repository on the host is mounted in the devcontainer in the /mnt directory.

In order to sync changes back and forth between the host and container if needed the command git sync can be used. However the devcontainer /work workspace is a full working git repository. The log of the syncing between host and container can be viewed in the container log file /tmp/sync.log.

IMPORTANT

The .git directory is NOT synced between the host and the devcontainer when a sync is initiated. This is to avoid corruption of the git repository.

Manual

We would recommend that you go through the official docker documentation for further details. If you want to quickly build and run it, execute the following commands in the root of your repository:

# On the host: build the docker image
docker build . -t bmc-firmware

# On the host: enter the container
docker run -it --rm -v $PWD:/src -w /src -u $(id -u):$(id -g) bmc-firmware
# NOTE: the shell prompt might be a bit garbled, this is fine
#       the -u $(id -u):$(id -g) parameter ensures that the generated files
#       are owned by your user

# inside of the container: prepare buildroot
./scripts/configure.sh

# Build the firmware
./scripts/build.sh

Coder

This repository has support for being used within a Coder environment. Self-Hosted coder is supported.

After starting your container/environment, you can auto-configure this repository by running .coder/bootstrap.sh which will configure your environment automatically. You can detect for this script in a module and run it while you boot-up your environment.

Native

Currently, only X86 Linux build hosts are supported. They are required to have the following packages installed:

Instead of manually configuring the environment you can choose to run .coder/boostrap.sh which will autoconfigure your environment.

Commands

If you want the git aliases to work check the section Commands and run the command to activate the repository gitconfig.

# install packages needed for build
sudo apt-get -y install \
  build-essential subversion git-core \
  libncurses5-dev zlib1g-dev gawk flex quilt libssl-dev xsltproc \
  libxml-parser-perl mercurial bzr ecj cvs unzip zlib1g-dev \
  libstdc++6 libncurses-dev u-boot-tools mkbootimg

# prepare buildroot
./scripts/configure.sh

# build
./scripts/build.sh

Output

After the build is completed the OTA image and the SDCard image are copied to the dist directory, and SHA256 hashes are generated.

The RAW images are located in the buildroot/output/images directory.

• rootfs.erofs: OTA image
• tp2-bmc-firmware-sdcard.img: SDCard image

The SHA256 checksums are generated in using the binary format of the sha256sum command. This can be identified by opening the *.sha256 file, when there is an asterisks * in front of the filename, this identifies that the checksum requires binary validation. Using the default sha256sum text mode as is default for the sha256sum command the generated sha is identical however we do not want to generate a text sha of a binary file.

The build script automatically corrects the filename when copying the images to the dist directory. However, this is for aesthetics only, and to ensure that the Web UI accepts the generated OTA image.

Development

If you require an additional buildroot directory you can run the configure script and set the target directory or install dir where to put the buildroot.

For configure run:

git configure --help

The build script also provides additional arguments.

git build --help

The .gitignore allows for two workign directories while developing.

• tmp
• wip
