SVAR Svelte Filter | Query Builder

🔗 Website • 📚 Documentation • 👀 Demos

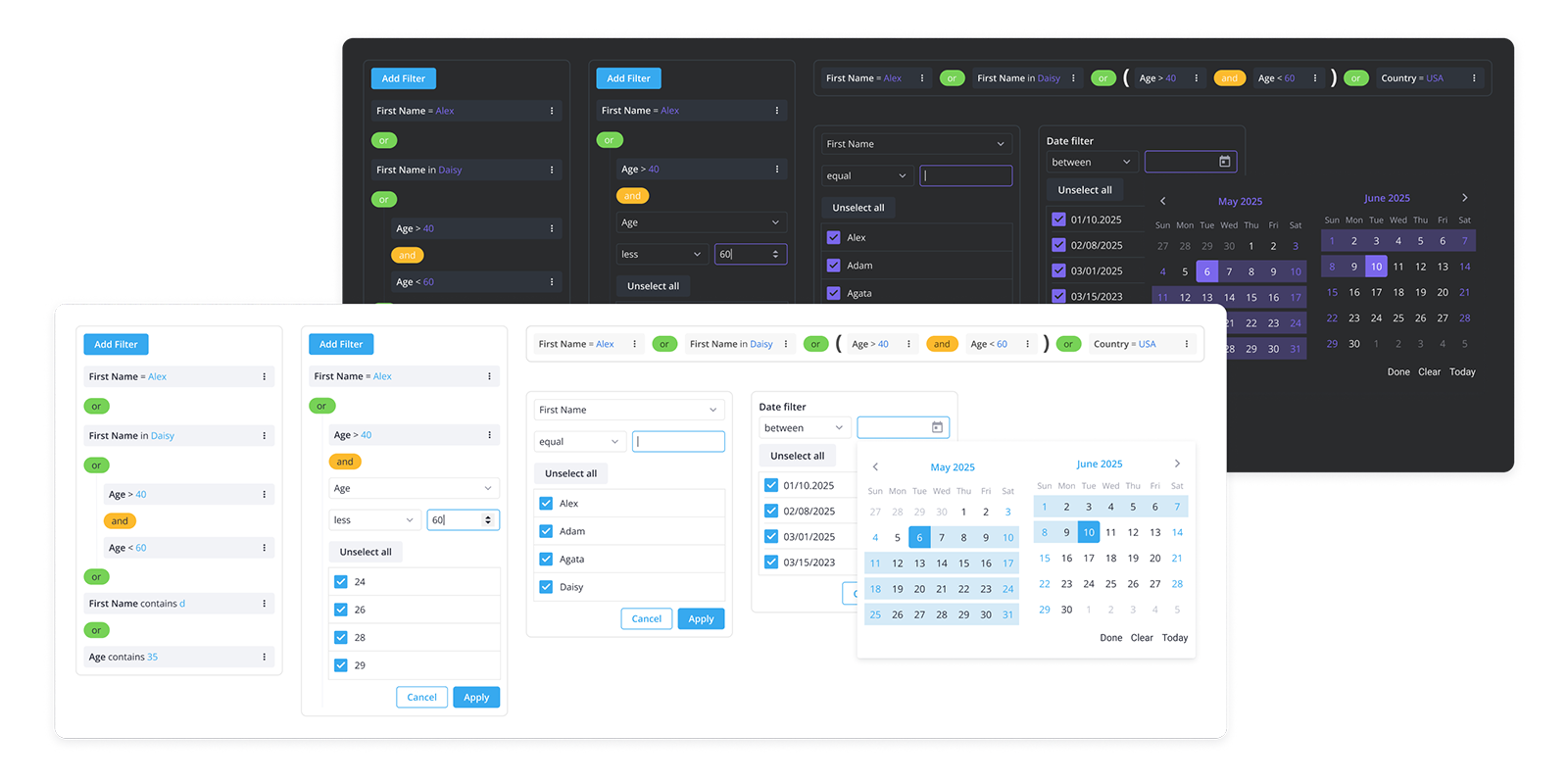

SVAR Svelte Filter helps you add flexible filtering features to your Svelte apps: from simple filter bars to advanced query builders. It provides an intuitive UI to create and edit filtering rules, group filters, define conditions, and choose combining logic (AND/OR).

🧩 Included Components

The package includes 3 widgets:

• FilterBuilder - the main component that provides an interactive interface for building complex queries and filtering large datasets.
• FilterEditor - allows you to create a filtering rule for a single field, and can be used as a standalone component.
• FilterBar - a simplified filter bar UI with inputs and select controls. It allows building filtering rules for several fields and combining them with logical operators.

✨ Key features:

• Complex filter queries: multi-field rules, groups of filters, nested filters, AND/OR logic.
• Multiple data types: text, number, and date filtering with type-specific operators.
• Configurable layouts: vertical, horizontal, or minimal filter bar layouts.
• Localization: labels and date formats can be customized to match users' locale.
• Dynamic loading: filter options can be loaded on demand when a new filter is added.
• JSON output: the component outputs structured JSON that can be transformed into SQL or other query formats.
• Intuitive, straightforward API: easily set and retrieve values, customize filters, and track changes.

Check out the demos to see all SVAR Filter features in action.

🛠️ How to Use

You can install SVAR Svelte Filter as follows:

npm install wx-svelte-filter

To use SVAR Filter, simply import the package and include the component in your Svelte file:

<script>
    import { FilterBuilder }  from 'wx-svelte-filter';

    const fields = [
        { id: "first_name", label: "Name", type: "text" },
        { id: "age", label: "Age", type: "number" }
    ];
    const options = [
        first_name: ["Alex", "Marta", "Claire", "David"],
        age: [21, 25, 28, 35, 42, 51, 53]
    ];
</script>

<FilterBuilder {fields} {options} />

For further instructions, see the detailed how-to-start guide.

💻 How to Modify

Typically, you don't need to modify the code. However, if you wish to do so, follow these steps:

1. Run yarn to install dependencies. Note that this project is a monorepo using yarn workspaces, so npm will not work
2. Start the project in development mode with yarn start

✅ Run Tests

To run the test:

1. Start the test examples with:

   yarn start:tests

2. In a separate console, run the end-to-end tests with:

   yarn test:cypress

💬 Need Help?

Post an Issue or use our community forum.
