Step-Stay Stopped, RDS and Aurora!

Keep AWS databases stopped when not needed, with a Step Function

Purpose

This is a low-code, Step Function-based alternative to my Lambda-based tool for stopping RDS and Aurora databases that AWS has automatically started after the 7-day maximum stop period. Both use the same reliable process, free of race conditions that might leave databases running without warning.

Jump to: Get Started • Multi-Account, Multi-Region • Terraform • Security

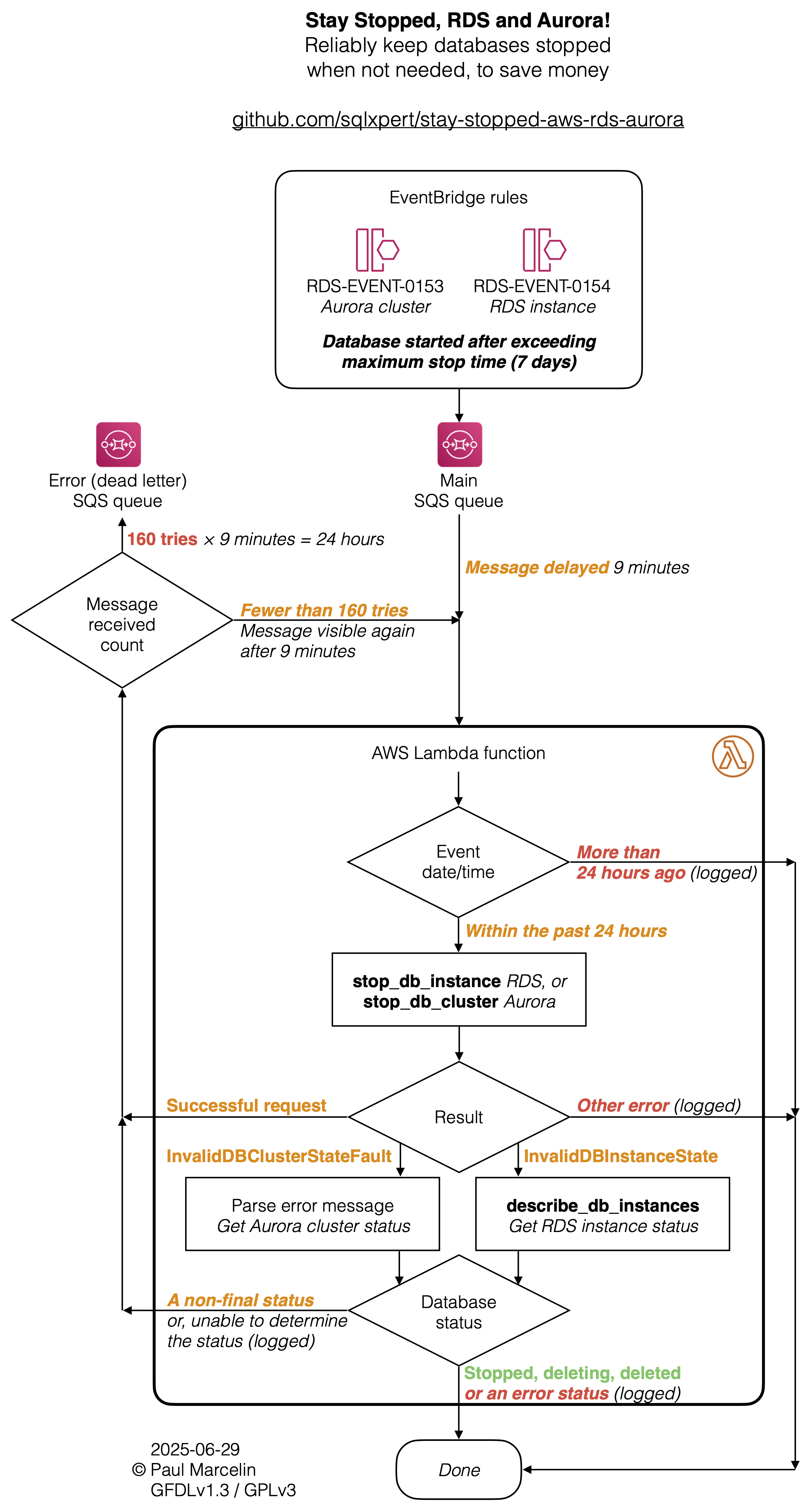

Diagram

Click to view the simplified flowchart:

Use Cases

• testing
• development
• infrequent reference
• old databases kept just in case
• vacation or leave beyond one week

If it would cost too much to keep a database running but take too long to re-create it, this tool might save you money, time, or both. AWS does not charge for database instance hours while an RDS database instance is stopped or an Aurora database cluster is stopped. (Other charges, such as for storage and snapshots, continue.)

Comparison

	Step Function (here)	Lambda
github.com/sqlxpert/	step-stay-stopped-aws-rds-aurora	stay-stopped-aws-rds-aurora
EventBridge rule target	Step Function	SQS queue, which feeds a Lambda function
Lines of code	< 200 JSON/JSONata lines	> 300 Python lines
Main file	step_stay_stopped_aws_rds_aurora.asl.json	stay_stopped_aws_rds_aurora.py
Installation template	step_stay_stopped_aws_rds_aurora.yaml	stay_stopped_aws_rds_aurora.yaml
API calls	AWS SDK integration	boto3 RDS client
Decisions and branching	Choice states	Python control flow statements
Error handling	Catchers on task states	try...except
Retry mechanism	Wait state	Queue message [in]visibility timeout
Initial delay mechanism	Same wait state, entered immediately	First-time delivery delay
Timeout mechanism	State machine TimeoutSeconds	maxReceiveCount

If you have time, don't miss: Step Function advantages and disadvantages...

Step Function Advantages

1. Faster development, testing and debugging

Quite frankly, it is a miracle that fewer than 200 lines of JSON can replace more than 300 lines of executable Python code. Development is significantly faster, whether you add states visually or you compose or edit the JSON code manually.

Testing and debugging are moderately faster. Although a correct state machine, able to handle error conditions, is liable to be more complex than the initial, normal-case design, even a complex state machine diagram becomes readable when the Step Functions console marks it up with the traversal from a particular run. Click below to view an example. Next, click for the "State view", a tabular summary. Not shown is the "Event view", a complete log of the payload at the start and end of each state, plus data available for use within the scope of one state (such as an API response).

This example shows an idempotence test: trying to stop an RDS database instance that was already stopping or stopped.

2. Less maintenance

Clearly, Step Functions require less maintenance. Although Step Functions may call AWS Lambda functions, many problems can be solved without recourse to Lambda, so that there is no software to patch — not even a runtime to update every few months.

3. Even lower compute cost

Step Functions are perfect for processes that require lots of wall-clock time but little actual computing time, such as waiting for a database to start and then seeing a stop request through until the database is stopped again. The Step Function standard mode price is 25¢ per 10,000 transitions (arrows traversed, on the state machine diagram), regardless of time spent (the pricing basis for AWS Lambda). To put this in perspective, if we ignore negligible numbers of startup and shutdown transitions, a cycle of 4 (Aurora) or 5 (RDS) state transitions repeats every 9 minutes from the time AWS starts a database until the database is stopped again.

Step Function logs tend to be noisier, as explained below, so volume-sensitive logging costs could be higher.

Prices vary by region, and might change.

Step Function Disadvantages

1. Inconsistent error names

These inconsistencies are bugs waiting to happen. Here are two key StopDBInstance errors:

	Cannot Be Stopped Now	Cannot Be Stopped Ever
Dynamic boto3 exception: Client("rds").exceptions.	InvalidDBInstanceStateFault
Static boto3 ClientError exception Code	InvalidDBInstanceState	InvalidParameterCombination
AWS API error	InvalidDBInstanceState
Step Function ErrorEquals match: Rds.	InvalidDbInstanceStateException	RdsException

There is even a special note about the Exception suffix!

2. Rudimentary retries

boto3 can retry automatically in response to 18 exceptions and 4 general HTTP status codes. You'd have to experiment to discover the Step Function service's name for each of the 22 error conditions (there is no comprehensive document), list all 22 in the ErrorEquals field of the retrier, and then duplicate the list in every state that makes an AWS API request. That's just not practical.

Thankfully, stopping an RDS or Aurora database is a watch-and-wait operation. Natural retries with long pauses in between make it unnecessary to match boto3's diligent retry logic, meant more for single, critical AWS API calls.

3. Less logging control

Logs should be kept clear so that critical problems stand out, if the fable The Boy Who Cried Wolf, the saying "All emphasis is no emphasis", and the Three Mile Island nuclear accident are any guide.

The computer printer registering alarms was running more than 2½ hours behind the events and at one point jammed, thereby losing valuable information.

Reference...

• Report of the President's Commission on the Accident at Three Mile Island, October, 1979, Page 30
• Direct link: archive.org
• Backup: US Department of Energy Office of Scientific and Technical Information
• In the backup source, "2½ hours" was mis-scanned as "2-k hours", an error that has been repeated as "2000 hours" in at least one book. The printer backlog did not reach 83 days; 2½ hours was bad enough!

The Step Function service logs any exception at the ERROR level. I cannot choose to log expected exceptions (such as InvalidDBClusterState when calling StopDBCluster while an Aurora database is starting and while it's stopping) at the INFO level and spare the ERROR level for exceptions that require attention.

In fact, Step Function log levels skip directly from ALL to ERROR. Without an INFO level, it's impossible to log successful database stop operations without throwing in DEBUG-level details too.

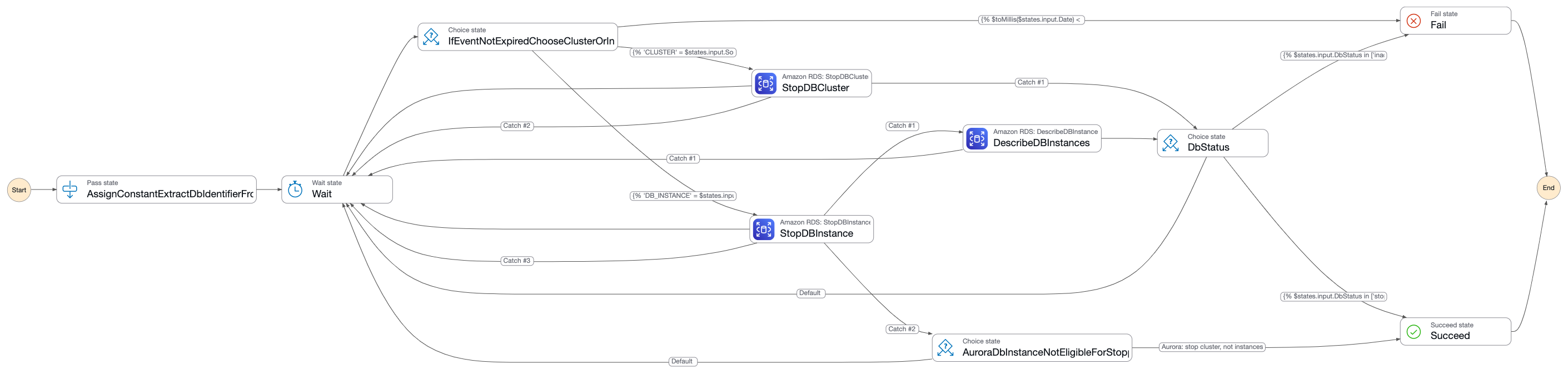

4. Complex diagrams

Reliably re-stopping an RDS or Aurora database — that is, avoiding race conditions that might leave the database running at your expense, without warning you — is a complex process. The Step Functions console generates hard-to-read diagrams with tiny text, truncated labels, and unnecessary cross-overs. A diagram's explanatory value falls off as soon as you add error-handling logic to your state machine. This is more a missed opportunity than a disadvantage. Other services give you no diagram, so you have to make your own. The Step Functions console gives you a bad diagram that you can't edit, so you still have to make your own.

Compare:

The Step Function Wins!

The advantages of a Step Function far outweigh the disadvantages. If you take the time to understand the semantics of AWS APIs and build appropriate error-handling logic into your state machine — in other words, if your solution is correct — then a compact, predominantly declarative implementation with a graphical representation cuts development time, simplifies testing, and reduces maintenance effort.

AWS is actively improving the service. For example, the transition from JSONPath to JSONata, begun in 2024, has significantly increased the declarative capabilities of Step Functions. It's possible that some of the disadvantages I noticed will be addressed in the future.

Step Function Clarity

Given the complexity of correct error-handling logic, and the weaknesses of the Step Function console's automatically-generated diagrams, it's important to document and explain your state machine. Here is my advice:

1. Choose descriptive state names. For example, I changed Dispatch to IfEventNotExpiredChooseClusterOrInstance.

2. Append a question mark (?) to the name of a straightforward binary Choice state.

3. Include the same root word(s) in a related AWS API method name, AWS API method parameter name, AWS resource name, ARN component, state machine variable name, JSONanata variable name, state Output key, state name, ErrorEquals error name, and/or CloudFormation substitution parameter name.

4. Front-load distinguishing information to guard against truncation in state machine diagrams. For example, the important information in this pair of Boolean expressions for Choice state rules comes first:

   • 'available' = states.input.DbStatus
   • 'stopping' = states.input.DbStatus

5. Don't add Comment keys or /* JSONata comments */ if the information is obvious from the state name, a Boolean expression in a Choice rule, an ErrorEquals error name, or some other proximate clue.

   • As of June, 2025, the Step Function console labels Choice rule branches with Comment values, but numbers Catch branches even if they have comments.

   • Add a comment if a term cannot be used in searches. Search features don't allow, or don't do a good job with: symbols; the definite article "the"; other short "stop-words"; and words with two or more popular meanings. For example, without the comment, this JSONata expression:

     $states.input ~> |$|{}, ['Error', 'Cause']| /* https://docs.jsonata.org/other-operators#-------transform */


     would give no clue about what to search for. It is impossible to search for | or $, and probably for ~> too. I would make sure at least one occurrence received a comment.

6. Although a JSON object's keys form a set, and sets are unordered, changing the order of the keys in a state machine's JSON definition code after the fact will make the definition easier for other people to understand. I like to place the States keys in temporal order. Within each state object and any nested objects, I like to place the keys in the order in which they will be referenced.

   • A logical order would be:
     Type;
     Choices, or Resource, Arguments, and TimeoutSeconds, or Catch;
     Condition or ErrorEquals;
     Variables, Output, and Next.
   • A Comment, if needed, should go above, between or below the keys it describes.
   • If similar objects are repeated, put the keys whose values distinguish the objects near the top. Draw attention to differences.

7. Don't hesitate to add extra Pass and Choice states so that the state names themselves explain discrete steps in a process. (Minimize the number of state transitions in cycles that will be traversed many times. In standard mode, AWS charges per state transition.)

Get Started

1. Log in to the AWS Console as an administrator. Choose an AWS account and a region where you have an RDS or Aurora database that is normally stopped, or that you can stop now and leave stopped for 8 days.

2. If you used Stay-Stopped, the original, AWS Lambda-based variant,

   • Delete your standalone StayStoppedRdsAurora CloudFormation stack, or
   • Delete your StayStoppedRdsAurora CloudFormation StackSet, or set the Enable parameter to "false" and then deploy the change to all existing targets.

3. Create a CloudFormation stack "With new resources (standard)". Select "Upload a template file", then select "Choose file" and navigate to a locally-saved copy of step_stay_stopped_aws_rds_aurora.yaml [right-click to save as...]. On the next page, set:

   • Stack name: StepStayStoppedRdsAurora

4. Wait 8 days, then check that your RDS or Aurora database is stopped. After clicking the RDS database instance name or the Aurora database cluster name, open the "Logs & events" tab and scroll to "Recent events". At the right, click to change "Last 1 day" to "Last 2 weeks". The "System notes" column should include the following entries, listed here from newest to oldest. There might be other entries in between.

   RDS	Aurora
   DB instance stopped	DB cluster stopped
   DB instance started	DB cluster started
   DB instance is being started due to it exceeding the maximum allowed time being stopped.	DB cluster is being started due to it exceeding the maximum allowed time being stopped.

   If you don't want to wait 8 days, see Testing, below.

Multi-Account, Multi-Region

For reliability, Step-Stay-Stopped works independently in each region, in each AWS account. To deploy in multiple regions and/or multiple AWS accounts,

1. Delete any standalone StepStayStoppedRdsAurora CloudFormation stacks in your target regions and/or AWS accounts.

2. If you used Stay-Stopped, the original, AWS Lambda-based variant,

   • Delete any standalone StayStoppedRdsAurora CloudFormation stacks, or
   • Delete your StayStoppedRdsAurora CloudFormation StackSet, or set the Enable parameter to "false" and then deploy the change to all existing targets.

3. Complete the prerequisites for creating a StackSet with service-managed permissions.

4. In the management AWS account (or a delegated administrator account), create a CloudFormation StackSet. Select "Upload a template file", then select "Choose file" and upload a locally-saved copy of step_stay_stopped_aws_rds_aurora.yaml [right-click to save as...]. On the next page, set:

   • StackSet name: StepStayStoppedRdsAurora

5. Two pages later, under "Deployment targets", select "Deploy to Organizational Units". Enter your target ou- identifier. Step-Stay-Stopped will be deployed in all AWS accounts in your target OU. Toward the bottom of the page, specify your target region(s).

Terraform

Terraform users are often willing to wrap a CloudFormation stack in HashiCorp Configuration Language, because AWS supplies tools in the form of CloudFormation templates. See aws_cloudformation_stack .

Wrapping a CloudFormation StackSet in HCL is much easier than configuring and using Terraform to deploy and maintain identical resources in multiple regions and/or AWS accounts. See aws_cloudformation_stack_set .

Security

In accordance with the software license, nothing in this document establishes indemnification, a warranty, assumption of liability, etc. Use this software entirely at your own risk. You are encouraged to review the source code.

Security details...

Security Design Goals

• A least-privilege role for the AWS Step Function.

• A Step Function role that cannot be used by arbitrary functions. If the role is passed to an arbitrary Step Function, Task states will not gain access to the Aurora and RDS API.

• A least-privilege queue policy. The error (dead letter) queue can only consume messages from EventBridge. Encryption in transit is required.

• Optional encryption at rest with the AWS Key Management System, for the error queue, Step Function state machine payloads, and the log. This can protect EventBridge events containing database identifiers and metadata, such as tags. KMS keys housed in a different AWS account, and multi-region keys, are supported.

• A retry mechanism and a state machine timeout, to increase the likelihood that a database will be stopped as intended but prevent endless retries.

• A 24-hour event date/time expiry check, to prevent processing of accumulated stale events, if any.

• Readable Identity and Access Management policies, formatted as CloudFormation YAML rather than JSON (where permitted), and broken down into discrete statements by service, resource or principal.

Your Security Steps

• Prevent people from modifying components of this tool, most of which can be identified by StepStayStoppedRdsAurora in ARNs and in the automatic aws:cloudformation:stack-name tag.

• Log infrastructure changes using CloudTrail, and set up alerts.

• Prevent people from directly invoking the Step Function.

• Separate production workloads. Although this tool only stops databases that AWS is starting after they've been stopped for 7 days, the Step Function could stop any database if invoked directly, with a contrived event as input. You might choose not to deploy this tool in AWS accounts used for production, or you might add a custom IAM policy to the function role, denying authority to stop certain production databases (AttachLocalPolicy in CloudFormation).

  • Tagging an RDS database instance or an Aurora database cluster with StayStopped-Exclude (see ExcludeTagKey in CloudFormation) prevents the Step Function role from being misused to stop that database. ⚠ Do not rely on attribute-based access control unless you also prevent people and systems from adding, changing and deleting ABAC tags.

• Enable the test mode only in a non-critical AWS account and region, and turn the test mode off again as quickly as possible.

• Monitor the error (dead letter) queue, and monitor the log.

• Configure budget alerts and use cost anomaly detection.

• Occasionally start a database before its maintenance window and leave it running, to catch up with RDS and Aurora security updates.

Troubleshooting

Check the:

1. StepStayStoppedRdsAurora-StepFn CloudWatch log group

   • Rds.InvalidDbInstanceStateException or Rds.InvalidDbClusterStateException errors, with no other proximate errors, are expected and can be ignored.
   • Log entries are JSON objects.
   • For more data, change the LogLevel in CloudFormation.

2. "Executions" data for the StepStayStoppedRdsAurora-StepFn Step Function

   • The "State view" is useful for diagnosing errors.
   • Rows with "Caught error" in the "Status" column are expected and can be ignored if the "Reason" is Rds.InvalidDbInstanceStateException or Rds.InvalidDbClusterStateException&nbsp.

3. StepStayStoppedRdsAurora-ErrorQueue (dead letter) SQS queue

   • A message here means that the Step Function did not run; the request to stop the database was not made.
   • Usually the local security configuration is denying EventBridge necessary access to the Step Function.

4. CloudTrail Event history

   • CloudTrail events with an "Error code" may indicate permissions problems, typically due to the local security configuration.
   • To see more events, change "Read-only" from false to true .

Testing

Testing details...

Recommended Test Database

An RDS database instance ( db.t4g.micro , 20 GiB of gp3 storage, 0 days' worth of automated backups) is cheaper than a typical Aurora cluster, not to mention faster to create, stop, and start.

Test Mode

AWS starts RDS and Aurora databases that have been stopped for 7 days, but we need a faster mechanism for realistic, end-to-end testing. Temporarily change these parameters in CloudFormation:

Parameter	Normal	Test
Test	false	true
LogLevel	ERROR	ALL
StepFnWaitSeconds	540	60
→ Equivalent in minutes	9 minutes	1 minute
StepFnTimeoutSeconds	86400	1800
→ Equivalent in hours	24 hours	½ hour

⚠ Exit test mode as quickly as possible, given the operational and security risks explained below. If your test database is ready, several minutes should be sufficient.

Test by Manually Starting a Database

In test mode, Step-Stay-Stopped responds to user-initiated, non-forced database starts, too: RDS-EVENT-0088 (RDS database instance) and RDS-EVENT-0151 (Aurora database cluster). Although it won't stop databases that are already running and remain running, ⚠ while in test mode Step-Stay-Stopped will stop databases that you start manually. To test, manually start a stopped RDS or Aurora database.

In test mode, Step-Stay-Stopped also receives RDS-EVENT-0088 (Aurora database instance). Internally, the code ignores it in favor of the cluster-level event.

Test by Invoking the Step Function

Depending on locally-determined permissions, you may also be able to invoke the StepStayStoppedRdsAurora-StepFn Step Function manually. Edit the database names and date/time strings (must be within the past StepFnTimeoutSeconds and end in Z for UTC) in these test inputs:

{
  "detail": {
    "SourceIdentifier": "Name-Of-Your-RDS-Database-Instance",
    "Date": "2025-06-06T04:30Z",
    "SourceType": "DB_INSTANCE",
    "EventID": "RDS-EVENT-0154"
  },
  "detail-type": "RDS DB Instance Event",
  "source": "aws.rds",
  "version": "0"
}

{
  "detail": {
    "SourceIdentifier": "Name-Of-Your-Aurora-Database-Cluster",
    "Date": "2025-06-06T04:30Z",
    "SourceType": "CLUSTER",
    "EventID": "RDS-EVENT-0153"
  },
  "detail-type": "RDS DB Cluster Event",
  "source": "aws.rds",
  "version": "0"
}

Report Bugs

After following the troubleshooting steps and ruling out local issues such as permissions — especially hidden controls such as Service and Resource control policies (SCPs and RCPs) — please report bugs. Thank you!

Licenses

Scope	Link	Included Copy
Source code, and source code in documentation	GNU General Public License (GPL) 3.0	LICENSE-CODE.md
Documentation, including this ReadMe file	GNU Free Documentation License (FDL) 1.3	LICENSE-DOC.md

Copyright Paul Marcelin

Contact: marcelin at cmu.edu (replace "at" with @)
