adguardhome_munin_

Munin plugins for monitoring various AdGuard Home statistics.

---

• Overview
• Features
• Requirements
• Install
• Configuration
• Usage
• Uninstall
• Compatibility
• Example Graph Gallery
  • blocked
  • clients
  • domains
  • percent
  • processing
  • queries
  • status
  • upstreams
  • upstreams_avg
• Related Projects
  • pihole_munin_
• License

---

Overview

adguardhome_munin_ is a POSIX shell Munin wildcard plugin, providing a suite of graphs for monitoring AdGuard Home instances.

It supports multiple graphs, each tracking different aspects of AdGuard Home's performance and statistics, such as blocked domains, clients, queried domains, DNS query counts, blocked percentages, processing times, upstream server usage, and average response times.

---

Features

• Track the top N blocked domains, clients, and queried domains
• Monitor DNS query counts, blocked percentages, and processing times
• Graph upstream server usage and average response times
• Display AdGuard Home's protection status
• Handles empty data gracefully
• State files persist dynamic data (such as top N graph items)

---

Requirements

• Munin munin and munin-node configured and running (not necessarily on the same host as each other)
• AdGuard Home AdGuardHome configured, running and accessible via its API (not necessarily on the same host as Munin)
• curl, jq, and mktemp installed on the system where the plugin is run. These are used for API calls, JSON parsing, and temporary file handling respectively.

---

Install

1. Clone this repository

       # Clone the repository containing the plugin
       git clone https://github.com/saint-lascivious/adguardhome_munin_.git
       # Navigate to the cloned directory
       cd adguardhome_munin_

2. Copy adguardhome_munin_ to your Munin plugins directory (usually /usr/share/munin/plugins/).

       # Copy the plugin script to the Munin plugins directory
       cp adguardhome_munin_ /usr/share/munin/plugins/
       # Make sure the script is executable
       chmod +x /usr/share/munin/plugins/adguardhome_munin_

3. Create symlinks in /etc/munin/plugins/ for each plugins you wish to enable

       # Create symbolic links for each plugin you want to enable
       ln -s /usr/share/munin/plugins/adguardhome_munin_ \
           /etc/munin/plugins/adguardhome_munin_blocked
       ln -s /usr/share/munin/plugins/adguardhome_munin_ \
           /etc/munin/plugins/adguardhome_munin_clients
       ln -s /usr/share/munin/plugins/adguardhome_munin_ \
           /etc/munin/plugins/adguardhome_munin_domains
       # ...repeat for other plugins as desired

   The full list of plugins is: adguardhome_munin_blocked, adguardhome_munin_clients, adguardhome_munin_domains, adguardhome_munin_percent, adguardhome_munin_processing, adguardhome_munin_queries, adguardhome_munin_status, adguardhome_munin_upstreams and adguardhome_munin_upstreams_avg.

   You can symlink all of them at once with:

       # Create symbolic links for all plugins at once
       for plugin in blocked clients domains percent processing queries status upstreams upstreams_avg; do
           ln -s /usr/share/munin/plugins/adguardhome_munin_ \
               /etc/munin/plugins/adguardhome_munin_"${plugin}"
       done

4. Restart the Munin node

       # Restart the Munin node service to apply changes
       # This command may vary based on your system's init system
       systemctl restart munin-node

5. …Wait Wait, around five minutes.

   Munin nodes run their plugins periodically, by default at 5 minute intervals past the hour. After the first run, you should see the new plugins in your Munin web interface.

---

Configuration

Set the following environment variables as needed (defaults shown):

• proto
  • Protocol to use for AdGuard Home API requests.
  • Can be set to https if your AdGuard Home instance has HTTPS enabled and a valid SSL certificate.
  • Default: http
• host
  • This is the IP address or hostname of your AdGuard Home instance.
  • Default: 127.0.0.1
• port
  • The port on which your AdGuard Home instance is running.
  • Default: 80 (use 443 for HTTP).
• username
  • Required.
  • The username for AdGuard Home API authentication.
  • Default: "" (empty).
• password
  • Required.
  • The password for AdGuard Home API authentication.
  • Default: "" (empty).
• top_n
  • The number of top items to display in graphs (e.g., top blocked domains, clients, etc.).
  • Large values may degrade performance.
  • Maximum 20, minimum 1 (greater or lower values will be adjusted to these limits).
  • Default: 10

Example for /etc/munin/plugin-conf.d/adguardhome_munin_:

[adguardhome_munin_*]
    # These fields are required
    env.username your_agh_username
    env.password your_agh_password

    # These fields are optional, unless you want to override the defaults
    # as shown below

    # Protocol to use for AdGuard Home API requests
    env.proto https
    # IP address or hostname of your AdGuard Home instance
    env.host 192.168.1.123
    # Use `https` if your AdGuard Home instance has HTTPS enabled
    # and a valid SSL certificate.
    env.port 443
    # Set the number of top items to display in graphs
    env.top_n 20

---

Usage

Each plugin can be run manually for testing:

    # Generate plugin configuration
    munin-run adguardhome_munin_blocked config
    # Fetch data for the plugin
    munin-run adguardhome_munin_blocked fetch

Older versions of Munin may not recognise the fetch command, in which case it should be omitted and the plugin should be run without arguments in order to fetch data:

    # Generate plugin configuration
    munin-run adguardhome_munin_blocked config
    # Fetch data for the plugin
    munin-run adguardhome_munin_blocked

---

Uninstall

1. Remove plugin symlinks from /etc/munin/plugins/

       # Remove all symbolic links for the plugin
       rm /etc/munin/plugins/adguardhome_munin_*

2. Remove the plugin script from /usr/share/munin/plugins/

       # Remove the plugin script
       rm /usr/share/munin/plugins/adguardhome_munin_

3. Restart the Munin node

       # Restart the Munin node service to apply changes
       # This command may vary based on your system's init system
       systemctl restart munin-node

---

Compatibility

• AdGuard Home >= v0.107.0
• Munin >= 2.0

---

Example Graph Gallery

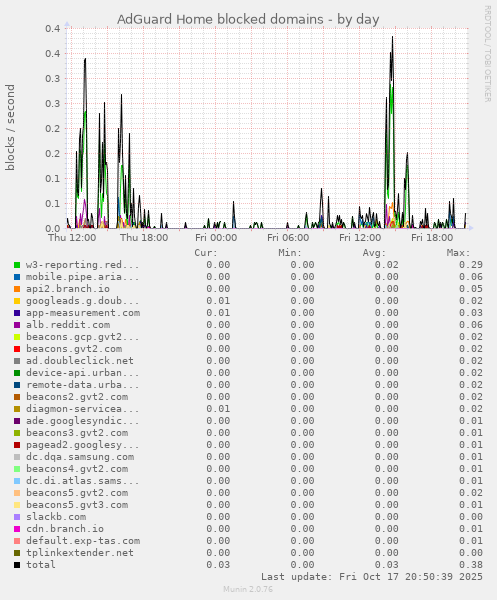

blocked

This graph shows the top N AdGuard Home blocked domains.

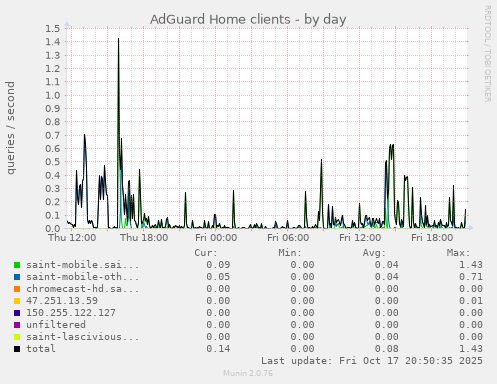

clients

This graph shows the top N AdGuard Home clients.

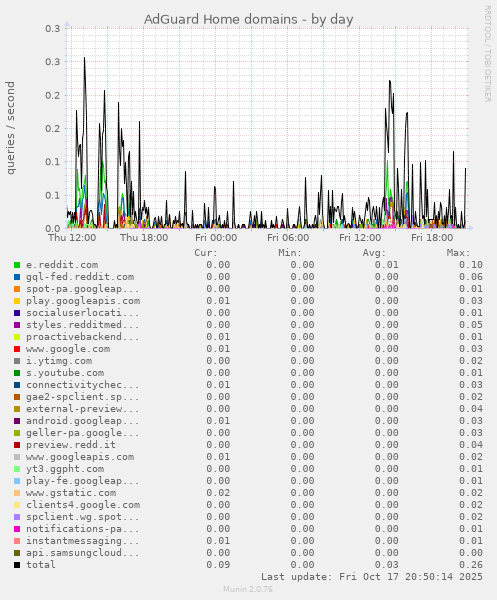

domains

This graph shows the top N AdGuard Home domains.

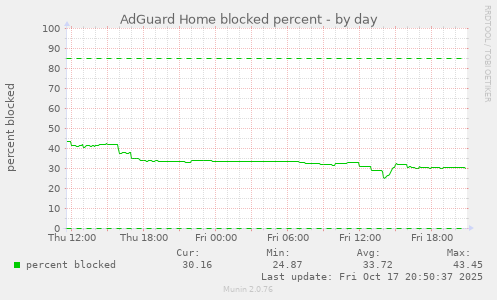

percent

This graph shows AdGuard Home's blocked query percentage.

processing

This graph shows AdGuard Home's average DNS processing time.

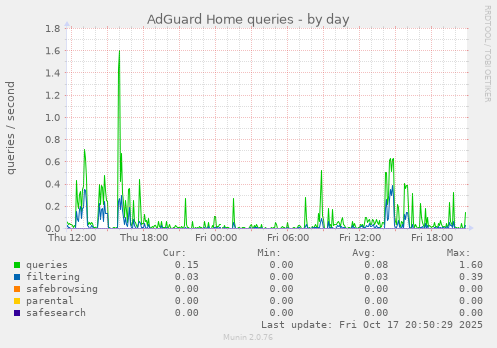

queries

This graph shows AdGuard Home's DNS query statistics.

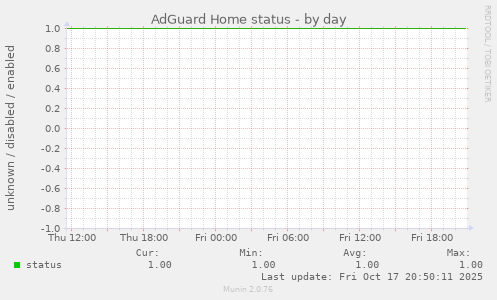

status

This graph shows AdGuard Home's protection status.

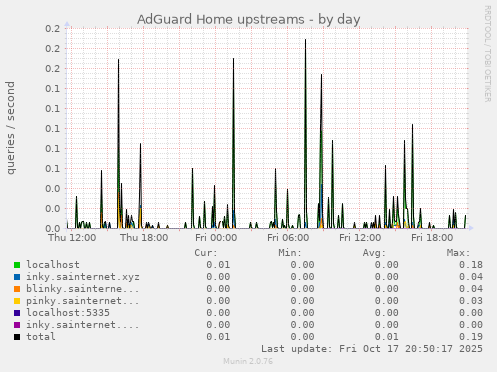

upstreams

This graph shows the top N AdGuard Home upstreams.

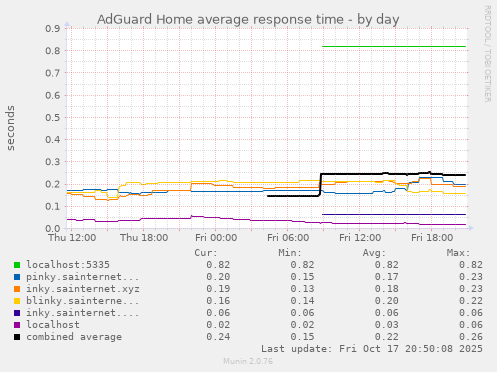

upstreams_avg

This graph shows average response time for the top N AdGuard Home upstreams.

---

Related Projects

pihole_munin_

• pihole_munin_

A Munin plugin for monitoring Pi-hole statistics, similar to adguardhome_munin_ but tailored for Pi-hole instances.

---

License

This project is licensed under the GNU GPL v3.

---

^{_{© 2025, saint-lascivious (Hayden Pearce)}}
