Icon mockups!!!!

Possible ways to display connections between servers:

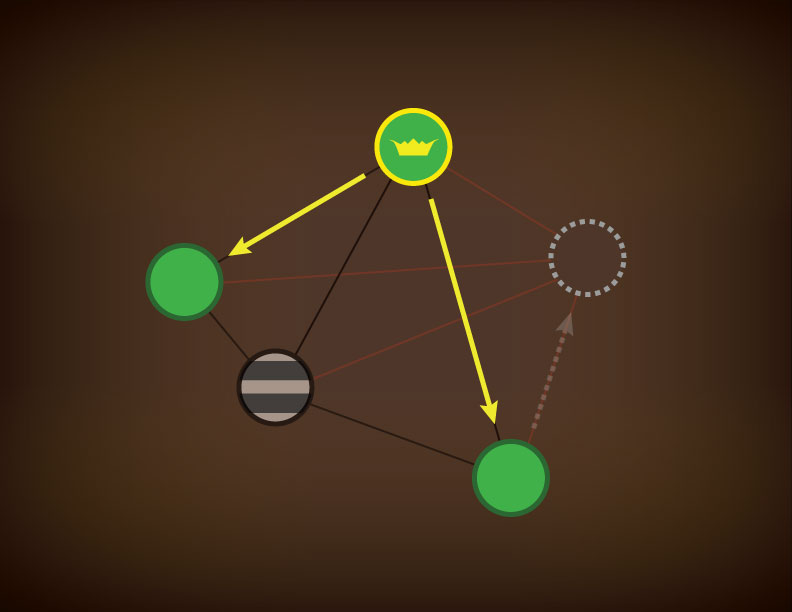

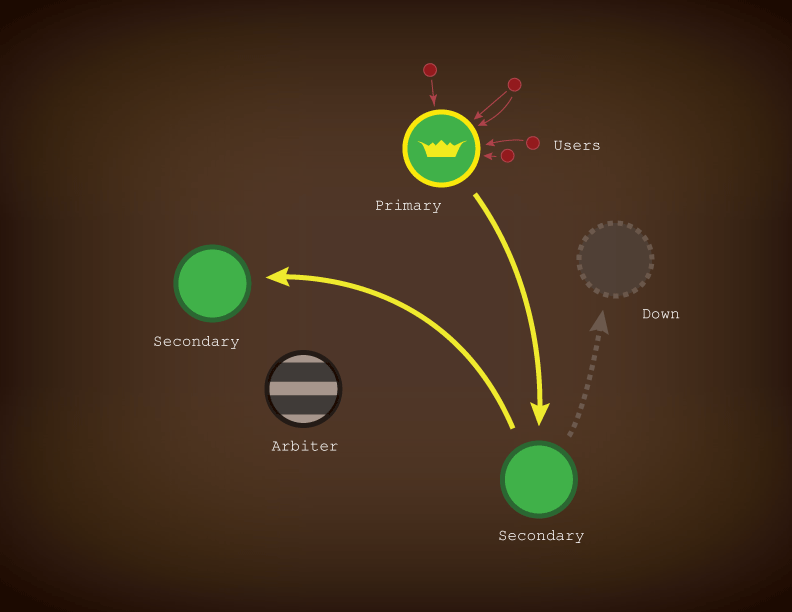

Connections between servers (with no information exchanged) appear as solid, thin dark lines. Disrupted connections appear as either grey and dotted lines (image 1) or thin red lines (image 2). Connections where information is exchanged between servers (syncing, or writes from users) appear as thicker, solid lines with arrows indicating the direction of the flow of information.

mouse-over example:

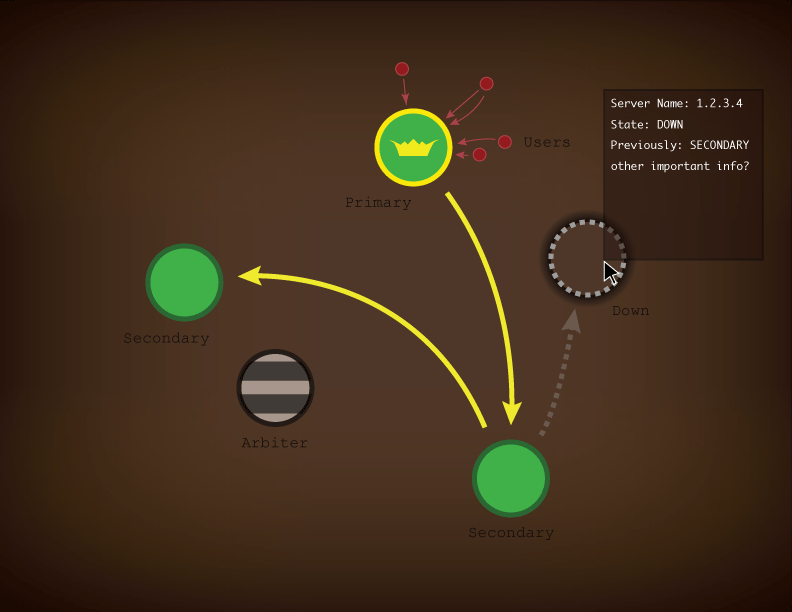

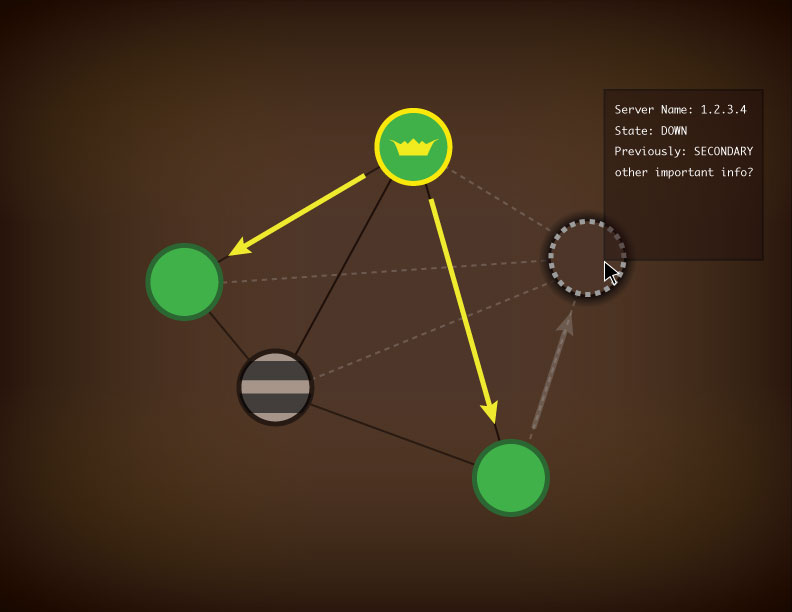

[When the user mouses over a server, a box should pop up with information about that server. Also, the server gets a drop shadow to set it apart from the others.]

another mockup:

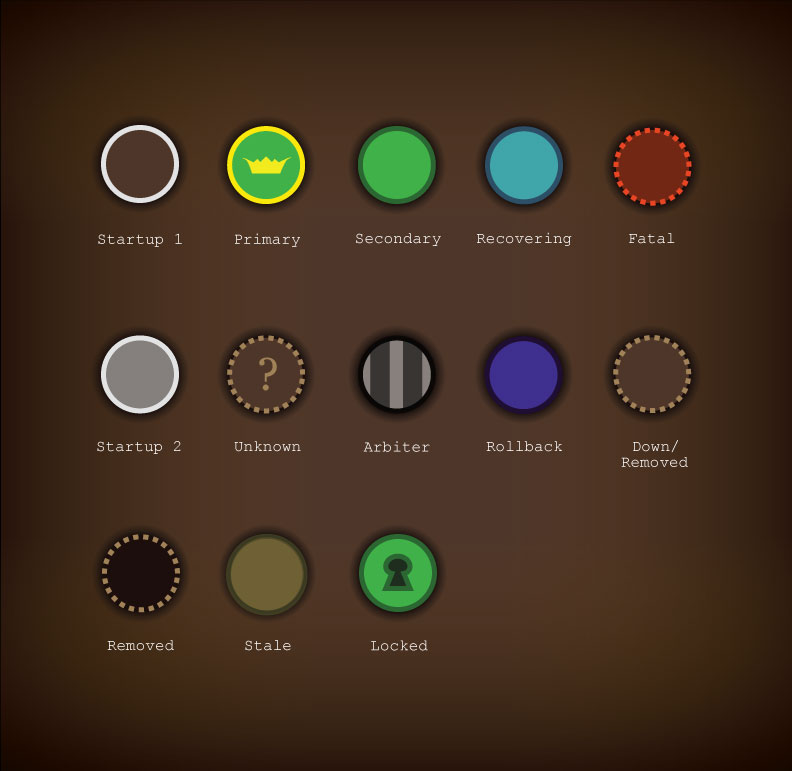

[various states and how we might render them]

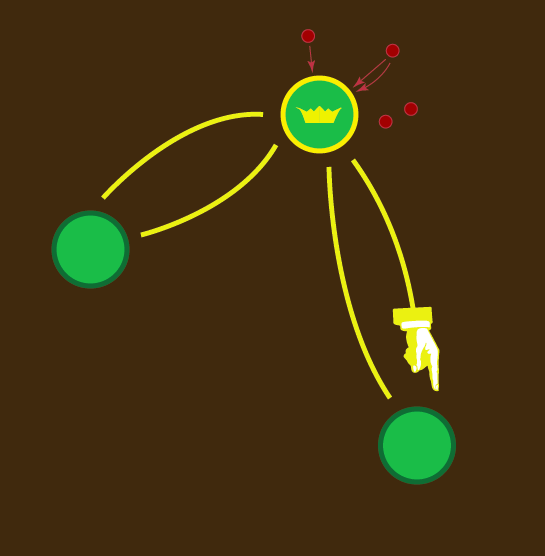

[The primary replSet bosses the other replSets around]
