Subsystem Verification of Pulpino RTL

This project aims at subsystem verification of Pulpino RTL block

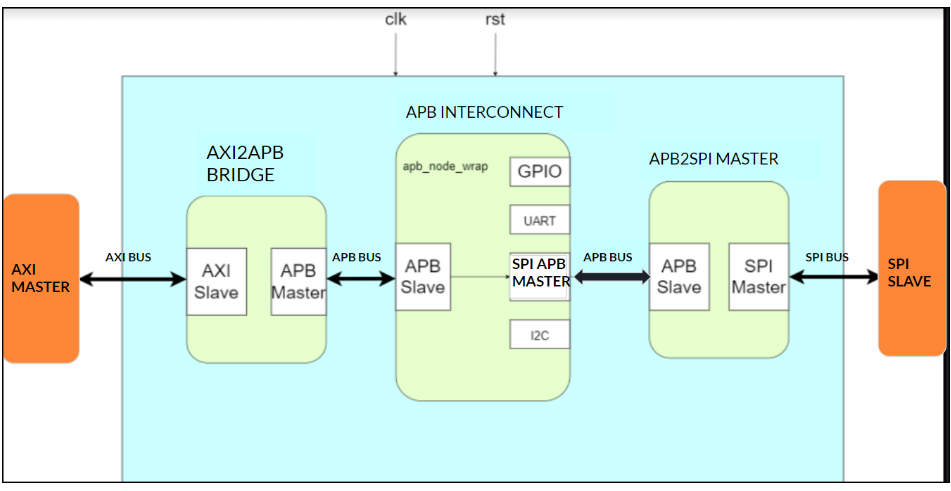

Block Diagram

Key Features

1. Standard SPI mode
2. Full Duplex SPI System
3. Single master SPI and single slave SPI
4. Single master axi4 and single slave AXI4
5. APB4 Interconnect for peripherals
6. Clock divider
7. Asynchronous active low hard reset
8. Software reset
9. SPI transfer length
10. Appending Dummy Data
11. Separate TXFIFO and RXFIFO
12. Interrupt Configuration

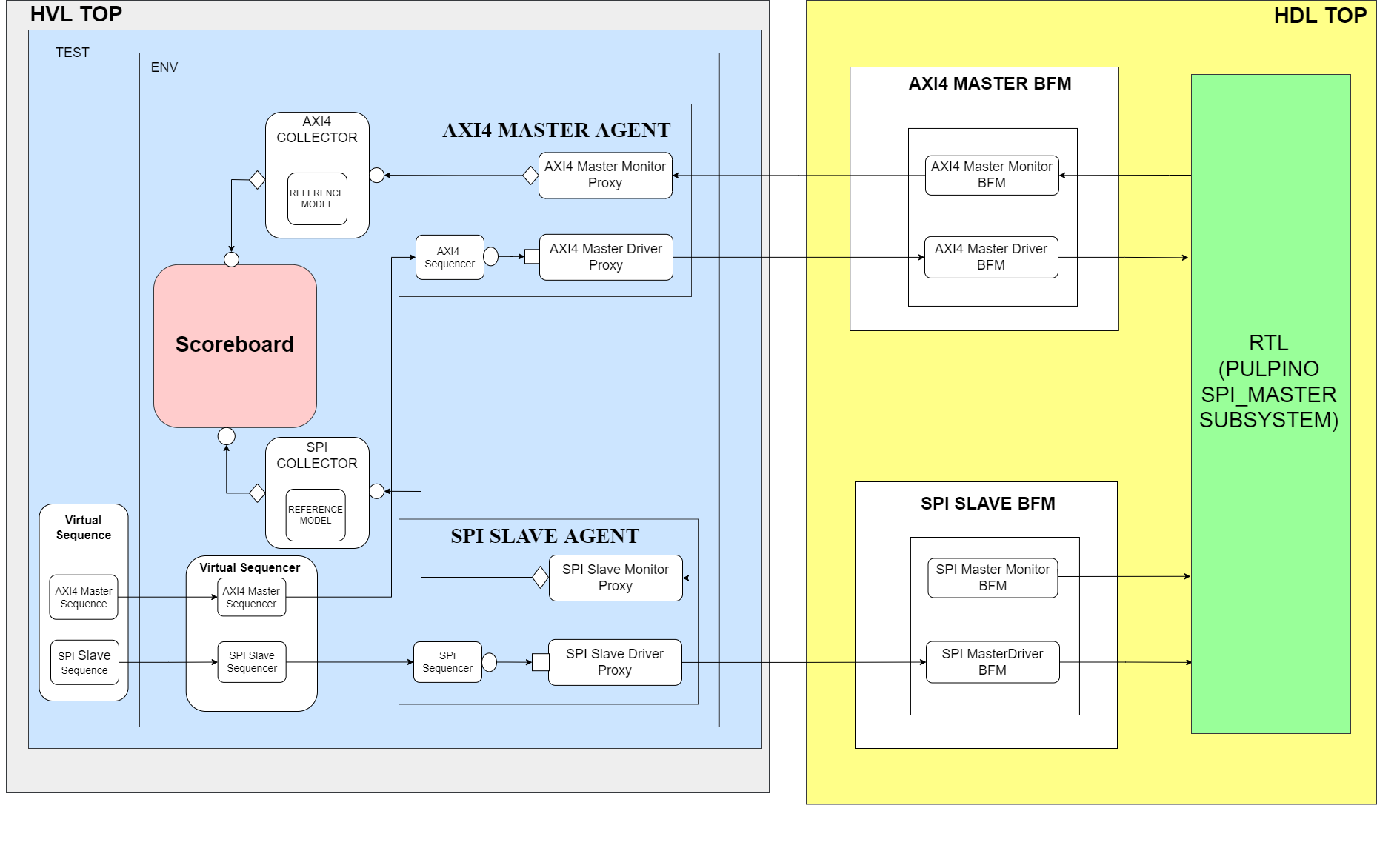

Testbench Architectural Diagram

Developers, Welcome

We believe in growing together and if you'd like to contribute, please do check out the contributing guide below:
https://github.com/mbits-mirafra/pulpino__spi_master__subsystem_verification/blob/development_branch_v1/contribution_guidelines.md

Installation - Get the VIP collateral from the GitHub repository

# Checking for git software, open the terminal type the command
git version

# Get the VIP collateral
git clone git@github.com:mbits-mirafra/pulpino__spi_master__subsystem_verification.git

Running the test

Using Mentor's Questasim simulator

cd pulpino__spi_master__subsystem_verification/sim/questasim

# Compilation:
make compile

# Simulation:
make simulate test=<test_name> uvm_verbosity=<VERBOSITY_LEVEL>

ex: make simulate test=basic_write_test uvm_verbosity=UVM_HIGH

# Note: You can find all the test case names in the path given below
pulpino__spi_master__subsystem_verification/src/hvl_top/testlists/regression.list

# Wavefrom:
vsim -view <test_name>/waveform.wlf &

ex: vsim -view basic_write_test/waveform.wlf &

# Regression:
make regression testlist_name=<regression_testlist_name.list>
ex: make regression testlist_name=regression.list

# Coverage:
 ## Individual test:
 firefox <test_name>/html_cov_report/index.html &
 ex: firefox basic_write_test/html_cov_report/index.html &

 ## Regression:
 firefox merged_cov_html_report/index.html &

Using Cadence's Xcelium simulator

cd pulpino__spi_master__subsystem_verification/sim/cadence_sim

# Compilation:
make compile

# Simulation:
make simulate test=<test_name> uvm_verbosity=<VERBOSITY_LEVEL>

ex: make simulate test=basic_write_test uvm_verbosity=UVM_HIGH

# Note: You can find all the test case names in the path given below
pulpino__spi_master__subsystem_verification/src/hvl_top/testlists/regression.list

# Wavefrom:
simvision waves.shm/ &

# Regression:
make regression testlist_name=<regression_testlist_name.list>
ex: make regression testlist_name=regression.list

# Coverage:
imc -load cov_work/scope/test/ &
