Testing CPU-Based Horizontal Pod Autoscaling on OpenShift

Prerequisites

• Red Hat Account and Developer Sandbox.

---

Hands-on Developer Sandbox

Step 1: Log in to Developer Sandbox

Log in with your Red Hat Account.

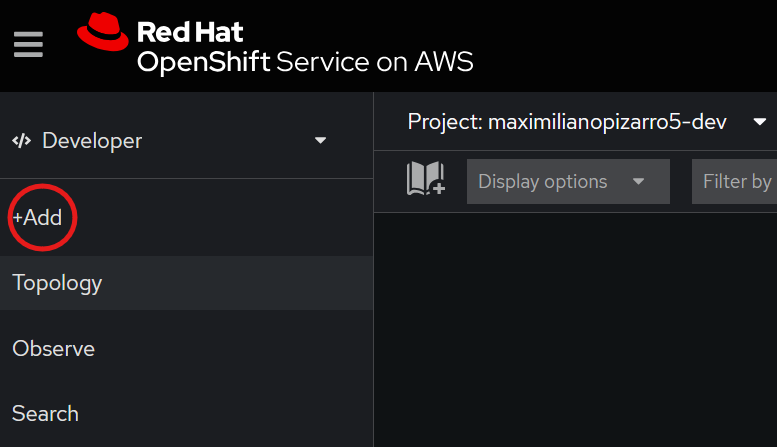

Step 2: Add a New Application

From the Developer perspective, click on the +Add button.

Step 3: Create an Application from a Code Sample

Go to Samples and select "Create an application from a code sample."

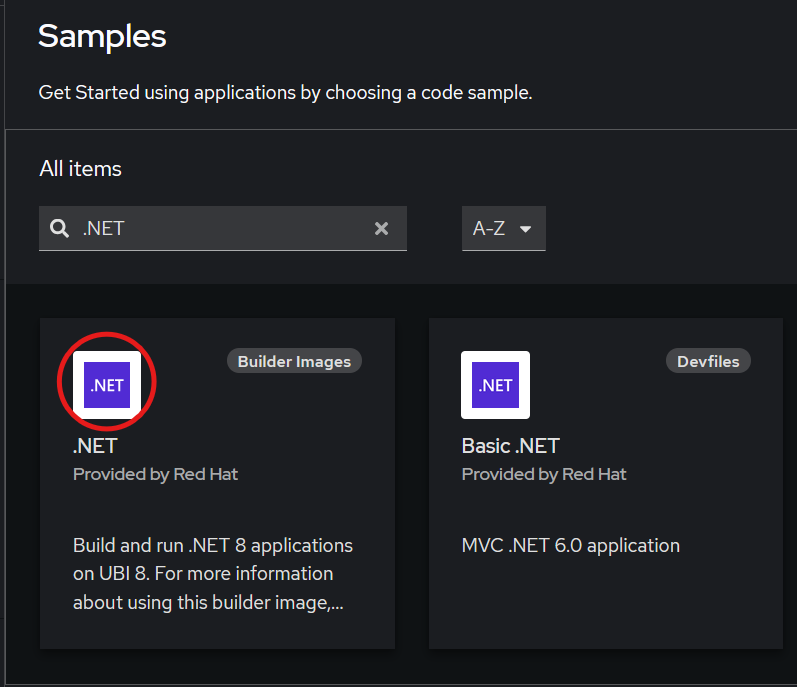

Step 4: Select .NET Builder Images Sample

Choose the .NET Builder Images Sample.

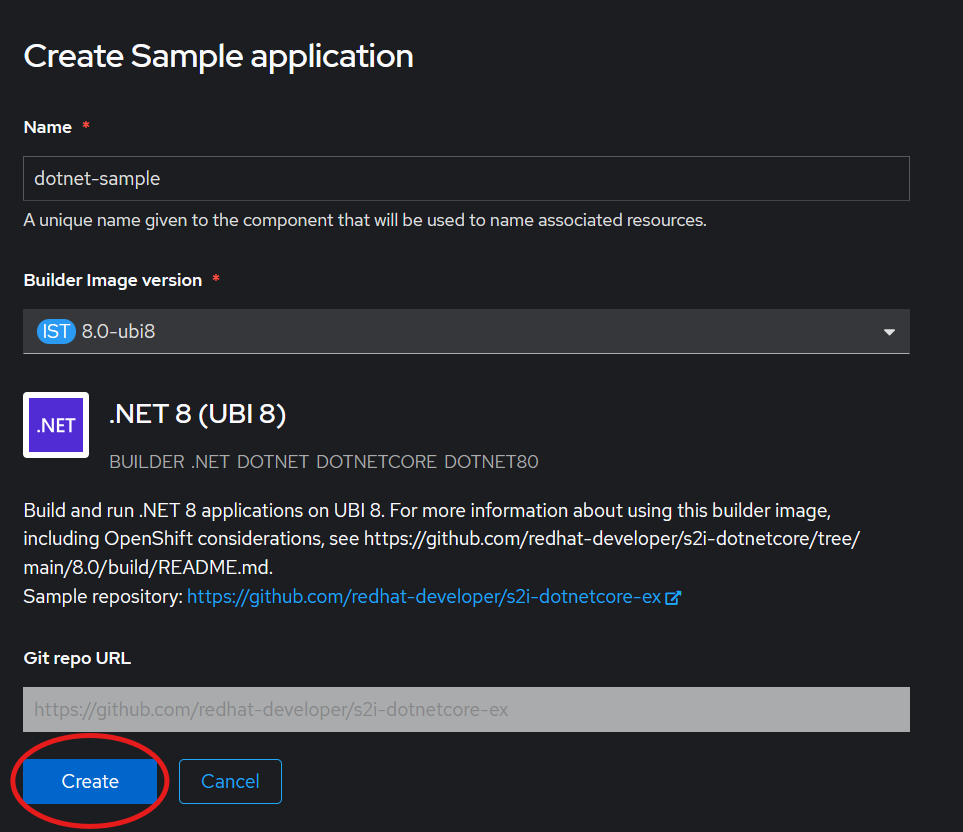

Step 5: Create the Application

Review the repository and click Create.

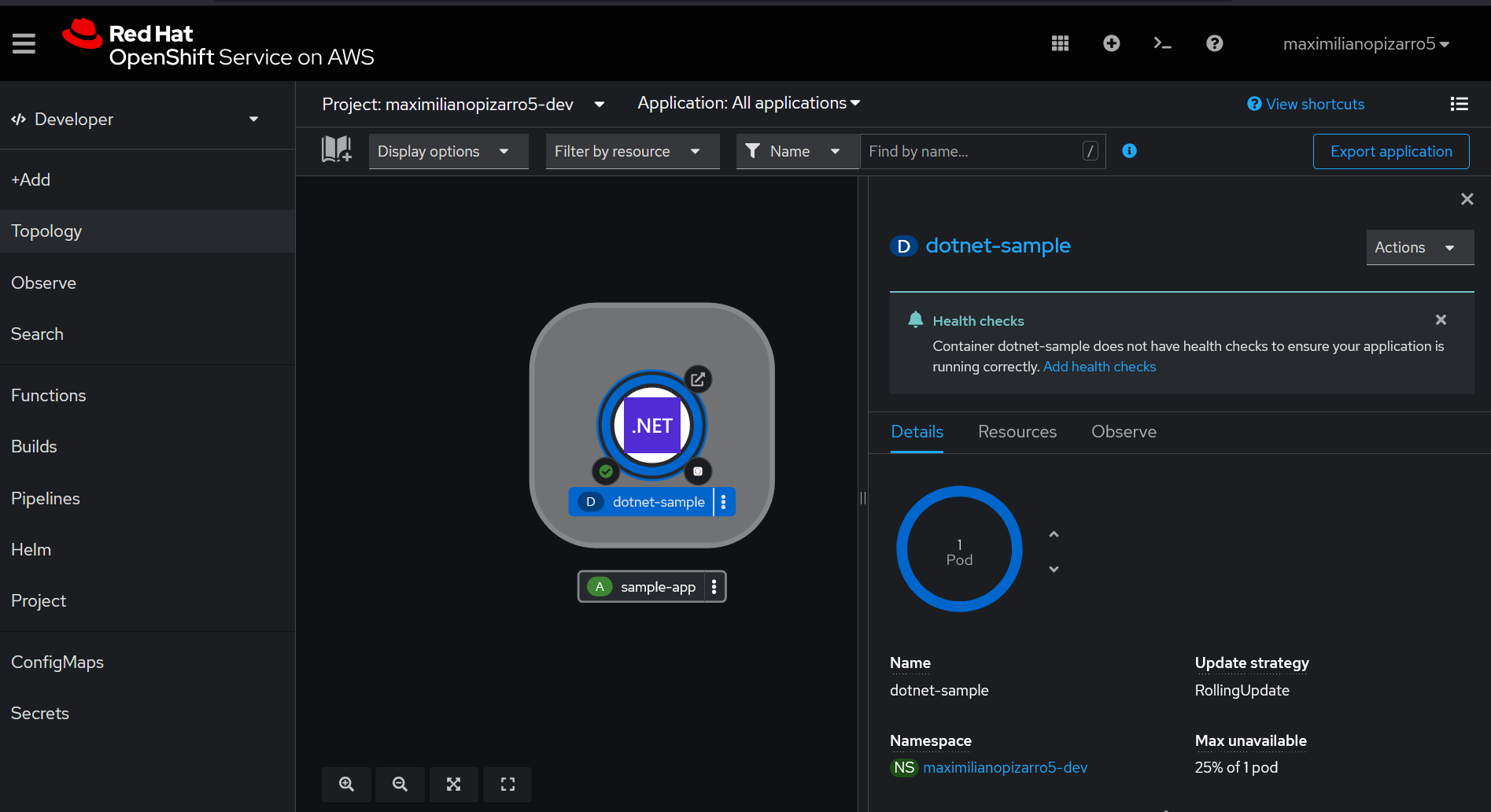

Step 6: Check the Topology Section

Wait for the pod to be ready in the Topology section.

---

Configure Resource Limits and HPA

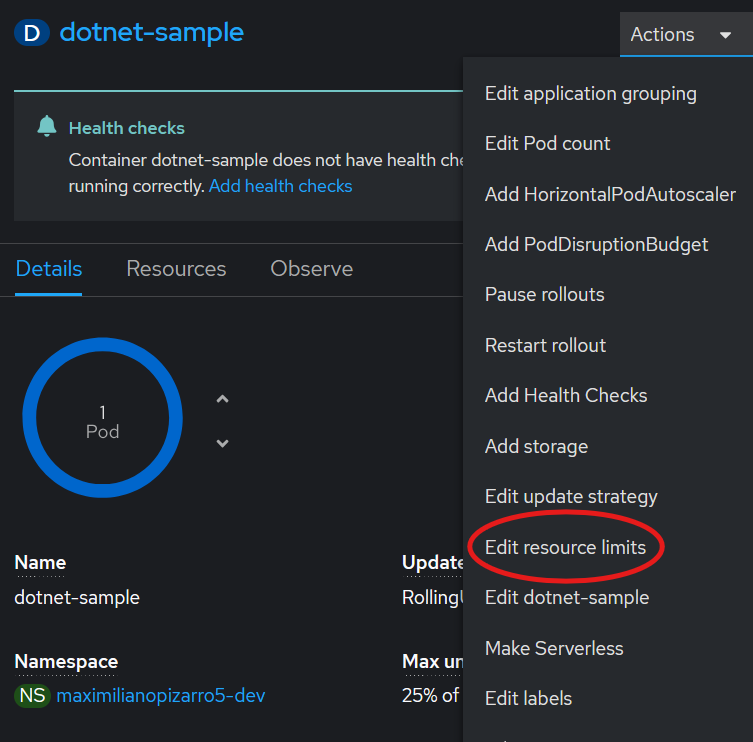

Step 7: Edit Resource Limits

From the dotnet-sample deployment, click Actions > Edit resource limits.

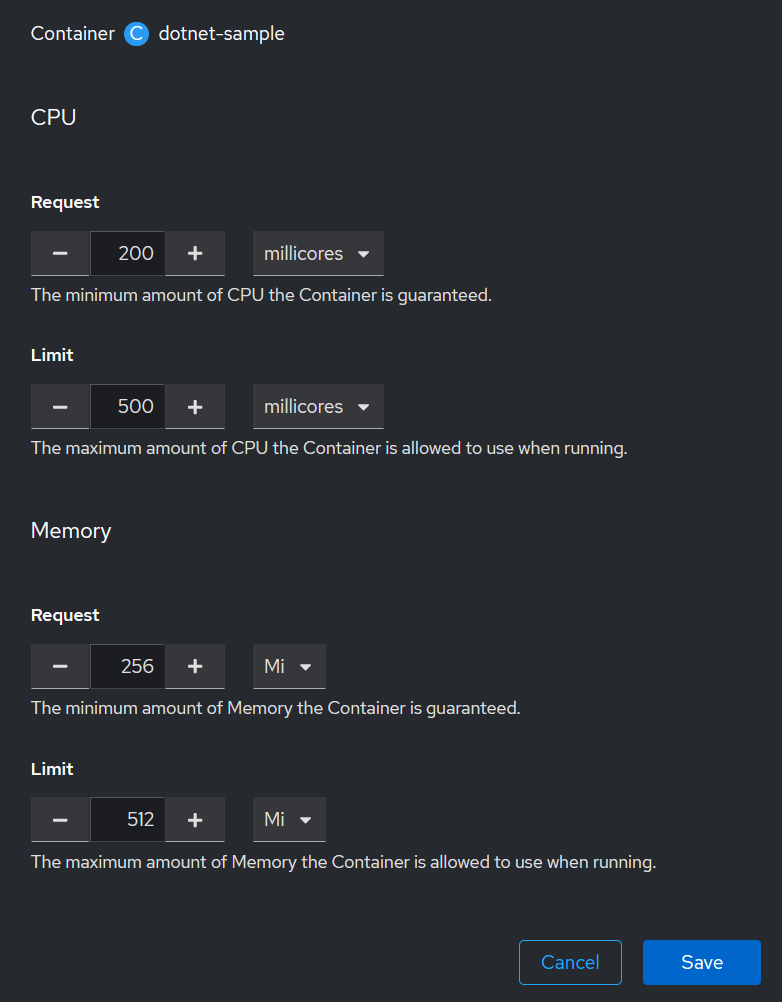

Step 8: Configure Resource Limits

Set the resource limits and requests, then click Save.

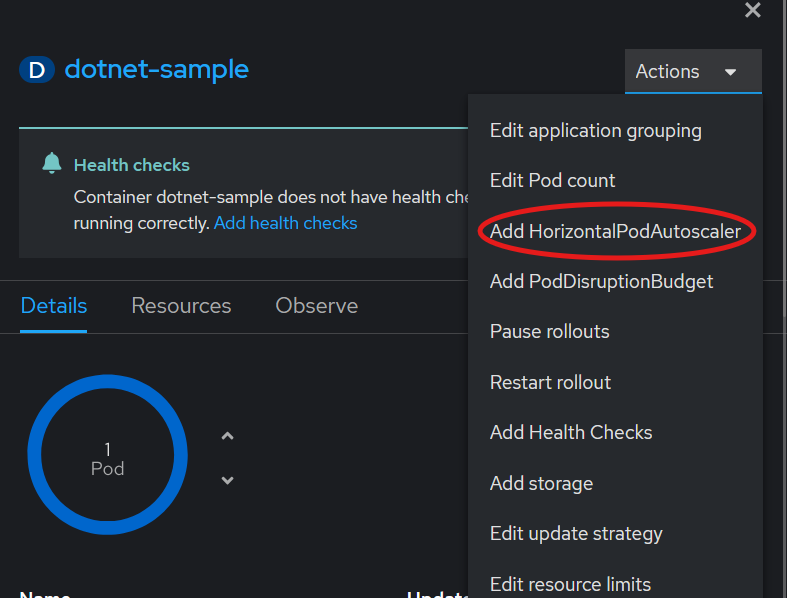

Step 9: Add Horizontal Pod Autoscaler

From the dotnet-sample deployment, click Actions > Add HorizontalPodAutoscaler.

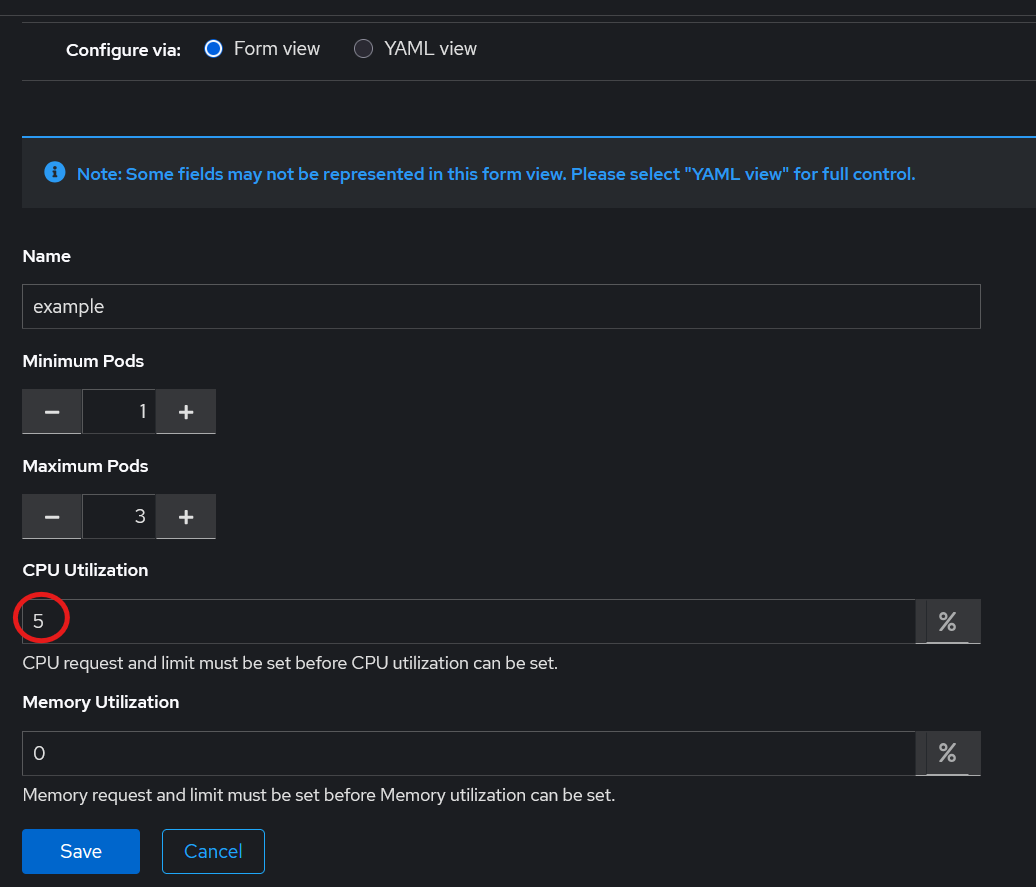

Step 10: Set CPU Utilization

Set the CPU Utilization to 5% and click Save.

---

Test the HPA

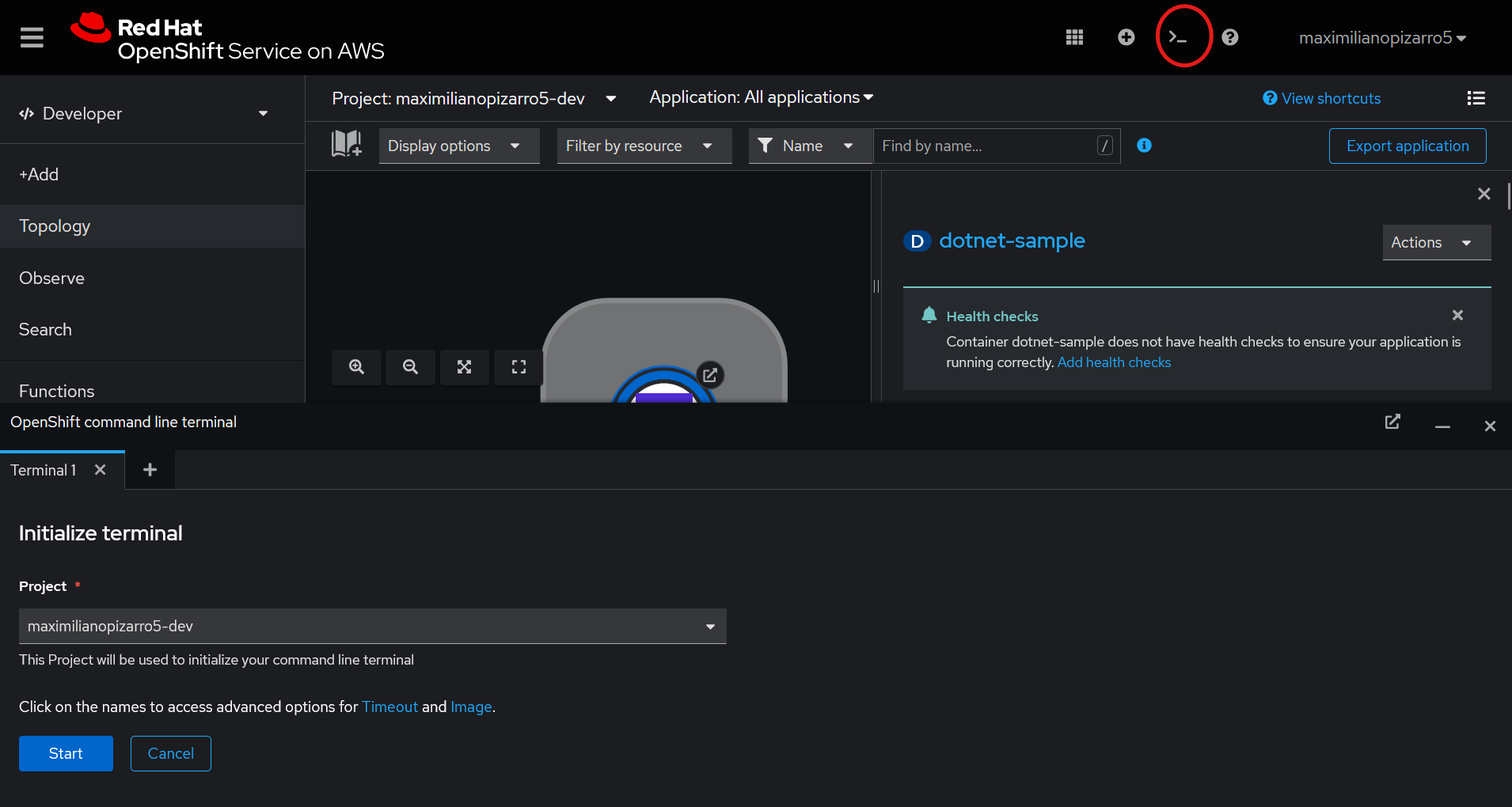

Step 11: Open OpenShift Terminal

Initialize the terminal with your project and click Start.

Step 12: Run the Test Script

a. Clone the Repository

git clone https://github.com/maximilianoPizarro/testing-cpu-based-hpa-ocp.git

b. Add chmod permission for test-hpa.sh script.

chmod 777 ./testing-cpu-based-hpa-ocp/test-hpa.sh

c. Run test-hpa.sh script.

./testing-cpu-based-hpa-ocp/test-hpa.sh

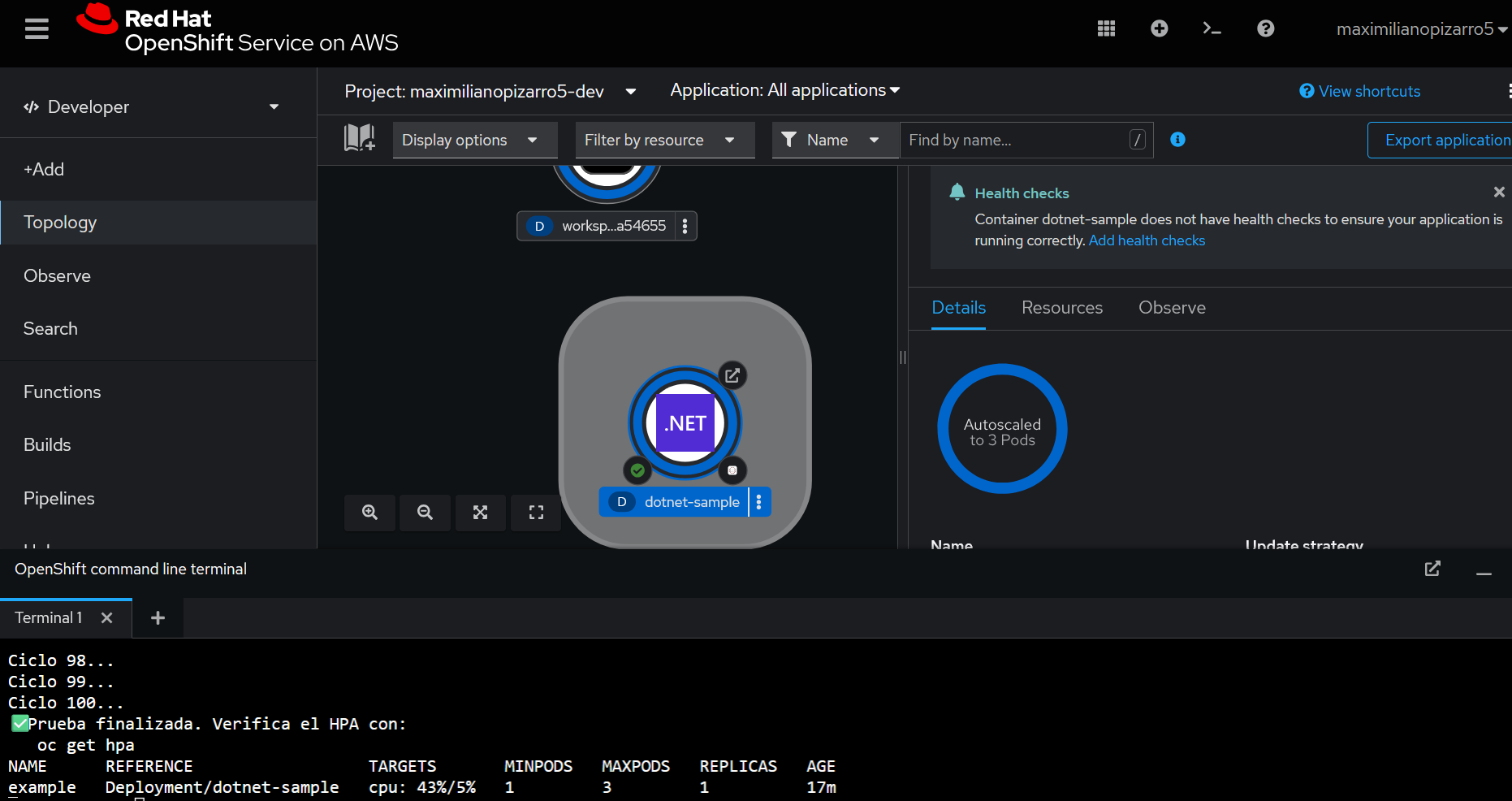

Step 13: Look at the HPA in action.

---
