Mapperator is a library meant for efficient beatmap pattern search based on features like rhythm and distance. This enables the conversion of features to real patterns to playable beatmaps.
Mapperator requires .NET 8 to run and only works for osu! standard gamemode beatmaps.
Extract beatmap data from a collection in your osu! songs folder.
.\Mapperator.ConsoleApp.exe extract -c collection_name -o data
Extract beatmap data from a specific mapper in your osu! songs folder.
.\Mapperator.ConsoleApp.exe extract -s Ranked -m Standard -a Sotarks -o SotarksData
Reconstruct a beatmap using the extracted data.
.\Mapperator.ConsoleApp.exe convert -d SotarksData -i path_to_beatmap.osu -o converted_beatmap
You can specify an osu! folder. There should be a config.json next to the executable with some paths. This is the contents:
{
"OsuPath": "C:\\Users\\name\\AppData\\Local\\osu!",
"SongsPath": "C:\\Users\\name\\AppData\\Local\\osu!\\Songs"
}
Create a generic dataset for Machine Learning from your songs folder.
.\Mapperator.ConsoleApp.exe dataset -s Ranked -m Standard -i 200000 -o "path to output folder"
With the verb dataset2 you can create a dataset in the new format with rich metadata from the osu! API.
It requires an osu! OAuth client token to be present in the config.json file that is automatically generated in the same folder when you run the console app executable.
The input data is given by a path to an input folder. It will search the input folder recursively for any .osz files or .zip archives containing .osz files. The input beatmaps must all be uploaded to the osu! website, otherwise there is no metadata to be found.
Repeat runs with the same output folder will generally attempt to append to the existing dataset, skipping over any beatmaps that are already in the dataset. If you instead wish to replace entries with your new input data, you can use the 'override' arguments to specify any categories that you would like to replace.
Mapperator.ConsoleApp.exe dataset2 -i "path/to/osz/files" -o "/datasets/cool_dataset"Dataset file structure
OutputFolder
├── metadata.parquet
├── data
│ ├── 1 Kenji Ninuma - DISCO PRINCE
│ │ ├── 20.mp3
│ │ ├── Kenji Ninuma - DISCOPRINCE (peppy) [Normal].osu
│ ├── 3 Ni-Ni - 1,2,3,4, 007 [Wipeout Series]
│ │ ├── 1,2,3,4, 007 (Speed Pop Mix).mp3
│ │ ├── Ni-Ni - 1,2,3,4, 007 [Wipeout Series] (MCXD) [-Breezin-].osu
│ │ ├── Ni-Ni - 1,2,3,4, 007 [Wipeout Series] (MCXD) [-Crusin-].osu
│ │ ├── Ni-Ni - 1,2,3,4, 007 [Wipeout Series] (MCXD) [-Hardrock-].osu
│ │ ├── Ni-Ni - 1,2,3,4, 007 [Wipeout Series] (MCXD) [-Sweatin-].osu
...
Included metadata
>>> df.loc[989342].iloc[0]
Artist Denkishiki Karen Ongaku Shuudan
ArtistUnicode 電気式華憐音楽集団
Creator OliBomby
FavouriteCount 87
Nsfw False
Offset 0
BeatmapSetPlayCount 100314
Source
BeatmapSetStatus ranked
Spotlight False
Title Aoki Kotou no Anguis
TitleUnicode 碧き孤島のアングゥィス
BeatmapSetUserId 6573093
Video False
Description <div class='bbcode bbcode--normal-line-height'...
GenreId 11
GenreName Metal
LanguageId 3
LanguageName Japanese
PackTags [S862]
Ratings [0, 4, 1, 0, 0, 1, 1, 3, 2, 13, 116]
DownloadDisabled False
BeatmapSetBpm 197.0
CanBeHyped False
DiscussionLocked False
BeatmapSetIsScoreable True
BeatmapSetLastUpdated 2020-01-28 13:23:12
BeatmapSetRanked 1
RankedDate 2020-02-06 13:02:45
Storyboard False
SubmittedDate 2019-06-18 12:02:28
Tags denkare metal power gothic japanese carnaval t...
DifficultyRating 6.16
Mode osu
Status ranked
TotalLength 253
UserId 6573093
Version Ardens Spes
Checksum f05ed490aece35b410421d7009dfb238
MaxCombo 1779
Accuracy 9.0
Ar 9.3
Bpm 197.0
CountCircles 1014
CountSliders 362
CountSpinners 2
Cs 4.0
Drain 6.0
HitLength 253
IsScoreable True
LastUpdated 2020-01-28 13:23:12
ModeInt 0
PassCount 4653
PlayCount 51390
Ranked 1
StarRating [3.5099857, 4.8706975, 6.1123815, 7.53119, 9.0...
OmdbTags [simple, geometric, bursts, stamina, clean, ma...
AudioFile audio.mp3
BeatmapSetFolder 989342 Denkishiki Karen Ongaku Shuudan - Aoki ...
BeatmapFile Denkishiki Karen Ongaku Shuudan - Aoki Kotou n...
Name: 2069601, dtype: object

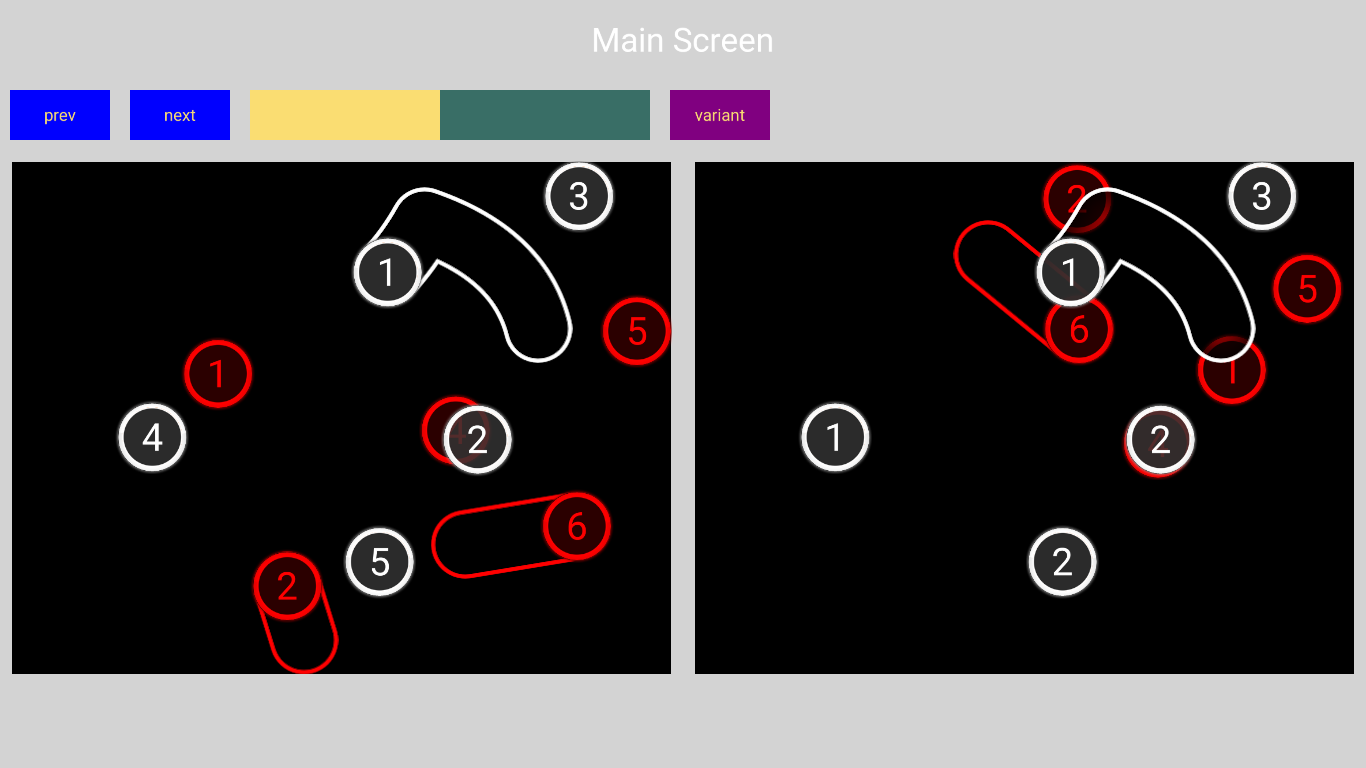

The left view shows the original beatmap, the right view shows the reconstruction in red.
Clicking the prev or next buttons or clicking the timeline allows for seeking to different parts of the beatmap. Clicking the variant button generates the next best reconstruction of the pattern.
The Demo App uses the SotarksData dataset which contains all of Sotarks' ranked beatmaps and GD's.
