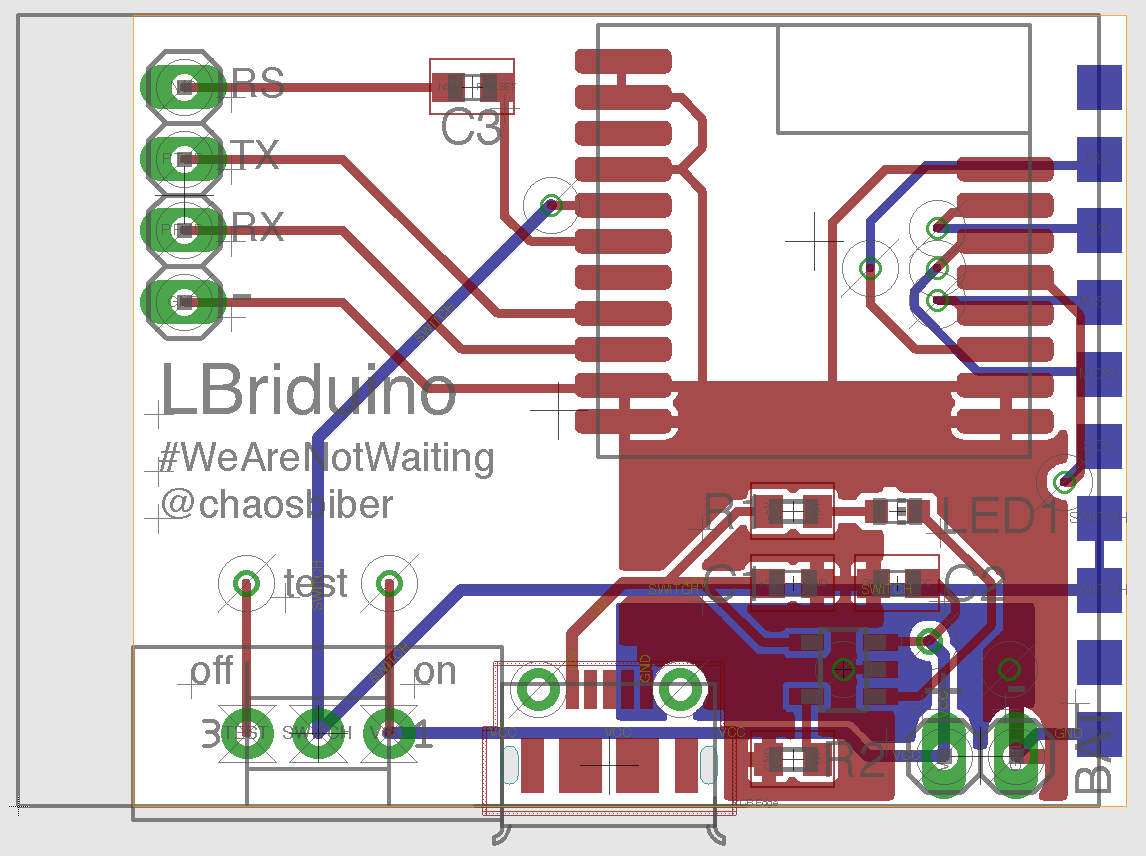

This is a PCB design for keencave's LBridge code. It's my very first design and still in testing, dragons beware!
Made with free version of EAGLE for BM019 and RFDuino.
The switch has the states On (1-2) and Off/Testing (2-3). The batterie can be charged in any state, in the off-state the NFC and RFDuino modules are disconnected. But there are two testing vias that can be shorted or connected to an ampere meter.
(product links from 2017/12/10)
- BM019
http://www.solutions-cubed.com/bm019/
http://www.warburtech.co.uk/products/modules/solutions.cubed.bm019.serial.to.nfc.converter/ - RFduino RFD22301
https://www.mouser.de/ProductDetail/RF-Digital-Wireless/RFD22301/ - Lipo Charger IC MCP73831T-2ACI/OT
- C1/C2: Capacitor 0603 4.7µF (measured 3.8µF)
- C3: Capacitor 0603 100nF (to program RFDuino)
- R1: 330 Ohm
- R2: 3kOhm (for ~333mA charging speed, default 2kOhm for ~500mA. Ic = 1000/R2)
- red LED 0603
- Sliding switch SPDT (generic, I ordered Apem MHSS1105)
- Molex 105017-0001 USB micro-B connector
- USB programmer for the RFDuino (RFD22121), or any adapter with serial connection at 3.3V level
