This is the documentation for RK3568 14inch Tablet products, written by RSD Team of HYY Technology Co.,Ltd.
YF-023D RK3568 SBC/mainboard/motherboard Specifications Sheet
RK3568 14inch Tablet Specifications Sheet
| Model NO. ALLTAB-14RK3568A11PoE | ||
| Product Type | 14" POE | |
| System | CPU | Rockchip RK3568 64bit Quad core processor, CPU:Quad core Arm Cortex-A55(2.0G), GPU: Mali-G52 GPU, NPU: 1TOPS NPU |
| RAM | 2GB(4GB option) | |
| ROM | 16GB(32GB option) | |
| System | Android 11, Debian, Linux | |
| Touch screen | 10-Point capacitive touch | |

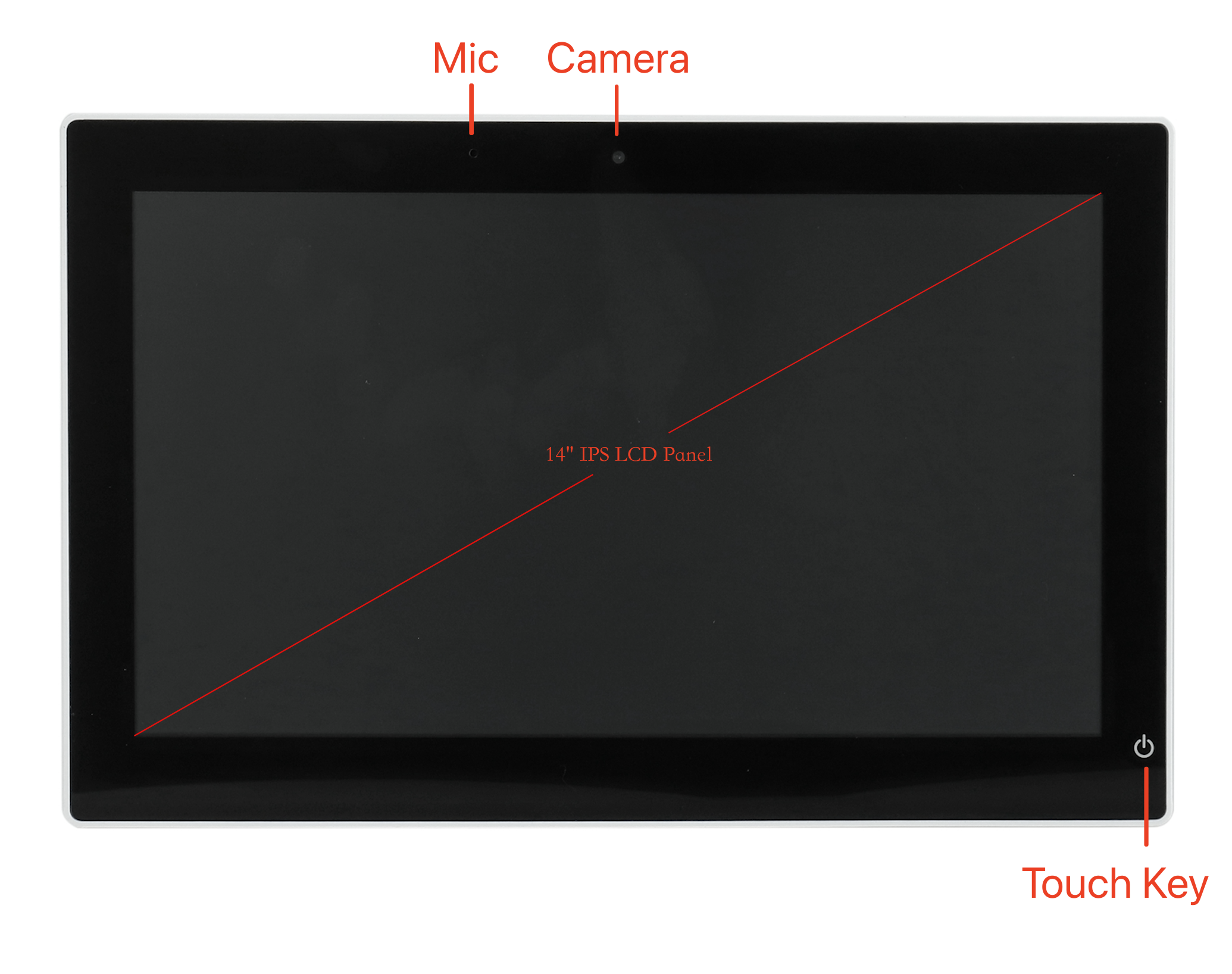

| Display | Panel | 14" LCD IPS panel |
| Resolution | 1920*1080 Wide viewing | |
| Active area | 309.312(H)x 173.988(V) | |
| Viewing angle | 85/85/85/85(L/R/U/D) | |
| Display mode | Normally black,IPS | |
| Contrast ratio | 1000:1(Typ.) | |
| Luminance | 500cd/m²(Typ.) | |
| Aspect Ratio | 16:9 | |
| Network | WiFi | 802.11b/g/n 2.4/5GHz(Dongle Option) |
| 4G | Support external 3G USB dongle(4G Module Option) | |
| Ethernet | 10M/100M Ethernet with POE | |
| Bluetooth | Bluetooth 4.1 | |
| Interface | TF | Support TF card ( Max 32G ) |
| USB Host 2.0 | USB Host 2.0(Switch to OTG by soft) | |
| USB Host 3.0 | USB Host 3.0 | |
| Power Jack | DC power input | |
| RJ45 | Ethernet with POE | |
| Headset | 3.5mm stereo headphone/micro output | |
| Multimedia | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K Video decode – H.264/H.265/VP9 Video encode – 1080p60 H.264/H.265 |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg/jpg/png etc. | |
| Others functions | Speaker | 2*3W |
| Wireless mouse | Support | |
| Wireless keyboard | Support | |
| VESA | 75x75mm | |
| Camera | 2 million pixel camera,Front | |
| Micphone | YES | |
| Language | Multi-language | |
| Working temp | 0--40degree | |
| Certificates | CE | |
| Accessories | Adapter | Adapter,12V,3A |
| Desktop Bracket | Standard | |
| User manual | YES | |
