OVR Unity SDK

Unity Setup

1. Go to Unity Hub, and download Unity Hub (not the beta version)
2. After downloading Unity Hub, download the unity version 2020.3.16f1 from Unity Version.

Fig 1.2: Unity Version

3. Select Android and iOS platforms.

Fig 1.3: Unity platforms

4. Create new project in unity with the download version.

Install Ovr Editor Package

• You can download the unity package OVR_SDK_0.0.1_Alpha.unitypackage from this repository.

Create and use your Ovr API Keys

1. Login on the Ovr Web Builder https://builder.ovr.ai using your credentials or your Metamask wallet and click on "Api Keys" from the top menu.

Fig 3.1: Click on API Keys

2. Click on the the button "Create token".

Fig 3.2: Click on Create token

3. Type a name as a reference and select an expiration date.

Fig 3.3: Create your token

4. Select and copy the newly created token to use it in Unity .

Fig 3.4: Get and use your token

Ovr Editor Interface

1. Main Window

Fig 4.1: Ovr Editor - Token textbox - Validate Button

2. Login Window

Fig 4.2: Login Window - Logout button - User projects dropdown - Create new project button - Publish button

3. Create new project Window

Fig 4.3: Create new project window - Project name - Project thumbnail path - Load thumbnail button - Create project button

4. Publish an experience to your OVRLand

Fig 4.4: Publishing window - Prefab thumbnail path - Prefab selection - User lands dropdown - Publish button - Back button

Publish an experience to your OVRLand

1. Open Ovr Editor from the toolbar (or use Ctrl + Shift + O).

Fig 5.1: Unity toolbar

2. Enter login token.

3. Click on Validate Token button.

Fig 5.2: Validate token

4. Select the project from the dropdown or create a new project then click on Prepare Publish button.

Fig 5.3: Create/Select project

5. Publish:
   • Select prefab thumbnail
   • Select the prefab
   • Select the OVRLand
   • Click on the Publish button

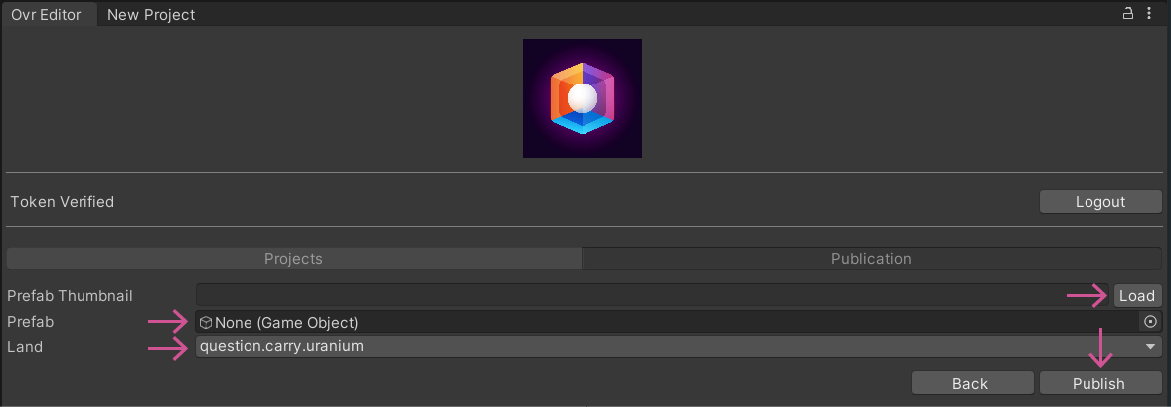

Fig 5.4: Publish prefab
