Hyperlane

[samgermain]

builds on #497

Relates to

#301

What does this PR do?

Hyperlane methods use walletClient for signing, sendingTransactions, etc instead of using ethers.Signer, ethers.Contract ...

• properties added to EVMTransaction
• new types TransactionLog, EVMTransactionResult
• ViemEVMWalletClient waitForReceipt returns the whole transaction receipt
• LitEVMWalletClient waitForReceipt returns the whole transaction receipt
• created custom EVMWalletClientSigner to use instead of ethers signer
• hyperlane methods now use the walletClient to signTransactions
• hyperlane bug fixes
• updated hyperlane node_modules
• updated error handling in hyperlane

Testing

import { http, createWalletClient } from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { sepolia } from "viem/chains";
import { viem } from "../../../packages/wallets/viem/dist/ViemEVMWalletClient.js";

import dotenv from "dotenv";
import { HyperlaneService } from "../../../packages/plugins/hyperlane/dist/hyperlane.service.js";
dotenv.config();
const account = privateKeyToAccount(process.env.WALLET_PRIVATE_KEY as `0x${string}`);

const walletClient = createWalletClient({
    account: account,
    transport: http(process.env.RPC_PROVIDER_URL),
    chain: sepolia,
});

const hyperlane = new HyperlaneService();
const address = "0x0Ef3456E616552238B0c562d409507Ed6051A7b3";
const originChain = "sepolia";
const destinationChain = "linea";
const contractType = "mailbox";
const sepoliaMailbox = "0xfFAEF09B3cd11D9b20d1a19bECca54EEC2884766";
const sepoliaTestnetValidator = "0x28b91d3dc0d0e138adf914105d88c8830cc66f4e";

const wallet = viem(walletClient);

async function main() {
    const sendMessageResponse = JSON.parse(
        await hyperlane.sendMessage(wallet, {
            originChain: originChain,
            destinationChain: destinationChain,
            destinationAddress: address,
            message: "hello",
        }),
    );
    console.log(`sendMessage response: ${JSON.stringify(sendMessageResponse)} \n`);

    const messageId = sendMessageResponse.messageId;

    const readMessageResponseOrig = JSON.parse (await hyperlane.readMessage({
      chain: originChain,
      messageId,
    }));
    console.log(`readMessage origin response: ${JSON.stringify(readMessageResponseOrig)} \n`);

    const getMailboxResponse = JSON.parse (await hyperlane.getMailbox({
      chain: originChain,
    }));
    console.log(`getMailbox response: ${JSON.stringify(getMailboxResponse)} \n`);

    const getDeployedContractsResponse = JSON.parse (await hyperlane.getDeployedContracts({
      chain: originChain,
      contractType,
    }));
    console.log(`getDeployedContracts response: ${JSON.stringify(getDeployedContractsResponse)} \n`);

    const configureIsmResponse = JSON.parse(
        await hyperlane.configureIsm(wallet, {
            chain: originChain,
            type: "trustedRelayerIsm",
            mailbox: sepoliaMailbox,
            config: {
                relayer: address,
            },
        }),
    );
    console.log(`configureIsm response: ${JSON.stringify(configureIsmResponse)} \n`);

    const manageValidatorsResponse = JSON.parse(
        await hyperlane.manageValidators(wallet, {
            chain: originChain,
            action: "ADD",
            validator: sepoliaTestnetValidator,
            weight: 1,
        })
    );
    console.log(`manageValidators response: ${JSON.stringify(manageValidatorsResponse)} \n`);
}

main();

// RESPONSE
//
// % tsx src/index.ts
// Fetching from github: https://raw.githubusercontent.com/hyperlane-xyz/hyperlane-registry/main/chains/metadata.yaml
// Fetching from github: https://raw.githubusercontent.com/hyperlane-xyz/hyperlane-registry/main/chains/addresses.yaml
// {"level":30,"time":1746227894431,"pid":68360,"module":"MultiProvider","msg":"Pending https://sepolia.etherscan.io/tx/0xb750fcc38bb61212e9e0bc28fc45f457ed9ccf0f813fa9da7304691e3b385ebc (waiting 1 blocks for confirmation)"}
// sendMessage response: {"message":"Message sent successfully","messageId":"0x4f96c0d94ffb83abccda43c86f4570e6354cccac4dc12b50d327f75668b4291b","transactionHash":"0xb750fcc38bb61212e9e0bc28fc45f457ed9ccf0f813fa9da7304691e3b385ebc","dispatchedMessage":{"parsed":{"version":3,"nonce":858529,"origin":11155111,"sender":"0x0000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b3","destination":59144,"recipient":"0x0000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b3","body":"0x68656c6c6f","originChain":"sepolia","destinationChain":"linea"},"id":"0x4f96c0d94ffb83abccda43c86f4570e6354cccac4dc12b50d327f75668b4291b","message":"0x03000d19a100aa36a70000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b30000e7080000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b368656c6c6f"},"isDelivered":false,"originDomain":11155111,"destinationDomain":59144}
//
// readMessage origin response: {"message":"Message is pending delivery","details":{"id":"0x4f96c0d94ffb83abccda43c86f4570e6354cccac4dc12b50d327f75668b4291b","status":"PENDING","chain":{"name":"sepolia","domainId":11155111},"content":{"raw":"0x03000d19a100aa36a70000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b30000e7080000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b368656c6c6f","decoded":"0x68656c6c6f"},"metadata":{"sender":"0x0000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b3","recipient":"0x0000000000000000000000000ef3456e616552238b0c562d409507ed6051a7b3","nonce":858529,"originChain":"sepolia","destinationChain":"linea"}}}
//
// getMailbox response: {"message":"Mailbox address retrieved successfully","details":{"chain":"sepolia","mailboxAddress":"0xfFAEF09B3cd11D9b20d1a19bECca54EEC2884766","chainInfo":{"name":"sepolia","chainId":11155111,"domainId":11155111,"protocol":"ethereum","rpcUrls":[{"http":"https://ethereum-sepolia.publicnode.com"},{"http":"https://gateway.tenderly.co/public/sepolia"},{"http":"https://sepolia.drpc.org"},{"http":"https://1rpc.io/sepolia"}]}}}
//
// getDeployedContracts response: {"message":"Deployed contracts retrieved successfully","details":{"chain":"sepolia","chainInfo":{"name":"sepolia","chainId":11155111,"domainId":11155111},"contracts":{"mailbox":"0xfFAEF09B3cd11D9b20d1a19bECca54EEC2884766"}}}
//
// {"level":30,"time":1746227901494,"pid":68360,"module":"deployer","msg":"Deploying trustedRelayerIsm on sepolia with constructor args (0xfFAEF09B3cd11D9b20d1a19bECca54EEC2884766, 0x0Ef3456E616552238B0c562d409507Ed6051A7b3)..."}
// {"level":30,"time":1746227912918,"pid":68360,"module":"MultiProvider","msg":"Pending https://sepolia.etherscan.io/tx/0x76d7fd2d875d5c8b4a8754d3a83b15463ee43df9dcaecdfeab3eea9f37e59d7b (waiting 1 blocks for confirmation)"}
// configureIsm response: {"message":"ISM configured successfully","details":{"chain":"sepolia","type":"trustedRelayerIsm","config":{"type":"trustedRelayerIsm","relayer":"0x0Ef3456E616552238B0c562d409507Ed6051A7b3"}}}
//
// manageValidators response: {"message":"Validator added successfully","details":{"chain":"sepolia","action":"ADD","validator":"0x28b91d3dc0d0e138adf914105d88c8830cc66f4e","weight":1,"transactionHash":"0x8813a16fd3b2e004dc32b62325360da3738bda52a01df0ef48b909e96e5a1ebe"}}

Detailed testing results

Can test using this model-context-protocol server: https://github.com/samgermain/hyperlane-claude (set path to typescript/examples/by-use-case/hyperlane-claude)

Method	Prompt	Screenshot	Transaction Link

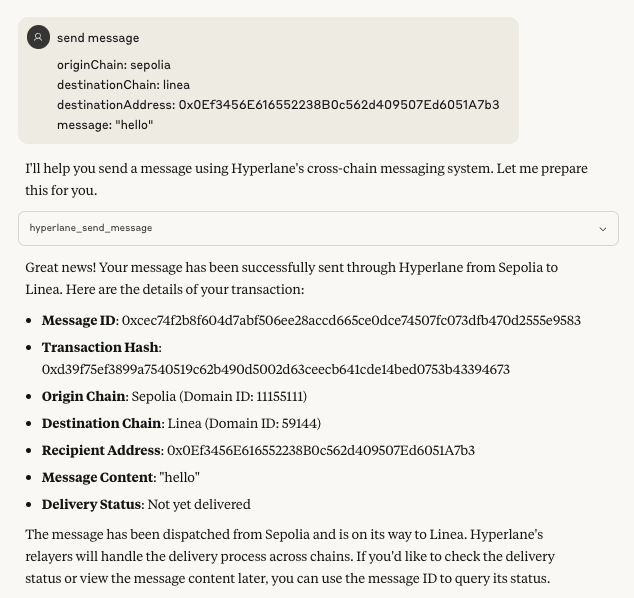

sendMessage	send message		https://sepolia.etherscan.io/tx/0xd39f75ef3899a7540519c62b490d5002d63ceecb641cde14bed0753b43394673
readMessage	read message
getMailbox	get mailbox

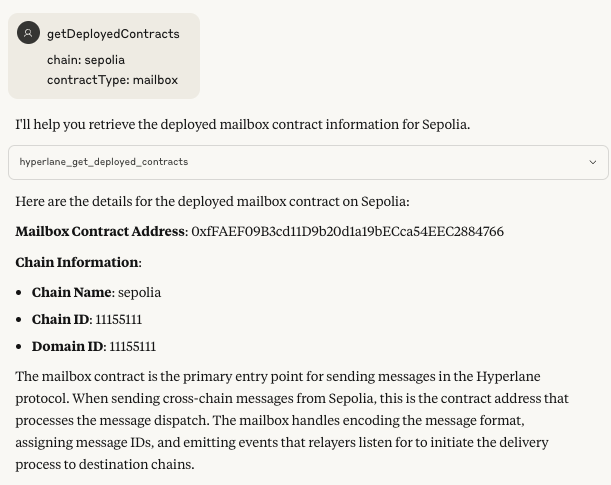

getDeployedContracts	get deployed contracts

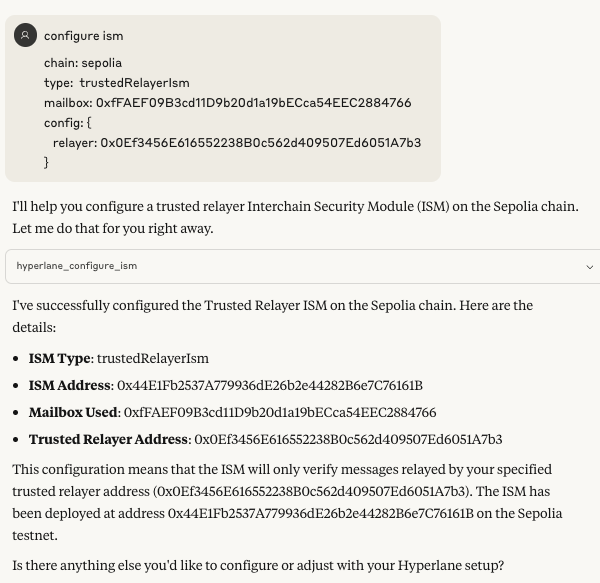

deployIsm	configure Ism
manageValidators	manage Validators		https://sepolia.etherscan.io/tx/0x9c8172718dc46d84b9059cfd1b63131104036158d82011e3b779b62910df580e
getTokens	get all tokens for chain sepolia
inspectWarpRoute	inspect a warpRoute on sepolia with address 0xeDF994D49F865D3a4bd6F74AeFbe1DcCAE7204F2
sendAssets	can you send assets from lineasepolia to basesepolia warpRouteAddress: "0x1c3784590F1ccA6ae346953061684c4A18079f5b", tokenAddress: "0xF64E6E064a71B45514691D397ad4204972cD6508", recipientAddress: "0x0Ef3456E616552238B0c562d409507Ed6051A7b3", amount: "0.0001"		https://sepolia.lineascan.build/tx/0xda6aea4ce794879278607d5932d2057b21d28ec741cff82d359ad1a2cd5d4ac6

Checklist

• I have tested this change and added the relevant screenshots to the PR description
• I updated the README if necessary to include the new plugin, wallet, chain, etc.

If you require releasing a new version of the package:

• I have added a changset for the specific package by running pnpm change:add from the typescript directory
