Pointing-poker

Pointing poker is an easy self hosted solution for Agile teams wanting to add points to their user stories.

Releases

• Latest Release
• All Releases

Contribute

There are many ways to contribute to pointing-poker.

• Submit bugs and help us verify fixes as they are checked in.
• Review source code changes.

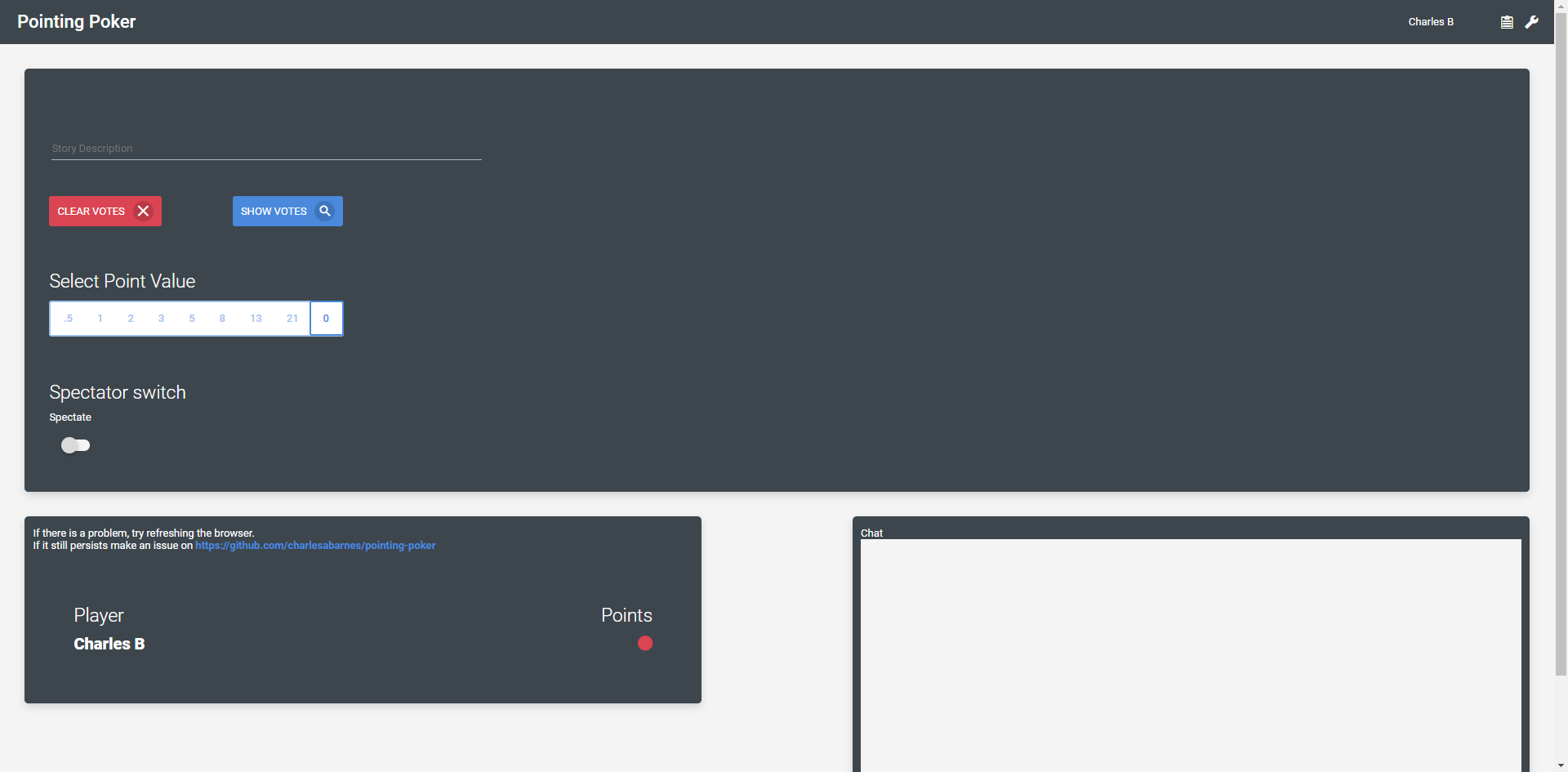

Screenshot

Project Structure (Nx Monorepo)

This project is now organized as an Nx monorepo:

pointing-poker/
├── apps/
│   ├── frontend/         # Angular 20 application (zoneless)
│   └── backend/          # Express + WebSocket server
├── libs/
│   └── shared/           # Shared types and interfaces
└── dist/                 # Build output

Technical Stack

• Frontend: Angular 20 (zoneless), Angular Material, Chart.js, FontAwesome
• Backend: Node.js, Express 5, WebSocket (ws)
• Shared: TypeScript types and interfaces
• Build Tools: Nx, Webpack
• Node.js 18.3.0 or higher required

Architecture Highlights

• Modular Backend: Organized with utility functions, session manager, and structured logging
• Type Safety: Shared types and message constants across frontend and backend
• Session Management: Automatic cleanup of inactive sessions to prevent memory leaks
• Structured Logging: Configurable log levels with contextual information
• Environment Configuration: All settings configurable via environment variables
• User Fingerprinting: Persistent user identification across name changes

How to run Pointing Poker

Configuration

Configuration is managed through environment variables. See .env.example for all available options:

cp .env.example .env
# Edit .env with your preferred settings

Key configuration options:

• PORT: Server port (default: 4000)
• LOG_LEVEL: Logging verbosity (debug, info, warn, error)
• WS_INACTIVITY_TIMEOUT: How long before disconnecting inactive clients
• SESSION_CLEANUP_INTERVAL: How often to clean up old sessions

Development Mode

1. Clone the repository
2. cd into the directory
3. Install dependencies: npm install
4. (Optional) Configure environment variables: cp .env.example .env
5. Run both frontend and backend: npm run start:dev
   • Or run separately:
     • Frontend only: npm run serve:frontend (runs on port 4200)
     • Backend only: npm run serve:backend (runs on port 4000)

Production Mode

1. Clone the repository
2. cd into the directory
3. Install dependencies: npm install
4. Configure environment: cp .env.example .env and set NODE_ENV=production
5. Build all projects: npm run build
6. Start the server: npm start
7. The app should now be running by default on port 4000

Production Tips:

• Set LOG_LEVEL=warn to reduce log verbosity
• Configure SESSION_CLEANUP_INTERVAL based on your expected session lifespan
• Enable ENABLE_ACCESS_LOG=true for HTTP request logging

• Heroku

Testing

E2E Tests

This project uses Playwright for end-to-end testing. E2E tests ensure critical user flows work correctly.

Running E2E Tests:

# Run all e2e tests (headless)
npm run e2e

# Run e2e tests with UI mode (interactive)
npm run e2e:ui

# Run e2e tests in headed mode (see browser)
npm run e2e:headed

E2E Tests Coverage:

• Session creation and joining
• User voting and point selection
• Results display and chart rendering
• Multi-user real-time synchronization
• WebSocket connection handling

CI/CD Integration:

E2E tests run automatically on every pull request to master via GitHub Actions. Tests must pass before PRs can be merged.

Nx Commands

This project uses Nx for monorepo management. Useful commands:

# Run a specific target for a project
npx nx <target> <project>

# Run a target for multiple projects
npx nx run-many --target=<target> --projects=<projects>

# View project dependency graph
npx nx graph

# Lint all projects
npm run lint

Questions, Concerns, and Feature Request

• Please create an issue or send me an email if you have feedback to give

Created by Charles Barnes
