Time, Clocks, and the Ordering of Events in a Distributed System
Operating Systems
R. Stockton Gaines Editor
Leslie Lamport
Massachusetts Computer Associates, Inc.
The concept of one event happening before another in a distributed system is examined, and is shown to define a partial ordering of the events. A distributed algorithm is given for synchronizing a system of logical clocks which can be used to totally order the events. The use of the total ordering is illustrated with a method for solving synchronization problems. The algorithm is then specialized for synchronizing physical clocks, and a bound is derived on how far out of synchrony the clocks can become.
Key Words and Phrases: distributed systems, computer networks, clock synchronization, multiprocess systems
CR Categories: 4.32, 5.29
The concept of time is fundamental to our way of thinking. It is derived from the more basic concept of the order in which events occur. We say that something happened at 3:15 if it occurred after our clock read 3:15 and before it read 3:16, The concept of the temporal ordering of events pervades our thinking about systems. For example, in an airline reservation system we specify that a request for a reservation should be granted if it is made before the flight is filled. However, we will see that this concept must be carefully reexamined when considering events in a distributed system.
General permission to make fair use in teaching or research of all or part of this material is granted to individual readers and to nonprofit libraries acting for them provided that ACM's copyright notice is given and that reference is made to the publication, to its date of issue, and to the fact that reprinting privileges were granted by permission of the Association for Computing Machinery. To otherwise reprint a figure, table, other substantial excerpt, or the entire work requires specific permission as does republication, or systematic or multiple reproduction.
This work was supported by the Advanced Research Projects Agency of the Department of Defense and Rome Air Development Center. It was monitored by Rome Air Development Center under contract number F 30602-76-C-0()94.
Author's address: Computer Science Laboratory, SRI International, 333 Ravenswood Ave., Menlo Park CA 94025. 0 1978 ACM 0001-0782/78/0700-0558 $00.75
A distributed system consists of a collection of distinct processes which are spatially separated, and which communicate with one another by exchanging messages. A network of interconnected computers, such as the ARPA net, is a distributed system. A single computer can also be viewed as a distributed system in which the central control unit, the memory units, and the input-output channels are separate processes. A system is distributed if the message transmission delay is not negligible compared to the time between events in a single process.
We will concern ourselves primarily with systems of spatially separated computers. However, many of our remarks will apply more generally. In particular, a multiprocessing system on a single computer involves problems similar to those of a distributed system because of the unpredictable order in which certain events can occur. In a distributed system, it is sometimes impossible to say that one of two events occurred first. The relation "happened before" is therefore only a partial ordering of the events in the system. We have found that problems often arise because people are not fully aware of this fact and its implications.
In this paper, we discuss the partial ordering defined by the "happened before" relation, and give a distributed algorithm for extending it to a consistent total ordering of all the events. This algorithm can provide a useful mechanism for implementing a distributed system. We illustrate its use with a simple method for solving synchronization problems. Unexpected, anomalous behavior can occur if the ordering obtained by this algorithm differs from that perceived by the user. This can be avoided by introducing real, physical clocks. We describe a simple method for synchronizing these clocks, and derive an upper bound on how far out of synchrony they can drift.
Most people would probably say that an event a happened before an event b if a happened at an earlier time than b. They might justify this definition in terms of physical theories of time. However, if a system is to meet a specification correctly, then that specification must be given in terms of events observable within the system. If the specification is in terms of physical time, then the system must contain real clocks. Even if it does contain real clocks, there is still the problem that such clocks are not perfectly accurate and do not keep precise physical time. We will therefore define the "happened before" relation without using physical clocks.
We begin by defining our system more precisely. We assume that the system is composed of a collection of processes. Each process consists of a sequence of events. Depending upon the application, the execution of a subprogram on a computer could be one event, or the execution of a single machine instruction could be one event. We are assuming that the events of a process form a sequence, where a occurs before b in this sequence if a happens before b. In other words, a single process is defined to be a set of events with an a priori total ordering. This seems to be what is generally meant by a process.) It would be trivial to extend our definition to allow a process to split into distinct subprocesses, but we will not bother to do so.

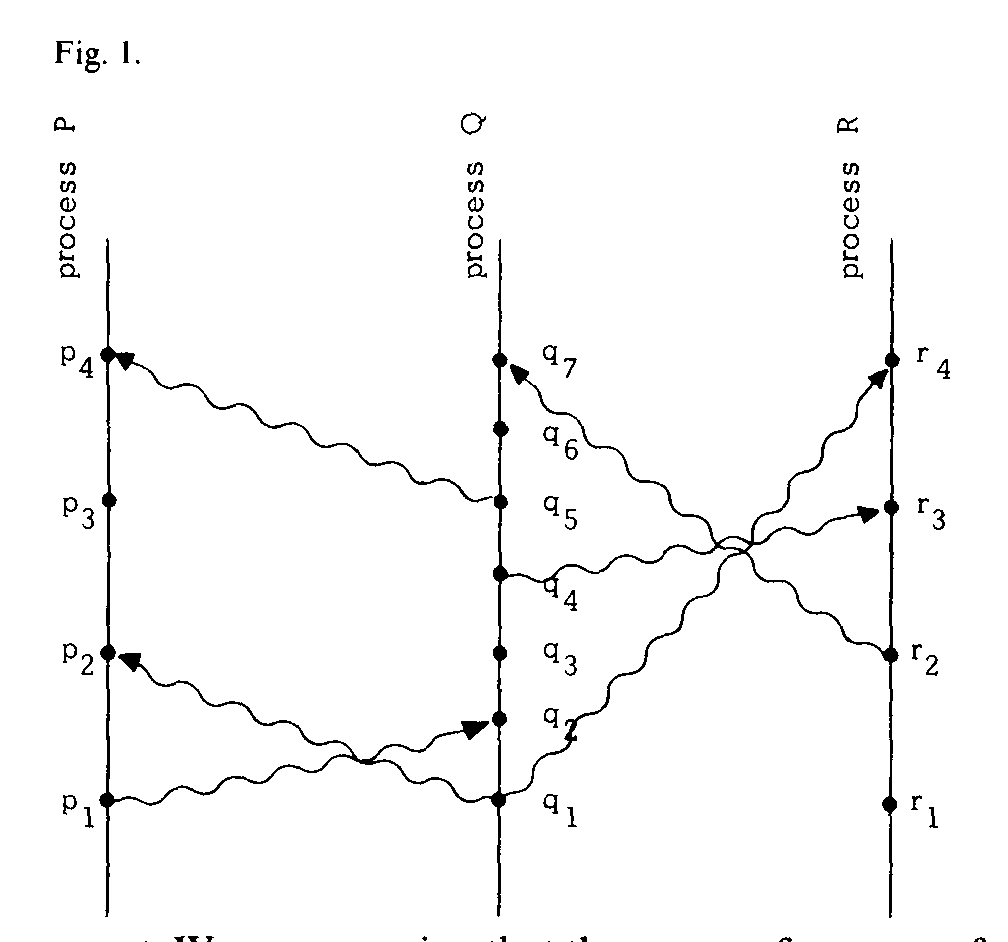

Fig.1.
We assume that sending or receiving a message is an event in a process. We can then define the "happened before" relation, denoted by "9", as follows.
Definition. The relation "9" on the set of events of a system is the smallest relation satisfying the following three conditions: (l) If a and b are events in the same process, and a comes before b, then a b. (2) If a is the sending of a message by one process and b is the receipt of the same message by another process, then a -9 b. (3) If a b and b c then a c. Two distinct events a and b are said to be concurrent if a -+-> b and b + a.
We assume that a -H a for any event a. (Systems in which an event can happen before itself do not seem to be physically meaningful.) This implies that is an irreflexive partial ordering on the set of all events in the system. It is helpful to view this definition in terms of a 'space-time diagram" such as Figure l. The horizontal direction represents space, and the vertical direction represents time—later times being higher than earlier ones. The dots denote events, the vertical lines denote processes, and the wavy lines denote messages? It is easy to see that a -+ b means that one can go from a to b in
The choice of what constitutes an event al'fects the ordering of events in a process. For example, the receipt of a message might denote the setting of an interrupt bit in a computer, or the execution of a subprogram to handle that interrupt. Since interrupts need not be handled in the order that they occur, this choice will affect the ordering of a process' message-receiving events. 2 Observe that messages may be received out of order. We allow the sending of several messages to be a single event, but for convenience we will assume that the receipt of a single message does not coincide with the sending or receipt of any other message.
the diagram by moving forward in time along process and message lines. For example, we have PI r4 in Figure l.
Another way of viewing the definition is to say that a b means that it is possible for event a to causally affect event b.
Two events are concurrent if neither can causally affect the other. For example, events pa and q:) of Figure I are concurrent. Even though we have drawn the diagram to imply that occurs at an earlier physical time than P3, process P cannot know what process Q did at qa until it receives the message at P4. (Before event "4, P could at most know what Q was planning to do at q3.) This definition will appear quite natural to the reader familiar with the invariant space-time formulation of special relativity, as described for example in [Il or the first chapter of [21. In relativity, the ordering of events is defined in terms of messages that could be sent. However, we have taken the more pragmatic approach of only considering messages that actually are sent. We should be able to determine if a system performed correctly by knowing only those events which did occur, without knowing which events could have occurred.
We now introduce clocks into the system. We begin with an abstract point of view in which a clock is just a way of assigning a number to an event, where the number is thought of as the time at which the event occurred. More precisely, we define a clock Ci for each process Pi to be a function which assigns a number to any event a in that process. The entire system of • clocks is represented by the function C which assigns to any event b the number C(b), where C(b) = Cj(b) if b is an event in process P). For now, we make no assumption about the relation of the numbers Ci(a) to physical time, so we can think of the clocks Ci as logical rather than physical clocks. They may be implemented by counters with no actual timing mechanism.

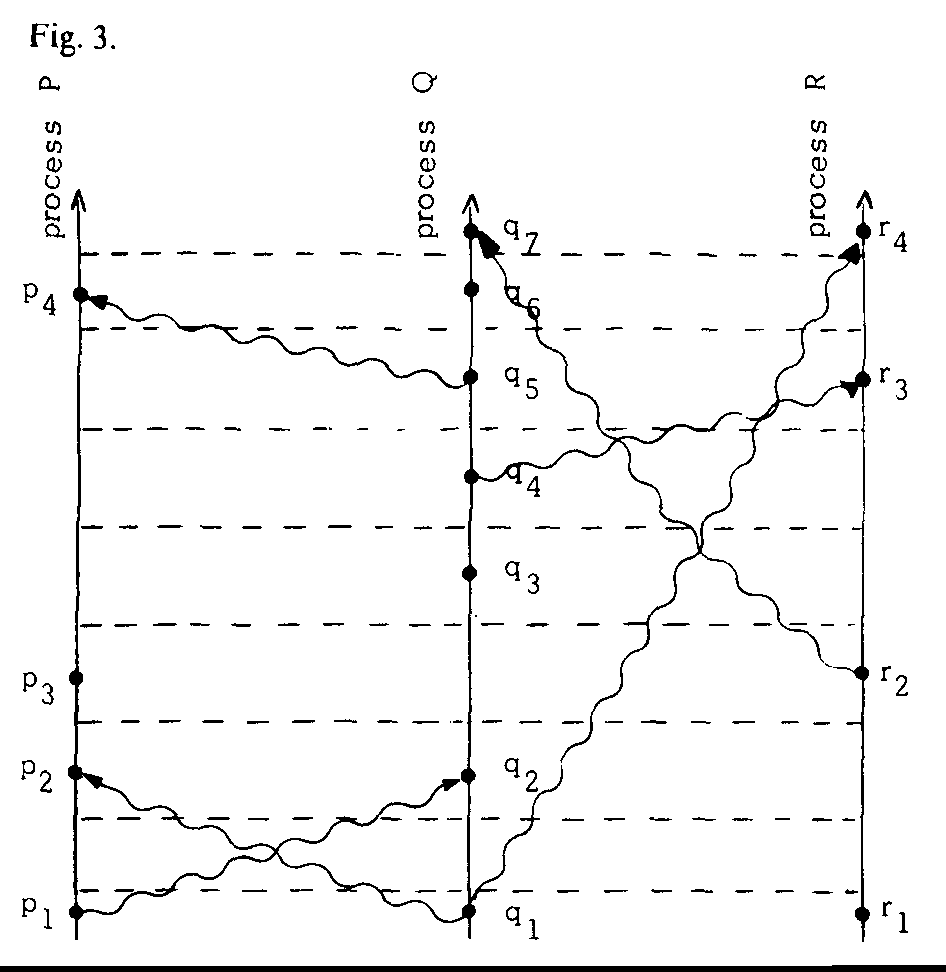

Fig.3.
We now consider what it means for such a system of clocks to be correct. We cannot base our definition of correctness on physical time, since that would require introducing clocks which keep physical time. Our definition must be based on the order in which events occur. The strongest reasonable condition is that if an event a occurs before another event b, then a should happen at an earlier time than b. We state this condition more formally as follows. Clock Condition. For any events a, b: if a — b then C(a) < C(b).
Note that we cannot expect the converse condition to hold as well, since that would imply that any two concurrent events must occur at the same time. In Figure l, and P3 are both concurrent with q}, so this would mean that they both must occur at the same time as q3, which would contradict the Clock Condition because pe It is easy to see from our definition of the relation 'Z" that the Clock Condition is satisfied if the following two conditions hold.
Cl. If a and b are events in process Pi, and a comes before b, then Ci(a) < Ci(b).
C2. If a is the sending of a message by process Pi and b is the receipt of that message by process P), then Ci(a) <
Let us consider the clocks in terms of a space-time diagram. We imagine that a process' clock "ticks" through every number, with the ticks occurring between the process' events. For example, if a and b are consecutive events in process Pi with Ci(a) = 4 and Ci(b) then clock ticks 5, 6, and 7 occur between the two events. We draw a dashed "tick line" through all the likenumbered ticks of the different processes. The spacetime diagram of Figure I might then yield the picture in Figure 2. Condition Cl means that there must be a tick line between any two events on a process line, and condition C2 means that every message line must cross a tick line. From the pictorial meaning of 9, it is easy to see why these two conditions imply the Clock Condition.
We can consider the tick lines to be the time coordinate lines of some Cartesian coordinate system on spacetime. We can redraw Figure 2 to straighten these coordinate lines, thus obtaining Figure 3. Figure 3 is a valid alternate way of representing the same system of events as Figure 2. Without introducing the concept of physical time into the system (which requires introducing physical clocks), there is no way to decide which of these pictures is a better representation.
The reader may find it helpful to visualize a twodimensional spatial network of processes, which yields a three-dimensional space-time diagram. Processes and messages are still represented by lines, but tick lines become two-dimensional surfaces,
Let us now assume that the processes are algorithms, and the events represent certain actions during their execution. We will show how to introduce clocks into the processes which satisfy the Clock Condition. Process PE's clock is represented by a register Ct, so that Ci(a) is the value contained by Ci during the event a. The value of Ci will change between events, so changing Ct does not itself constitute an event.
To guarantee that the system of clocks satisfies the Clock Condition, we will insure that it satisfies conditions Cl and C2. Condition Cl is simple; the processes need only obey the following implementation rule:
IRI. Each process PL increments Cl between any two successive events.
To meet condition C2, we require that each message m contain a timestamp Tm which equals the time at which the message was sent. Upon receiving a message timestamped Tm, a process must advance its clock to be later than Tm. More precisely, we have the following rule.
IR2. (a) If event a is the sending of a message m by process Pi, then the message m contains a timestamp Tm = Ci(a). (b) Upon receiving a message m, process Pj sets Cj greater than or equal to its present value and greater than Tm.
In IR2(b) we consider the event which represents the receipt of the message m to occur after the setting of Cj. (This is just a notational nuisance, and is irrelevant in any actual implementation.) Obviously, IR2 insures that C2 is satisfied. Hence, the simple implementation rules IRI and IR2 imply that the Clock Condition is satisfied, so they guarantee a correct system of logical clocks.
We can use a system of clocks satisfying the Clock Condition to place a total ordering on the set of all system events. We simply order the events by the times at which they occur. To break ties, we use any arbitrary total ordering < of the processes. More precisely, we define a relation as follows: if a is an event in process Pi and b is an event in process P], then a b if and only if either (i) Ct<a) < CA b) or (ii) Ci<a) = Cj(b) and Pt < Pl. It is easy to see that this defines a total ordering, and that the Clock Condition implies that if a -9 b then a b. In other words, the relation is a way of completing the "happened before" partial ordering to a total ordering. 3
The ordering depends upon the system of clocks Ci, and is not unique. Different choices of clocks which satisfy the Clock Condition yield different relations Given any total ordering relation which extends 9, there is a system of clocks satisfying the Clock Condition which yields that relation. It is only the partial ordering -9 which is uniquely determined by the system of events.
Being able to totally order the events can be very useful in implementing a distributed system. In fact, the reason for implementing a correct system of logical clocks is to obtain such a total ordering. We will illustrate the use of this total ordering of events by solving the following version of the mutual exclusion problem. Consider a system composed of a fixed collection of processes which share a single resource. Only one process can use the resource at a time, so the processes must synchronize themselves to avoid conflict. We wish to find an algorithm for granting the resource to a process which satisfies the following three conditions: (I) A process which has been granted the resource must release it before it can be granted to another process. (Il) Different requests for the resource must be granted in the order in which they are made. (Ill) If every process which is granted the resource eventually releases it, then every request is eventually granted.
We assume that the resource is initially granted to exactly one process.
These are perfectly natural requirements. They precisely specify what it means for a solution to be correct. Observe how the conditions involve the ordering of events. Condition Il says nothing about which of two concurrently issued requests should be granted first.
It is important to realize that this is a nontrivial problem. Using a central scheduling process which grants requests in the order they are received will not work, unless additional assumptions are made. To see this, let PO be the scheduling process. Suppose PI sends a request to PO and then sends a message to P2. Upon receiving the latter message, P2 sends a request to PO. It is possible for P2's request to reach PO before PI's request does. Condition Il is then violated if P2's request is granted first.
To solve the problem, we implement a system of The ordering < establishes a priority among the processes. If a "fairer" method is desired, then < can be made a function of the clock value. For example, if Ci<a) CJ(b) and j < i, then we can let a b if j < Ci(a) mod N S i, and b a otherwise; where N is the total number of processes. clocks with rules IRI and IR 2, and use them to define a total ordering of all events. This provides a total ordering of all request and release operations. With this ordering, finding a solution becomes a straightforward exercise. It just involves making sure that each process learns about all other processes' operations.
To simplify the problem, we make some assumptions. They are not essential, but they are introduced to avoid distracting implementation details. We assume first of all that for any two processes Pt and P}, the messages sent from Pi to PJ are received in the same order as they are sent. Moreover, we assume that every message is eventually received. (These assumptions can be avoided by introducing message numbers and message acknowledgment protocols.) We also assume that a process can send messages directly to every other process.
Each process maintains its own request queue which is never seen by any other process. We assume that the request queues initially contain the single message To:Po requests resource, where PO is the process initially granted the resource and To is less than the initial value of any clock.
The algorithm is then defined by the following five rules. For convenience, the actions defined by each rule are assumed to form a single event.
-
To request the resource, process PI sends the message Tm:Pi requests resource to every other process, and puts that message on its request queue, where Tm is the timestamp of the message.
-
When process PJ receives the message Tm:Pi requests resource, it places it on its request queue and sends a (timestamped) acknowledgment message to Pt. 0
-
To release the resource, process PI removes any Tm:Pt requests resource message from its request queue and sends a (timestamped) PI releases resource message to every other process.
-
When process PJ receives a Pi releases resource message, it removes any Tm:Pi requests resource message from its request queue.
-
Process Pi is granted the resource when the following two conditions are satisfied: (i) There is a Tm:Pt requests resource message in its request queue which is ordered before any other request in its queue by the relation -9. (To define the relation "2*" for messages, we identify a message with the event of sending it.) (ii) Pi has received a message from every other process timestamped later than Tm.
-
Note that conditions (i) and (ii) of rule 5 are tested locally by Pi. It is easy to verify that the algorithm defined by these rules satisfies conditions I—Ill. First of all, observe that condition (ii) of rule 5, together with the assumption that messages are received in order, guarantees that Pi has learned about all requests which preceded its current This acknowledgment message need not be sent if Pj has already sent a message to Pi timestamped later than ' If Pi < P}, then Pi need only have received a message timestamped Tm from PI. request. Since rules 3 and 4 are the only ones which delete messages from the request queue, it is then easy to see that condition I holds. Condition Il follows from the fact that the total ordering extends the partial ordering Rule 2 guarantees that after Pr requests the resource, condition (ii) of rule 5 will eventually hold. Rules 3 and 4 imply that if each process which is granted the resource eventually releases it, then condition (i) of rule 5 will eventually hold, thus proving condition Ill.
This is a distributed algorithm. Each process independently follows these rules, and there is no central synchronizing process or central storage. This approach can be generalized to implement any desired synchronization for such a distributed multiprocess system. The synchronization is specified in terms of a State Machine, consisting of a set C of possible commands, a set S of possible states, and a function e. C x S. The relation e(C, S) = S' means that executing the command C with the machine in state S causes the machine state to change to S'. In our example, the set C consists of all the commands PE requests resource and PI releases resource, and the state consists of a queue of waiting request commands, where the request at the head of the queue is the currently granted one. Executing a request command adds the request to the tail of the queue, and executing a release command removes a command from fhe queue.
7.Each process independently simulates the execution of the State Machine, using the commands issued by all the processes. Synchronization is achieved because all processes order the commands according to their timestamps (using the relation so each process uses the same sequence of commands. A process can execute a command timestamped T when it has learned of all commands issued by all other processes with timestamps less than or equal to T. The precise algorithm is straightforward, and we will not bother to describe it.
This method allows one to implement any desired form of multiprocess synchronization in a distributed system. However, the resulting algorithm requires the active participation of all the processes. A process must know all the commands issued by other processes, so that the failure of a single process will make it impossible for any other process to execute State Machine commands, thereby halting the system.
The problem of failure is a difficult one, and it is beyond the scope of this paper to discuss it in any detail. We will just observe that the entire concept of failure is only meaningful in the context of physical time. Without physical time, there is no way to distinguish a failed process from one which is just pausing between events. A user can tell that a system has "crashed" only because he has been waiting too long for a response. A method which works despite the failure of individual processes or communication lines is described in [3].
If each process does not strictly alternate requesl and release commands, then executing a release command could delete zero, one, or more than one request from the queue. Anomalous Behavior
Our resource scheduling algorithm ordered the requests according to the total ordering This permits the following type of "anomalous behavior." Consider a nationwide system of interconnected computers. Suppose a person issues a request A on a computer A, and then telephones a friend in another city to have him issue a request B on a different computer B. It is quite possible for request B to receive a lower timestamp and be ordered before request A. This can happen because the system has no way of knowing that A actually preceded B, since that precedence information is based on messages external to the system.
Let us examine the source of the problem more closely. Let f be the set of all system events. Let us introduce a set of events which contains the events in f together with all other relevant external events, such as the phone calls in our example. Let -4 denote the "happened before" relation for Y. In our example, we had A -+ B, but B. It is obvious that no algorithm based entirely upon events in Y, and which does not relate those events in any way with the other events in Y, can guarantee that request A is ordered before request B.
There are two possible ways to avoid such anomalous behavior. The first way is to explicitly introduce into the system the necessary information about the ordering In our example, the person issuing request A could receive the timestamp TA of that request from the system. When issuing request B, his friend could specify that B be given a timestamp later than TA. This gives the user the responsibility for avoiding anomalous behavior.
The second approach is to construct a system of clocks which satisfies the following condition.
Strong Clock Condition. For any events a, b in g: if a b then C<a) < C<b).
This is stronger than the ordinary Clock Condition because is a stronger relation than —+. It is not in general satisfied by our logical clocks.
Let us identify SP with some set of "real" events in physical space-time, and let be the partial ordering of events defined by special relativity. One of the mysteries of the universe is that it is possible to construct a system of physical clocks which, running quite independently of one another, will satisfy the Strong Clock Condition. We can therefore use physical clocks to eliminate anomalous behavior. We now turn our attention to such clocks. Physical Clocks
Let us introduce a physical time coordinate into our space-time picture, and let Ci(t) denote the reading of the clock Ci at physical time t.8 For mathematical con-
H We will assume a Newtonian space-time. If the relative motion of the clocks or gravitational effects are not negligible, then Ci(l) must be deduced from the actual clock reading by transforming from proper time to the arbitrarily chosen time coordinate.
venience, we assume that the clocks run continuously rather than in discrete "ticks." (A discrete clock can be thought of as a continuous one in which there is an error of up to "tick" in reading it.) More precisely, we assume that Ci(t) is a continuous, differentiable function of t except for isolated jump discontinuities where the clock is reset. Then represents the rate at which the clock is running at time t.
In order for the clock Ci to be a true physical clock, it must run at approximately the correct rate. That is, we must have z I for all t. More precisely, we will assume that the following condition is satisfied: PCI. There exists a constant K I such that for all i: IdCÅt)/dt — Il < K. For typical crystal controlled clocks, K 10—6
It is not enough for the clocks individually to run at approximately the correct rate. They must be synchronized so that Cl(t) z Cj(t) for all i, j, and t. More precisely, there must be a sufficiently small constant e so that the following condition holds: PC2. For all i, j: I - < e.
If we consider vertical distance in Figure 2 to represent physical time, then PC2 states that the variation in height of a single tick line is less than €.
Since two different clocks will never run at exactly the same rate, they will tend to drift further and further apart. We must therefore devise an algorithm to insure that PC2 always holds. First, however, let us examine how small K and must be to prevent anomalous behavior. We must insure that the system Zofrelevant physical events satisfies the Strong Clock Condition. We assume that our clocks satisfy the ordinary Clock Condition, so we need only require that the Strong Clock Condition holds when a and b are events in Y with a + b. Hence, we need only consider events occurring in different processes.
Let be a number such that if event a occurs at physical time t and event b in another process satisfies a b, then b occurs later than physical time t + IL. In other words, is less than the shortest transmission time for interprocess messages, We can always choose equal to the shortest distance between processes divided by the speed of light. However, depending upon how messages in are transmitted, could be significantly larger.
To avoid anomalous behavior, we must make sure that for any i, j, and t: Ci(l + IL) — CAI) > 0. Combining this with PCI and 2 allows us to relate the required smallness of K and e to the value of as follows. We assume that when a clock is reset, it is always set forward and never back. (Setting it back could cause Cl to be violated.) PCI then implies that Ci(t + g) — Ci(t) > (l — K)ß. Using PC2, it is then easy to deduce that Ci(t + /.L) — CAI) > 0 if the following inequality holds:
This inequality together with PCI and PC2 implies that anomalous behavior is impossible. We now describe our algorithm for insuring that PC2 holds. Let m be a message which is sent at physical time t and received at time t'. We define = t' — t to be the total delay of the message m. This delay will, of course, not be known to the process which receives m. However, we assume that the receiving process knows some minimum delay 0 such that s v,n. We call = v — jum the unpredictable delay of the message.
We now specialize rules IRI and 2 for our physical clocks as follows: IRI'. For each i, if Pi does not receive a message at physical time t, then Ct is differentiable at t and IR2'. (a) If Pi sends a message m at physical time t, then m contains a timestamp Tm = ct(t). (b) Upon receiving a message m at time t', process PJ sets Cj(t') equal to maximum (CJ(t' 9
Although the rules are formally specified in terms of the physical time parameter, a process only needs to know its own clock reading and the timestamps of messages it receives. For mathematical convenience, we are assuming that each event occurs at a precise instant of physical time, and different events in the same process occur at different times. These rules are then specializations of rules IRI and IR2, so our system of clocks satisfies the Clock Condition. The fact that real events have a finite duration causes no difficulty in implementing the algorithm. The only real concern in the implementation is making sure that the discrete clock ticks are frequent enough so Cl is maintained.
We now show that this clock synchronizing algorithm can be used to satisfy condition PC2. We assume that the system of processes is described by a directed graph in which an arc from process Pi to process Pj represents a communication line over which messages are sent directly from Pt to Pj. We say that a message is sent over this arc every T seconds if for any t, PE sends at least one message to P, between physical times t and t + T. The diameter of the directed graph is the smallest number d such that for any pair of distinct processes Pj, P/e, there is a path from Pj to Pk having at most d arcs.
In addition to establishing PC2, the following theorem bounds the length of time it can take the clocks to become synchronized when the system is first started. THEOREM. Assume a strongly connected graph of processes with diameter d which always obeys rules IR I ' and IR2'. Assume that for any message m, some constant g, and that for all t 2 to: (a) PCI holds. (b) There are constants T and such that every T seconds a message with an unpredictable delay less than is sent over every arc. Then PC2 is satisfied with z d(2KT + g) for all t to + rd, where the approximations assume
The proof of this theorem is surprisingly difficult, and is given in the Appendix. There has been a great deal of work done on the problem of synchronizing physical clocks. We refer the reader to [4] for an intro- C (1' — 0) lim Ci(t' — iö duction to the subject. The methods described in the literature are useful for estimating the message delays and for adjusting the clock frequencies dCi/dt (for clocks which permit such an adjustment). However, the requirement that clocks are never set backwards seems to distinguish our situation from ones previously studied, and we believe this theorem to be a new result.
We have seen that the concept of "happening before" defines an invariant partial ordering of the events in a distributed multiprocess system. We described an algorithm for extending that partial ordering to a somewhat arbitrary total ordering, and showed how this total ordering can be used to solve a simple synchronization problem. A future paper will show how this approach can be extended to solve any synchronization problem.
The total ordering defined by the algorithm is somewhat arbitrary. It can produce anomalous behavior if it disagrees with the ordering perceived by the system's users. This can be prevented by the use of properly synchronized physical clocks. Our theorem showed how closely the clocks can be synchronized.
In a distributed system, it is important to realize that the order in which events occur is only a partial ordering. We believe that this idea is useful in understanding any multiprocess system. It should help one to understand the basic problems of multiprocessing independently of the mechanisms used to solve them.
For any i and t, let us define Ci t to be a clock which is set equal to Cl at time t and runs at the same rate as Ci, but is never reset. In other words, ct t(t') - (l)
for all t' t. Note that
Ci(t') 2 Cit(d) for all t' t. (2)
Suppose process PI at time h sends a message to process P2 which is received at time with an unpredictable delay e, where to S t2. Then for all t t2 we have: — t2) [by (l) and PCI] [by IR2' [(t'2 ¯ h) — + K(t'2 ¯ t') Cl(tl) + (l - - tl) - e. Hence, with these assumptions, for all t t2 we have:
Cl(tl) + (l — — tl) (3)
Now suppose that for i — , n we have ti t; < ti+l, to S h, and that at time t; process Pi sends a message to process Pi+l which is received at time ti+l with an unpredictable delay less than $. Then repeated application of the inequality (3) yields the following result for
Cl(tl') + (l — K)(t (4)
From PCI, IRI' and 2' we deduce that Cl(tl') Cl(tl) + (l — — h). Combining this with (4) and using (2), we get Cn+l(t) Cl(tl) + (1 (5) for t tn+l.
For any two processes P and P', we can find a sequence of processes P = PO, P with communication arcs from each Pi to Pi+l. By hypothesis (b) we can find times ti, t; with tr — ti T and — t; v, where P = IL + $. Hence, an inequality of the form (5) holds with n s d whenever t 2 ti + +
v). For any i, j and any t, ti with ti to and t 2 ti + + v) we therefore have: Ci(t) cj(tl) + (1 (6)
Now let m be any message timestamped Tm, and suppose it is sent at time t and received at time t'. We pretend that m has a clock Cm which runs at a constant rate such that Cm(t) = tm and Cm(t') = tm + 11m. Then t' — t implies that dCm/dt l. Rule IR2' (b) simply sets Cj(t') to maximum (Cj(t' — 0), Cm(t')). Hence, clocks are reset only by setting them equal to other clocks.
For any time tx 2 to + IL/(I — K), let Cx be the clock having the largest value at time tx. Since all clocks run at a rate less than I + K, we have for all i and all t tx: Ci(t) cx(tx) + (1 + (7)
We now consider the following two cases: (i) Cx is the clock Cq of process Pq. (ii) Cx is the clock Cm of a message sent at time h by process Pq. In case (i), (7) simply becomes Ci(t) Cq(tx) + (l +
In case (ii), since Cm(tl) = Cq(tl) and dCm/dt S l, we have cx(tx) S cq(ll) + (tx Hence, (7) yields
Ci(l) cq(tl) + (l +
Since tx to + /L/(I — K), we get
Cq(tx - ß 1 K))
Cm(tx) — IL
Cm(tx) — (tx —
[by PCI]
(by choice of ml
[11m IL, tm — < V ]
[by definition of Cm]
Hence, cq(tx - I - K)) S cq(tl), SO tx K) and thus ti to.
Letting ti = tx in case (i) we can combine (8i) and (8ii) to deduce that for any t, tx with t tx to + V/ (l — K) there is a process Pq and a time h with tx — IL/ (l — K) ti S tx such that for all i: Ci(t) cq(tl) + (1 + - (9) Choosing t and tx with t tx + + v), we can combine (6) and (9) to conclude that there exists a ti and a process Pq such that for all i:
(10)
Cq(tl) + (l + —
cq(tl) + (1 h) - Ci(t) Letting t = tx + + v), we get
Combining this with (10), we get - t]) - Kd(T + v) - Ci(t) cq(tl) (11)
Using the hypotheses that K I and v T, we can rewrite (l l) as the following approximate inequality. Cq(tl) + (t - h) - d(KT + S Ci(t) (12)
S Cq(tl) + (t — h) + dKT.
Since this holds for all i, we get
I Ci(t) - s d(2KT + E),
and this holds for all t to + dr. [3 Note that relation (l l) of the proof yields an exact upper bound for I Ci(t) — in case the assumption + T is invalid. An examination of the proof suggests a simple method for rapidly initializing the clocks, or resynchronizing them if they should go out of synchrony for any reason. Each process sends a message which is relayed to every other process. The procedure can be initiated by any process, and requires less than 2d(g + 9 seconds to effect the synchronization, assuming each of the messages has an unpredictable delay less than
Acknowledgment. The use of timestamps to order operations, and the concept of anomalous behavior are due to Paul Johnson and Robert Thomas.
Received March 1976; revised October 1977
-
Schwartz, J, T. Relativity in Illustrations. New York U. Press, New York, 1962.
-
Taylor, E.F„ and Wheeler, J.A. Space-Time Physics, W.H. Freeman, San Francisco, 1966.
-
Lamport, L. The implementation of reliable distributed multiprocess systems. To appear in Computer Networks.
-
Ellingson, C., and Kulpinski, R.J. Dissemination of system-time. IEEE Trans. Comm. Com-23, 5 (May 1973), 605-624.
