VballNet Repository

Overview

VballNet is a specialized deep learning framework designed for volleyball tracking, built upon the foundation of TrackNetV4. This repository includes two primary models, VballNetV1 and VballNetFastV1, optimized for efficient detection and training on consumer-grade hardware. By leveraging lightweight architectures and depthwise separable convolutions, VballNet achieves high performance with reduced computational requirements, making it suitable for deployment on resource-constrained devices such as OpenVINO GPUs.

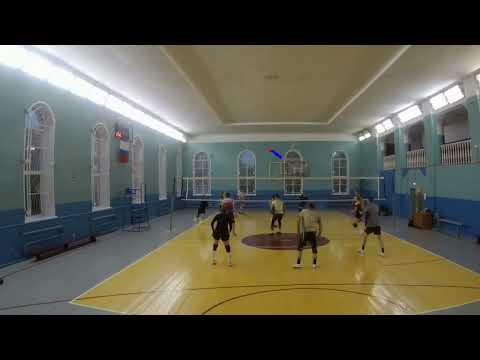

Watch a demo of VballNet in action:

Installation

To set up the VballNet repository, follow these steps to install the required dependencies and tools. This project uses uv for dependency management and supports conversion of models to ONNX format for efficient inference.

Prerequisites

• Python: Version 3.11 .
• Hardware: A consumer-grade GPU is recommended for training and inference, though CPU is sufficient for lightweight models like VballNetFastV1.
• Optional: OpenVINO for optimized inference on compatible hardware.

Step 1: Install uv

uv is a fast Python package and dependency manager. Install it by running:

curl -LsSf https://astral.sh/uv/install.sh | sh

Step 2: Install Dependencies

Sync the project dependencies using uv and install the tensorflow-onnx package for model conversion:

uv sync
uv pip install git+https://github.com/onnx/tensorflow-onnx

Step 3: Verify Installation

To confirm that the dependencies are correctly installed, run:

python -c "import tensorflow, tf2onnx; print('Dependencies installed successfully')"

If no errors are displayed, your environment is ready.

Step 4: Download Demo Models

Download pre-trained VballNet models for inference from one of the following links:

• Google Drive
• Yandex Disk

Place the downloaded models in the vb-models/ directory for use in inference.

Notes

• The tensorflow-onnx package is required to convert Keras models to ONNX format for optimized inference, particularly on hardware accelerators like OpenVINO GPUs.
• Ensure your Python environment is isolated (e.g., using a virtual environment or uv) to avoid dependency conflicts.

Run Example Inference

Run inference with a pre-trained model using the following command:

uv run src/inference_onnx.py --video_path volleyball-backline-video.mp4 --model_path vb-models/VballNetFastV1_155_h288_w512.onnx --output_dir ./predicts/

Frame-by-Frame Annotation

To create or edit annotations for training or evaluating VballNet models, use the imgLabel.py script. This script allows frame-by-frame annotation of video files to mark object positions (e.g., a volleyball). Annotations are saved as CSV files in the csv/ directory, with filenames derived from the input video (e.g., video.mp4 saves to csv/video.csv). For detailed instructions on using the annotation script, refer to the Annotation Guide.

Key Features

• Based on TrackNetV4: Inherits the robust motion tracking capabilities of TrackNetV4, tailored specifically for volleyball detection.
• Optimized Network Architectures:
  • VballNetV1: A U-Net-like model with motion attention via a custom MotionPromptLayer and depthwise separable convolutions, balancing accuracy and efficiency.
  • VballNetFastV1: A lightweight model inspired by TrackNetV3Nano, further optimized for speed with a reduced number of channels and streamlined layers.
• Depthwise Separable Convolutions: Both models use depthwise separable convolutions to significantly reduce computational complexity while maintaining detection accuracy.
• Motion Attention Mechanism: VballNetV1 incorporates a MotionPromptLayer to generate attention maps from consecutive RGB frames, enhancing ball tracking by focusing on motion cues.
• Channels-First Data Format: Both models adopt a channels-first (N, C, H, W) format for compatibility with optimized hardware accelerators.
• Efficient Training and Inference: Designed to enable faster training and inference on consumer hardware, including GPUs and edge devices.

Model Details

VballNetV1

• Architecture: A U-Net-like structure with an encoder-decoder pipeline, augmented by a MotionPromptLayer and FusionLayerTypeB for motion-guided feature integration.
• Input: Three consecutive RGB frames (9 channels, shape: (batch_size, 9, height, width)).
• Output: Heatmaps for ball positions (shape: (batch_size, 3, height, width)).
• Key Components:
  • MotionPromptLayer: Generates attention maps from frame differences to emphasize motion, improving tracking precision.
  • FusionLayerTypeB: Combines feature maps with attention maps, weighting frames based on motion cues for enhanced detection.
  • Depthwise Separable Convolutions: Reduces parameter count and computational load, enabling efficient processing.
• Advantages:
  • High accuracy in volleyball tracking due to motion-guided attention.
  • Optimized for deployment on resource-constrained devices like OpenVINO GPUs.
  • Flexible architecture supporting various input resolutions.

VballNetFastV1

• Architecture: A streamlined U-Net-like model inspired by TrackNetV3Nano, designed for maximum efficiency with fewer channels and layers.
• Input: Three consecutive RGB frames (9 channels, shape: (batch_size, 9, height, width)).
• Output: Heatmaps for ball positions (shape: (batch_size, 3, height, width)).
• Key Components:
  • Single2DConv Blocks: Simplified depthwise separable convolution blocks with batch normalization and ReLU activation.
  • Reduced Channel Count: Uses 8, 16, 32, and 64 channels in the encoder, minimizing memory and computational requirements.
  • Skip Connections: Concatenates encoder and decoder features to preserve spatial information.
• Advantages:
  • Extremely lightweight, enabling faster training and inference on consumer hardware.
  • Maintains competitive accuracy with a significantly reduced model size.
  • Ideal for real-time applications on edge devices.

Advantages of VballNet

• Performance Optimization: Both models are tailored for consumer-grade hardware, offering faster training and inference compared to TrackNetV4.
• Lightweight Design: Depthwise separable convolutions reduce the computational footprint, making the models suitable for edge devices.
• Motion-Guided Tracking: VballNetV1’s attention mechanism improves detection accuracy by focusing on ball motion.
• Scalability: Supports various input resolutions, adaptable to different use cases and hardware constraints.
• Ease of Deployment: Channels-first format and compatibility with frameworks like OpenVINO ensure seamless integration into production environments.

Usage

To use VballNetV1 or VballNetFastV1, load the models as follows:

from VballNetV1 import VballNetV1
from VballNetFastV1 import VballNetFastV1

# VballNetV1
model_v1 = VballNetV1(height=288, width=512, in_dim=9, out_dim=3, fusion_layer_type="TypeB")

# VballNetFastV1
model_fast = VballNetFastV1(input_height=288, input_width
