NASA Space Apps Challenge 2025

From EarthData to Action: Cloud Computing with Earth Observation Data for Predicting Cleaner, Safer Skies

🌍 TEMPO Air Quality API

This project integrates NASA TEMPO satellite data, OpenAQ ground measurements, and Open-Meteo weather into a unified API. It processes data into CSV files, provides forecasts, and exposes a FastAPI service with health & metrics endpoints.

Air Quality Application Website

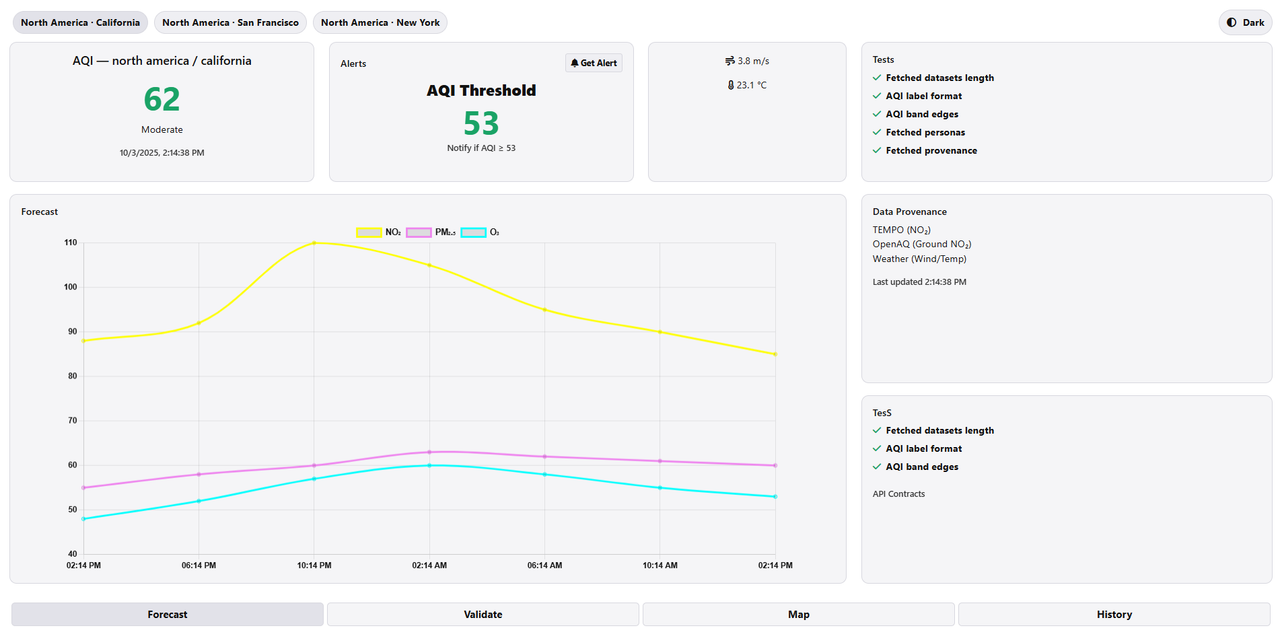

Home Page

Subscribe popup

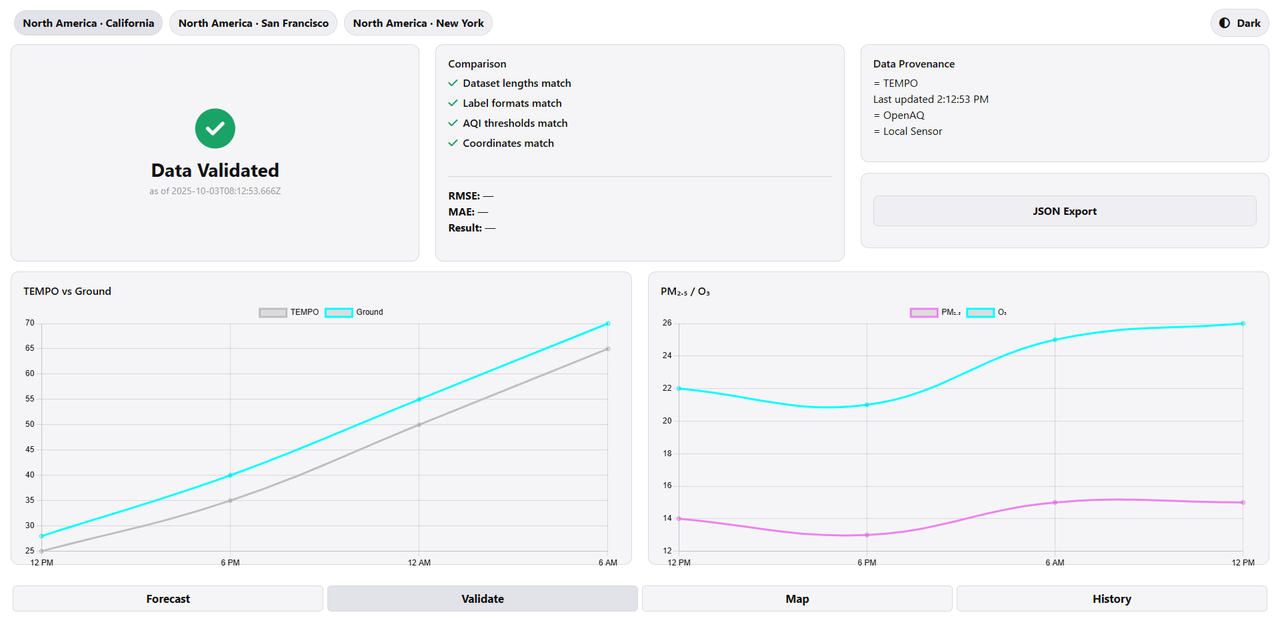

Validate page

Map

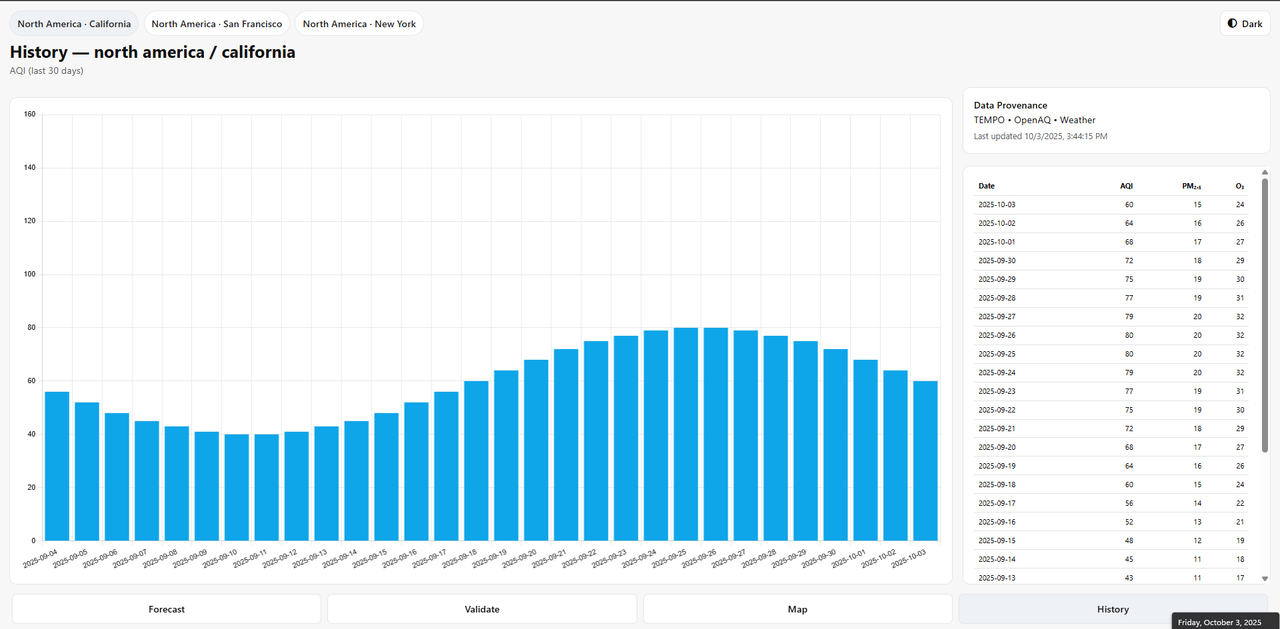

History

🤏 About The Team

Forecasting Cleaner, Safer Skies is an innovative project designed to combat air pollution using NASA’s open-source satellite data. Our system applies advanced predictive modeling to forecast harmful air quality conditions before they occur. Unlike delayed alerts, it provides real-time warnings, empowering communities, health agencies, & policymakers to take preventive measures & build a safer tomorrow.

✨ Features

🚀 Pulls TEMPO NO₂ data via Harmony API
📡 Collects ground sensor data from OpenAQ
☁️ Fetches weather data from Open-Meteo
🔄 Fuses satellite, ground, and weather into CSV outputs
⚡ Provides an API (FastAPI + Uvicorn) for forecasts & monitoring
⚙️ Configurable via .env file (no database required — CSV-based)

📂 Project Structure

tempo_api-call/
├── air_quality_api.py      # API server (main entrypoint)
├── alert_user.py           # Email/SMS alert system
├── config.py               # Loads environment variables
├── forecaster.py           # Forecasting logic
├── fuse_validate_merge.py  # Data fusion & validation
├── logging_utils.py        # Logging helpers
├── main.py                 # Alternate entrypoint
├── net_utils.py            # Network utilities (helpers)
├── openaq_api.py           # OpenAQ fetcher
├── tempo_api.py            # TEMPO fetcher (Harmony)
├── visual_map.py           # Folium map visualizer
├── weather_api.py          # Weather fetcher
│
├── requirements.txt        # Python dependencies
├── Dockerfile              # Container build (optional)
├── .env                    # Environment configuration (local)
├── README.md               # Project documentation
├── static_server.py        # Simple static HTTP server
│
├── index.html              # Home (Dashboard)
├── history.html            # History view
├── map.html                # Map view
└── validate.html           # Validation view

⚙️ Requirements

🐍 Python 3.11
Or 🐳 Docker (recommended)

If running locally, install system dependencies:

libhdf5, libnetcdf (for netCDF4/xarray)
curl (for healthchecks)

🚀 Quickstart

1️⃣ Clone

git clone https://github.com/annoy38/air_quality_application.git
cd tempo_api-call

2️⃣ Configure `.env`

Create a .env file in the root folder. Example:

EARTHDATA_USER=annoy
EARTHDATA_PASS=Shahriar@2938
OPENAQ_API_KEY=4533f7b7...
BBOX_WSEN=-124.48,32.53,-114.13,42.01
OUT_DIR=./out
GRID_STEP=0.25
WEATHER_GRID_STEP=0.25
WEATHER_TIMEZONE=UTC
WEATHER_HOURLY_VARS=temperature_2m,pressure_msl,wind_speed_10m,cloud_cover
LOG_LEVEL=INFO
METRICS_PORT=9308
HEALTH_PORT=8088
SCHED_ENABLE=1
SMTP_HOST=smtp.gmail.com
SMTP_PORT=587
SMTP_USER=bookf826@gmail.com
SMTP_PASS=lwrg...vaas
SMTP_FROM=Your App air quality
SMTP_STARTTLS=1

⚠️ Never commit secrets → add .env.example to your repo and keep .env private.

3️⃣ Run with Docker (Recommended)

Build:

docker build -t tempo-aq .

Run:

docker run --rm -p 8080:8080 --env-file .env tempo-aq

👉 Your API will be live at: http://localhost:8080

4️⃣ Run Locally (Without Docker)

python -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
python air_quality_api.py

📡 API Reference

Base URL (local): http://localhost:8080

Tip: Every endpoint returns JSON unless noted. Times are UTC ISO-8601.

🩺 Health

Method	Path	Description
GET	`/healthz`	Simple liveness probe

curl http://localhost:8080/healthz
# → {"ok": true}

🧭 Metadata

Method	Path	Description
GET	`/api/meta/datasources`	Info about bbox, grid, and last CSV timestamps

Response (example)

{
  "out_dir": "./out",
  "bbox_wsen": [-124.48, 32.53, -114.13, 42.01],
  "grid_step_default": 0.25,
  "last_fused_csv_mtime": "2025-10-03T03:20:11+00:00",
  "last_metrics_csv_mtime": "2025-10-03T03:21:06+00:00",
  "sources": {
    "satellite": "NASA TEMPO (Harmony; L2/L3 NRT)",
    "ground": "OpenAQ v3",
    "weather": "Open-Meteo"
  }
}

🧪 NO₂ AQI Breakpoints

Method	Path	Description
GET	`/api/aqi/no2/breakpoints`	US-style NO₂ 1-hr AQI breakpoints

curl http://localhost:8080/api/aqi/no2/breakpoints

🟩 Latest NO₂ Grid

Method	Path	Query Params	Description
GET	`/api/no2/latest`	`grid` (0.05–2.0), `bbox` as `W,S,E,N`	Latest hour, rebinned if `grid` differs

curl "http://localhost:8080/api/no2/latest?grid=0.25&bbox=-119.2,33.3,-117.3,34.7"

Response (trimmed)

{
  "time_utc": "2025-10-03T02:00:00+00:00",
  "grid": 0.25,
  "cells": [
    {
      "cell_id": "CA_0.25_34.00_-118.25",
      "lat": 34.0,
      "lon": -118.25,
      "no2_ugm3": 28.7,
      "no2_ppb": 15.2,
      "aqi": 53,
      "category": "Moderate"
    }
  ],
  "provenance": { "satellite": "TEMPO", "ground": "OpenAQ", "weather": "Open-Meteo" }
}

Errors: 400 Invalid bbox, 404 No fused data available.

📈 NO₂ Time-series (cell or lat/lon)

Method	Path	Query Params	Description
GET	`/api/no2/timeseries`	`lat`, `lon` or `cell_id`; `hours` (1–168)	Hourly series for one grid cell

# by coordinates
curl "http://localhost:8080/api/no2/timeseries?lat=34.05&lon=-118.25&hours=48"

# by cell id (format CA_{grid}_{lat}_{lon})
curl "http://localhost:8080/api/no2/timeseries?cell_id=CA_0.25_34.00_-118.25&hours=72"

Errors: 400 Provide (lat & lon) or cell_id, 400 Invalid cell_id format, 404 No fused data available.

🔮 NO₂ Forecast (persistence nowcast)

Method	Path	Query Params	Description
GET	`/api/no2/forecast`	`h` (1–24), `grid`	Copies latest hour forward `h` hours per cell

curl "http://localhost:8080/api/no2/forecast?h=6&grid=0.25"

Response fields: time_run_utc, based_on_time, horizon_hours, grid, forecasts[].

✅ Validation Metrics (hourly)

Method	Path	Query Params	Description
GET	`/api/validate/no2/hourly`	`start`, `end` (ISO or `...Z`)	Reads `fused_metrics_*.csv` (last 7 days)

curl "http://localhost:8080/api/validate/no2/hourly?start=2025-10-02T00:00:00Z&end=2025-10-03T00:00:00Z"

Returns per-hour: n_cells, corr_weighted (as r_sat_grd), rmse.

🚨 Alerts (NO₂ AQI threshold)

Forecast-based alerts (GET)

Method	Path	Query Params	Description
GET	`/api/alerts/no2`	`threshold_aqi` (0–500), `h` (1–24)	Cells predicted ≥ threshold within `h` hours

curl "http://localhost:8080/api/alerts/no2?threshold_aqi=150&h=6"

Create an alert job (POST)

Your code exposes POST /alerts/no2 with a No2AlertRequest body (e.g., email/phone). Document your exact schema there.

curl -X POST http://localhost:8080/alerts/no2 \
  -H "Content-Type: application/json" \
  -d '{ "threshold_aqi": 150, "hours": 6, "channels": ["email"], "target": "user@example.com" }'

🧱 Grid Cells Helper

Method	Path	Query Params	Description
GET	`/api/cells`	`grid`, `bbox`	Returns grid cells + bounds for a bbox

curl "http://localhost:8080/api/cells?grid=0.25&bbox=-119.2,33.3,-117.3,34.7"

📍 OpenAQ Stations

Method	Path	Query Params	Description
GET	`/api/stations`	`bbox`	Station list in bbox
GET	`/api/stations/{station_id}/timeseries`	`hours` (1–168)	Hourly NO₂ series for a station

curl "http://localhost:8080/api/stations?bbox=-119.2,33.3,-117.3,34.7"

curl "http://localhost:8080/api/stations/12345/timeseries?hours=72"

Notes: Station series are returned in the station’s native unit (no ppb conversion).

📅 Convenience Services

Method	Path	Description
GET	`/api/latest_day`	Returns latest day key available in outputs
GET	`/api/grid/hour`	Grid sample for a given `day` & `hour` (limit rows)
GET	`/api/series`	Time-series at a lat/lon over `days` (1–30)
GET	`/api/map/latest`	Returns latest preview map (file download)
GET	`/api/map/multi`	Returns multi-layer preview map (file download)

Examples

curl "http://localhost:8080/api/grid/hour?day=2025-10-02&hour=18&limit=1000"
curl "http://localhost:8080/api/series?lat=34.05&lon=-118.25&days=7"
curl -OJ "http://localhost:8080/api/map/latest"

🔁 Common Errors

Code	Meaning
400	Bad request (e.g., bbox/cell_id/time format)
404	No fused data available
500	Unexpected server error

🔐 Auth

These endpoints are open for demo/hackathon use. If you need auth later, add a proxy or FastAPI dependency for tokens.

📦 Outputs

Processed CSV files are stored in the out/ directory:

tempo_*.csv → TEMPO satellite data
openaq_*.csv → Ground sensor data
weather_*.csv → Weather snapshots
fused_truth_dataset.csv → Combined dataset
fused_metrics.csv → Validation metrics

🛠 Development

Format & lint:

black .
ruff check .

🧪 Example Usage

Fetch forecast for Los Angeles:

curl "http://localhost:8080/forecast?lat=34.05&lon=-118.25&hours=24"

Get validation metrics:

curl "http://localhost:8080/metrics"

👥 Team Members - Team Saviour

#	Name	Role	Focus / Responsibilities
1	Snigdha Khan	Frontend Developer & Storyteller	Dashboard UI/UX, charts & map views, presentation & docs
2	Shahriar Hayder	Backend Developer	FastAPI services, data fusion pipeline, Docker/CI, observability
3	Fahim Bhuiyan	Software Engineer & Data Scientist	Modeling & validation (NO₂ nowcast/forecast), metrics (RMSE/corr), data prep

📜 License

🙏 Acknowledgements

🌍 NASA TEMPO (via Harmony API)
📡 OpenAQ API
☁️ Open-Meteo
