Terraform module to build east-west security traffic network for Alibaba Cloud

terraform-alicloud-east-west-security-traffic

English | 简体中文

In traditional data center networks, the approach involves deploying a large number of security devices to create a security zone for safeguarding enterprise systems and controlling access. Network traffic must pass through different devices within the security zone based on business logic and security protection levels, which is known as service chaining. Nowadays, mutual traffic between instances, containers, or microservices deployed in public clouds also needs to adhere to the same security policies. For example, between different VPCs in the same region, or between VPCs and IDC, traffic is inspected and protected by security products based on rules, thereby reducing security threats within the enterprise's internal network.
Operational Workflow Overview:

• Create 2 business VPCs and 1 security VPC, and configure the VSWs and route tables
• Create a cloud enterprise network (CEN) instance and a transit router (TR)
• Configure the VPC attachment for the TR, and implement routes to divert traffic to the security VPC and manage return routes using the TR's multiple route tables

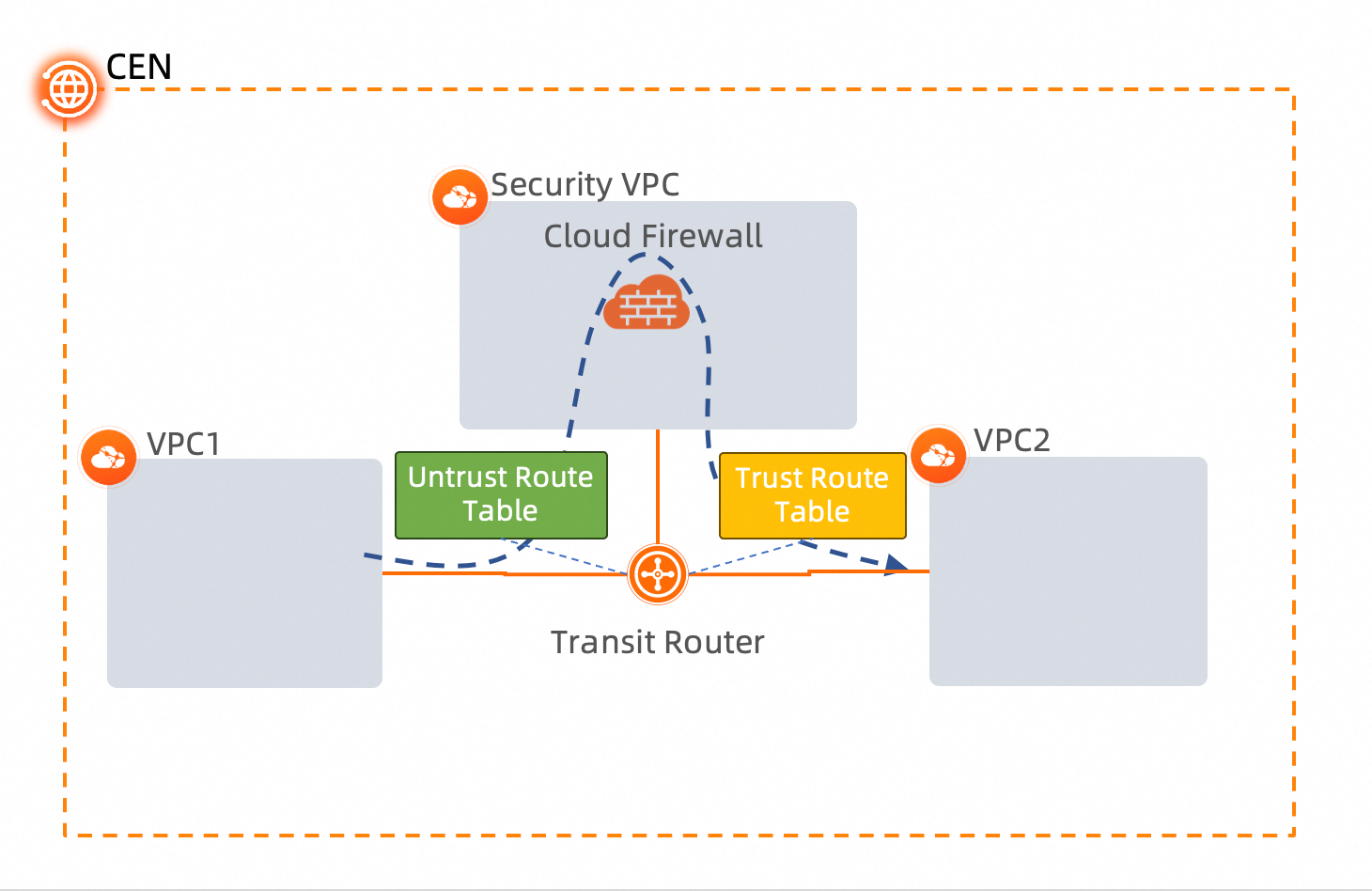

Architecture Diagram:

Usage

provider "alicloud" {
  region = "cn-hangzhou"
}

module "complete" {
  source = "alibabacloud-automation/east-west-security-traffic/alicloud"

  vpcs = [
    {
      vpc_name   = "vpc1",
      cidr_block = "172.16.0.0/24"
      vswitches = [{
        subnet  = "172.16.0.0/25"
        zone_id = "cn-hangzhou-j"
        }, {
        subnet  = "172.16.0.128/25"
        zone_id = "cn-hangzhou-k"
      }]
    },
    {
      vpc_name   = "vpc2",
      cidr_block = "192.168.0.0/24"
      vswitches = [{
        subnet  = "192.168.0.0/25"
        zone_id = "cn-hangzhou-j"
        }, {
        subnet  = "192.168.0.128/25"
        zone_id = "cn-hangzhou-k"
      }]
    }
  ]

  firewall_vpc = {
    cidr_block = "10.0.0.0/23"
    firewall_vswitch = {
      subnet  = "10.0.1.0/24"
      zone_id = "cn-hangzhou-j"
    }
    tr_vswitches = [{
      subnet  = "10.0.0.0/25"
      zone_id = "cn-hangzhou-j"
      }, {
      subnet  = "10.0.0.128/25"
      zone_id = "cn-hangzhou-k"
    }]
  }
}

Examples

• Complete Example

Requirements

Name	Version
terraform	>= 0.13

Providers

Name	Version
alicloud	n/a

Modules

Name	Source	Version
vpc	./modules/vpc	n/a

Resources

Name	Type
alicloud_cen_instance.this	resource
alicloud_cen_transit_router.this	resource
alicloud_cen_transit_router_route_entry.untrust	resource
alicloud_cen_transit_router_route_table.trust	resource
alicloud_cen_transit_router_route_table.untrust	resource
alicloud_cen_transit_router_route_table_association.trust	resource
alicloud_cen_transit_router_route_table_association.untrust	resource
alicloud_cen_transit_router_route_table_propagation.trust1	resource
alicloud_cen_transit_router_vpc_attachment.firewall_vpc	resource
alicloud_route_entry.firewall_vpc_outbound_route	resource
alicloud_route_entry.vpc_default_route	resource
alicloud_route_table.firewall_vpc_inbound_route	resource
alicloud_route_table.firewall_vpc_outbound_route	resource
alicloud_route_table_attachment.inbound	resource
alicloud_route_table_attachment.outbound	resource
alicloud_vpc.firewall_vpc	resource
alicloud_vswitch.firewall_vswitch	resource
alicloud_vswitch.tr_vswitches	resource

Inputs

Name	Description	Type	Default	Required
cen_instance_config	The parameters of cen instance.	object({ name = optional(string, "east-west-cen") description = optional(string, "east-west-cen") })	{}	no
cen_instance_id	The id of an exsiting cen instance.	string	null	no
cen_transit_router_id	The transit router id of an existing transit router.	string	null	no
create_cen_instance	Whether to create cen instance. If false, you can specify an existing cen instance by setting 'cen_instance_id'. Default to 'true'	bool	true	no
create_cen_transit_router	Whether to create transit router. If false, you can specify an existing transit router by setting 'cen_transit_router_id'. Default to 'true'	bool	true	no
firewall_vpc	The parameters of firewall vpc.	object({ vpc_name = optional(string, "firewall-vpc") cidr_block = string firewall_vswitch = object({ subnet = string zone_id = string }) tr_vswitches = list(object({ subnet = string zone_id = string })) inbound_route_table_name = optional(string, "inbound") outbound_route_table_name = optional(string, "outbound") })	{ "cidr_block": null, "firewall_vswitch": { "subnet": null, "zone_id": null }, "tr_vswitches": [ { "subnet": null, "zone_id": null }, { "subnet": null, "zone_id": null } ] }	no
tr_config	The parameters of transit router.	object({ name = optional(string, "east-west-tr") untrust_route_table_name = optional(string, "untrust") untrust_route_table_description = optional(string, "untrust") trust_route_table_name = optional(string, "trust") trust_route_table_description = optional(string, "trust") })	{}	no
vpcs	The parameters of vpc. The attribute 'cidr_block' is required.	list(object({ vpc_name = optional(string, null) cidr_block = string vswitches = list(object({ subnet = string zone_id = string })) }))	[]	no

Outputs

Name	Description
business_tr_vpc_attachment_id	The id of attachment between TR and business VPC.
business_vpc_id	The ids of business vpc.
business_vpc_route_table_id	The route table id of business vpc.
business_vswitch_ids	The ids of business vswitches.
cen_instance_id	The id of CEN instance.
cen_transit_router_id	The id of CEN transit router.
firewall_tr_vpc_attachment_id	The id of attachment between TR and firewall VPC.
firewall_tr_vswitch_ids	The ids of firewall vswitches.
firewall_vpc_id	The ids of firewall vpc.
firewall_vswitch_id	The route table id of firewall vpc.
inbound_route_table_id	The id of inbound route table of firewall VPC.
outbound_route_table_id	The id of outbound route table of firewall VPC.
trust_route_table_id	The id of trust route table of transit router.
untrust_route_table_id	The id of untrust route table of transit router.

Submit Issues

If you have any problems when using this module, please opening a provider issue and let us know.

Note: There does not recommend opening an issue on this repo.

Authors

Created and maintained by Alibaba Cloud Terraform Team(terraform@alibabacloud.com).

License

MIT Licensed. See LICENSE for full details.
