Home assistant Custom Component for reading data from BYD Battery Box system series like HVL, HVM, HVS, LVS. This integration uses a local modbus connection.
Caution
This is a work in progress project - it is still in early development stage, so there are still breaking changes possible.
This is an unofficial implementation and not supported by BYD. It might stop working at any point in time. You are using this module (and it's prerequisites/dependencies) at your own risk. Not me neither any of contributors to this or any prerequired/dependency project are responsible for damage in any kind caused by this project or any of its prerequsites/dependencies.
Important
The battery must be connected by LAN cable as the wireless connection disables itself after a timeout. The default IP address of the BYD battery is 192.168.16.254. Later firmware versions seem to support DHCP and will use the assigned IP address. In the later case you will need to look up the address. Depending on your network configuration a static route might be added. You can test connectivity to the battery in the browser by using the batteries address for example http://192.168.16.254 and should get a login page.
Important
Note using other applications connecting to battery simulatousnely might give unexpected results.
Copy contents of custom_components folder to your home-assistant config/custom_components folder or install through HACS. After reboot of Home-Assistant, this integration can be configured through the integration setup UI.
The key BMU Status data will by default refreshed 30 seconds.
Detailed BMS data will be refreshed by default every 10 minutes.
The log data is by default updated every 10 minutes. Log data is stored in /config/custom_components/byd_battery_box/log folder. The integration uses the json file for storage and for convenience a CSV file is being stored as well.
Use the buttons on the devices to retrieve additional log history, during the update all other data updates will be suspended. The integration writes warnings into log to see progress of the updates.

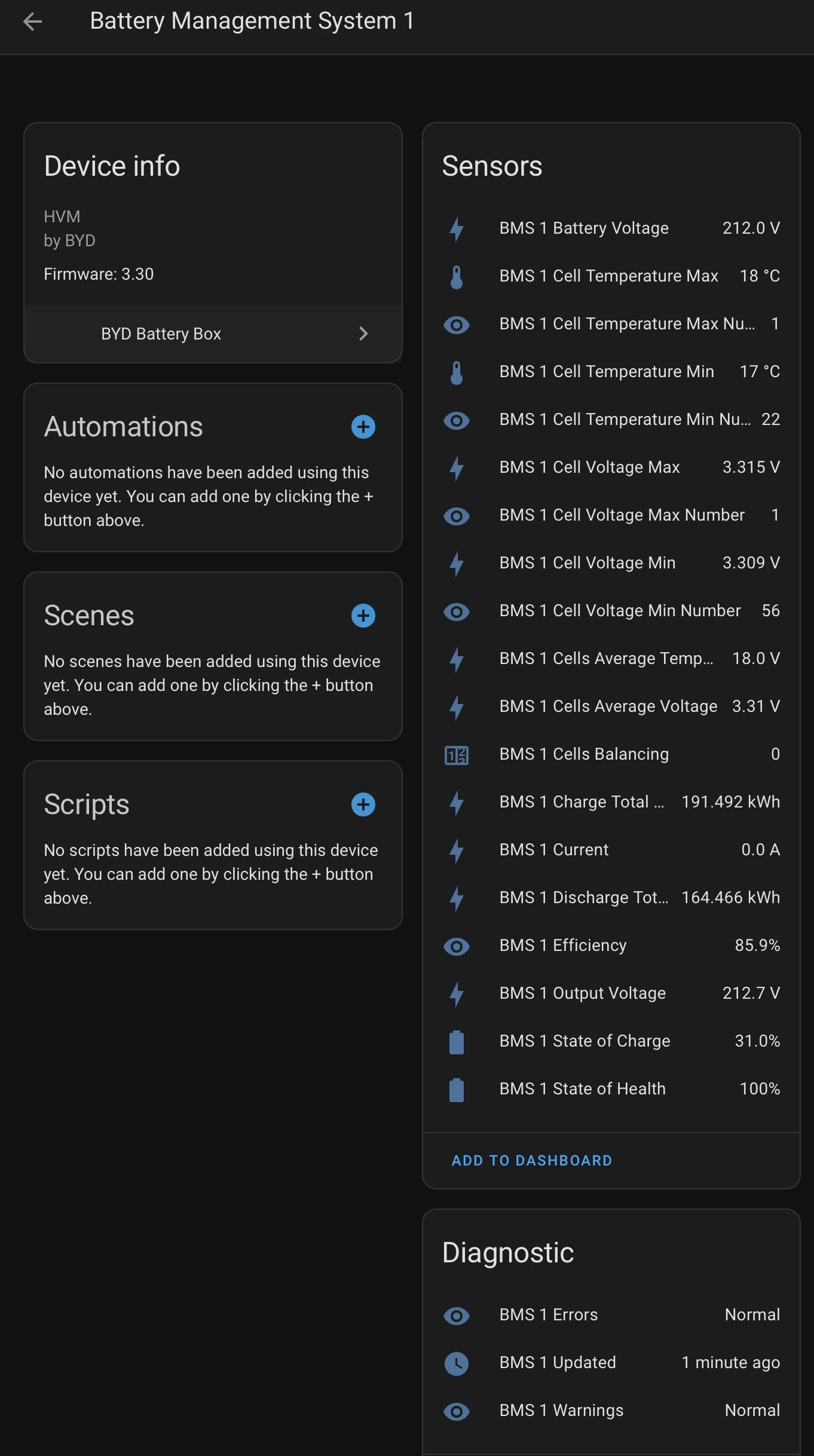

| Entity | Description |
|---|
| Entity | Description |
|---|---|
| To come! |
| Entity | Description |
|---|
| Entity | Description |
|---|---|
| To come! |
- type: grid
cards:
- type: markdown
style: |
ha-card {
width: 100%;
}
content: >
{% if states('sensor.log_entries') | is_number %} {% set log =
state_attr('sensor.log_entries','log')%} | Timestamp | Unit | Code |
Description | Details |
|:---|:---|---:|:---|:---|
{% for l in log %} |{{ l['ts'] }}|{{ l['u'] }}|{{ l['c'] }}|{{
l['d'] }}|{{ l['detail'] }}|
{% endfor %} {% endif %}
title: Log
grid_options:
columns: full
rows: auto
column_span: 2
Voltages Table in mV
- type: grid
cards:
- type: markdown
style: |
ha-card {
width: 100%;
}
content: >
{% if states('sensor.bms_1_cells_average_voltage') | is_number %}
{% set
sensors=['sensor.bms_1_cells_average_voltage','sensor.bms_2_cells_average_voltage','sensor.bms_3_cells_average_voltage']%}
{% set cell_count = int(states('sensor.cells_per_module')) %} {%
for u in range(1,int(states('sensor.towers'))+1)%}
{% set modules = state_attr(sensors[u-1],'cell_voltages')%} | BMS
{{u}} |{% for i in range(1,cell_count+1)%}Cell {{i}}|{%- endfor %}
|:---|{% for i in range(1,cell_count+1) %}---:|{% endfor %}
{% for m in modules %}{% set cells = m['v'] %}|Module {{ m['m']
}}|{% for v in cells %}{{ v }}|
{%- endfor %}
{% endfor %}
{%- endfor %} {% endif %}
title: Cell Voltages in mV
grid_options:
columns: full
rows: auto
column_span: 2
Voltages Table in V
- type: grid
cards:
- type: markdown
style: |
ha-card {
width: 100%;
}
content: >
{% set
sensors=['sensor.bms_1_cells_average_voltage','sensor.bms_2_cells_average_voltage','sensor.bms_3_cells_average_voltage']%}
{% set cell_count = int(states('sensor.cells_per_module')) %} {%
for u in range(1,int(states('sensor.towers'))+1)%}
{% set modules = state_attr(sensors[u-1],'cell_voltages')%} | BMS
{{u}} |{% for i in range(1,cell_count+1)%}Cell {{i}}|{%- endfor %}
|:---|{% for i in range(1,cell_count+1) %}---:|{% endfor %}
{% for m in modules %}{% set cells = m['v'] %}|Module {{ m['m']
}}|{% for v in cells %}{{ '%.3f' | format(v/1000) }}|
{%- endfor %}
{% endfor %}
{%- endfor %}
title: Cell Voltages in V
grid_options:
columns: full
rows: auto
column_span: 2

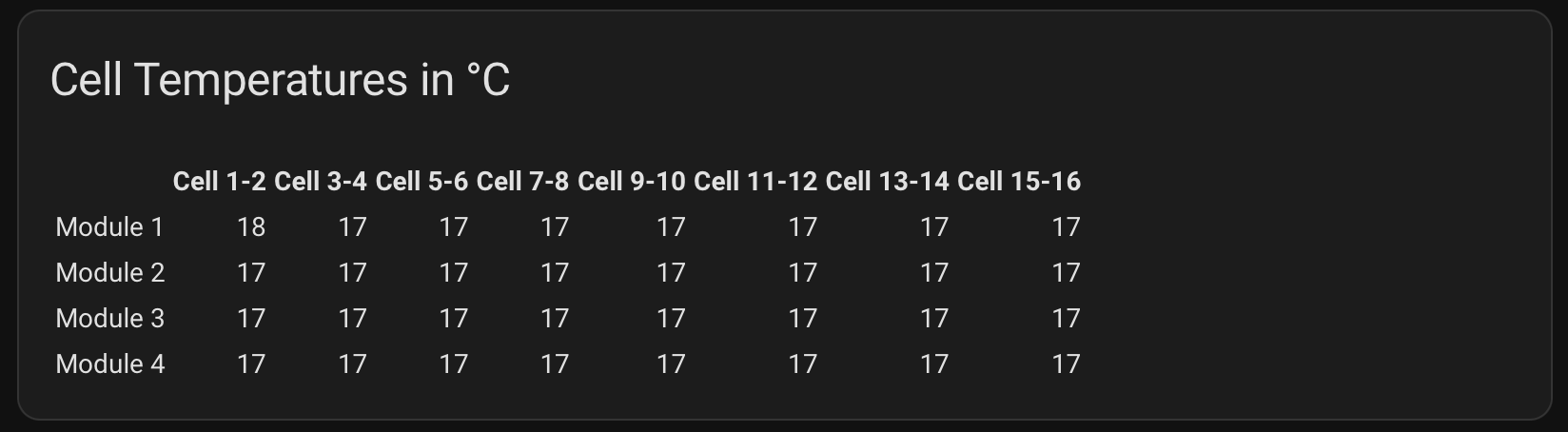

Temperatures Table
- type: grid
cards:
- type: markdown
style: |
ha-card {
width: 100%;
}
content: >
{% if states('sensor.bms_1_cells_average_temperature') | is_number
%} {% set
sensors=['sensor.bms_1_cells_average_temperature','sensor.bms_2_cells_average_temperature','sensor.bms_3_cells_average_temperature']%}
{% set cell_count = int(int(states('sensor.cells_per_module')) /
2) %} {% for u in range(1,int(states('sensor.towers'))+1)%}
{% set modules = state_attr(sensors[u-1],'cell_temps')%} | BMS
{{u}} |{% for i in range(1,cell_count+1)%}Cell
{{i*2-1}}-{{i*2}}|{%- endfor %}
|:---|{% for i in range(1,cell_count+1) %}---:|{% endfor %}
{% for m in modules %}{% set cells = m['t'] %}|Module {{ m['m']
}}|{% for t in cells %}{{ t }}|
{%- endfor %}
{% endfor %}
{%- endfor %} {% endif %}
title: Cell Temperatures in °C
grid_options:
columns: full
rows: auto
column_span: 2
- type: grid
cards:
- type: markdown
style: |
ha-card {
width: 100%;
}
content: >
{% if states('sensor.bms_1_balancing_total') | is_number %} {% set
sensors=['sensor.bms_1_balancing_total','sensor.bms_2_balancing_total','sensor.bms_3_balancing_total']%}
{% set cell_count = int(states('sensor.cells_per_module')) %} {%
for u in range(1,int(states('sensor.towers'))+1)%}
{% set modules = state_attr(sensors[u-1],'total_cells')%} | BMS
{{u}} |{% for i in range(1,cell_count+1)%}Cell {{i}}|{%- endfor %}
|:---|{% for i in range(1,cell_count+1) %}---:|{% endfor %}
{% for m in modules %}{% set cells = m['bct'] %}|Module {{ m['m']
}}|{% for v in cells %}{{ v }}|
{%- endfor %}
{% endfor %}
{%- endfor %} {% endif %}
title: Cell Balancing Totals
grid_options:
columns: full
rows: auto
column_span: 2
- type: grid
cards:
- type: markdown
style: |
ha-card {
width: 100%;
}
content: >
{% if states('sensor.bms_1_cells_balancing') | is_number %} {% set
sensors=['sensor.bms_1_cells_balancing','sensor.bms_2_cells_balancing','sensor.bms_3_cells_balancing']%}
{% set cell_count = int(states('sensor.cells_per_module')) %} {%
for u in range(1,int(states('sensor.towers'))+1)%}
{% set modules = state_attr(sensors[u-1],'cell_balancing')%} | BMS
{{u}} |{% for i in range(1,cell_count+1)%}Cell {{i}}|{%- endfor %}
|:---|{% for i in range(1,cell_count+1) %}---:|{% endfor %}
{% for m in modules %}{% set cells = m['b'] %}|Module {{ m['m']
}}|{% for b in cells %}{% if b == 1%}on{%else%}-{%endif%}|
{%- endfor %}
{% endfor %}
{%- endfor %} {% endif %}
title: Cells Balancing
grid_options:
columns: full
rows: auto
column_span: 2
https://github.com/sarnau/BYD-Battery-Box-Infos/blob/main/Read_Modbus.py https://github.com/christianh17/ioBroker.bydhvs/blob/master/docs/byd-hexstructure.md https://github.com/smarthomeNG/plugins/tree/develop/byd_bat
