Compact Computerized Wireless Sensor Data Recorder and Modular Environmental Anomaly Detection Ecosystem
The goal of this system is to provide the paranormal research community a verifiable open-source deception-resistant platform for gathering scientific data which is verifiable, trackable, able to correlate phenomena with timed logs.
This code, along with the appropriate libraries, can be installed on the M5StickC PLUS2 using the Arduino IDE.
Partition scheme: Minimal SPIFFS.
The Paranormal Sensor Station is Open Source so that the community can debunk and debug it's use with full scientific disclosure. This code is provided in good faith with the understanding that it is not to be distributed in a commercial product, in whole or in part, without the written permission of Two Faces. Code Provided Under Creative Commons License CC BY-NC-SA 4.0 Attribution-NonCommercial-ShareAlike 4.0 International
PSS Main Unit only $100 USD at Two Faces Paranormal
| Make it a Kit |
| PSS+Env. Sensor+Sensor Bar $300.00 USD PSS+Env. Sensor $120.00 USD PSS+Sensor Bar $280.00 USD PSS Main Unit Only $100.00 USD Sensor Bar Only $200.00 USD Environmental Sensor Only $30.00 USD |

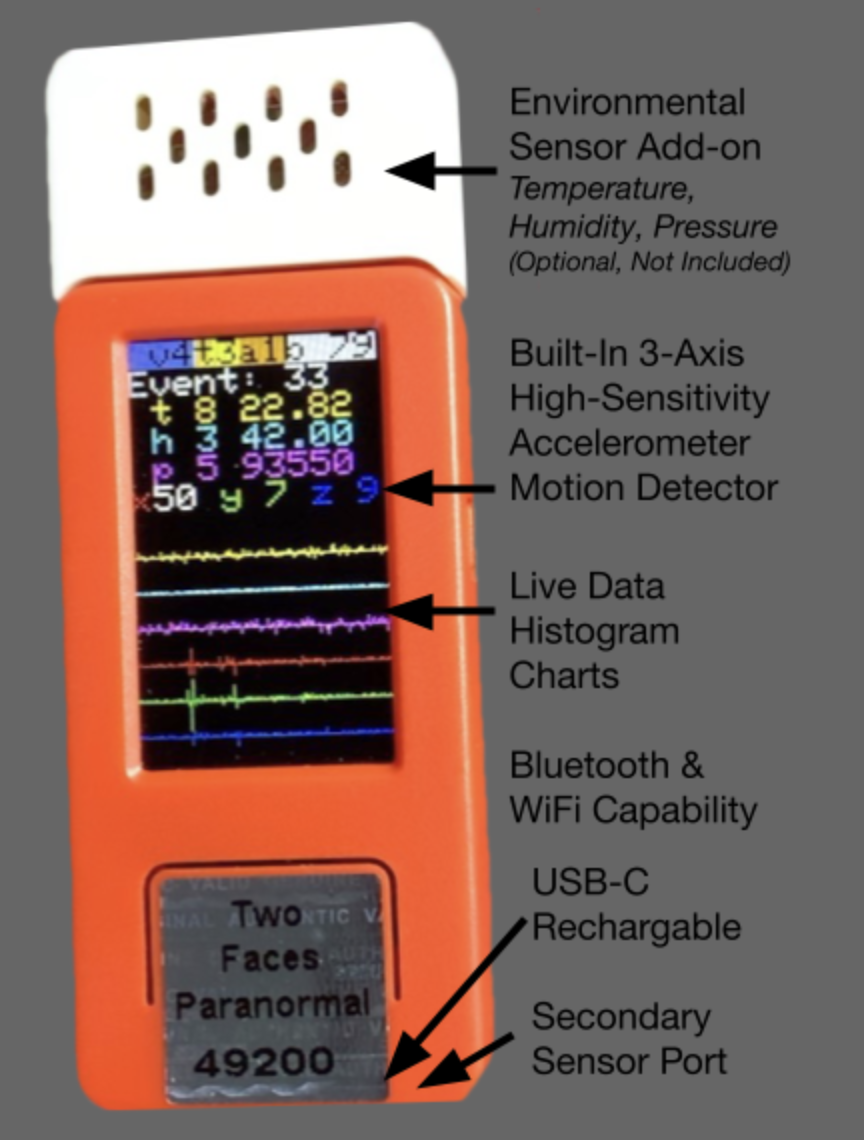

Optional Environmental Sensor Shown, Not Included.
- One device for an entire growing suite of the most popular meters and detectors used in the investigation of the paranormal.
- Histogram Charts to log readings over time. Never miss a spike in the meter again!
- Groundbreaking NEW Sensors (such as the Sensor Bar) available to detect anomalies in new ways and facilitate clearer intelligent responses from potential unseen entities.
- Bluetooth App (iOS and Android, free) to log real-time alerts from all the nearby stations from one mobile device, and remotely change settings.
- WiFi capability for firmware updates.
- Small size and affordable price, so you can deploy many units all over the area to be investigated.
- USB-C charging, plus two separate external sensor ports, planned future compatibility with 3rd party sensors.
- Beeping option and Flashing Red Indicator Light. Adjustable beep pitch to differentiate multiple units.
- 1.14 inch 135×240 Color TFT LCD

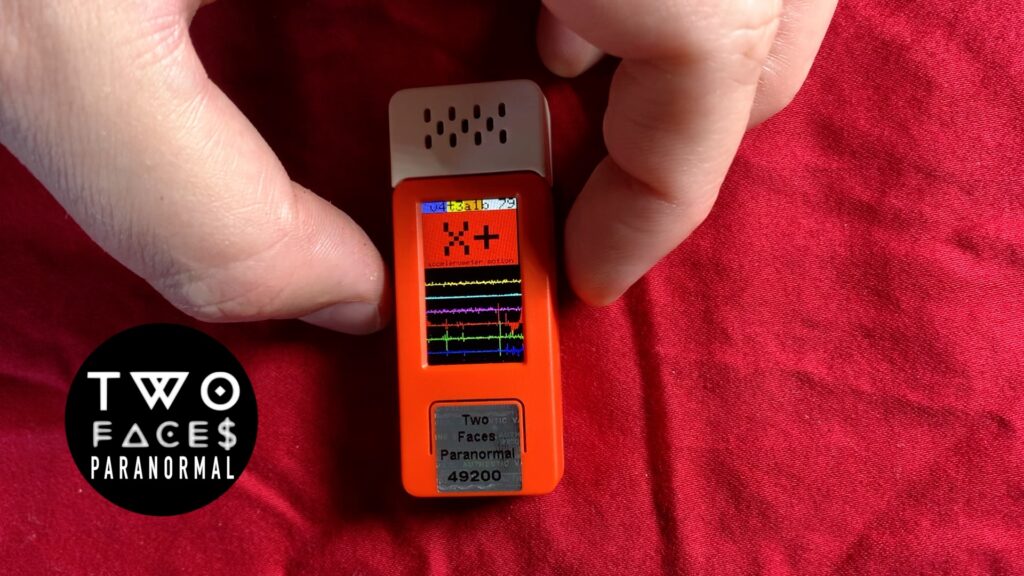

Prototype Unit Shown. Specifications Subject to Change.
https://www.youtube.com/embed/vzPrHjMO7lk
https://www.youtube.com/embed/pbxVHjrPMA0
https://www.youtube.com/embed/yzdc9kw9Fw4
This device simplifies the process of identifying and cataloging sensor data that unseen entities may influence in response to questions or commands. Alerts occur when a sensor value (such as temperature or motion) changes quickly, while ignoring gradual changes and drift. Multiple auto-zeroing & auto-calibrating external sensors are available, as well as a built-in high-sensitivity accelerometer for movement detection (able to detect the slightest touch). A bright red LED blinks and the unit makes distinct beep sounds when a sensor reading exceeds the alert threshold. Sensor history is continuously reflected in on-screen histograms. Real-time alerts and log data from multiple units can be gathered simultaneously via one mobile device, even letting you remotely change settings, with your choice of general-purpose Bluetooth apps. Firmware updates over wifi through a web interface.
(Optional, Not Included)
The Environmental Sensor is an optional add-on that detects changes in Temperature, Humidity and Barometric Pressure. It can be hot-swapped, meaning it can be removed or added at any time while the device is on or off.

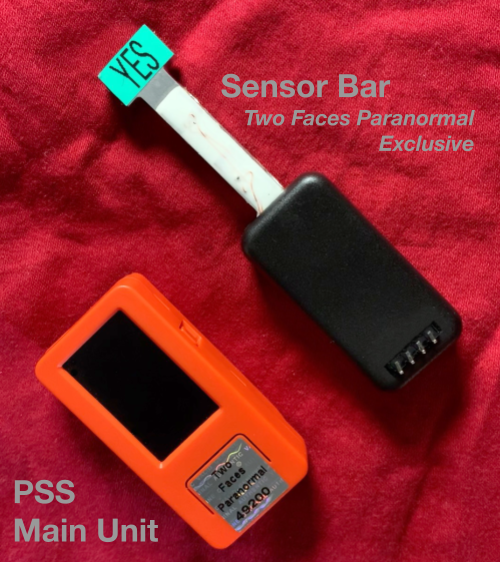

The Sensor Bar is an optional add-on that features a strain gauge load cell force sensor which can detect sub-milligram forces physically exerted on the bar in two directions. Force on one side indicates a “Yes” response, force against the other side indicates a “No” response.
REM Duo – Our take on the Radiating Electromagnetic Field Proximity Detector, times two. It’s like having one REM Pod for Yes and another for No. Signals are compared using fancy math to detect an interaction with the Yes or No side, ignoring interference that affects both sides, and continuously self-recalibrating. (Coming Soon, Prototype Available Upon Request)
All Sensors connect to the PSS Main Unit and take advantage of the Histogram Display, Bluetooth, USB-C, Battery, and Alert Capability
- Accelerometer (Built-In) – 3-Axis High-Sensitivity Motion Detector
- Environmental Sensor – Temperature, Humidity, Barometric Pressure
- Sensor Bar – Detects sub-milligram forces exerted on Yes or No sides
- REM Duo – Like having two REM Pods smooshed together, one for Yes and the other for No, with a computer comparing the two. (Coming Soon, Prototype Available Upon Request)
- Smart Spirit Radio – Scans unused FM frequencies by automatically detecting and skipping stations (Coming Soon, Prototype Available Upon Request)
- EMF Meter – The classic EMF/EF/RF meter (Coming Soon)
Try any of these tools risk-free for 30 days. If in that time you are not satisfied, return the undamaged unit for a refund of the purchase price, no-questions-asked.
- Soft Launch Special Pricing
- Prices and free shipping subject to change and available for a limited time.
- 1 Year Warranty against manufacturing defects
- 30-day satisfaction guarantee (Hardware purchases only, guarantee does not apply to software purchases.)
- Ships from Las Vegas, NV
- For shipping quotes outside the continental US, please contact us.
- Please allow approximately 2-3 weeks for delivery (while products are in early soft-launch status)
Two Faces Paranormal makes no claims as to the presence, validity or origin of any sensor reading. Sensor data interpretation is at the sole discretion of the user. Amusement purposes only. Specifications subject to change without notice.
The PSS and accessories are sold without any expectation, and to be considered experimental. No claim is made to the validity of the data received by these devices. Suggested use cases do not constitute a claim that any result is guaranteed. No claim is made as to Spirit communications, Aliens, Ghosts or any other type of phenomena. The user agrees not to expose children to this device, or any person who may be harmed or damaged by exposure to this device. You must be over 18 and in sound mental condition to use this device. As the owner of this device you are responsible for the device’s use and responsible for the safety of others who may come in contact with this device. This device should not be used by children under the age of 18 or anyone with a history of mental illness.
