implement delay years for Offhsore NEP

[JulianGeis]

Before asking for a review for this PR make sure to complete the following checklist:

• Workflow with target rule ariadne_all completes without errors
• The logic of export_ariadne_variables has been adapted to the changes
• One or several figures that validate the changes in the PR have been posted as a comment
• A brief description of the changes has been added to Changelog.md
• The latest main has been merged into the PR
• The config has a new prefix of the format YYYYMMDDdescriptive_title

[JulianGeis]

2025

no delay:

INFO:main:Dropping transmission projects with build year <= 2024. They are likely already in the OSM base network.
INFO:main:Forcing in NEP offshore DC projects with capacity:
name
DE0 4 2700
Name: Übertragungsleistung in MW, dtype: int64
INFO:main:Forcing in NEP offshore AC projects with capacity:
name
DE0 0 750
Name: Übertragungsleistung in MW, dtype: int64

delay:

INFO:main:Dropping transmission projects with build year <= 2024. They are likely already in the OSM base network.
INFO:main:Delaying NEP offshore connection points by 1 years.
INFO:main:Forcing in NEP offshore DC projects with capacity:
name
DE0 4 2700
Name: Übertragungsleistung in MW, dtype: int64
INFO:main:Forcing in NEP offshore AC projects with capacity:
name
DE0 0 750
Name: Übertragungsleistung in MW, dtype: int64

2030

no delay:

INFO:main:Dropping transmission projects with build year <= 2024. They are likely already in the OSM base network.
INFO:main:Forcing in NEP offshore DC projects with capacity:
name
DE0 0 2000
DE0 4 9800
DE0 7 4980
Name: Übertragungsleistung in MW, dtype: int64
INFO:main:Forcing in NEP offshore AC projects with capacity:
name
DE0 0 300
Name: Übertragungsleistung in MW, dtype: int64

delay:

INFO:main:Dropping transmission projects with build year <= 2024. They are likely already in the OSM base network.
INFO:main:Delaying NEP offshore connection points by 1 years.
INFO:main:Forcing in NEP offshore DC projects with capacity:
name
DE0 4 3800
DE0 7 980
Name: Übertragungsleistung in MW, dtype: int64
INFO:main:Forcing in NEP offshore AC projects with capacity:
name
DE0 0 300
Name: Übertragungsleistung in MW, dtype: int64

2035

• no more projects bc of cutout year

no delay:

delay:

INFO:main:Delaying NEP offshore connection points by 1 years.

[github-actions]

Validator Report

I am the Validator. Download all artifacts here.
I'll be back and edit this comment for each new commit.

⚠️ Config changes detected!

Results may differ due to these changes:

diff --git a/config/config.yaml b/config/config.yaml
index ba21fb2..0a8fe37 100644
--- a/config/config.yaml
+++ b/config/config.yaml
@@ -683,6 +683,7 @@ onshore_nep_force:
 offshore_nep_force:
   cutin_year: 2025
   cutout_year: 2030
+  delay_years: 0

 scale_capacity:
   2020:

Ariadne Variables

Comparison

	NRMSE	Pearson
Capacity|Hydrogen|Gas|w/ CCS	0.634	0.131
System Cost|Capex|Hydrogen|Gas|w/ CCS	0.634	0.130
Investment|Energy Supply|Liquids|Biomass	0.577	0.000

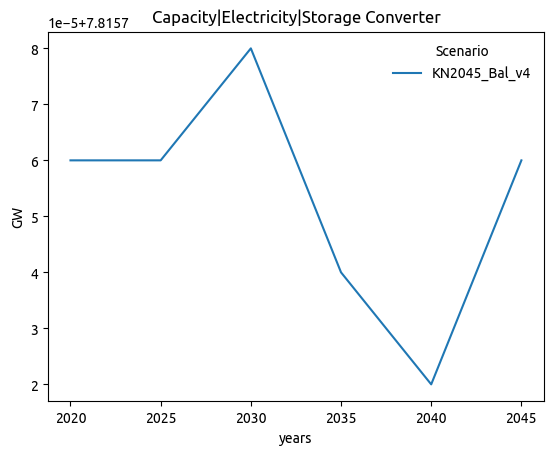

Capacity|Electricity|Storage Converter	0.447	0.143
System Cost|OPEX|Electricity|Storage Converter|Stationary Batteries	0.431	0.193
System Cost|OPEX|Electricity|Hydrogen|OC	0.424	0.227
System Cost|OPEX|Electricity|Hydro	0.422	0.488
System Cost|OPEX|Electricity|Storage Reservoir|Hydro Dam Reservoir	0.415	0.131
System Cost|OPEX|Electricity|Storage Converter|Hydro Dam Reservoir	0.415	0.131

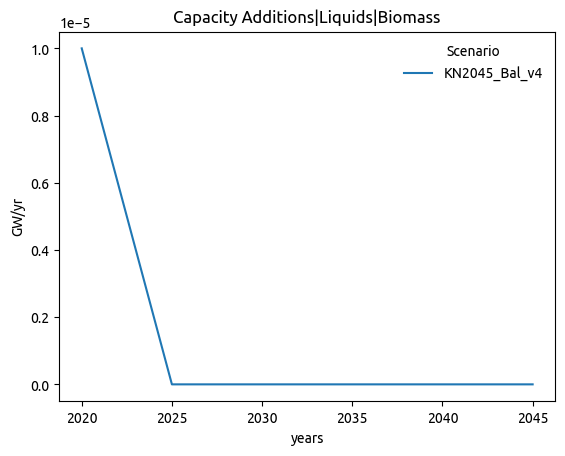

Capacity Additions|Liquids|Biomass	0.408	-0.200
Capacity|Liquids|Biomass	0.408	-0.200

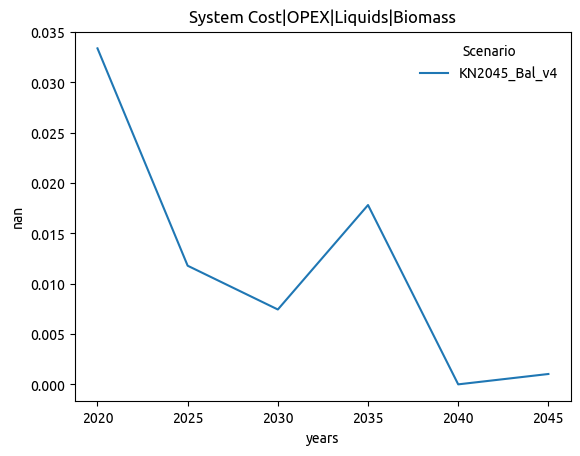

System Cost|OPEX|Liquids|Biomass	0.408	-0.428
System Cost|Capex|Liquids|Biomass	0.408	-0.442
System Cost|Capex|Electricity|Hydrogen|OC	0.400	0.314
Investment|Energy Supply|Hydrogen|Gas|w/ CCS	0.346	0.907
System Cost|Capex|Gases|Hydrogen	0.342	0.548
System Cost|Capex|Electricity|Storage Reservoir|Stationary Batteries	0.337	0.537
System Cost|Capex|Electricity|Storage Reservoir	0.337	0.537
System Cost|Capex|Heat|Biomass|w/ CCS	0.323	0.532

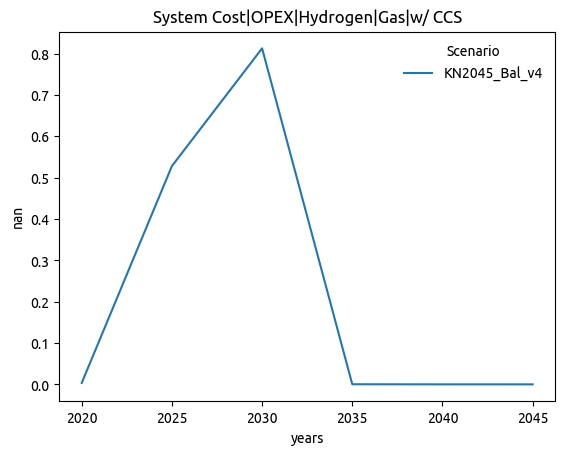

System Cost|OPEX|Hydrogen|Gas|w/ CCS	0.319	0.820
System Cost|OPEX|Heat|Biomass|w/ CCS	0.318	0.535
Secondary Energy|Electricity|Hydro	0.316	0.731
System Cost|Capex|Electricity|Hydrogen|FC	0.307	0.642
Capacity Additions|Hydrogen|Gas|w/ CCS	0.305	0.878
System Cost|Capex|Electricity|Gas|w/ CCS	0.292	0.694
Capacity|Electricity|Gas|OC	0.289	0.655
Price|Secondary Energy|Gases|Hydrogen	0.286	0.000
System Cost|OPEX|Electricity|Gas|w/ CCS	0.273	0.822
System Cost|Capex|Electricity|Gas|OC	0.265	0.800
System Cost|OPEX|Electricity|Storage Converter	0.186	0.892
System Cost|OPEX|Electricity|Storage Reservoir	0.186	0.892
Emissions|CO2|Efuels|Gases	0.140	0.953
Final Energy|Industry excl Non-Energy Use|Gases|Biomass	0.131	0.957
Final Energy|Industry|Gases|Biomass	0.131	0.957
Final Energy|Non-Energy Use|Gases|Biomass	0.131	0.960
Final Energy|Gases|Biomass	0.128	0.964
Trade|Secondary Energy|Gases|Biomass|Gross Import|Volume	0.120	1.000
Investment|Energy Supply|Liquids	0.107	0.984
Investment|Energy Supply|Hydrogen|Transmission and Distribution|Endogen|New-build	0.106	0.976

NRMSE: Normalized (combined-min-max) Root Mean Square Error
Pearson: Pearson correlation coefficient
Threshold: NRMSE > 0.1
Only variables reaching the threshold are shown. Find the equivalent plot for all of them below.

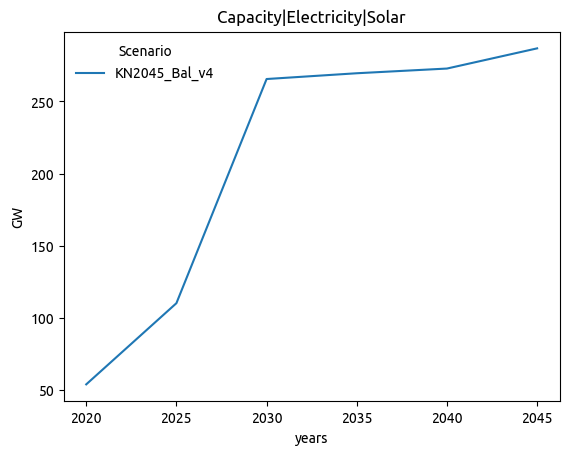

Plots

Main branch	Feature branch

⚠️ Note: Only the first 20 variables are shown, but more are above the threshold. Find all of them in the artifacts.

General

Plots comparison

Main branch	Feature branch

Files comparison

	Status	NRMSE	MAE (norm)
csvs/prices.csv	⚠️Changed	0.001	0.05
csvs/curtailment.csv	⚠️Changed	0.000	0.13
csvs/price_statistics.csv	⚠️Changed	0.002	0.12
csvs/cumulative_cost.csv	⚠️Changed	0.000	0.12
csvs/metrics.csv	⚠️Changed	0.000	0.08
csvs/nodal_cfs.csv	⚠️ NaN mismatch
csvs/supply.csv	✅ Almost equal	0.001	0.00
csvs/nodal_supply_energy.csv	✅ Almost equal	0.000	0.00
csvs/capacities.csv	✅ Almost equal	0.000	0.00
csvs/nodal_costs.csv	✅ Almost equal	0.000	0.00
csvs/market_values.csv	✅ Almost equal	0.006	0.04
csvs/nodal_capacities.csv	✅ Almost equal	0.000	0.00
csvs/cfs.csv	✅ Almost equal	0.021	0.00
csvs/costs.csv	✅ Almost equal	0.000	0.02
csvs/supply_energy.csv	✅ Almost equal	0.000	0.01
csvs/energy.csv	✅ Almost equal	0.000	0.03
csvs/weighted_prices.csv	✅ Equal

NRMSE: Normalized (combined-min-max) Root Mean Square Error
MAE (norm): Mean Absolute Error on normalized data (min-max)
Status Threshold: MAE (norm) > 0.05 and NRMSE > 0.3

Model Metrics

Benchmarks

Comparing delay-offshore-NEP (4d584e8) with main (32dadd8).
Branch is 9 commits ahead and 0 commits behind.
Last updated on 2024-12-05 12:57:59 CET.
