Connect App

Description

connect_pfe is a web application built with .Net Core(C#) and ReactJS, helps to facilitate communication between students and their teachers.

Prerequisites

Before running the web app, ensure that you have the following prerequisites installed:

• .NET Core SDK 6
• Node.js
• SQL Server 2019

or Docker.

Getting Started

Follow the steps below to get the web app up and running on your local machine:

1. Clone this repository to your local machine using: git clone https://github.com/PhyDevs/connect_pfe.git.
2. Install the backend dependencies by running dotnet restore src/Connect.WebAPI.
3. Build the project by running dotnet build src/Connect.WebAPI.
4. Start the development server by running dotnet run --project src/Connect.WebAPI.
5. Navigate to the client project directory: cd client.
6. Install the frontend dependencies by running npm install or yarn install.
7. Start the development server by running npm start.
8. Open your browser and visit http://localhost:3000 to view the web app.

Project Structure

The project follows a standard clean architecture structure:

├── /client
│   ├── /src               # React.js source code
│   └── package.json       # npm package configuration file
|
├── /src                      # the backend source code
│   ├── /Application          # Contains application-specific logic and use cases
│   ├── /Domain               # Defines the core domain models
│   ├── /Infrastructure       # Implements infrastructure-related components and services
│   └── /WebAPI               # Contains the application Web API project
│       ├── /Controllers                      # Controller classes
│       ├── StartupConfigureMiddelwares.cs    # Configure the HTTP request pipeline.
│       ├── StartupConfigureServices.cs       # Configures and add services to the container.
│       └── appsettings.json                  # Configuration file for the application
|
└── Connect.sln     # Solution file for the project

Configuration

You can update the connection strings on src/Connect.WebAPI/appsettings.json.

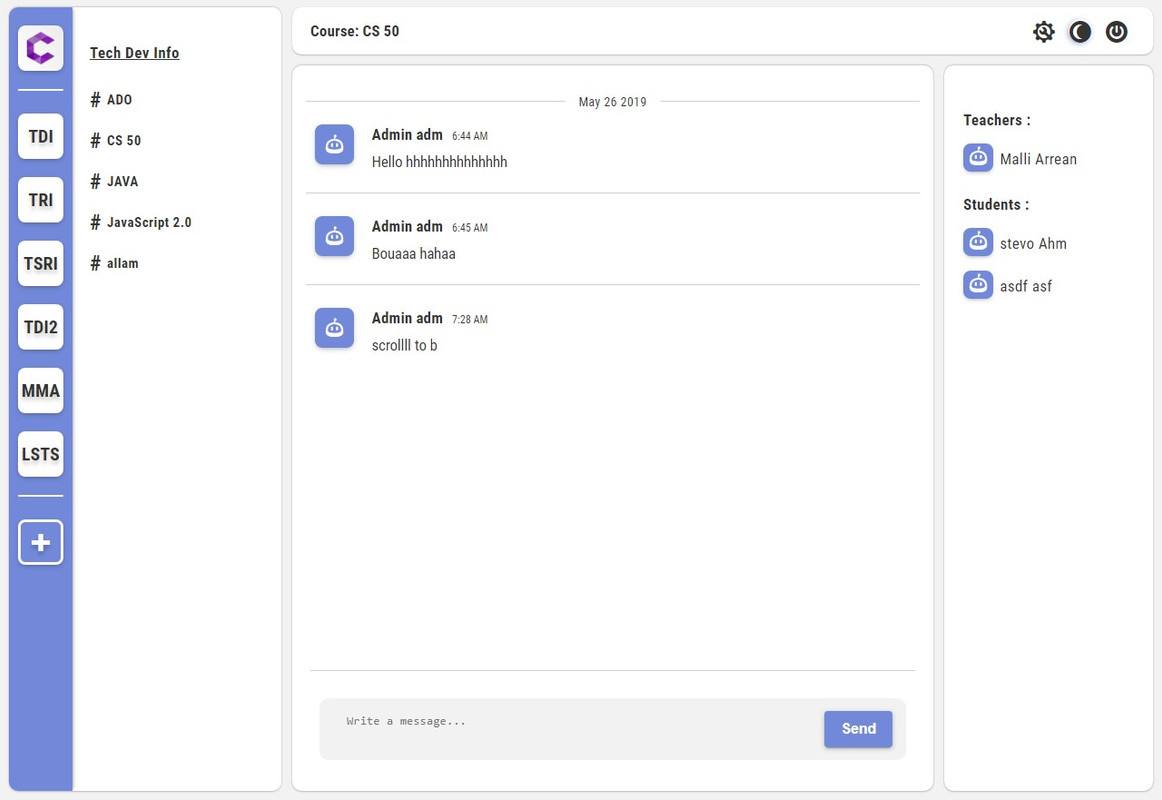

Screenshots

Enjoy!
