Energy-Aware Job Shop Scheduling with NSGA-II 🏭

A multi-objective optimization system for job shop scheduling that simultaneously minimizes makespan, energy costs, and tardiness using the NSGA-II (Non-dominated Sorting Genetic Algorithm II) evolutionary algorithm.

🚀 Features

• Multi-objective optimization with three objectives:
  • Makespan: Total completion time
  • Energy Cost: Time-of-use electricity costs
  • Tardiness: Penalty for late job completion
• Energy-aware scheduling with configurable tariff periods
• Machine-specific energy profiles (idle vs. working power consumption)
• Flexible job shop configuration with precedence constraints
• Pareto front visualization in 2D and 3D
• Gantt chart generation for schedule visualization

📋 Requirements

numpy
matplotlib

🔧 Installation

1. Clone the repository:

git clone https://github.com/yourusername/energy-aware-job-shop-scheduling.git
cd energy-aware-job-shop-scheduling

2. Install required dependencies:

pip install numpy matplotlib

🏃‍♂️ Quick Start

from nsga2_scheduler import *

# Define machines with energy profiles
machines = [
    Machine("M1", idle_power=0.1, working_power=1.0),
    Machine("M2", idle_power=0.15, working_power=1.5),
    Machine("M3", idle_power=0.08, working_power=0.8),
]

# Define operations and jobs
op1_1 = Operation("Op1.1", "J1", "M1", 5, 1)
op1_2 = Operation("Op1.2", "J1", "M2", 3, 2)
job1 = Job("J1", [op1_1, op1_2], due_date=10)

# Define energy cost model
energy_tariffs = {
    "off_peak": (0, 7, 0.10),
    "peak": (7, 17, 0.25),
    "off_peak_evening": (17, 24, 0.15),
}
energy_model = EnergyCostModel(energy_tariffs)

# Create and run scheduler
scheduler = NSGA2Scheduler(
    jobs=[job1],
    machines=machines,
    energy_model=energy_model,
    population_size=100,
    generations=300
)

results = scheduler.run()

# Visualize results
plot_pareto_front(results["pareto_front"])

📊 Core Components

1. Operation

Represents a single manufacturing operation with:

• Processing time and machine assignment
• Energy consumption calculation
• Precedence constraints within jobs

2. Job

Collection of operations with:

• Sequential execution requirements
• Due date constraints
• Release time specifications

3. Machine

Manufacturing resource with:

• Configurable energy profiles (idle/working power)
• Availability tracking
• Schedule management

4. Energy Cost Model

Time-of-use electricity pricing with:

• Multiple tariff periods
• Hourly cost calculation
• Dynamic pricing support

5. NSGA-II Scheduler

Multi-objective evolutionary algorithm featuring:

• Population initialization with diverse strategies
• Fast non-dominated sorting for Pareto ranking
• Crowding distance for diversity preservation
• Tournament selection with elitism
• Order crossover (OX1) for permutation chromosomes
• Multi-strategy mutation (swap, insertion, inversion)

🎯 Algorithm Overview

The NSGA-II algorithm works by:

1. Encoding: Jobs represented as permutation chromosomes
2. Decoding: Converting chromosomes to feasible schedules
3. Evaluation: Calculating makespan, energy cost, and tardiness
4. Selection: Multi-objective tournament selection
5. Reproduction: Order crossover and mutation operators
6. Replacement: Elitist selection maintaining population diversity

📈 Visualization

Pareto Front Plotting

• 3D scatter plot showing all three objectives
• 2D projections for pairwise objective analysis
• Color-coded solutions for easy interpretation

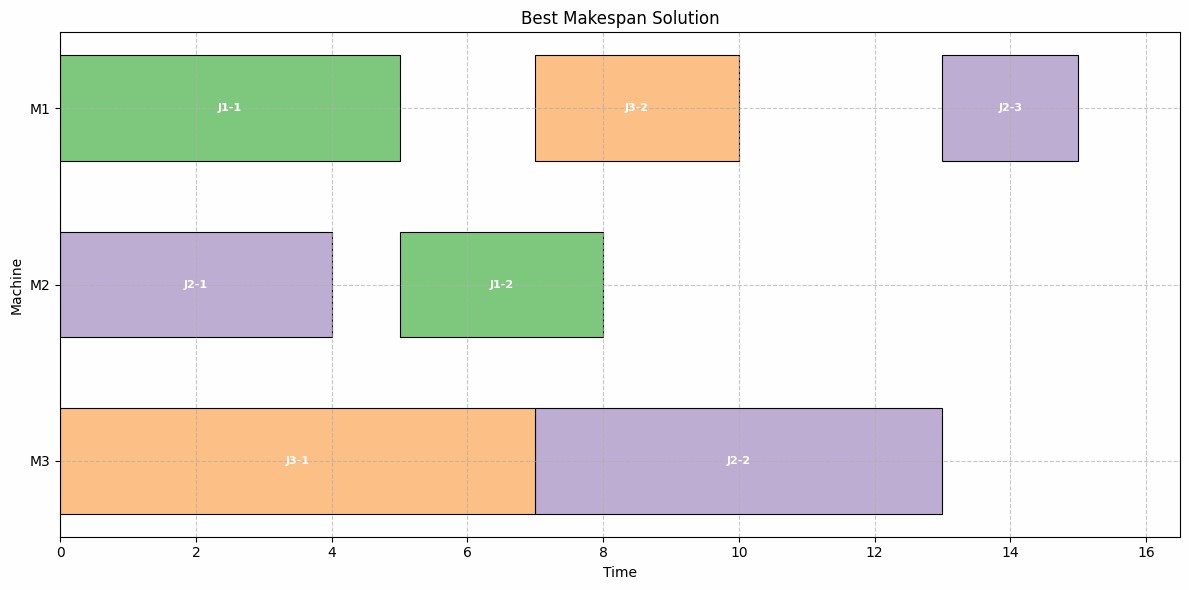

Gantt Charts

• Machine-based timeline visualization
• Job-specific color coding
• Operation details and timing

⚙️ Configuration

Population Parameters

NSGA2Scheduler(
    population_size=150,    # Population size
    generations=500,        # Number of generations
    crossover_rate=0.9,     # Crossover probability
    mutation_rate=0.2       # Mutation probability
)

Energy Tariffs

energy_tariffs = {
    "night": (0, 6, 0.08),        # (start_hour, end_hour, cost_per_unit)
    "morning": (6, 12, 0.20),
    "afternoon": (12, 18, 0.15),
    "evening": (18, 24, 0.25),
}

📋 Example Output

--- NSGA-II Optimization Complete ---
Pareto Front Size: 12

--- Pareto Front Solutions ---
Solution 1:
  Makespan: 18
  Energy Cost: 4.25
  Tardiness: 2

Solution 2:
  Makespan: 20
  Energy Cost: 3.80
  Tardiness: 0

Best individual objectives:
  Best Makespan: 18
  Best Energy Cost: 3.80
  Best Tardiness: 0

🔬 Research Applications

This implementation is suitable for:

• Manufacturing scheduling with energy constraints
• Sustainable production planning
• Multi-objective optimization research
• Smart factory implementations
• Energy cost reduction studies

🛠️ Customization

Adding New Objectives

Extend the _decode_chromosome method to calculate additional objectives:

def _decode_chromosome(self, chromosome):
    # ... existing code ...
    new_objective = calculate_new_objective(scheduled_operations)
    return scheduled_operations, makespan, energy_cost, tardiness, new_objective

Custom Machine Types

Create specialized machine classes:

class AdvancedMachine(Machine):
    def __init__(self, machine_id, setup_time=0, maintenance_cost=0):
        super().__init__(machine_id)
        self.setup_time = setup_time
        self.maintenance_cost = maintenance_cost

📚 References

• Deb, K., et al. (2002). "A fast and elitist multiobjective genetic algorithm: NSGA-II"
• Pinedo, M. (2016). "Scheduling: Theory, Algorithms, and Systems"
• Zhang, R., & Chiong, R. (2016). "Solving the energy-efficient job shop scheduling problem"

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

---
