ManipulationPlanning-SI-RRT

Combination of Rapidly-Exploring Random Trees (RRT) and Safe Interval Path Planning (SIPP) for high-DOF planning in dynamic environments, i.e., planning a path for a manipulator when moving obstacles are present (and their trajectories are known/accurately predicted).

Important

This repository contains code for the paper:

Kerimov N., Onegin A, Yakovlev K. Safe Interval Randomized Path Planning For Manipulators.

[Full text on arXiv]

Table of Contents

• Overview
• Supported Algorithms
• Repository Structure
• Code Structure
• Installation
• Quick Start

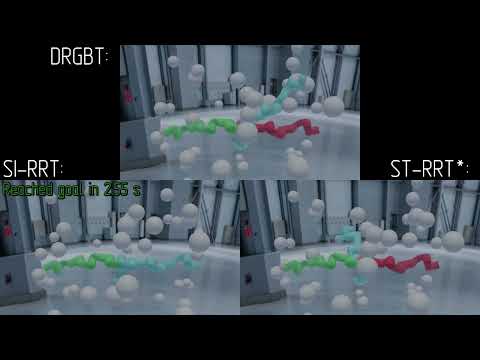

• Visualization Examples
• Analyze Data
• Citing This Work
• Contact

Overview

This repository contains the source code for path planning in dynamic environments for manipulators, Blender plugins, and code for creating and visualization of test cases.

Supported Algorithms

The following path planning algorithms are implemented:

DRGBT (Dynamic Rapidly-exploring Generalized Bur Tree)

Description: A reactive planner for manipulators that dynamically replans the path based on distance to obstacles.

Implementation: Forked from RPMPLv2 library and modified to use our collision detection functions.

ST-RRT* (Space-Time RRT*)

Description: A deliberative anytime planner that works directly in the space-time domain to find collision-free paths.

Implementation: Forked from OMPL library and adapted for our framework.

SI-RRT (Safe Interval RRT)

Description: Our novel deliberative planner that uses safe intervals for planning in dynamic environments.

Implementation: Original implementation developed for this research.

Repository Structure

The repository is organized into several branches:

• main branch [Link]: Contains up-to-date implementation of the algorithm, including multiagent tasks.
• reproducibility-version branch [Link]: Contains version of the algorithm that was used in the paper's experiments.

Code Structure

The codebase is organized into the following main directories:

• MSIRRT/: Our implementation of the Safe Interval RRT algorithm

• STRRT_Planner/: Space-Time RRT* implementation

• RPMPLv2/: DRGBT implementation, submoduled from https://github.com/PathPlanning/RPMPLv2/tree/new-compiler

• Blender/: Scripts and plugins for Blender visualization:

  • urdf_importer/: Blender add-on for importing URDF files. Compress it to .zip and install in Blender. Originally from https://github.com/Victorlouisdg/blender-urdf-importer , heavily modified
  • scenes/: Example Blender scene files for simulation and visualization
  • robots/: URDF and mesh files for supported robot models
  • scripts/: Utility scripts for exporting, importing, batch processing Blender scenes and creating mass tests

  For detailed information, prease refer to Blender Guide.

• mass_test/: Scripts for running batch experiments

  • do_mass_test.py: Main script for executing tests in parallel
  • clean_experiments.py: Utility for cleaning test results
  • final_analysis.ipynb: Jupyter notebook for analyzing test results

• docker/: Docker configuration files for reproducible environments

• tests/: Test cases and benchmark scenarios

Installation

For detailed installation instructions and dependencies please refer to our Installation Guide.

Quick Start

Follow these steps to quickly get started with the framework:

1. Download the test dataset:

   # Download the dataset
   wget https://disk.yandex.ru/d/-73LOGO5kOSYuA -O dataset.zip

   # Extract the test directory into the correct location
   unzip dataset.zip -d ./mass_test/tests

2. Configure parallel execution:

   • Open ./mass_test/do_mass_test.py and set the NUM_CPUS variable
   • Recommended: Set NUM_CPUS to the number of CPU cores minus 1

3. Set up the Docker environment:

   # Pull the pre-built Docker image
   make pull_docker

   # Clean any existing test results
   make clean_experiments_result

   # Enter the Docker container
   make enter_debug_docker

4. Build the planners and run tests:

   # Navigate to the app directory inside the Docker container
   cd ./app

   # Build the planners in debug mode
   make build_planner_debug

   # Run the batch tests
   make mass_tests

5. Verify successful execution:

   • Check for the presence of result files in the mass_test/tests directory
   • Ensure no error messages were printed during execution

Analyze Data

To analyze the results of your experiments open the Jupyter notebook ./mass_test/final_analysis.ipynb

The dataset used in the original paper is available at: https://disk.yandex.ru/d/-73LOGO5kOSYuA

Citing This Work

If you use this repository in your research, please cite the following paper:

@misc{kerimov2025safeintervalrandomizedpath,
      title={Safe Interval Randomized Path Planning For Manipulators},
      author={Nuraddin Kerimov and Aleksandr Onegin and Konstantin Yakovlev},
      year={2025},
      eprint={2412.19567},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2412.19567},
}

Contact

For questions or further information, please contact:

• Kerimov Nuraddin (kerimov.nm@phystech.edu)
