Cinema system

A POS system for the cinema industry.

When running, the program will write receipts to the folder PosReceipts in the PosSystem folder which is located in the user's document folder. In the PosSystem folder you will also find database.db a database containing the following tables:

• products
• movies
• screenings
• salons
• seats
• reservations
• bookings
• customers

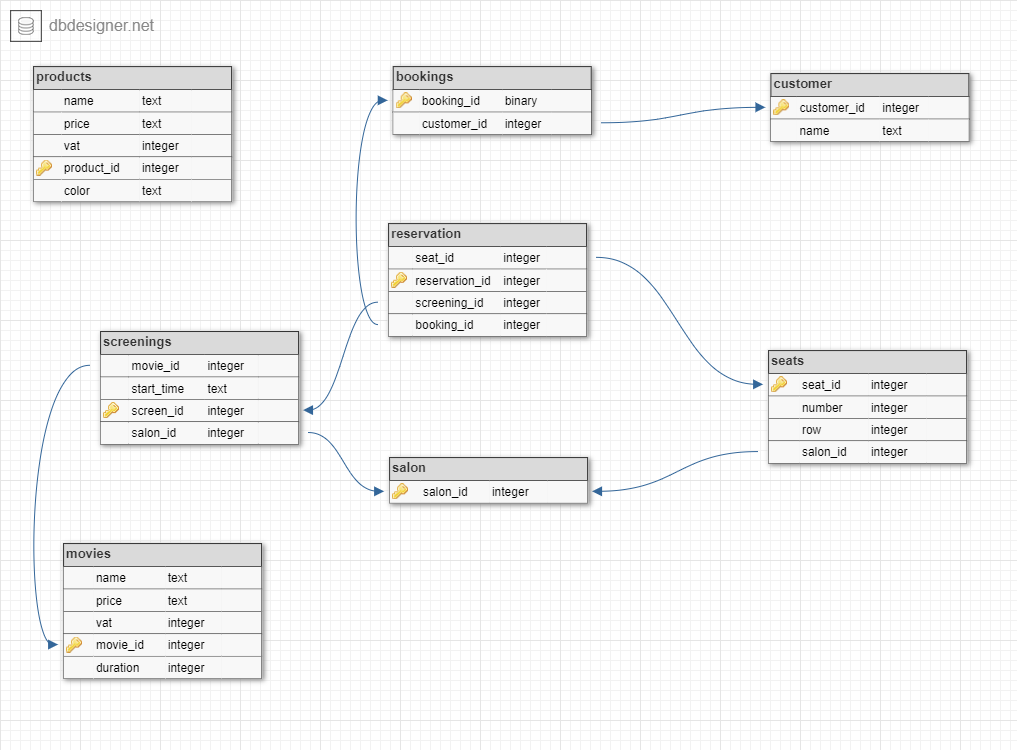

The program creates example data inside the database.db file when run. You can open the file using DB Browser for SQLite. alternatively you can view the database schema below.

Setup

To set up Visual Studio for this project: run the setup.bat file in setup folder.

To install the client program, run the setup.exe file from a release.

To install the appropriate packages for sqlite, which is used to manage the database, open the package manager console inside visual studio and run Install-Package Microsoft.data.sqlite

Install the program

To install the program, install the Install.zip file in releases. Unzip the file and run the setup.exe to install the program and necessary .NET versions. Then the program will appear on the desktop if you have icons on and it will appear in the windows start menu. After that you can run the program!

TODO

Upon leaving this project the team was working on integrating our GUI with the Database system. The GUI currently creates product buttons and movie tabs based on existing data within the database.db file. The booking system is currently hardcoded as a proof of concept. To complete the system the following needs to be implemented:

• Generate screenings from database and display in GUI.
• Generate seats from database and display in GUI.
• Add a reservation to database upon selecting a seat.
• Add bookings to database upon purchase of movie ticket.

Contact information

If you want to contact us regarding any issues facing you when working on this project, you can find our contact information below.

@Axelgustavschnurer

• Mail: axel.schnurer@gmail.com
• Phone: 076-135 75 53 (Will only answer texts)

@Viggoblom

• Mail: blomqvist.viggo@gmail.com
• Phone: 072-576 65 06 (Will only answer texts)

@Kasper-coder

• Mail: holgerssonkasper@gmail.com

@Leon-Loov

• Mail: leon.loov@outlook.com
• Phone: 073-949 70 42

Definition of Done

• Code should be approved by everyone present, with a minimum of 2 people.
• Everyone present should understand the project.
• Necessary parts of code should be tested by automatic tests.
• Pull requests should have a description of what they implement.
• Code should follow the coding conventions.
• Code should be documented.
• The documentation should be up to date.
