why @Schema(anyOf = {xxx.class, xxx.class}) doesn't work but @Schema(allOf = {xxx.class, xxx.class} can?)

[manchuanxingmengyaxinhe]

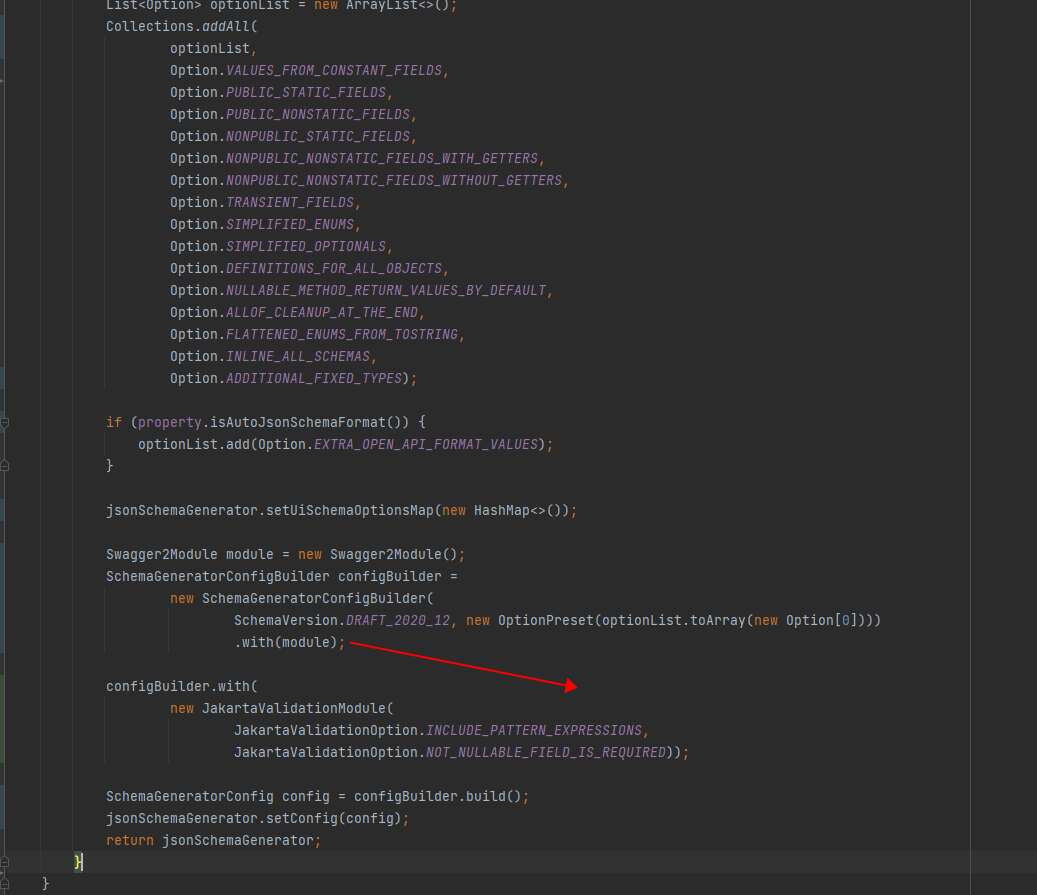

this is SchemaGeneratorConfigBuilder

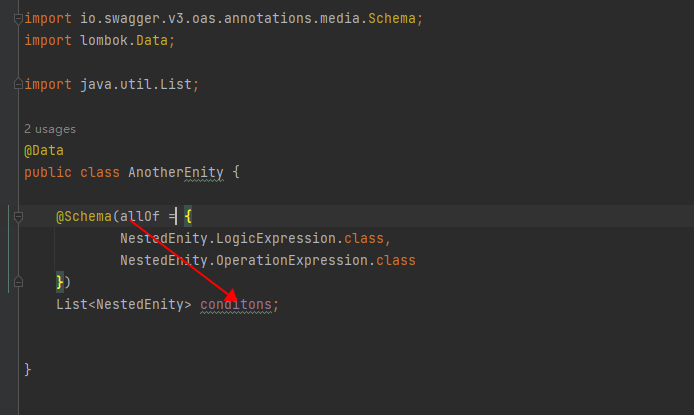

this is Enity with @Schema

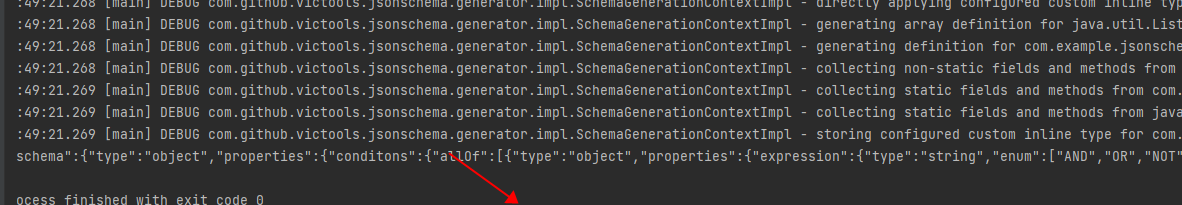

this is when @Schema user allOf Attributes the schema is

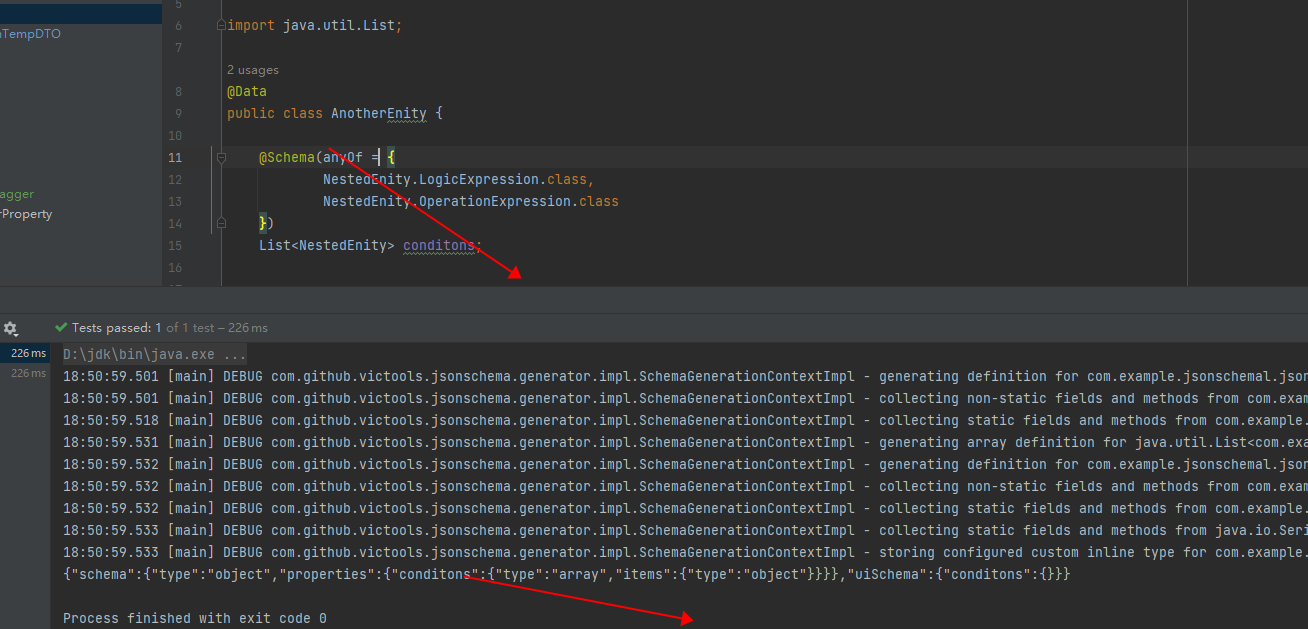

but when i change the @Schema attributes to anyOf the Schema is

thanks for you help. Sorry that I am a newbie

[CarstenWickner]

Hi @manchuanxingmengyaxinhe,

Short answer: Your observation is correct, while allOf is supported out-of-the-box, anyOf (or oneOf for that matter) is not handled by the Swagger 2.0 Module yet.

jsonschema-generator/jsonschema-module-swagger-2/src/main/java/com/github/victools/jsonschema/module/swagger2/Swagger2Module.java

Lines 434 to 439 in 08c7249

	if (annotation.allOf().length > 0) {
	Stream.of(annotation.allOf())
	.map(rawType -> context.getTypeContext().resolve(rawType))
	.map(context::createDefinitionReference).forEach(memberAttributes
	.withArray(context.getKeyword(SchemaKeyword.TAG_ALLOF))::add);
	}

I've created PR #266 now, to add that missing support accordingly.

Generally, a question like this is much easier to act upon if provided in textual form and not as screenshots.
For the next time then. 😉

[manchuanxingmengyaxinhe]

thanks you for the answer !

[manchuanxingmengyaxinhe]

the next time i will provid in textual . thanks very much !
