Coord_sf does not preserve the latitude lines

[larry77]

Please look at the reprex at the end of the post. I plot a world map, but when I change the coordinates, the grid is at least partially lost (the latitude lines are gone). Can you do anything about it? I discussed this online and it seems that the problem stems from ggplot2 rather than rnaturalearth or sf.

The suggestion given here

#4571 (comment)

does not work in my case.

Thanks!

rm(list=ls())

library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(ggplot2)
library(rnaturalearth)
library(sf)
#> Linking to GEOS 3.9.0, GDAL 3.2.2, PROJ 7.2.1; sf_use_s2() is TRUE

sf_use_s2(FALSE)
#> Spherical geometry (s2) switched off

ww_ini <- ne_countries(scale = "medium",
                       type = 'map_units',
                       returnclass = "sf")


gpl1 <- ggplot(data = ww_ini) +
  geom_sf(  col = "black", lwd = 0.3 )+
  xlab(NULL) + ylab(NULL) +
    ggtitle("Test title")+
      theme(plot.background = element_rect(fill = "white"),
        panel.background = element_rect(fill = 'white', colour = 'black'),
        panel.grid.major = element_line(colour = "grey"),
        legend.position="top",
        plot.title = element_text(lineheight=.8, size=24, face="bold",
                                  vjust=1),
        legend.text = element_text(vjust=.4,lineheight=1,size = 14),
        legend.title = element_text(vjust=1,lineheight=1, size=14,
                                    face="bold" ))

## this is fine

gpl1

sf_use_s2(FALSE)


gpl2 <- ggplot(data = ww_ini) +
  geom_sf(  col = "black", lwd = 0.3 )+
  xlab(NULL) + ylab(NULL) +
    ggtitle("Test title")+
    coord_sf( crs = "+proj=eqearth +wktext" )+
      theme(plot.background = element_rect(fill = "white"),
        panel.background = element_rect(fill = 'white', colour = 'black'),
        panel.grid.major = element_line(colour = "grey"),
        legend.position="top",
        plot.title = element_text(lineheight=.8, size=24, face="bold",
                                  vjust=1),
        legend.text = element_text(vjust=.4,lineheight=1,size = 14),
        legend.title = element_text(vjust=1,lineheight=1, size=14,
                                    face="bold" ))

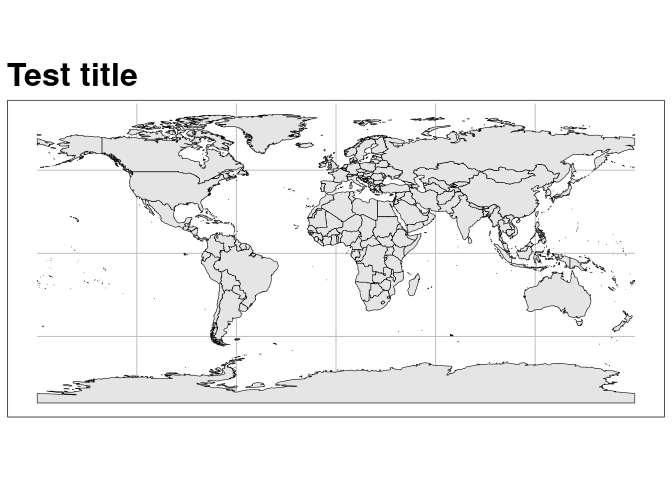

## but this is not fine. Part of the grid has disappeared

gpl2

sessionInfo()
#> R version 4.2.2 (2022-10-31)
#> Platform: x86_64-pc-linux-gnu (64-bit)
#> Running under: Debian GNU/Linux 11 (bullseye)
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.9.0
#> LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.9.0
#>
#> locale:
#>  [1] LC_CTYPE=en_GB.UTF-8       LC_NUMERIC=C
#>  [3] LC_TIME=en_GB.UTF-8        LC_COLLATE=en_GB.UTF-8
#>  [5] LC_MONETARY=en_GB.UTF-8    LC_MESSAGES=en_GB.UTF-8
#>  [7] LC_PAPER=en_GB.UTF-8       LC_NAME=C
#>  [9] LC_ADDRESS=C               LC_TELEPHONE=C
#> [11] LC_MEASUREMENT=en_GB.UTF-8 LC_IDENTIFICATION=C
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] sf_1.0-9            rnaturalearth_0.1.0 ggplot2_3.4.0
#> [4] dplyr_1.0.10
#>
#> loaded via a namespace (and not attached):
#>  [1] Rcpp_1.0.9              pillar_1.8.1            compiler_4.2.2
#>  [4] highr_0.10              class_7.3-20            tools_4.2.2
#>  [7] digest_0.6.31           lattice_0.20-45         evaluate_0.19
#> [10] lifecycle_1.0.3         tibble_3.1.8            gtable_0.3.1
#> [13] pkgconfig_2.0.3         rlang_1.0.6             reprex_2.0.2
#> [16] cli_3.5.0               DBI_1.1.3               yaml_2.3.6
#> [19] xfun_0.36               fastmap_1.1.0           rnaturalearthdata_0.1.0
#> [22] e1071_1.7-12            withr_2.5.0             stringr_1.5.0
#> [25] knitr_1.41              generics_0.1.3          fs_1.5.2
#> [28] vctrs_0.5.1             classInt_0.4-8          grid_4.2.2
#> [31] tidyselect_1.2.0        glue_1.6.2              R6_2.5.1
#> [34] fansi_1.0.3             rmarkdown_2.19          sp_1.5-1
#> [37] farver_2.1.1            magrittr_2.0.3          units_0.8-1
#> [40] scales_1.2.1            htmltools_0.5.4         assertthat_0.2.1
#> [43] colorspace_2.0-3        KernSmooth_2.23-20      utf8_1.2.2
#> [46] proxy_0.4-27            stringi_1.7.8           munsell_0.5.0

^{Created on 2023-01-06 with reprex v2.0.2}

[teunbrand]

Hi there, Is this at all related to #4820?

[larry77]

Hello,
I do not think so. My problem is not about the longitude lines, but the latitude (horizontal) lines.
This must be due either to coord_sf or to some inner machinery of sf, I believe.
I discussed this on SO before posting here and other users on a windows platform do not have this issue. I made a fresh installation of ggplot2, sf (from cran) and rnaturalearth (development version), but the issue does not go away on my debian box.

[clauswilke]

In general, ggplot just gets the graticule from sf, and every time we've had problems like this it was an sf bug. The best way to debug / create a better reprex would be to try to generate just the graticule directly and see what sf gives you.

Here is the call that ggplot uses to generate the graticule:

ggplot2/R/coord-sf.R

Lines 226 to 233 in bee7034

	graticule <- sf::st_graticule(
	bbox,
	crs = params$crs,
	lat = scale_y$breaks %|W|% NULL,
	lon = scale_x$breaks %|W|% NULL,
	datum = self$datum,
	ndiscr = self$ndiscr
	)

[larry77]

Thanks. I should say I am not a big expert about maps and coordinates (indeed my problem simply stems from a script whose behavior has changed) and I have only a faint idea of what a graticule is.
By googling, I came across this

https://r-spatial.github.io/sf/reference/st_graticule.html

and I tried running the example on my platform (see reprex below).

You notice that the result is different from that in the webpage: I refer to the placement of the legend and to the extent of the graticule (longitudinal lines) is different on my platform.

I hope this helps (otherwise I am open to suggestions for a better reprex).
Thanks a lot.

library(sf)
#> Linking to GEOS 3.9.0, GDAL 3.2.2, PROJ 7.2.1; sf_use_s2() is TRUE
if (require(maps, quietly = TRUE)) {

usa = st_as_sf(map('usa', plot = FALSE, fill = TRUE))
laea = st_crs("+proj=laea +lat_0=30 +lon_0=-95") # Lambert equal area
usa <- st_transform(usa, laea)

bb = st_bbox(usa)
bbox = st_linestring(rbind(c( bb[1],bb[2]),c( bb[3],bb[2]),
   c( bb[3],bb[4]),c( bb[1],bb[4]),c( bb[1],bb[2])))

g = st_graticule(usa)
plot(usa, xlim = 1.2 * c(-2450853.4, 2186391.9))
plot(g[1], add = TRUE, col = 'grey')
plot(bbox, add = TRUE)
points(g$x_start, g$y_start, col = 'red')
points(g$x_end, g$y_end, col = 'blue')

invisible(lapply(seq_len(nrow(g)), function(i) {
if (g$type[i] == "N" && g$x_start[i] - min(g$x_start) < 1000)
  text(g[i,"x_start"], g[i,"y_start"], labels = parse(text = g[i,"degree_label"]),
    srt = g$angle_start[i], pos = 2, cex = .7)
if (g$type[i] == "E" && g$y_start[i] - min(g$y_start) < 1000)
  text(g[i,"x_start"], g[i,"y_start"], labels = parse(text = g[i,"degree_label"]),
    srt = g$angle_start[i] - 90, pos = 1, cex = .7)
if (g$type[i] == "N" && g$x_end[i] - max(g$x_end) > -1000)
  text(g[i,"x_end"], g[i,"y_end"], labels = parse(text = g[i,"degree_label"]),
    srt = g$angle_end[i], pos = 4, cex = .7)
if (g$type[i] == "E" && g$y_end[i] - max(g$y_end) > -1000)
  text(g[i,"x_end"], g[i,"y_end"], labels = parse(text = g[i,"degree_label"]),
    srt = g$angle_end[i] - 90, pos = 3, cex = .7)
}))
plot(usa, graticule = st_crs(4326), axes = TRUE, lon = seq(-60,-130,by=-10))
}

^{Created on 2023-01-06 with reprex v2.0.2}

[teunbrand]

As we haven't been able to reproduce this issue, I'll close it.
If there is some way to reproduce this on other platforms, we can re-open this.
