Idea : Combine State & Rated Range & Battery % (Custom Timeline Overview)

[jun3280net]

Hi there,

I was wondering if it's possible to combine the States view & Rated Range into a view.

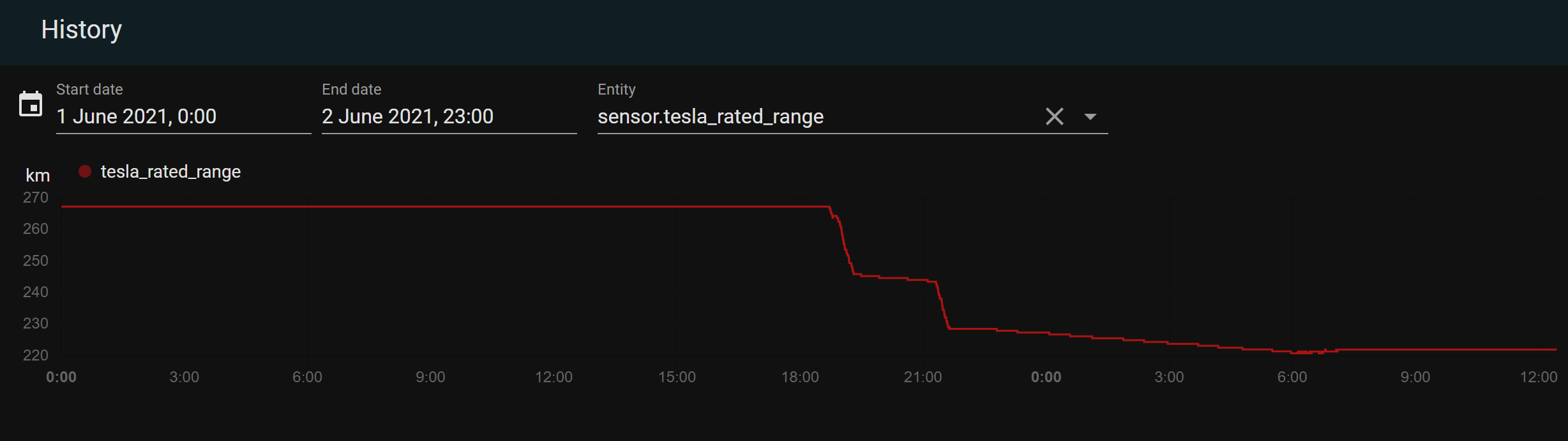

Home Assistant Captures The Following (June 1 - June 2)

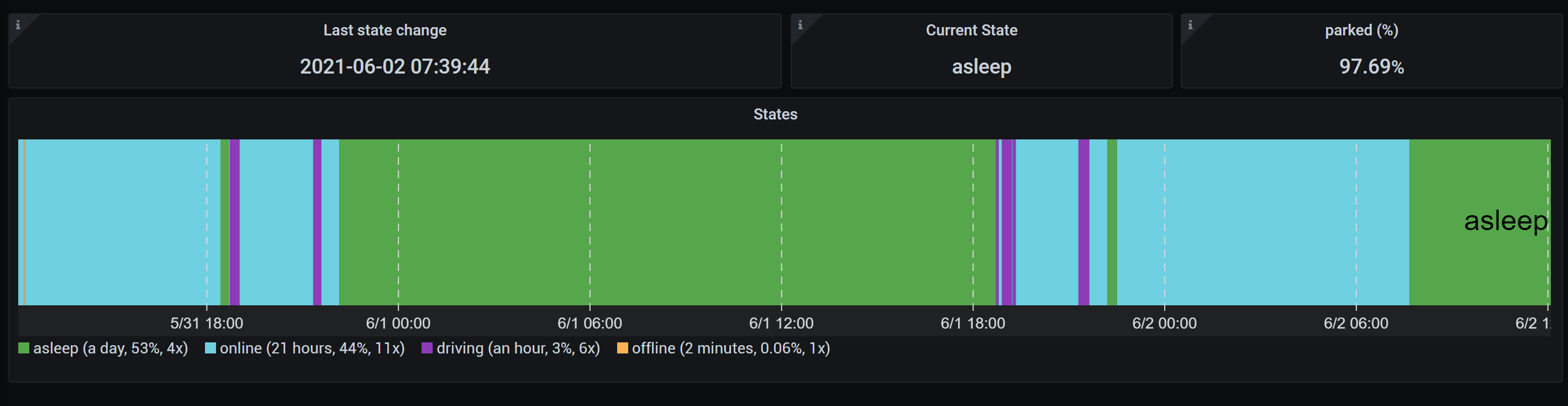

Teslamate States (June 1- June2)

If the above 2 views could be combined into an Area Graph, where you can see the State and Range in one view would be nice for battery/range relationship under the different states. If possible battery % could be overlayed as well as a secondary line graph. Temperature would also be a nice variable to overlay as well.

Thanks,

J

[jun3280net]

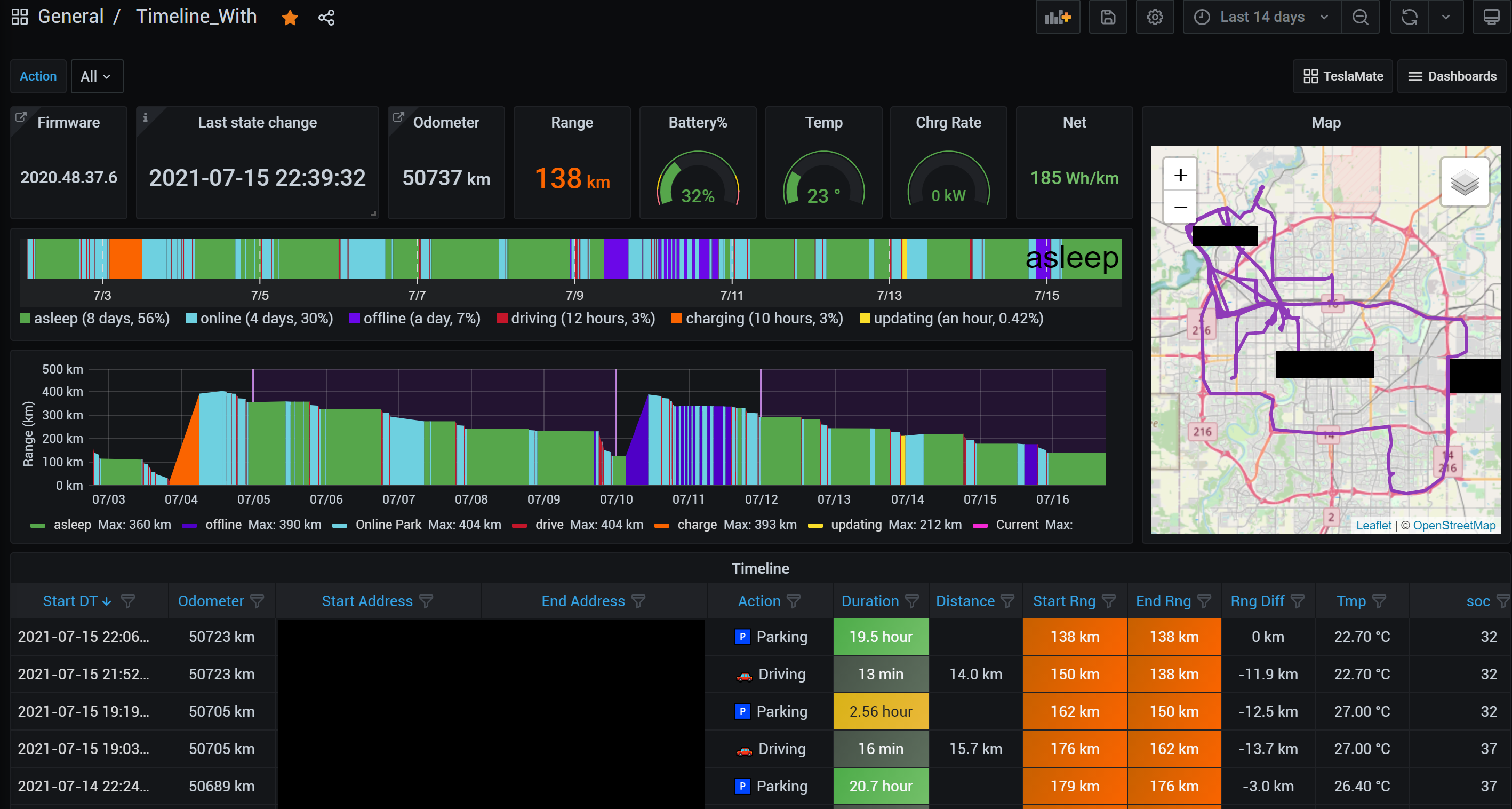

With my learnings from the Timelines development ([https://github.com//discussions/1594], I was able to get produce the requested View/Graph . As this dashboard is my daily landing page, it provides me with sense of how the car is behaving over the course of two weeks. For me, it's very useful as I can now identify whether the car is sleeping properly and how much range I'm losing in each of the STATES. I was losing 20km-30km overnight because the car was not Sleeping, which was particularly problematic when experiencing extreme weather. The new graph noted below basically mirrors the States graph, but provides the Range as well. I've attached my dashboard which you are free to use and modify as per your specific needs.

20210716_Timeline_With.zip

[N7-bot]

This is a great view. The map location immediately caught my eye, same city! :)

[jun3280net]

This is a great view. The map location immediately caught my eye, same city! :)

Good eye....in that case you must be feeling the pain from our City's latest hockey blunder :) Hope you find it as useful as me for monitoring the daily performance of the vehicle. I was hoping to overlay temperature on the graph, but I can't seem to figure out how to create a separate line graph. I can get it to show up on secondary axis - but there isn't enough control over how the series can be displayed.

For me since I check it daily - it's more of a reminder of when to charge the vehicle - although I have reminders set through Home Assistant. On that note, I was surprised by how much Sentry Mode drains the vehicle - 1km / hr. Also, I can't seem to understand what causes the car to go Offline as opposed to Asleep - though they yield similar energy savings.

[N7-bot]

Mine seems to sleep like a baby. it has been sleeping for the last 18 hours. Do you have other apps or loggers going?

[jun3280net]

Mine seems to sleep like a baby. it has been sleeping for the last 18 hours. Do you have other apps or loggers going?

What did you have in mind? Specific to Tesla - just Teslamate. However, I have the MQTT processed by Home Assistant, so I can run some automations view NODERED. That's about it.

In the car, I have Teslausb (Marcone branch) running to capture the dashcam and Sentry footage. However, I've been having issues getting that to run for any extended period of time before it stops mounting in the car. I'm not sure if its the HW3 upgrade, or perhaps with MCU1 degrading over time.

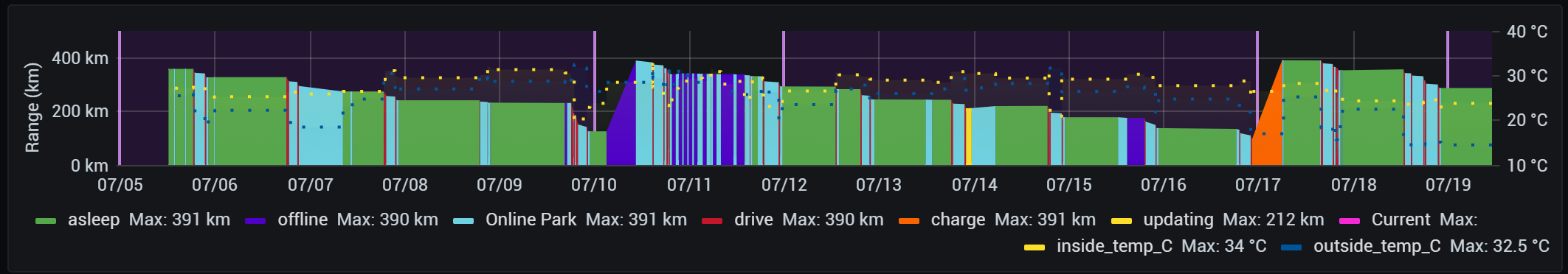

On that note - I was able to figure out how to get Temperature in the new graphical view - so I guess I achieved what I was requesting after all. I left the temperatures as dots as they were pretty distracting as lines.
20210719_Timeline_With_Temp.zip

[jun3280net]

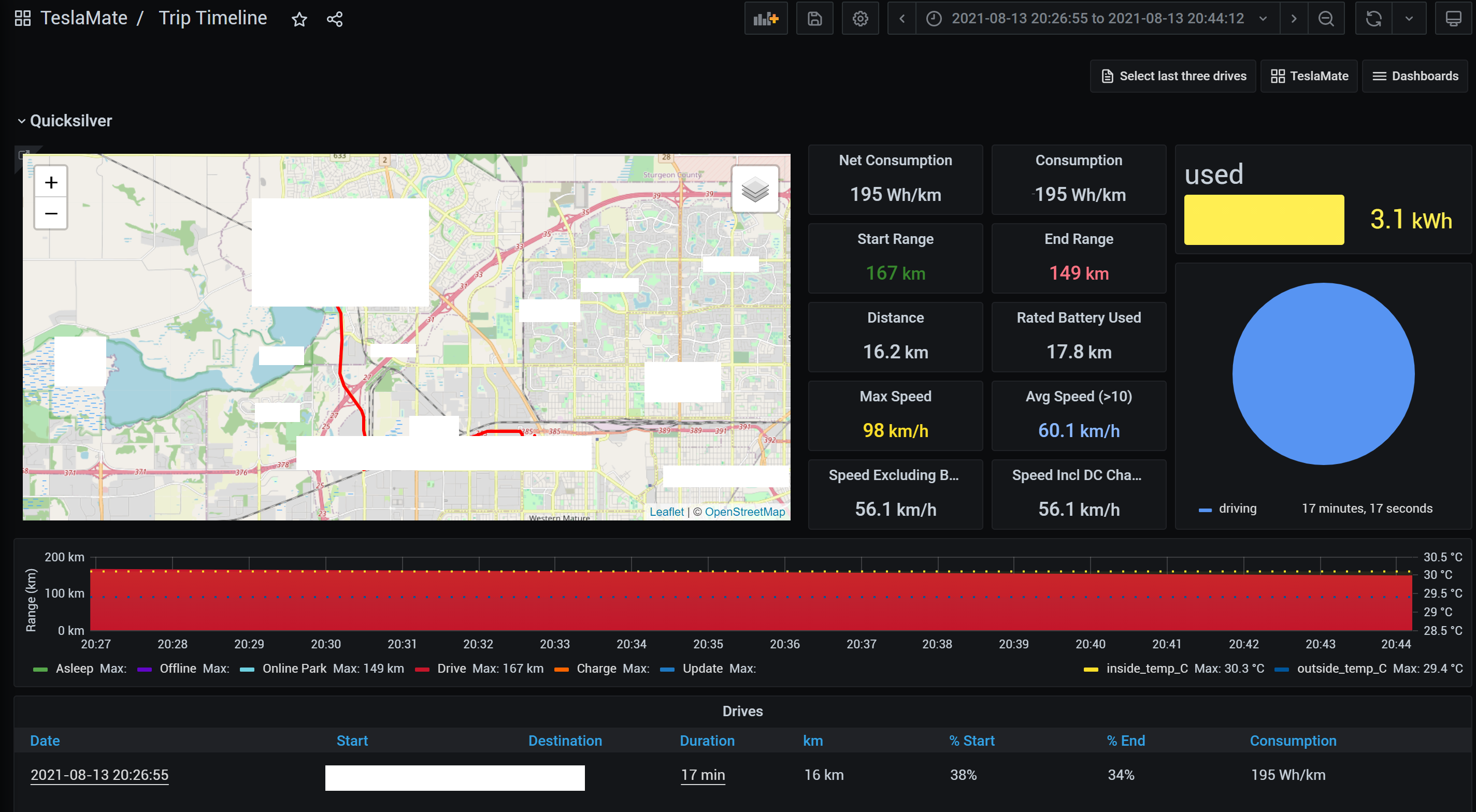

Latest version of my Timeline Dashboard and linked Drives Dashboard. Timeline query has been completed re-written for easier updates. Each "Action Item" is distinct and does not overlap now. Also "LIVE" data is reflected for the Current Action (eg Charging/Drives/Updates) in the table. "LIVE" driving stats speed, max speed, address is available for real time consumption. My dashboard might be a bit busy for your liking, but feel free to extract / modify queries in accordance to your needs.

[20210813 Teslamate Timeline With Trip.zip]
(https://github.com/adriankumpf/teslamate/files/6985862/20210813.Teslamate.Timeline.With.Trip.zip)
