Make animated tabs in Tailwind CSS?

[deadcoder0904]

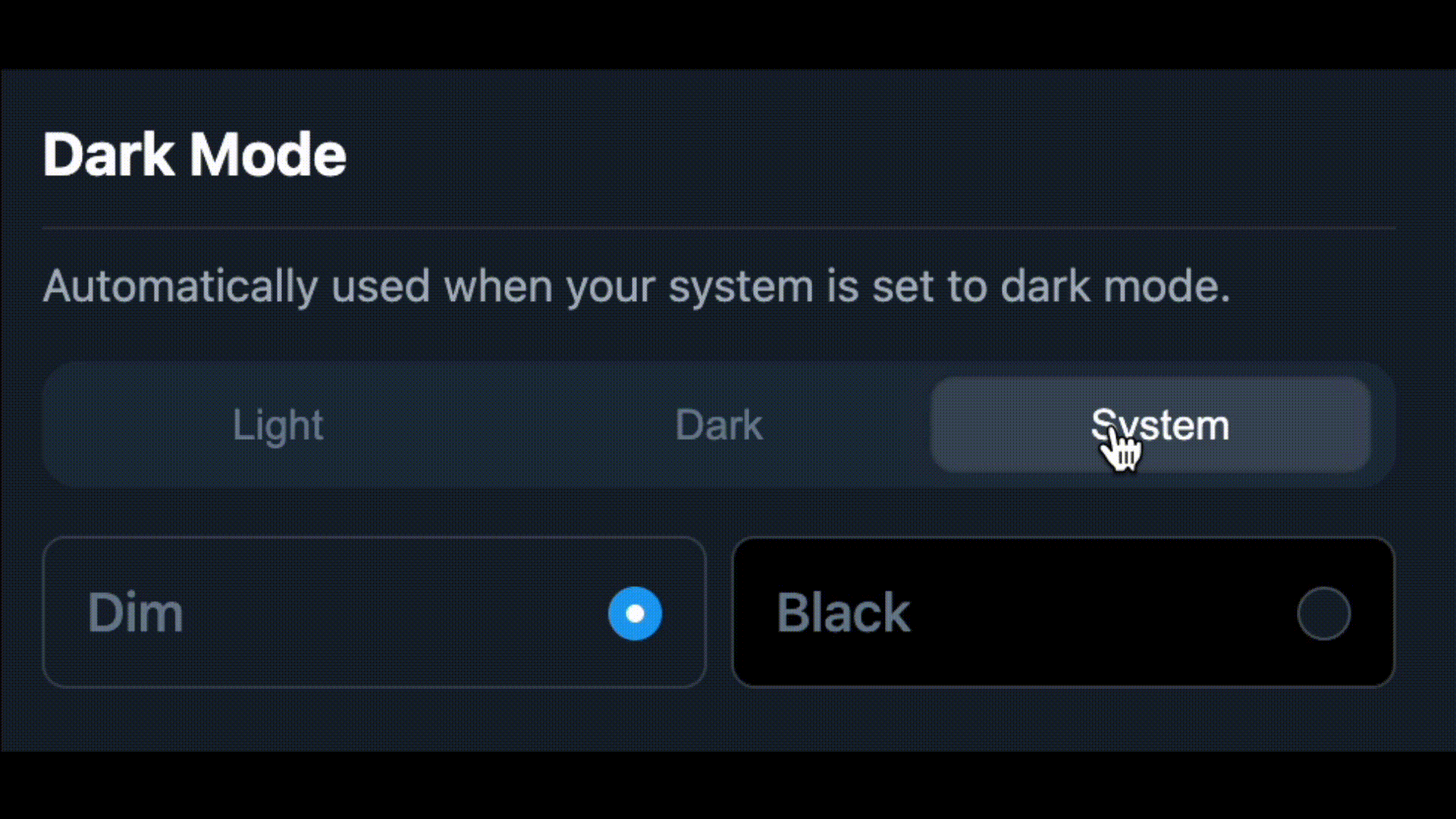

I want to make an animated tab like:

I am using React with Tailwind. This is my code:

import React from 'react'
import clsx from 'clsx'

export const Modal = () => {
  const [theme, setTheme] = React.useState<'light' | 'dark' | 'system'>('light')
  return (
    <div className="flex mx-2 mt-2 rounded-md bg-blue-gray-100">
      <div
        className={clsx('flex-1 py-1 my-2 ml-2 text-center rounded-md', {
          'bg-white': theme === 'light',
          'transition duration-1000 ease-out transform translate-x-10':
            theme !== 'light',
        })}
      >
        <button
          className={clsx(
            'w-full text-sm cursor-pointer select-none focus:outline-none',
            {
              'font-bold text-blue-gray-900': theme === 'light',
              'text-blue-gray-600': theme !== 'light',
            }
          )}
          onClick={() => {
            setTheme('light')
          }}
        >
          Light
        </button>
      </div>
      <div
        className={clsx('flex-1 py-1 my-2 ml-2 text-center rounded-md', {
          'bg-white': theme === 'dark',
        })}
      >
        <button
          className={clsx(
            'w-full text-sm cursor-pointer select-none focus:outline-none',
            {
              'font-bold text-blue-gray-900': theme === 'dark',
              'text-blue-gray-600': theme !== 'dark',
            }
          )}
          onClick={() => {
            setTheme('dark')
          }}
        >
          Dark
        </button>
      </div>
      <div
        className={clsx('flex-1 py-1 my-2 mr-2 text-center rounded-md', {
          'bg-white': theme === 'system',
        })}
      >
        <button
          className={clsx(
            'w-full text-sm cursor-pointer select-none focus:outline-none',
            {
              'font-bold text-blue-gray-900': theme === 'system',
              'text-blue-gray-600': theme !== 'system',
            }
          )}
          onClick={() => {
            setTheme('system')
          }}
        >
          System
        </button>
      </div>
    </div>
  )
}

But it looks like:

As I use translate-x-10 when the theme is not light, therefore the text moves as well.

I would love to make the UI exactly as the above one while still using buttons for the actual tabs.

How do I do it?

[deadcoder0904]

Someone helped me on Tailwind Discord & posted this codepen. I converted it to React & made it work.

tailwind.config.js

module.exports = {
	theme: {
		extend: {
			translate: {
				200: '200%',
			},
		},
	},
}

App.tsx

import * as React from "react"
import { observer } from "mobx-react"
import clsx from "clsx"

import { useStore } from "./context"

const AppTheme = observer(() => {
	const {
		theme: { app },
		updateTheme,
	} = useStore()

	return (
		<>
			<div className="mt-3 text-center sm:mt-0 sm:ml-4 sm:text-left">
				<div className="mt-2">
					<h4 className="text-xl font-bold text-gray-800">Background</h4>
				</div>
			</div>

			<div className="relative mx-2 mt-2 rounded-md bg-gray-100">
				<div
					id="slider"
					className={clsx(
						"absolute inset-y-0 w-1/3 h-full px-4 py-1 transition-transform transform",
						{
							"translate-x-0": app === "light",
							"translate-x-full": app === "dark",
							"translate-x-200": app === "system",
						},
					)}
					style={
						app === "system"
							? {
									transform: "translateX(200%)",
							  }
							: {}
					}
				>
					<div
						className={clsx(
							"w-full h-full bg-white rounded-md",
							{
								active: app === "light",
								"bg-gray-600": app === "dark",
							},
							{
								// needs to be separate object otherwise dark/light & system keys overlap resulting in a visual bug
								["bg-gray-600"]: app === "system",
							},
						)}
					></div>
				</div>
				<div className="relative flex w-full h-full">
					<button
						tabIndex={0}
						className={clsx(
							"py-1 my-2 ml-2 w-1/3 text-sm cursor-pointer select-none focus:outline-none",
							{
								active: app === "light",
								"font-bold text--gray-900": app === "light",
								"text--gray-600": app !== "light",
							},
						)}
						onKeyUp={(event: React.KeyboardEvent<HTMLElement>) => {
							if (event.key === "Tab")
								updateTheme({
									app: "light",
								})
						}}
						onClick={() => {
							updateTheme({
								app: "light",
							})
						}}
					>
						Light
					</button>
					<button
						tabIndex={0}
						className={clsx(
							"py-1 my-2 ml-2 w-1/3 text-sm cursor-pointer select-none focus:outline-none",
							{
								active: app === "dark",
								"font-bold text-white": app === "dark",
								"text--gray-600": app !== "dark",
							},
						)}
						onKeyUp={(event: React.KeyboardEvent<HTMLElement>) => {
							if (event.key === "Tab")
								updateTheme({
									app: "dark",
								})
						}}
						onClick={() => {
							updateTheme({
								app: "dark",
							})
						}}
					>
						Dark
					</button>
					<button
						tabIndex={0}
						className={clsx(
							"py-1 my-2 ml-2 w-1/3 text-sm cursor-pointer select-none focus:outline-none",
							{
								active: app === "system",
								"font-bold text-white": app === "system",
								"text--gray-600": app !== "system",
							},
						)}
						onKeyUp={(event: React.KeyboardEvent<HTMLElement>) => {
							if (event.key === "Tab")
								updateTheme({
									app: "system",
								})
						}}
						onClick={() => {
							updateTheme({
								app: "system",
							})
						}}
					>
						System
					</button>
				</div>
			</div>
		</>
	)
})

export default observer(function App() {
	return <AppTheme />
})

Codesandbox → https://codesandbox.io/s/mobx-theme-change-animated-18gc6?file=/src/App.tsx

Idk why it isn't animating on Codesandbox but it works locally. Maybe a Codesandbox bug :)
