Generic Template to model UI and (how to) determine next state based on event payload

[a-y-u-s-h]

Hi,

I've been trying to model a generic UI as Xstate machine. This is the structure that I use for an Xstate 'system' in my react projects. To keep all my logic separate, I usually have a 'systems' folder where I keep collection of Xstate components. Each Xstate component is a folder with a bunch of files in it. The example files of an Xstate component that I have described below, make this component:

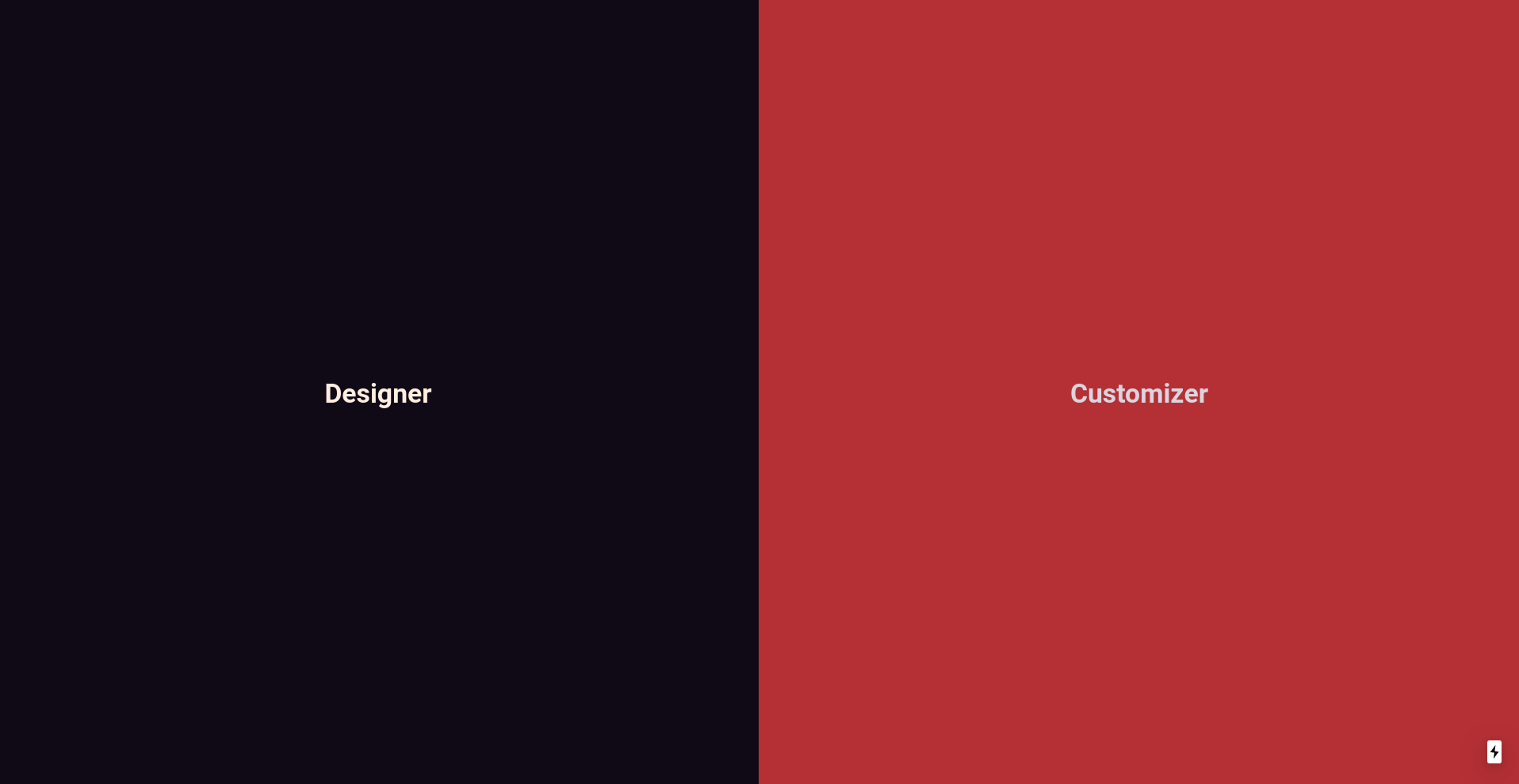

states.yaml

I like keeping all my state machines specified as a YAML file, and then later passing actions, activities, etc as options. So first, I have description of my machine in a states.yaml which looks like this:

id: home
type: parallel
context:
states:
  display:
    id: display
    type: parallel
    states:
      #  =============================================================
      #
      #        /$$     /$$
      #       | $$    | $$
      #      /$$$$$$  | $$$$$$$   /$$$$$$  /$$$$$$/$$$$   /$$$$$$
      #     |_  $$_/  | $$__  $$ /$$__  $$| $$_  $$_  $$ /$$__  $$
      #       | $$    | $$  \ $$| $$$$$$$$| $$ \ $$ \ $$| $$$$$$$$
      #       | $$ /$$| $$  | $$| $$_____/| $$ | $$ | $$| $$_____/
      #       |  $$$$/| $$  | $$|  $$$$$$$| $$ | $$ | $$|  $$$$$$$
      #        \___/  |__/  |__/ \_______/|__/ |__/ |__/ \_______/
      #
      #  =============================================================

      theme:
        id: theme
        initial: default
        states:
          default:
            id: theme.default
            meta:
              items:
                odd:
                  container:
                    backgroundColor: quinary.900
                  heading:
                    color: primary.50
                even:
                  container:
                    backgroundColor: tertiary.500
                  heading:
                    color: quinary.100

      #  =============================================================
      #
      #       /$$                                           /$$
      #      | $$                                          | $$
      #      | $$  /$$$$$$  /$$   /$$  /$$$$$$  /$$   /$$ /$$$$$$
      #      | $$ |____  $$| $$  | $$ /$$__  $$| $$  | $$|_  $$_/
      #      | $$  /$$$$$$$| $$  | $$| $$  \ $$| $$  | $$  | $$
      #      | $$ /$$__  $$| $$  | $$| $$  | $$| $$  | $$  | $$ /$$
      #      | $$|  $$$$$$$|  $$$$$$$|  $$$$$$/|  $$$$$$/  |  $$$$/
      #      |__/ \_______/ \____  $$ \______/  \______/    \___/
      #                     /$$  | $$
      #                    |  $$$$$$/
      #                     \______/
      #
      #  =============================================================

      layout:
        id: layout
        initial: default
        states:
          default:
            id: layout.default
            meta:
              container:
                width: 100%
                height: 100%
                display: grid
                gridTemplateColumns: 1fr 1fr
              items:
                odd:
                  container:
                    width: 100%
                    height: 100%
                    display: grid
                    justifyContent: center
                    alignItems: center
                even:
                  container:
                    width: 100%
                    height: 100%
                    display: grid
                    justifyContent: center
                    alignItems: center
                transitions:
                  whileHover:
                    scale: 0.95

      #  =============================================================
      #
      #                                     /$$                           /$$
      #                                    | $$                          | $$
      #      /$$$$$$$  /$$$$$$  /$$$$$$$  /$$$$$$    /$$$$$$  /$$$$$$$  /$$$$$$
      #     /$$_____/ /$$__  $$| $$__  $$|_  $$_/   /$$__  $$| $$__  $$|_  $$_/
      #    | $$      | $$  \ $$| $$  \ $$  | $$    | $$$$$$$$| $$  \ $$  | $$
      #    | $$      | $$  | $$| $$  | $$  | $$ /$$| $$_____/| $$  | $$  | $$ /$$
      #    |  $$$$$$$|  $$$$$$/| $$  | $$  |  $$$$/|  $$$$$$$| $$  | $$  |  $$$$/
      #     \_______/ \______/ |__/  |__/   \___/   \_______/|__/  |__/   \___/
      #
      #  =============================================================

      content:
        id: content
        initial: default
        context:
        states:
          default:
            id: content.default
            meta:
              navigation:
                - link: /designer
                  title: Designer
                - link: /customizer
                  title: Customizer

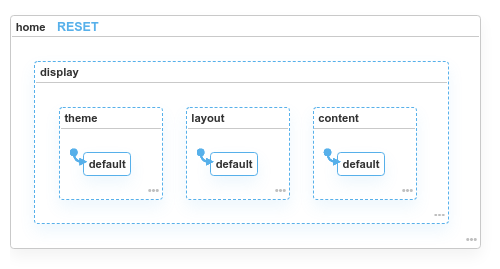

If you convert it to JSON and then visualize it on Xstate visualizer, you get this diagram:

index.js

Since it's a starter Xstate machine template for a simple page, it only has a display machine. This then gets imported into an index.js file, which contains all exports you need to share this machine between components via React contexts and hooks or individually:

import React from "react"
import * as X from "xstate"
import states from "./states.yaml"
import options from "./options.js"
import { useMachine } from "@xstate/react"

/*
  ======================================
    This file simply imports the YAML
    state representation and the options
    (actions, activities, services and guards)
    which are to be used inside the `states` YAML
    file. You can then use the YAML file to visualize
    the statechart properly and simply import machine
    (which can be interpreted as you wish) or as a
    service (which can be started and stopped
    as you wish).
  ======================================
*/

export const machine = X.createMachine(states, options)
export const service = X.interpret(machine)

/*
  ======================================
    Here, we're also exporting the
    state machine with a wrapper for react.
    (Basically creating a Context & Provider).
    This is useful in case you want to share
    a state machine service across components
    in React.
  ======================================
*/
export const Context = React.createContext()
export const Consumer = Context.Consumer
export const Provider = ({ children }) => {
  const [state, send, service] = useMachine(machine)
  const value = { state, send, service }
  return <Context.Provider value={value}>{children}</Context.Provider>
}
export default { machine, service, Context, Provider, Consumer }

options.js

Note, that options.js is being imported in this file. options.js is a sibling file that simply contains actions, activities, services and guards:

import * as X from "xstate"

export default {
  actions: {},
  activities: {},
  services: {},
  guards: {}
}

That makes my Xstate component complete. That's how I do it (I usually generate all this boilerplate code for every single 'state machine' module that I want to create using a custom global bash script, and then delete or add or modify some things that I need to). I would also like to know if there are better or cleaner ways of arranging your machines, or how you arrange it. I use YAML so that I can comment in my description of machine and it's a matter of preference that I keep it serializable instead of an object (because it lets me break and make things faster). This is how I would use this 'home' Xstate component in my React component (after wrapping up the root component in the provider that's exported from index.js of Xstate component):

pages/index.js

import React from "react"
import System from "@/systems/pages/home"

import Link from "next/link"
import { motion } from "framer-motion"
import { Box, Heading } from "@chakra-ui/core"

const Home = () => {
  /*
    ======================================
      System variable contains the current
      state object along with 'event' that you
      can use to change the state of the system.
      Some states have metadata associated in them.
      They could be styles, and contents of the page.
    ======================================
  */
  const system = React.useContext(System.Context)
  const { display } = system.state.value
  const data = p => system.state.meta?.[`${p}.${display[p]}`]
  const theme = data("theme")
  const layout = data("layout")
  const content = data("content")
  return (
    <>
      <Box {...layout.container}>
        {content.navigation?.map((item, i) => {
          /*
            ====================================
              If the index of item is divisible
              by 2 apply some styles corresponding
              to even object, and if not then apply
              styles corresponding to odd object
              specified in the display machine.
            ====================================
          */
          const cards = {
            layout: i % 2 ? layout.items.even : layout.items.odd,
            theme: i % 2 ? theme.items.even : theme.items.odd
          }
          return (
            <React.Fragment key={i}>
              <motion.div {...layout.items.transitions}>
                <Link href={item.link}>
                  <Box {...cards.layout.container} {...cards.theme.container}>
                    <Heading {...cards.theme.heading}>{item.title}</Heading>
                  </Box>
                </Link>
              </motion.div>
            </React.Fragment>
          )
        })}
      </Box>
    </>
  )
}

export default Home

That finishes part 1 of my discussion.

---

Queries

I like the way that I have arranged this, it's clean and my React components are very short. But there are some Xstate specific things that I can't figure out yet that I'd like to ask:

If I were to make a randomized theme switcher or a theme selector - how would I go about it? Solution to a theme switcher and a theme selector will work for layout switcher and content switcher as well (like if I want to support my content in 3 languages with custom translations and be able to switch between them). I'm guessing that I will have to find some way to determine next state of the theme compound state alone based on event.payload (if it's a select component that lets you pick theme, like maybe darkula or monokai).

1. On spectrum a gentlemen suggested me to have a random number generated, kept in context and then coupled with guards to determine the next state - and I get it, I had the same idea before but I feel it's a little bit of hard coding and this is one small problem but if I want a randomizer in a compound state which has much more states than I can write guards for (random number lies between X and Y, switch to this) - this solution won't scale very well.

2. Another query I have is associated with the solution suggested to me on spectrum. Like let's say if I opt for keeping a random number in context - then how do I keep the context of one of the parallel states separate from its root machine. Like can I have a separate context for theme and a separate one for layout (I don't want to have separate keys in context for them, but rather separate context) and then be able to modify their own contexts with actions that I've kept separately in another file?

Thanks in advance. Do share how you would go about modelling a generic UI template.

---
