Coordinate-aware weighted moving average

[nicrie]

What I want to achieve

Compute a weighted moving average with respect to the coordinate instead of a simple N-point moving average.

Some more details

There exist some entries regarding weighted moving average (e.g. here or even in the xarray documentation), however, the examples I found are all referring to a "simple" N-point (weighted) moving average. What I'd like to do is to compute the weighted moving average taking into account the underlying coordinate, e.g. within a window of 10 days instead of 10 consecutive data points.

Is there a way of doing this efficiently using xarray? My current workaround consists of transforming the DataArray to a pandas Dataframe, accessing and iterating over the index which is painfully slow (example code for this below).

Why is this important? - An example

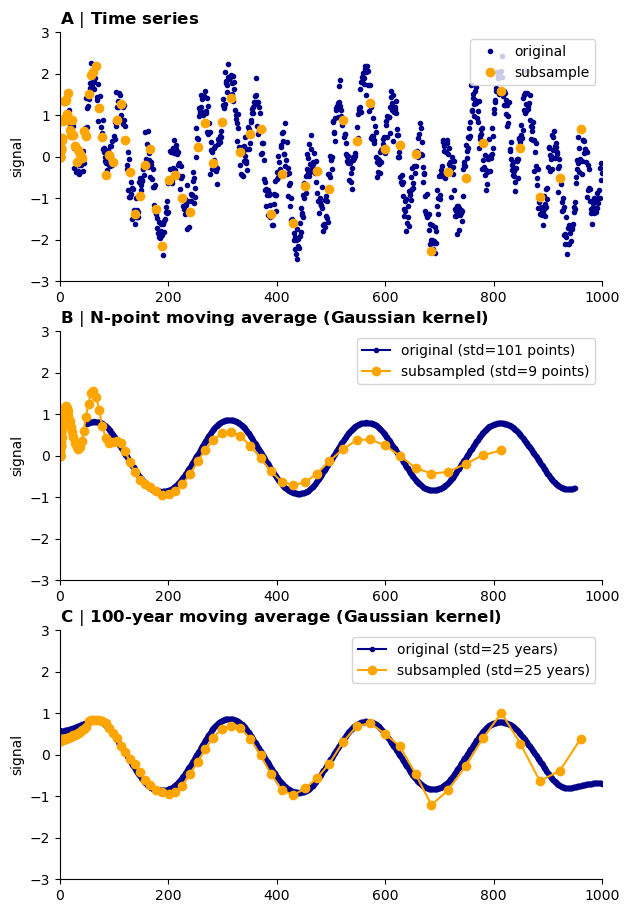

Figure A: Imagine a (1) regularly sampled time series and another (2) derived from irregularly sub-sampling time series (1) over a span of 1000 years (or days or whatever you want ;) ). As an example, the sub-sampling frequency is high at the beginning but becomes much coarser later on. This example is motivated from a real-world paleoclimate problem where you typically have a higher sampling for younger times and a lower temporal resolution the further back in time you go. Furthermore, a low-frequency signal on the centennial time scale may be superimposed onto a higher-frequency signal on the decadal time scale.

Figure B: Apply a moving average with a Gaussian kernel to obtain only the centennial variations. For the regularly sampled time series (1), a weighted moving average (implementation follows the example here ) works fine. However, when the sampling is irregular, as in the second time series, the result is less satisfactory because there is too little smoothing where the sampling is high (at the beginning) and too much smoothing where the sampling is low (at the end).

Figure C: The desired result is to apply a moving average using a Gaussian kernel taking into account the underlying time coordinate. Here, a Gaussian kernel with a standard deviation of 25 years is chosen, which effectively smooths out the decadal variations. The implementation, however, 1) is reliant on pandas, 2) is painfully slow and 3) only works for 1D arrays. So, any tips & tricks on how to overcome any (or even all) of the above would be greatly appreciated :)

Minimal working example

Click me (code)

# %%
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
import xarray as xr



def gaussian(x, mu, std):
    return np.exp(-np.power(x - mu, 2.) / (2 * std**2))

def gaussian_weights(window, std):
    win_half = window // 2
    steps = np.arange(-win_half, win_half + 1)
    weights = gaussian(steps, 0, std)
    return xr.DataArray(weights, dims=['window'])

def coordinate_aware_gaussian_mean_dataframe(df, ref_df, window, std):
    '''DataFrame implementation of Gaussian moving average using index.

    This implementation differs from the standard pandas imeplementation as
    it constructs a smoothing window based on the actual time, not the number
    of time steps. That is, a window of 500 constructs a weight window of 500
    years sampled at the original resolution. This allows to calculate a
    Gaussian rolling mean for IRREGULAR time steps.'''
    # Local smoothing window // df.name -> age index
    start = df.name - window // 2
    end = df.name + window // 2
    x = ref_df.loc[start:end]
    # Weights based on Gaussian distribution centered at current location
    weights = gaussian(x.index.values, mu=df.name, std=std)
    weights = pd.DataFrame(
        np.array([weights] * x.shape[1]).T, columns=x.columns, index=x.index
    )
    # Reintroduce NaNs into weights for correct calculations
    weights = weights.where(~x.isnull())
    # Weighted mean
    x_mean = (x * weights).sum() / np.sum(weights)
    return x_mean

def coordinate_aware_gaussian_mean_dataarray(da, window, std):
    '''Ugly xarray wrapper for pandas implementation of coordiante aware Gaussian moving average.

    Only works for a 1D DataArray...

    '''
    new = da.copy() * np.nan
    df = da.to_dataframe()
    smoothed = df.apply(lambda x: coordinate_aware_gaussian_mean_dataframe(x, df, window, std)[0], axis=1)
    new.loc[:] = smoothed.values.squeeze()
    return new

# Define underlying signal
time = np.arange(0, 1000)
T1 = 250
T2 = 50
signal = np.sin(2 * np.pi * time / T1) + np.sin(2 * np.pi * time / T2)

# Add noise
rng = np.random.default_rng(7)
signal += .3 * rng.standard_normal(size=signal.size)

# Time series (1) // regular sampling
da1 = xr.DataArray(signal, dims=['time'], coords=dict(time=time))
da1.name = 'linear'
# Take subsample at irregular time steps
nonlinear_time_steps = .00001 * np.arange(100)**4
nonlinear_time_steps = nonlinear_time_steps.astype(int)

# Time series (2) // irregular sampling
da2 = da1[nonlinear_time_steps]
da2.name = 'nonlinear'

# N-point moving average
kernel1 = dict(window=101, std=25)
kernel2 = dict(window=9, std=2)

weights1 = gaussian_weights(**kernel1)
weights2 = gaussian_weights(**kernel2)

da1_smooth_points = da1.rolling(time=kernel1['window'], center=True).construct('window').dot(weights1) / weights1.sum()
da2_smooth_points = da2.rolling(time=kernel2['window'], center=True).construct('window').dot(weights2) / weights2.sum()

# N-years moving average (coordinate aware)
da1_smooth_coords = coordinate_aware_gaussian_mean_dataarray(da1, std=25, window=100)
da2_smooth_coords = coordinate_aware_gaussian_mean_dataarray(da2, std=25, window=100)

Click me (figure)

# Plot results
fig = plt.figure(figsize=(7, 11))
ax = [fig.add_subplot(3, 1, i) for i in range(1, 4)]
da1.plot(ax=ax[0], marker='.', ls='', color='darkblue', label='original')
da2.plot(ax=ax[0], marker='o', ls='', color='orange', label='subsample')

da1_smooth_points.plot(ax=ax[1], marker='.', color='darkblue', label='original (std={:} points)'.format(kernel1['window']))
da2_smooth_points.plot(ax=ax[1], marker='o', color='orange', label='subsampled (std={:} points)'.format(kernel2['window']))

da1_smooth_coords.plot(ax=ax[2], marker='.', color='darkblue', label='original (std=25 years)')
da2_smooth_coords.plot(ax=ax[2], marker='o', color='orange', label='subsampled (std=25 years)')

titles = [
    'A $\|$ Time series',
    'B $\|$ N-point moving average (Gaussian kernel)',
    'C $\|$ 100-year moving average (Gaussian kernel)'
]

for a, title in zip(ax, titles):
    a.set_xlim(0, 1000)
    a.set_ylim(-3, 3)
    a.set_xlabel('')
    a.set_ylabel('signal')
    a.legend(loc=1)
    sns.despine(ax=a)
    a.set_title(title, loc='left', weight='bold')
