Thunderbolt doesn't recognise the antelope Audio Interface

[SashonIT]

Hello dear OSY

I have MAC OSX 13.2.1 running on the hades Canyon

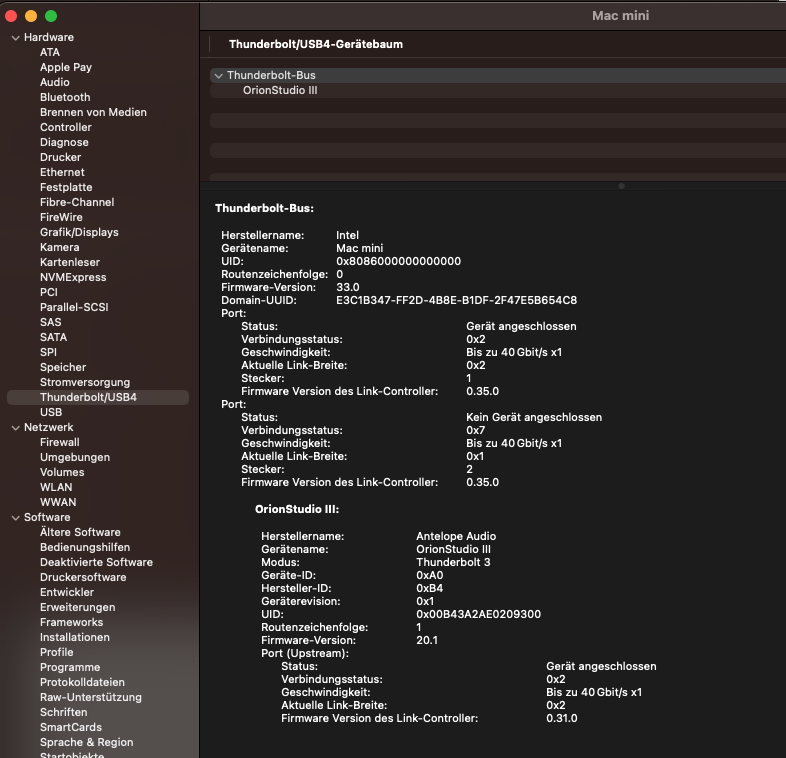

When I connect the Antelope Orion Studio Synergy Core to the Thunderbolt port, it shows up in IOREG and System Preferences. But then I can't control it with the Antelope Launcher. so the interface software doesn't register the interface.

What can I do in this case?

Someone flashed me the Thunderbolt controller years ago.

It was running and proofed under macOS Catalina
I did a BIOS update from HN0067 to HN0070 before the Ventura installation. Does this cause the firmware on the flashed Thunderbolt controller to go?

Where can I find the Apple firmware to flash again?

Is it possible from macOS to read the firmware that is on the controller?

Can you recommend a SPI Flacher?

I am very grateful for tips and advice

Nice Greetings from Berlin / Germany

[osy]

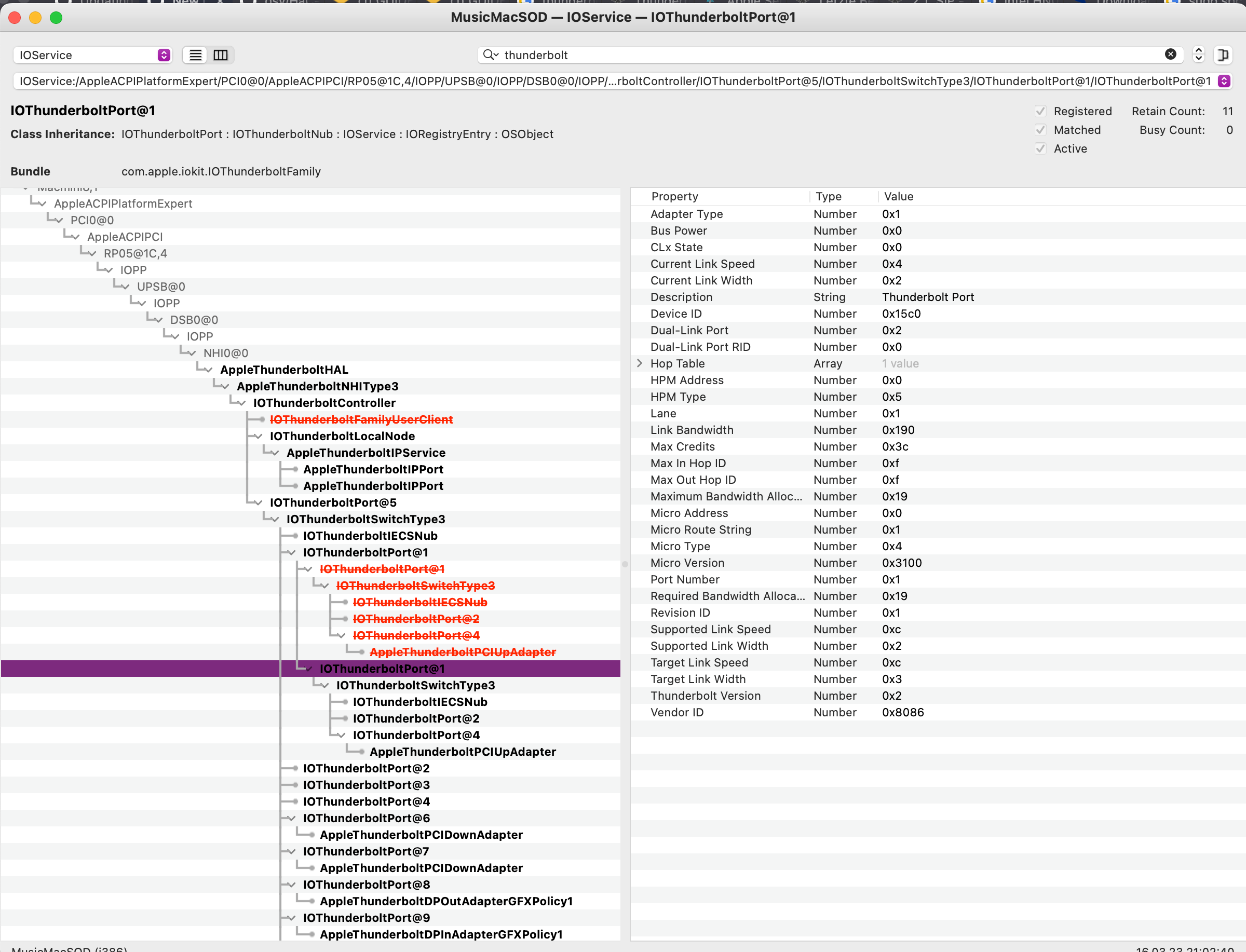

From your screenshot, it seems like it’s loaded fine from TB’s perspective. Any issue is on the PCIe side. Are you sure the drivers are installed correctly? Does this work on a MacBook?

[SashonIT]

Oh Thank you for your Fast Reply.

Not tested yet.

Can do a Test on a M1Max Macbook at the weekend.

I also did a Workaround which was suggested by Antelope Audio.

Nothing Helped until now.

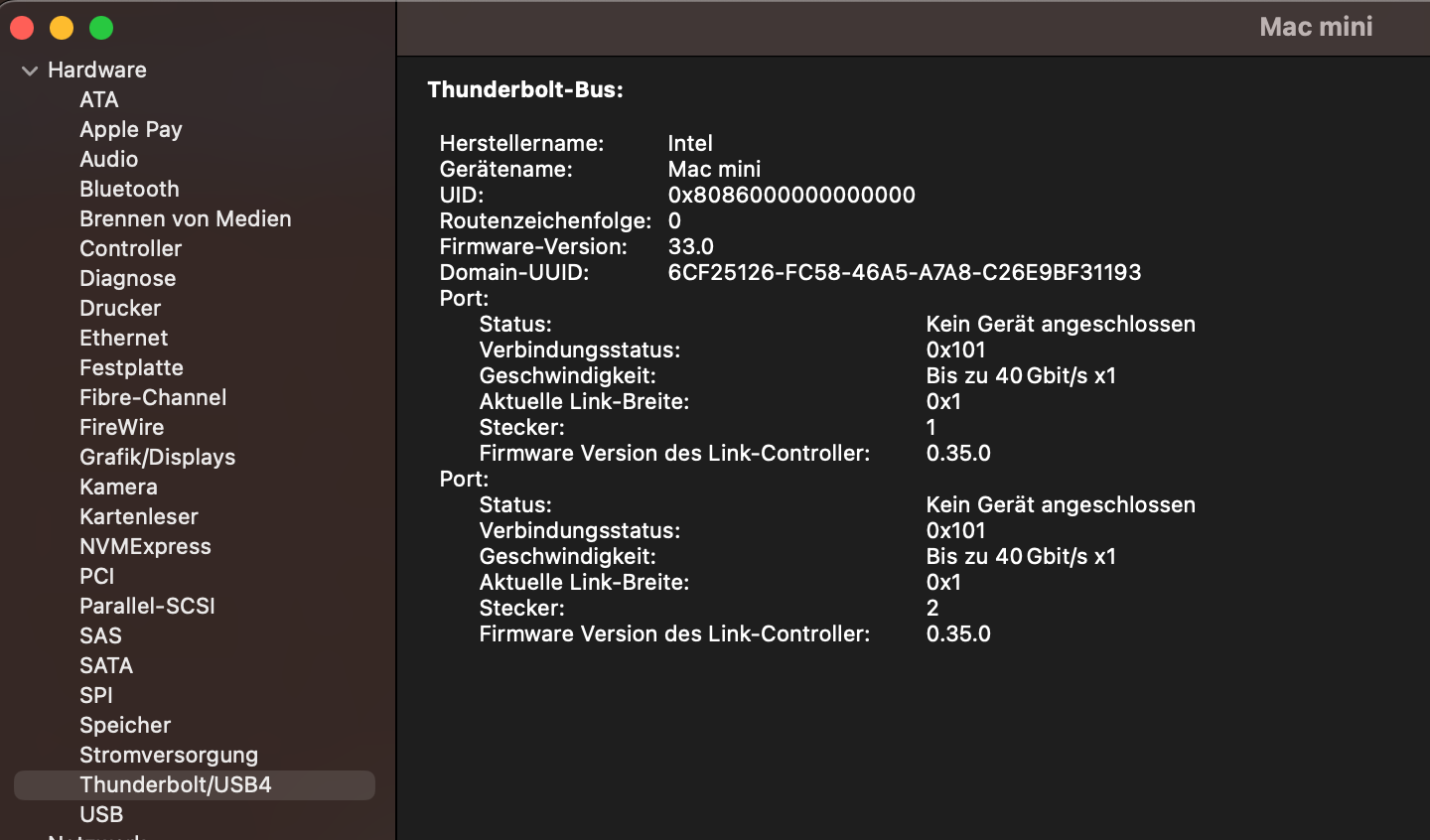

Update. Now nothing is recognizing.

Where do i get the Firmware to Flash?

[SashonIT]

Thunderbolt was running but not with the Antelope Audio Orion Studio Synergy Core.

Now it is.

Because of this.
https://www.hackintosh-forum.de/forum/thread/47303-probleme-mit-virtualbox-auf-dem-hackintosh/?postID=710720#post710720

Yes it is in German. But we all have Translation- Tools running.

Also Chat-GPT can do this.

I am super happy now.

Thank you OSY for this Repo and Project.

We are Brothers in mind for the decision to make a better MAC out of this Crazy Machine, called NUC8I7HVK.
This Sentences could be from Apple in one of their Keynotes :-)). HAHAHAHAHA

Thanks for all.

Wish you all the best!

[ivan-ef]

Because of this.

Yes, disable IO mapper also works for other thunderbolt devices like ethernet controllers, etc. I think I didn't play with VT-d option at all.

[SashonIT]

Thanks for the Hint.

Everything is working now.
Antelope Audio Interfaces really need VT-D enabled in MacOS 13.2.1.

Only Airdrop is a One-Way Thing at the Moment. But soon solved. I ordered a different Wireless/Bluetooth Card https://www.ebay.de/itm/392844222499. BCM94360NG Hackintosh Wifi BCM94360NG M.2 Wireless-Karte mit I-PEX4 WiFi-Antenne
which works OOB
Cause Ventura dropped the support of the Dell dw1820 which i have in.

Airdrop recieving is only possible not sending.

---> https://osxlatitude.com/forums/topic/11138-inventory-of-supportedunsupported-wireless-cards-2-sierra-ventura/?tab=comments#comment-86614

Anway.

I will write down my way in a complete Documentation and post here anyway.

Was a tough way.

[topiga]

You could also try this SSDT-DMAR-DMAC.zip instead. Add this to your config and disable "disableIOMapper"

[ivan-ef]

Only Airdrop is a One-Way Thing at the Moment. But soon solved. I ordered a different Wireless/Bluetooth Card https://www.ebay.de/itm/392844222499. BCM94360NG Hackintosh Wifi BCM94360NG

For everyone who will read this post: Only Apple wifi module will support airdrop since Monterey. BCM94360CS/2 or BCM943602CS are what you need. Not NG, not BAED or anything else, because brands other than Apple has their own device and vendor ID and not fully compatible with MacOS.
