Context menu for links #7953

PieterL75 · 2021-11-30T13:10:02Z

PieterL75
Nov 30, 2021

I made a javascript that creates a context menu to the links.
It started with a small Tampermonkey based script, because I saw that there were a lot of places to change the netbox code to add that button next to the links...

The menu is customizable for each link.

Currently, I 'hacked' it into my netbox by putting the JS file in the media folder and a <script> to the BANNER_BOTTOM

Wondering if this is a feature that could be coded natively in netbox. As the JS solution is pretty slow when adding the buttons next to the links..

Pieter

PieterL75 · 2021-12-13T13:21:44Z

PieterL75
Dec 13, 2021
Author

For those who want to try it out...

Set the BANNER_BOTTOM in your configuration.py
BANNER_BOTTOM = '<script src="/media/scripts/nbn.js"></script>'

Put this code in opt/netbox/netbox/media/scripts/nbn.js

const nbtn_views = {
    '/dcim/devices/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Interfaces': ['interfaces/', 'mdi-dots-vertical'],
        'Console Ports': ['console-ports/', 'mdi-dots-vertical'],
        'Power Ports': ['power-ports/', 'mdi-dots-vertical'],
        'Inventory': ['inventory/', 'mdi-dots-vertical'],
        'Status': ['status/', 'mdi-dots-vertical'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
    '/dcim/racks/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Devices': ['/dcim/devices/?rack_id=$id$', 'mdi-dots-vertical'],
        'Power Feeds': ['/dcim/power-feeds/?rack_id=$id$', 'mdi-dots-vertical'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
    '/ipam/ip-addresses/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },

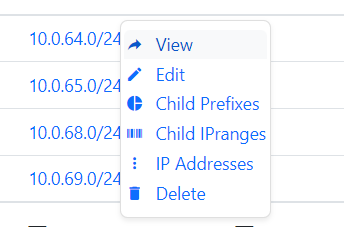

    '/ipam/prefixes/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Child Prefixes': ['prefixes/', 'mdi-chart-pie'],
        'Child IPranges': ['ip-ranges/', 'mdi-barcode'],
        'IP Addresses': ['ip-addresses/', 'mdi-dots-vertical'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
    '/ipam/aggregates/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Prefixes': ['/ipam/prefixes/?within_include=$obj$', 'mdi-chart-pie'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
    '/ipam/vrfs/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Prefixes': ['/ipam/prefixes/?vrf_id=$id$', 'mdi-dots-horizontal'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },

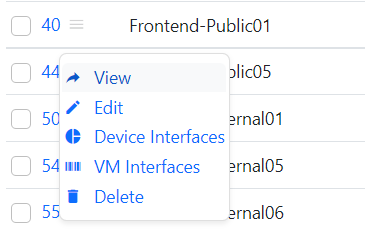

    '/ipam/vlans/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Device Interfaces': ['interfaces/', 'mdi-chart-pie'],
        'VM Interfaces': ['vm-interfaces/', 'mdi-barcode'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
    '/ipam/vlan-groups/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'VLANs': ['/ipam/vlans/?group_id=$id$', 'mdi-dots-horizontal'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
    '/tenancy/tenants/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'VLANs': ['/ipam/vlans/?tenant_id=$id$', 'mdi-dots-horizontal'],
        'Prefixes': ['/ipam/prefixes/?tenant_id=$id$', 'mdi-dots-horizontal'],
        'Devices': ['/dcim/devices/?tenant_id=$id$', 'mdi-dots-horizontal'],
        'VMs': ['/virtualization/virtual-machines/?tenant_id=$id$', 'mdi-dots-horizontal'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
    '/tenancy/tenant-groups/': {
        'View': ['', 'mdi-share'],
        'Edit': ['edit/?return_url=$return_url$', 'mdi-pencil'],
        'Delete': ['delete/?return_url=$return_url$', 'mdi-delete'],
    },
};


function nbtnHideBox() {
    document.getElementById("nbtnboxmenu").style.display = "none"
}

function nbtnShowbox(e) {
    e.preventDefault();

    var nbtnboxmenu = document.getElementById("nbtnboxmenu");
    if (nbtnboxmenu) {
        if (nbtnboxmenu.style.display != "block") {
            var url = new URL(e.currentTarget.url)
            var nbtnboxpos = e.currentTarget.getBoundingClientRect();
            var urlpath = url.pathname;
            var parts = urlpath.split('/');
            var id = parts[3];
            var objtext = e.relatedTarget.innerText;
            var nbtnmenu = nbtnboxmenu.getElementsByClassName('nbtn-menu')[0]
            nbtnmenu.innerHTML = '';
            for (const view of Object.keys(nbtn_views)) {
                if (urlpath.startsWith(view)) {
                    for (const items of Object.keys(nbtn_views[view])) {
                        var newurl = new URL(url);
                        var viewitem = nbtn_views[view][items][0].replace('$id$', id).replace('$obj$', encodeURI(objtext)).replace('$return_url$',encodeURIComponent(window.location.href));
                        var uri = viewitem.split('?');
                        if (viewitem.startsWith('/')) {
                            newurl.pathname = uri[0];
                        } else {
                            newurl.pathname += uri[0];
                        }
                        if (uri.length>1) {
                            for (var vars of uri[1].split('&')) {
                                vars = vars.split(/=(.+)/)
                                newurl.searchParams.set(vars[0], vars[1]);
                            }
                        }
                        nbtnmenu.innerHTML += '<li class="list-group-item list-group-item-action' + (items == 'Delete' ? ' trash' : '') + '"><a href="' + newurl + '"><i class="mdi ' + nbtn_views[view][items][1] + '"></i> ' + items + '</a></li>';
                    }
                }
            }

            nbtnboxmenu.style.display = "block";

            var menuWidth = nbtnboxmenu.offsetWidth + 8;
            var menuHeight = nbtnboxmenu.offsetHeight + 8;

            var windowWidth = window.innerWidth;
            var windowHeight = window.innerHeight;

            if ((windowWidth - nbtnboxpos.x) < menuWidth) {
                nbtnboxmenu.style.left = windowWidth - menuWidth + (nbtnboxpos.width * -0.05) + "px";
            } else {
                nbtnboxmenu.style.left = nbtnboxpos.x + (nbtnboxpos.width * -0.05) + "px";
            }

            if ((windowHeight - nbtnboxpos.y) < menuHeight) {
                nbtnboxmenu.style.top = windowHeight - menuHeight - 5 + "px";
            } else {
                nbtnboxmenu.style.top = nbtnboxpos.y - 5 + "px";
            }
        }
    }
}

(function () {
    'use strict';

    var css=[
        '.nbtn-box { white-space: nowrap; display: inline-flex; }',
        '.nbtn-icon { padding:.1rem .1rem; margin-left: .2rem; white-space: nowrap; opacity: 20%; }',
        '.nbtn-icon:hover { opacity: 80%; }',
        '.nbtn-context-menu { position: absolute !important; padding:2px; }',
        '.nbtn-menu { margin: 0; list-style: none; display: flex;  flex-direction: column; padding: 5px 0; }',
        '.nbtn-menu > li { padding: 0px !important; border: none  !important; font-size: 1em}',
        '.nbtn-menu > li > a {  text-decoration: unset;   padding: 1px;   width: 100%;  display: flex;  transition: 0.5s linear;  -webkit-transition: 0.5s linear;  -moz-transition: 0.5s linear;  -ms-transition: 0.5s linear;  -o-transition: 0.5s linear;}',
        '.nbtn-menu > li > a > i {  padding-right: 10px; }',
        '.nbtn-menu > li.trash > a:hover {  color: red; }',
    ]
    var head = document.getElementsByTagName('head')[0];
    if (head) {
        var style = document.createElement('style');
        style.type = 'text/css';
        style.appendChild(document.createTextNode(css.join("\r\n")));
        head.appendChild(style);
    }

    var nbtnboxmenu = document.createElement("div");
    nbtnboxmenu.id = "nbtnboxmenu";
    nbtnboxmenu.className = "card nbtn-context-menu";
    nbtnboxmenu.style = "display: none";
    var nbtnboxmenuul = nbtnboxmenu.appendChild(document.createElement("ul"));
    nbtnboxmenuul.className="list-group nbtn-menu";
    document.body.appendChild(nbtnboxmenu);
    nbtnboxmenu.addEventListener('mouseleave', function (e) {
        nbtnHideBox(e)
    }, false);

    var classes = ['table']
    var i, j, k;

    for (k = 0; k < classes.length; k++) {
        var divs = document.getElementsByClassName(classes[k]);
        for (i = 0; i < divs.length; i++) {
            var links = divs[i].getElementsByTagName('a');
            for (j = 0; j < links.length; j++) {
                var link = links[j];
                for (const view of Object.keys(nbtn_views)) {
                    var uri = link.getAttribute("href")
                    var parts = uri.split('/');
                    var id = parts[3];
                    var action = parts[4];
                    if (link.getAttribute("href").startsWith(view) && !isNaN(0 + id) && !action && link.getElementsByTagName('i').length == 0 && link.innerText.trim().length > 0) {
                        // url has to start with the nbtn_views key, and the id (3th part of the urlpath) has to be a number and the (4th partt of the urlpath) action has to be empty and there should be no <i> tag in the ahref and the ahref innerhtml is not empty.

                        var nbtnbox = link.appendChild(document.createElement("div"));
                        nbtnbox.className = "nbtn-box";
                        var nbtnspan = nbtnbox.appendChild(document.createElement("span"));
                        nbtnspan.id = "nbtnbox";
                        nbtnspan.className = "btn btn-sm nbtn-icon";
                        nbtnspan.title = "Actions";
                        var nbtnspani=nbtnspan.appendChild(document.createElement("i"));
                        nbtnspani.className="mdi mdi-menu";

                        link.style['white-space'] = 'nowrap';

                        nbtnbox.addEventListener('mouseover', function (e) {
                            nbtnShowbox(e)
                        }, false);
                        nbtnbox.url = link.href;
                    }
                }
            }
        }
    }

})();

1 reply

PieterL75 Dec 15, 2021
Author

I've put a copy on GIT
https://github.com/PieterL75/netbox_contextmenus
