I've been trying different connection configurations to describe a network fiber tap and I would like to know what's the correct or designed way to describe this following:
A modular fiber tab chassis (Datacom FTC-24 specifically) with MTP 12 channel 4 port modules.
The chassis itself is less important but module rear/front port distribution is, each module has 4 ports NETA/NETB and MONA/MONB.
NETA to NETB are your standard patching setup rx to tx and tx to rx.
NETA forward its rx to MONA tx
NETA forwards its tx to MONB tx

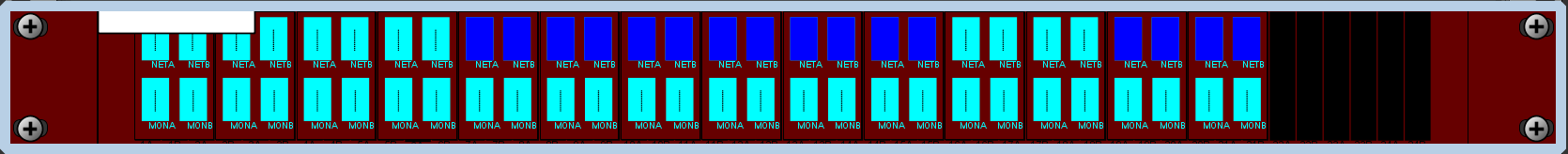

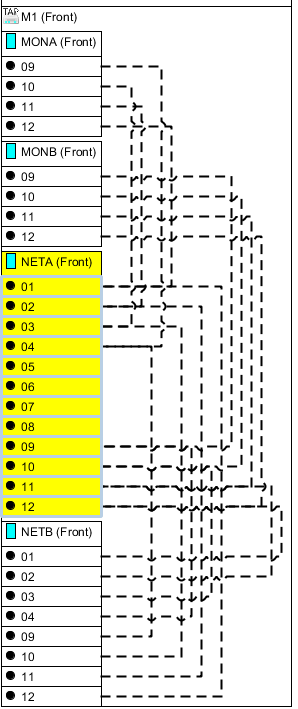

See diagrams below:
In Netbox terms what would be the correct way to describe this?
NETA as rear port with the rest as front connecting to the NETA
