YAML Device Template items for port description and label.

[DenHayes]

Does the YAML import for device templates support a description and label item for front and rear ports? I reviewed the devicetype-library read-me and schema definition and I don't think so, but want to confirm.

A description and label can be added when creating the device components via the WebUI. It would be nice to see this added to the import templates if not.

[candlerb]

Did you try it? The following works for me:

manufacturer: Unknown
model: Packet Shooter 9000
slug: packet-shooter-9000
u_height: 1
front-ports:
  - name: F1
    type: 8p8c
    rear_port: R1
    rear_port_position: 1
    description: foo
    label: FP1
rear-ports:
  - name: R1
    type: 8p8c
    positions: 1
    description: bar
    label: RP1

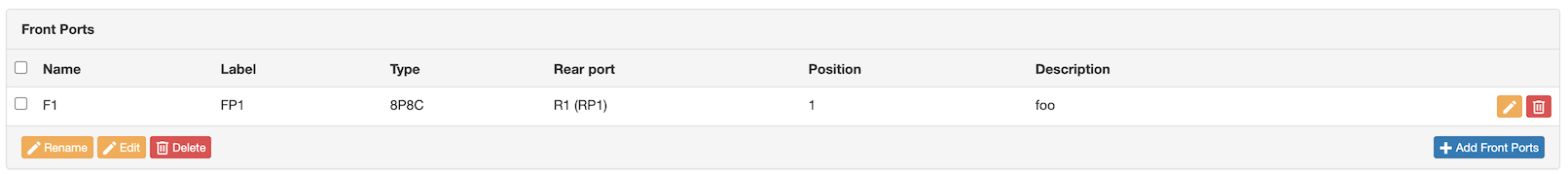

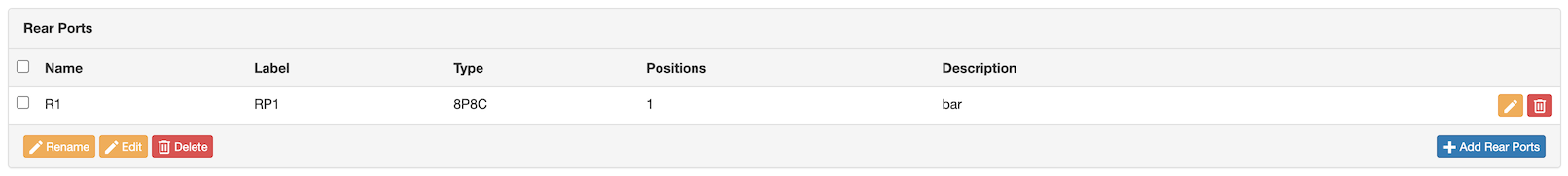

After import:

[DenHayes]

Yes, I did give it a try; here's a snippet of the yaml I tried.

---
manufacturer: Adva Optical
model: 96CSM/2HU-#19600-#19125
slug: 96csm2hu
comment: 96 Channel DWDM passive filter
part_number: '1078708800-01'
u_height: 2
is_full_depth: false
interfaces:
  - name: I
    type: other
    mgmt_only: true
    description: 'Interconnect Port'
rear-ports:
  - name: N
    type: lc
    positions: 96
    description: 'Network Port'
front-ports:
  - name: C1
    type: lc
    rear_port: N
    rear_port_position: 1
    description: '1529.55 nm'
  - name: C2
    type: lc
    rear_port: N
    rear_port_position: 2
    description: '1529.94 nm'
  - name: C3
    type: lc
    rear_port: N
    rear_port_position: 3
    description: '1530.33 nm'

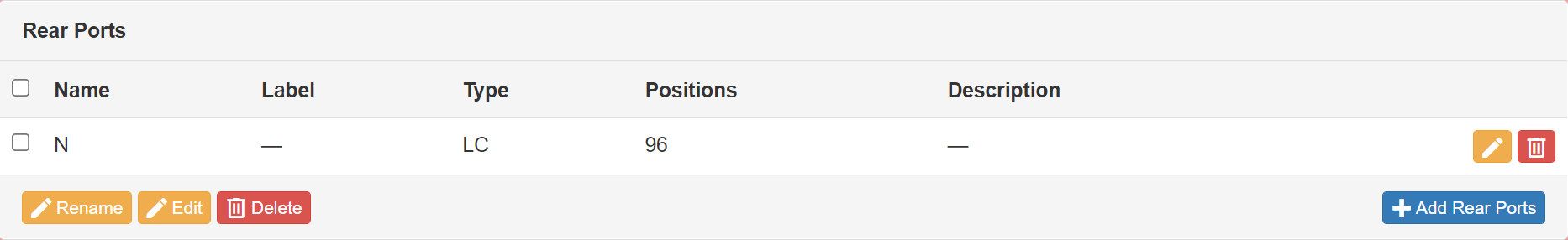

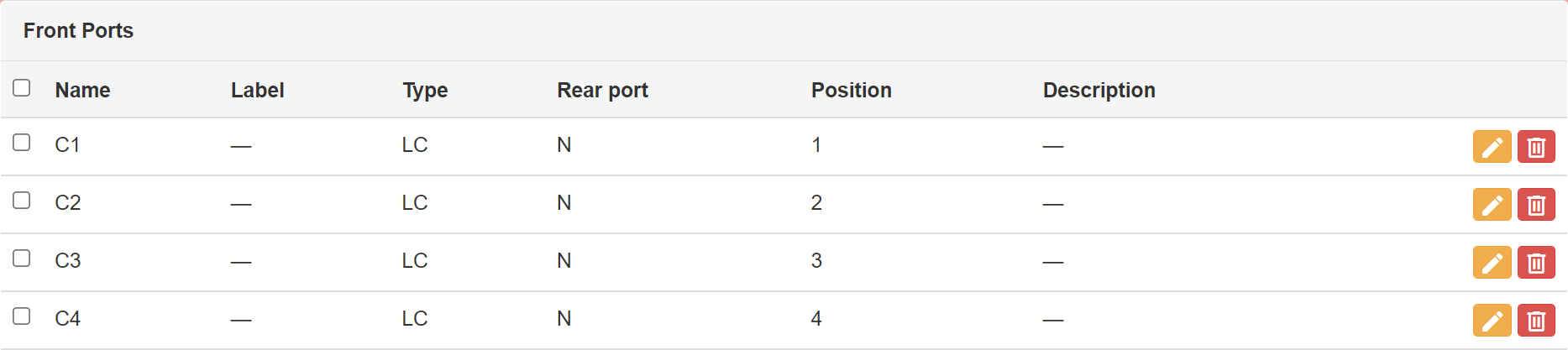

Here's what it looks like after imported:

I'm running version 2.11.1 and I see 2.11.8 was just released. I'll upgrade and try again.

Thanks for confirming it should work.

[candlerb]

My test was with 2.11.7, and the release notes for 2.11.4 include:

• Device Type Import does not import/export description/label fields for many components #6438 - Fix missing descriptions and label for device type imports and exports

[DenHayes]

I didn't even think to look for a bug report when I didn't see them listed in:

https://github.com/netbox-community/devicetype-library#readme #

We've upgraded to 2.11.8 and it's works.

Thanks for the info.
