API: Query IP Addresses by Interface

[AnneWielis]

When i try to get the IP of an interface like this:

http://netbox/api/ipam/ip-addresses/?assigned_object_id=1533

I get back all the IPs in the System.

What am i doing wrong?

[candlerb]

If you give an unrecognised query parameter then it's ignored (without any error), which is why you get them all.

I agree it's not well documented, but the defined set of filters for IPAddress objects is here.

The ones you want are "interface_id" or "vminterface_id". That is: if 1533 is an interface on a device, then use http://netbox/api/ipam/ip-addresses/?interface_id=1533. If it's on a VM, then use http://netbox/api/ipam/ip-addresses/?vminterface_id=1533

[candlerb]

Actually, you can get this information from the web interface.

• Open the Netbox front page
• Click on "API" link at the bottom, takes you to /api/docs/
• Scroll down to GET /ipam/ip-addresses/
• Click on it to expand

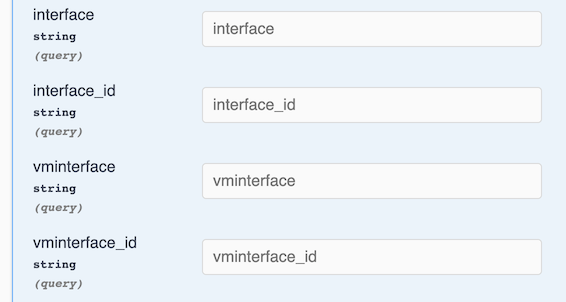

• Look through the "parameters" section (pale blue box), it includes:

[AnneWielis]

OK, i see...so i can't search for virtually just everything, but the allowed queries are hardcoded...OK, got that now.

Thanks for pointing out!

[AnneWielis]

That brings me to the point, why i can't search for description? That does work on interfaces, though, and i abuse that as foreign key for importing stuff from somewhere else

[candlerb]

An API search on description works for me:

$ curl -Ss http://netbox/api/ipam/ip-addresses/?description=ganeti+cluster+master | jq . | grep description
      "description": "ganeti cluster master",
$

It's an exact match rather than partial, so you need to give the actual value. If you want partial matching use q instead, although that matches dns name, description, and IP address

$ curl -Ss http://netbox/api/ipam/ip-addresses/?q=cluster | jq . | grep description
      "description": "ganeti cluster master",
$

For your use case, I think that configuring a custom field would be better than abusing description. I believe you should be able to search on them using cf_<fieldname> as the query parameter.

[AnneWielis]

Hm, i tried: http://netbox/api/ipam/ip-addresses/?description=999, that didn't work, but http://netbox/api/ipam/ip-addresses/?q=999 did. Weird...

[candlerb]

I just tried adding a description "999" to an IP address, then searching for it with /api/ipam/ip-addresses/?description=999, and it worked fine. You sure you don't have a space in there or something?

[candlerb]

I don't believe you said what version of Netbox you are using. I am using the most recent release, v2.11.4, and that includes a fix mentioned in the release notes:

• Search IP Addresses By Description Via REST API #6393 - Add description filter for IP addresses

So it won't work if you're on v2.11.3 or earlier.

[AnneWielis]

You are right, 2.11.4 is just 2 days old...installed it now. Works fine, thanks!
