quad periodic mesh

[shuaizhou001]

Hi Romain,
Is there possible to generate the quad periodic mesh (C3D4 or C3D10) in Neper?
For example, firstly, use this command **neper -T -n 50 -morpho gg -per all -o xxx** to generate the model,
after, I need to cut this model and obtain a cube domain (1,1,1). How to do this step?
Finally, use neper -M xxx.tess -rcl 1 -dim all -format inp. **-dim all** is very important for me.

Thank you!

[rquey]

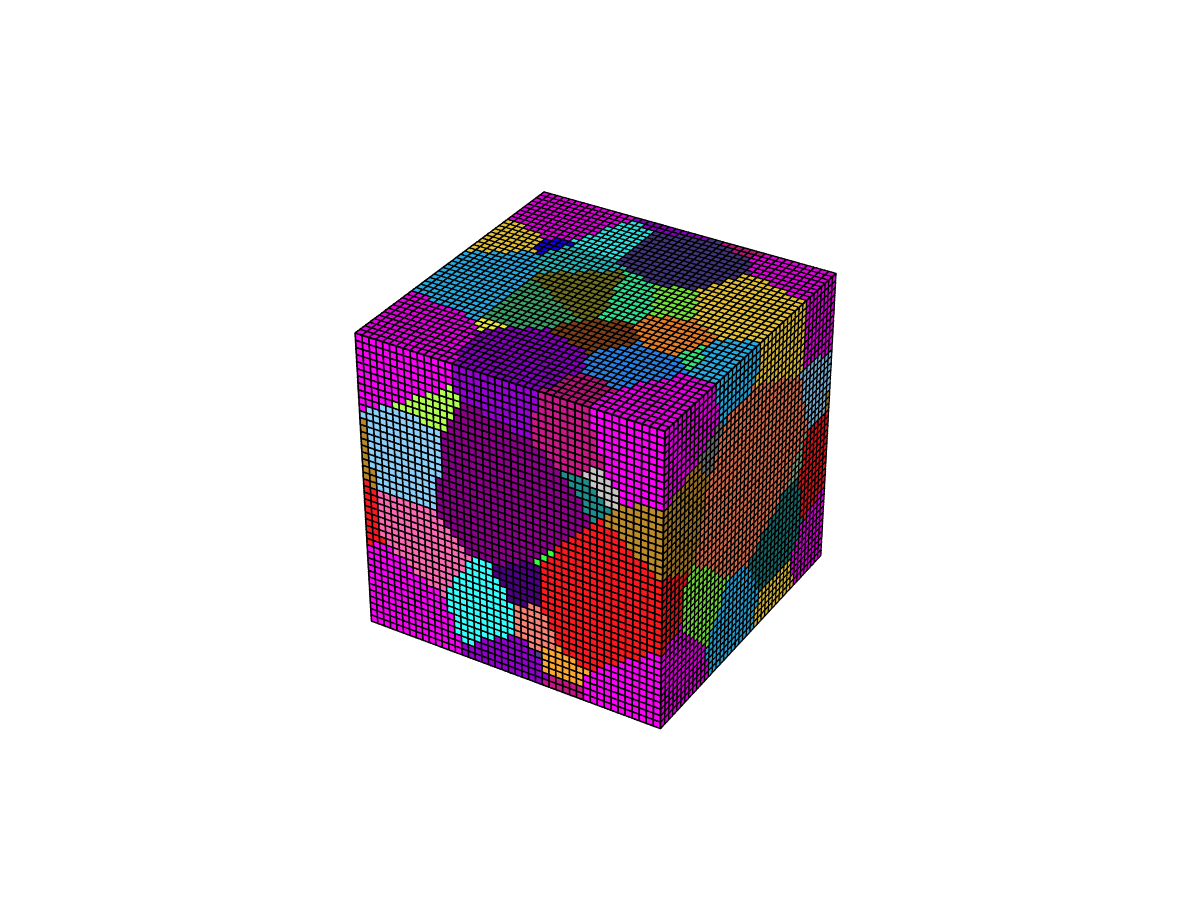

The best Neper can do is (using -elt hex):

neper -T -n 50 -morpho gg -per all -o xxx
neper -M xxx.tess -rcl 0.4 -elt hex
neper -V xxx.msh -print img

However, -dim all will generally not be available.

Otherwise, see #98.
