rmcell command is buggy

[anujyadav0693]

HI,
I am using this code to remove cell to create voids in microstructure.
neper -T -n from_morpho -morpho "diameq:lognormal(0.1,0.01)+0.5*lognormal(0.01,0.001),1-sphericity:lognormal(0.145,0.03)" -transform rmcell(diameq<=0.01) -dim 2 -domain square(1,2)
is not working
is rmcell is buggy command
thank you

[rquey]

Related: #569.

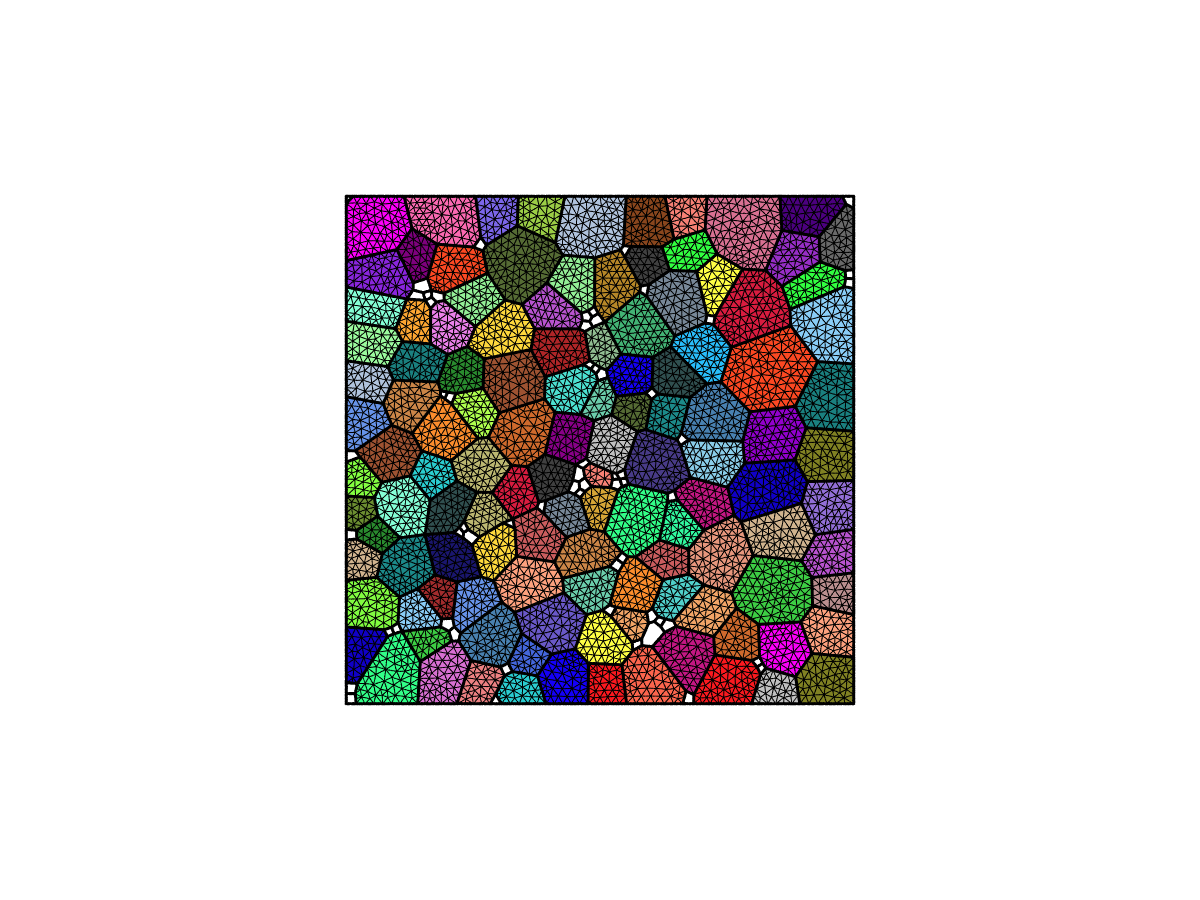

Yes, rmcell is buggy. As a workaround, you can use -meshpoly (or -meshface, in 2D), with the complementary logical expression, to mesh only the grains matching that expression. For example:

neper -T -n from_morpho -morpho "diameq:lognormal(0.1,0.02)+0.5*lognormal(0.02,0.004),1-sphericity:lognormal(0.1,0.03)" -dim 2 -reg 1 -o d
neper -M d.tess -meshface "diameq>0.05"
neper -V d.msh -dataelt1drad 0.003 -dataelt2dedgerad 0.001 -showelt1d all -print img

[anujyadav0693]

sir,
when i am trying to use meshing code neper -M d.tess -meshface "diameq>0.05". i got this problem meshing is not done.

neper -M d.tess -meshface "diameq>0.05"

========================    N   e   p   e   r    =======================
Info   : A software package for polycrystal generation and meshing.
Info   : Version 4.4.2-19
Info   : Built with: gsl|muparser|opengjk|openmp|nlopt|libscotch (full)
Info   : Running on 6 threads.
Info   : <https://neper.info>
Info   : Copyright (C) 2003-2022, and GNU GPL'd, by Romain Quey.
Info   : No initialization file found (`/home/anuj/.neperrc').
Info   : ---------------------------------------------------------------
Info   : MODULE  -M loaded with arguments:
Info   : [ini file] (none)
Info   : [com line] d.tess -meshface diameq>0.05
Info   : ---------------------------------------------------------------
Info   : Reading input data...
Info   :   - Reading arguments...
Info   : Loading input data...
Info   :   - Loading tessellation...
Info   :     [i] Parsing file `d.tess'...
Info   :     [i] Parsed file `d.tess'.
Info   : Meshing...
Info   :   - Preparing... (cl = 0.01863)
Info   :   - 0d meshing... 100%
Info   :   - 1d meshing... 100%
Info   :   - 2d meshing...   0% (0|0/ 0%| 0%| 0%)Error  :     > Meshing of face 4 failed
Aborted (core dumped)

[rquey]

Did you run ctest to test the program when you installed? The latest version is 4.5.1-1; you many also want to upgrade...
