Increasing fidelity of tesselation from raster tesselation

[darrencpagan]

Hi,

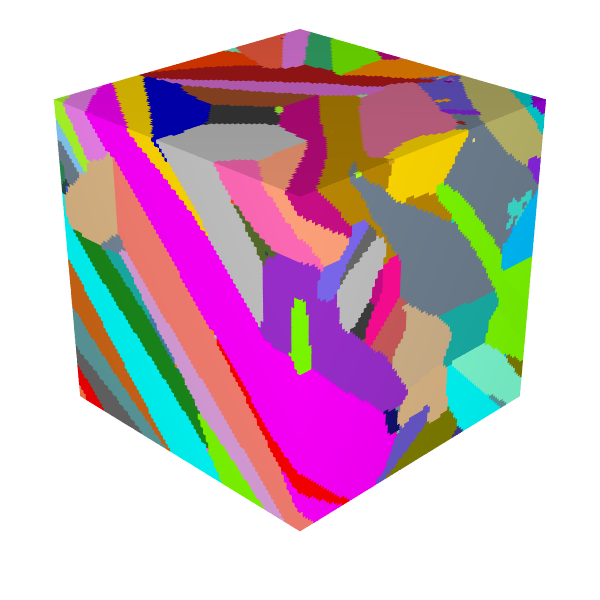

I'm looking for guidance to improve the fidelity of tessellations. Using the below tesr file:

and the following tessellation call:

neper -T -n from_morpho -domain 'cube(1,1,1)' -morpho 'tesr:file(cycle5.tesr)' \
            -morphooptiobjective 'tesr:pts(region=all,res=15)+val(bounddist)' \
            -morphooptistop itermax=100 -reg 1 -o cycle5_test

,

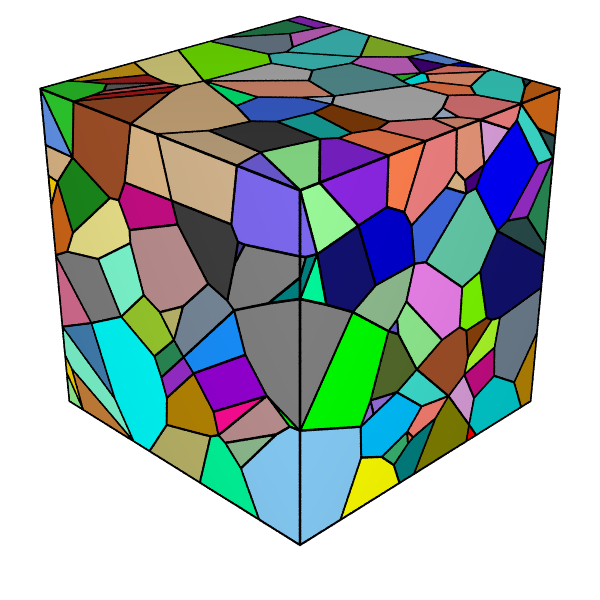

I get the following tessellation:

I was wondering if there are better options I could be using to increase fidelity between the tesr and tess file.

Thanks,

[rquey]

You are not using the best options.

Generally speaking, first thing to care about is the domain. Make sure it is properly defined.

Then, I would probably leave -morphoobjective and -morphooptistop to their default values. Your -morphooptiobjective does increase the resolution, but your -morphooptistop stops optimization very early. Neper will typically use thousands of iterations, and this specific (difficult) case, which has very elongated grains, will need even more. I would recommend to let Neper converge as much as possible. Seeing the default output would be interesting.

Is it a single-scale or a multi-scale microstructure, including grain subdivisions?

[darrencpagan]

Thank you, do you have a suggestion about the domain? What might the problem with the definition be? Also, I will run with more iterations.

Currently this is a single scale microstructure, but there may be ways to make it multiple scale with prior beta information.

[rquey]

About the domain, just make sure that it is correct (not having your tesr at hand, I cannot say if this is the case).

[darrencpagan]

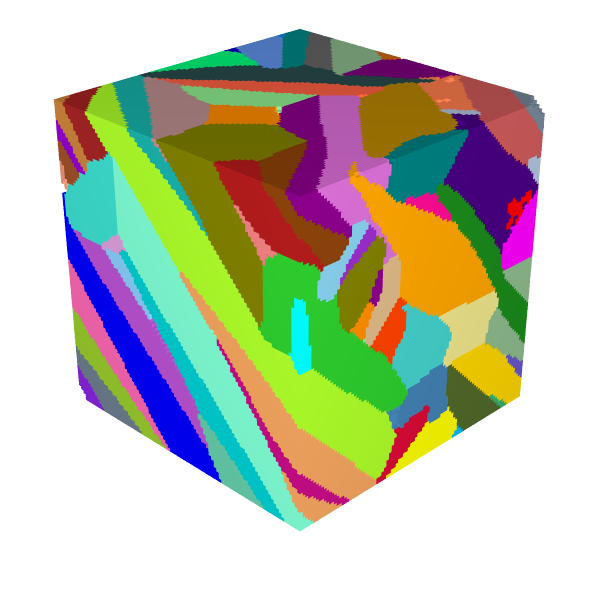

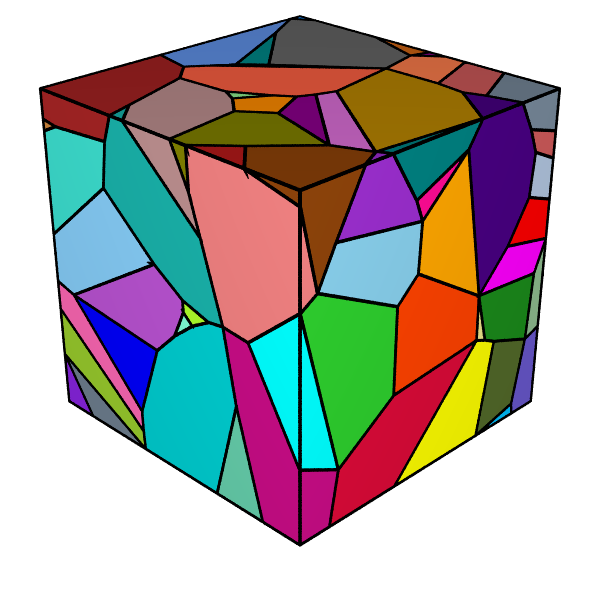

Thank you for the help. Got much better results with some domain cleaning (very small cell removal) and many more iterations (10k-100k).

Do you think further improvements could be gained from making the domains two scale? The large scale structure would be prior beta grains and finer scale structure would alpha colonies in a Ti alloy?

[rquey]

Yes, small cell removal definitely helps.

In principle, yes, if the polycrystal is 2-scale, it has to go through 2-scale tessellation, although I have never done it (but it is an interesting case). I am afraid that the tessellation won't be very similar to the polycrystal, however, since there is significant non-convexity... It will work only if you want or are happy with a simplified morphology (which is what Neper does)...
