'datacsysfontsize' is not changing the font size

[shahul31]

Hello,

Even after using this 'datacsysfontsize' option to change the font size of the scale, the font size remains unchanged. Please help!

[rquey]

Please provide an example.

[shahul31]

Please find the below example,

neper -V p50_1.sim \ -simstep 3 \ -datanodecoo coo \ -dataelt1drad 0.004 \ -dataelt3dedgerad 0.0015 \ -datanodecoofact 10 \ -dataelt3dcol strain22 \ -dataeltscaletitle "Strain 22" \ -datacsysfontsize 0.1 \ -showelt1d all \ -cameraangle 13.5 \ -imagesize 1000:1300 \ -print test2_e22_full

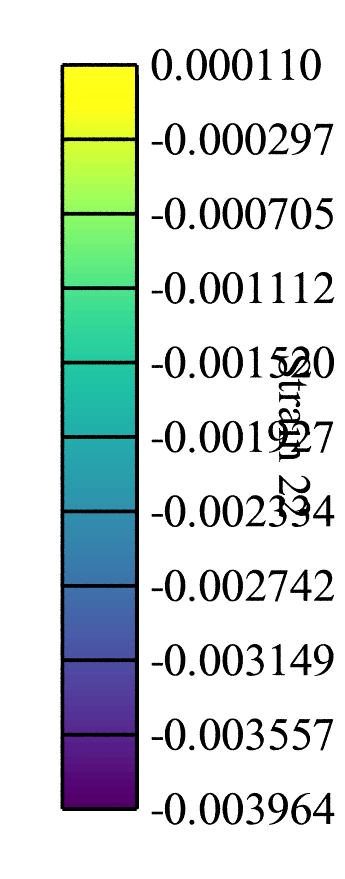

prints scale like

The default size is given as 1, so I tried to reduce the size. But increasing or decreasing the "datacsysfontsize" is not showing any effect on the printed results. This is not a big issue, but I am trying to run a large number of simulations and getting results, in this case correcting the scale every time is a problem, so I am trying to reduce the font size to view it better.

[rquey]

This is not what -datacsysfontsize does; it sets the font of the labels of the coordinate system.

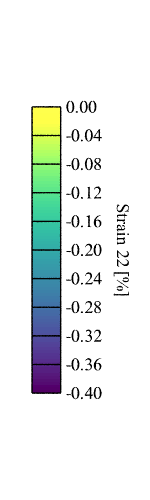

As far as the scale is concerned, the font size cannot be modified, but the values can be chosen / formatted. In your case, I would use -dataelt3dcol real:100*strain22 -dataeltscaletitle "Strain 22 [%]" -dataeltscale -0.40:0, which produces the image below. Note that I used -0.40 (with two decimal digits), which is how the format can be specified.

With -dataeltscale -0.4:-0.3:-0.2:-0.1:0:

[shahul31]

Thank you very much for the clarification. This is helpful :)
