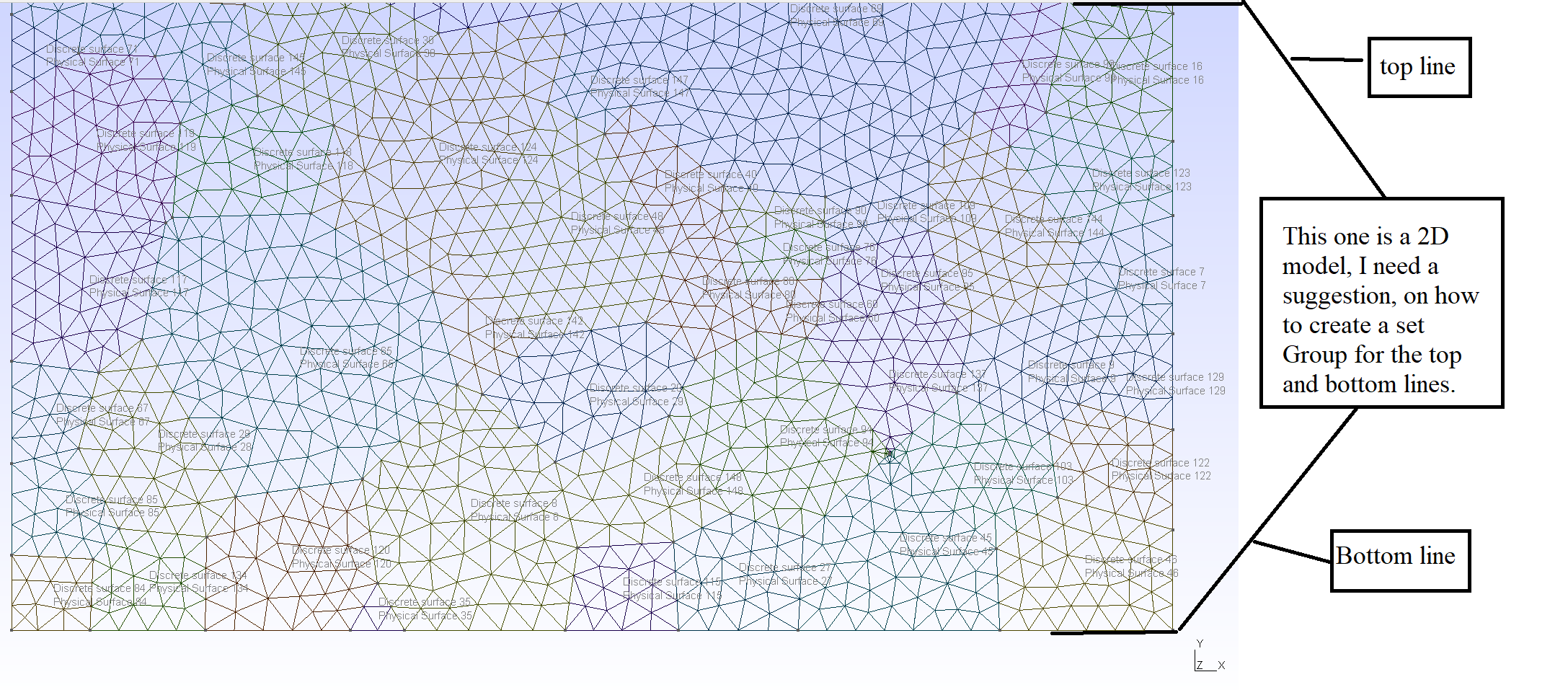

I built the model, which you can find in the attached file. Here my main query is how to create the set group (Physical and Discrete surface ) for the top and bottom line in the 2D model. I have these surfaces for the 3D model but I am unable to create them in 2D. |
Beta Was this translation helpful? Give feedback.
Replies: 1 comment 3 replies
-
|
They are written under For 2D, you will need to update to version 4.4.2-16. |
Beta Was this translation helpful? Give feedback.
-
|
Thank you very much Respected Professor for your valuable time and positive response. |
Beta Was this translation helpful? Give feedback.
-
|
I was talking about Neper, not Gmsh. https://neper.info/downloads.html#latest-version |
Beta Was this translation helpful? Give feedback.
-
|

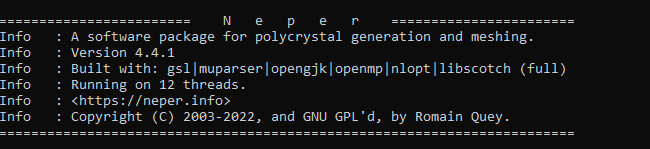

Professor my Neper version is 4.4.1 is it okay? |
Beta Was this translation helpful? Give feedback.
They are written under
$NSetsin the msh files, see option -nset and the specifications of the Mesh File (.msh).For 2D, you will need to update to version 4.4.2-16.
