Mesh Size Problem

[Ali141272]

Hello Respected Sir,
Sir, I have built the model in Neper but I am facing one issue, which is related to mesh size. I need your suggestion, on how to fix this problem.

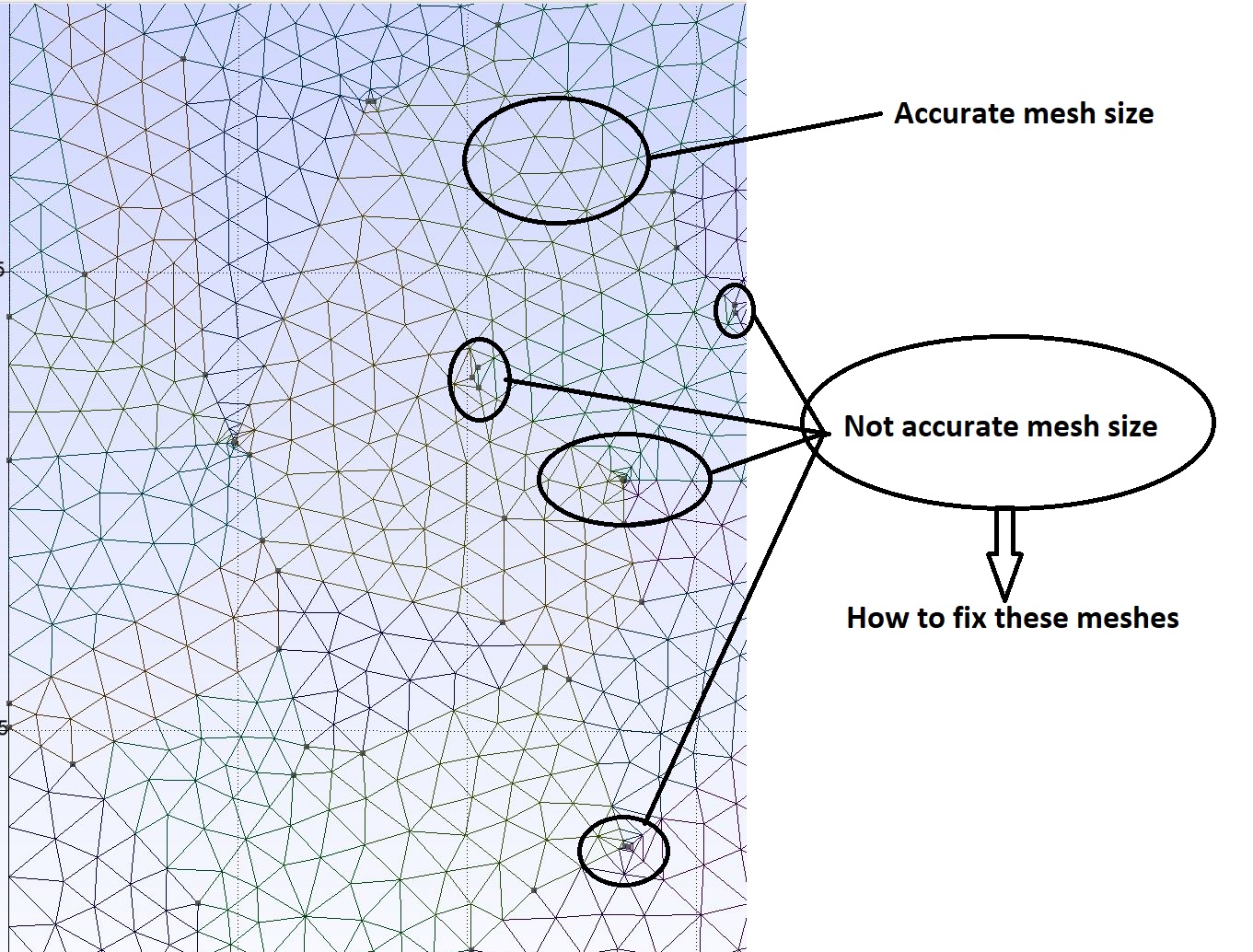

I highlighted the problem in the model, please find the enclosed attached file of the model.
I hope for your kind consideration and response.
Yours sincerely
Ali

[mkasemer]

@Ali141272 - in the absence of any minimal working example, which is necessary to properly diagnose an issue, I can only assume that you have not turned on regularization during tessellation. Please consult the documentation for further guidance, but I suggest creating the tessellation with tessellation regularization enabled (-reg 1).

[Ali141272]

Hello, sir Thank you so much for your time and response. Sir are you talking about the below-mentioned command
Generate a Voronoi tessellation containing 100 cells and apply regularization:

$ neper -T -n 100 -reg 1

Sir this is my commands
$ neper -T -n 40
$ neper -T -n 40 -id 2
$ neper -T -n 40 -domain "square(0.025,0.05)" -dim 2
$ neper -M n40-id1.tess
$ neper -V n40-id1.tess -print a
$ neper -V n40-id1.msh -print b

I hope for your kind response.
Yours sincerely,
Ali

[mkasemer]

@Ali141272 - I do not understand why you have three separate -T commands, but it is evident that none of them utilize the regularization option, as you should in your top command (-reg 1). Try applying this to your tessellation generation commands.

[Ali141272]

Hello, sir thank you so much for your time and response. Sir are you talking about the below-mentioned command - Generate a Voronoi tessellation containing 100 cells and apply regularization: $ neper -T -n 100 -reg 1 Sir this is my coding $ neper -T -n 40 $ neper -T -n 40 -id 2 $ neper -T -n 40 -domain"square(0.025,0.05)" -dim 2 $ neper -M n40-id1.tess $ neper -V n40-id1.tess -print a $ neper -V n40-id1.msh -print b I hope for your kind response Sincerely  Ali On Sunday, May 1, 2022, 11:36:07 PM GMT+8, Matthew Kasemer ***@***.***> wrote: @Ali141272 - in the absence of any minimal working example, which is necessary to properly diagnose an issue, I can only assume that you have not turned on regularization during tessellation. Please consult the documentation for further guidance, but I suggest creating the tessellation with tessellation regularization enabled (-reg 1). — Reply to this email directly, view it on GitHub, or unsubscribe. You are receiving this because you were mentioned.Message ID: ***@***.***>
