Rotate seed distribution

[joshuajaistein]

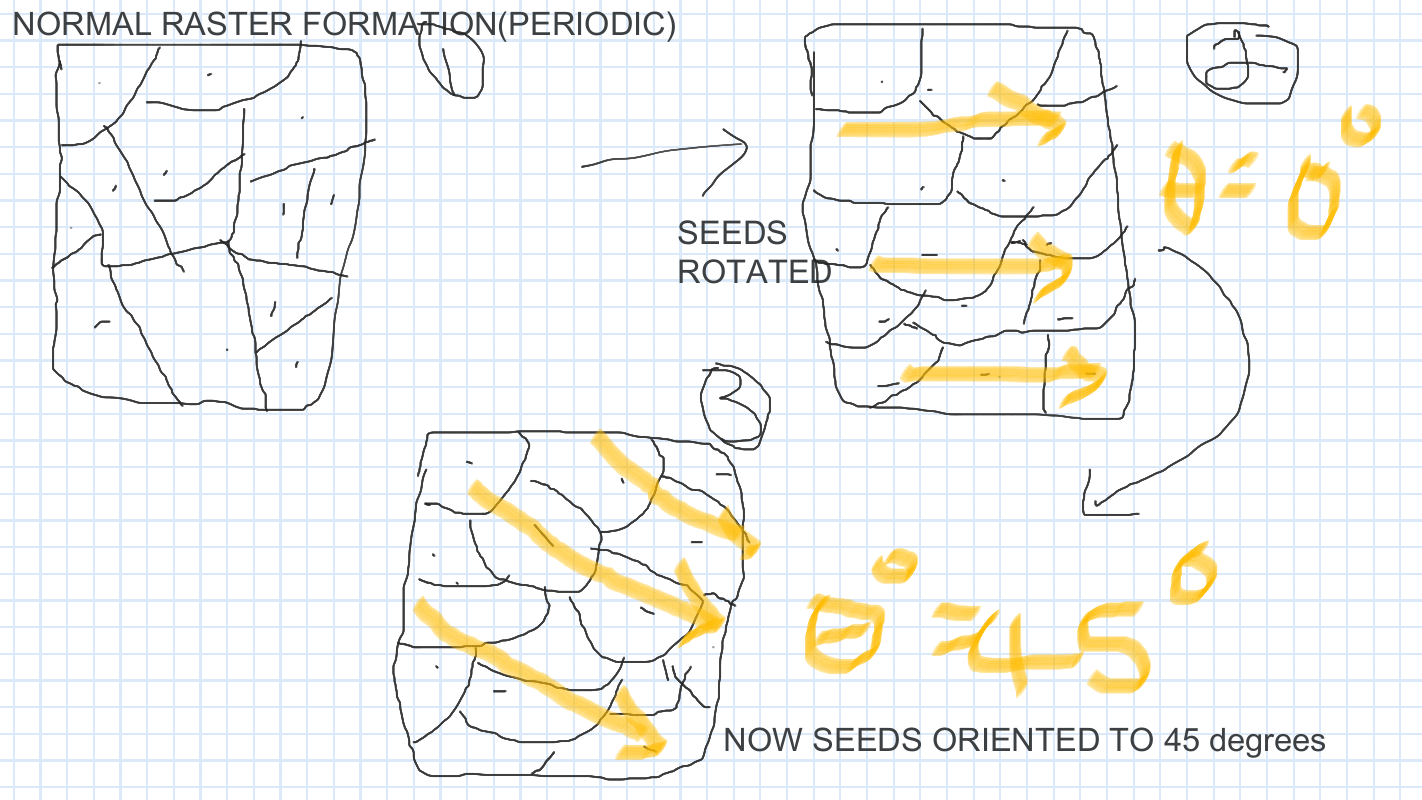

Is it possible to ratate the crystal seeds and then orient all of them towards a desired angle measure ? I have depicted it on the image here

?

[rquey]

This option does not exist, but you can load a custom (rotated) seed distribution using -morphooptiini coo.

[joshuajaistein]

Sir, can you please quote an example ?

[rquey]

Here is an example:

First, generate a tessellation:

neper -T -n 1000 -statseed x,y,z

This will write a tessellation file but also a seed coordinates file, n1000-id1.stseed.

Then, apply changes to the coordinates, e.g. a scaling along x:

awk '{print $1*0.2,$2,$3}' n1000-id1.stseed > new_coos

Load this file to generate the new tessellation (you may load any other (properly formatted) file):

neper -T -n 1000 -morphooptiini "coo:file(new_coos)" -o new

Visualize:

neper -V new.tess -print img

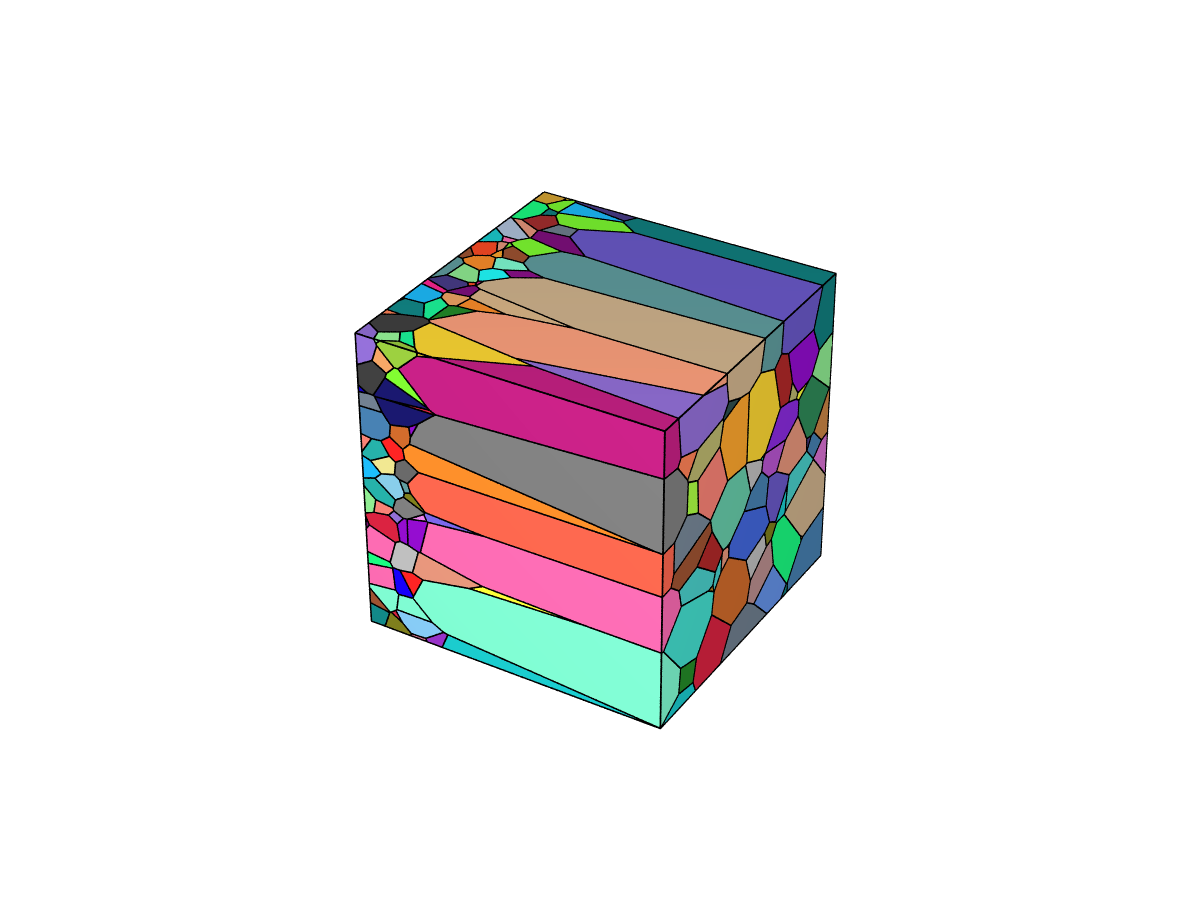

Most grains are smashed on the xmin surface, as expected from the seed coordinates.

[joshuajaistein]

How to create that feature in neper ? Which part of the code should I start working on ?

[rquey]

This is in net_tess_opt_init_sset.

[joshuajaistein]

Sir , is it possible to code this feature, if yes, where/which function should I start with ?

[rquey]

See #406 (reply in thread).
