How to control the grain orientation?

[hubocqjtu]

Dear all,

I am confused that the -ori. How to control grain orientation using -T.

i.e., How to make the direction of the grains 0,45 or 90 degrees to a certain axis (x,y or z axis) ? Don't use -domain rotation, just use -ori or related commands?
I tried this code but failed.

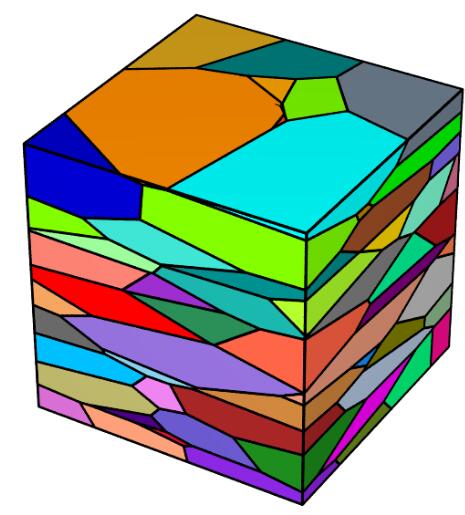

$ neper -T -n 100 -morpho "voronoi,aspratio(2,2,0.5)" -ori "fiber(0,0,1,0,0,1)"

Thanks!

Bolton

[rquey]

-fiber(0,0,1,0,0,1) gives you all 001 crystal axes parallel to the Z sample axis (and random orientations about the fiber axis).

Your orientation distribution cannot be generated by Neper. So, you have to generate the orientations yourself and load them using -ori file(...).

[hubocqjtu]

Thank you so much! I will try.
