Could the neper output the 'ipf triangle'?

[Yuanguo1994]

Hi Romain,

I want to know whether the neper could output the 'ipf triangle' after I colored the tessellation by using command 'datacellcol 'ori' -datacellcolscheme 'ipf(z)'' ? If it could output the 'ipf triangle', what's the command I should type in？

Thanks

[rquey]

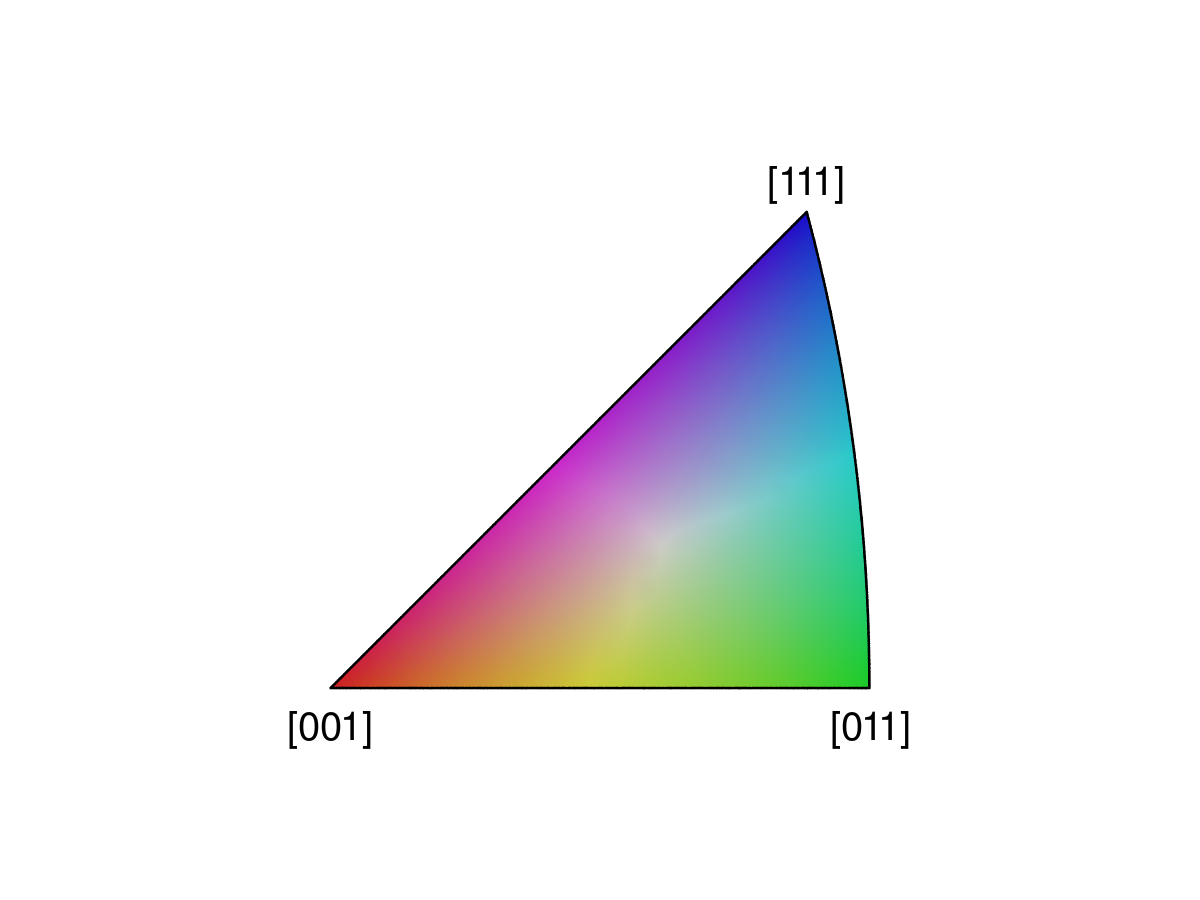

To generate the IPF color key, proceed as follows (requires version 4.2.1-4):

$ neper -T -n 1 -domain "stdtriangle(20)" -dim 2 -o stdtriangle
$ neper -M stdtriangle.tess -cl 0.02 -statnode col_stdtriangle
$ neper -V stdtriangle.msh -datanodecol "col:file(stdtriangle.stnode)" -dataeltcol from_nodes -dataelt2dedgerad 0 -dataelt1drad 0.001 -showelt1d all -print tmp
$ convert -pointsize 40 -draw "text 287,740 '[001]' text 830,740 '[011]' text 767,195 '[111]'" tmp.png stdtriangle.png

[yguilhem]

Very nice!
Just tested it with the brand new version (4.2.1-5), it seems that there is a typo in the second command line:

$ neper -M stdtriangle.tess -cl 0.02 -statnode col:stdtriangle
========================    N   e   p   e   r    =======================
Info   : A software package for polycrystal generation and meshing.
Info   : Version 4.2.1-5
Info   : Built with: gsl|muparser|opengjk|openmp|nlopt|libscotch (full)
Info   : Running on 8 threads.
Info   : <https://neper.info>
Info   : Copyright (C) 2003-2021, and GNU GPL'd, by Romain Quey.
Info   : Loading initialization file `/home/guilhem/.neperrc'...
Info   : ---------------------------------------------------------------
Info   : MODULE  -M loaded with arguments:
Info   : [ini file] (none)
Info   : [com line] stdtriangle.tess -cl 0.02 -statnode col:stdtriangle
Info   : ---------------------------------------------------------------
Info   : Reading input data...
Info   :   - Reading arguments...
Info   : Loading input data...
Info   :   - Loading tessellation...
Info   :     [i] Parsing file `stdtriangle.tess'...
Info   :     [i] Parsed file `stdtriangle.tess'.
Info   : Meshing...
Info   :   - Preparing... (cl = 0.02)
Info   :   - 0D meshing... 100%
Info   :   - 1D meshing... 100%
Info   :   - 2D meshing... 100% (0.94|0.94/100%| 0%| 0%)
Info   : Searching nsets and fasets...
Info   : Writing mesh results...
Info   :   - Preparing mesh...
Info   :   - Mesh properties:
Info   :     > Node number:      295
Info   :     > Elt  number:      521
Info   :     > Mesh area:    0.079
Info   :   - Writing mesh...
Info   :     [o] Writing file `stdtriangle.msh'...
Info   :     [o] Wrote file `stdtriangle.msh'.
Info   : Writing mesh statistics...
Info   :     [o] Writing file `stdtriangle.stnode'...
Error  : Expression `col:stdtriangle' could not be processed.
Aborted

But using underscore works fine (see commit 1067c6):

$ neper -M stdtriangle.tess -cl 0.02 -statnode col_stdtriangle

========================    N   e   p   e   r    =======================
Info   : A software package for polycrystal generation and meshing.
Info   : Version 4.2.1-5
Info   : Built with: gsl|muparser|opengjk|openmp|nlopt|libscotch (full)
Info   : Running on 8 threads.
Info   : <https://neper.info>
Info   : Copyright (C) 2003-2021, and GNU GPL'd, by Romain Quey.
Info   : Loading initialization file `/home/guilhem/.neperrc'...
Info   : ---------------------------------------------------------------
Info   : MODULE  -M loaded with arguments:
Info   : [ini file] (none)
Info   : [com line] stdtriangle.tess -cl 0.02 -statnode col_stdtriangle
Info   : ---------------------------------------------------------------
Info   : Reading input data...
Info   :   - Reading arguments...
Info   : Loading input data...
Info   :   - Loading tessellation...
Info   :     [i] Parsing file `stdtriangle.tess'...
Info   :     [i] Parsed file `stdtriangle.tess'.
Info   : Meshing...
Info   :   - Preparing... (cl = 0.02)
Info   :   - 0D meshing... 100%
Info   :   - 1D meshing... 100%
Info   :   - 2D meshing... 100% (0.94|0.94/100%| 0%| 0%)
Info   : Searching nsets and fasets...
Info   : Writing mesh results...
Info   :   - Preparing mesh...
Info   :   - Mesh properties:
Info   :     > Node number:      295
Info   :     > Elt  number:      521
Info   :     > Mesh area:    0.079
Info   :   - Writing mesh...
Info   :     [o] Writing file `stdtriangle.msh'...
Info   :     [o] Wrote file `stdtriangle.msh'.
Info   : Writing mesh statistics...
Info   :     [o] Writing file `stdtriangle.stnode'...
Info   :     [o] Wrote file `stdtriangle.stnode'.
Info   : Elapsed time: 2.003 secs.
========================================================================

[rquey]

Thanks @yguilhem , you are right. I corrected my answer.

[xshang93]

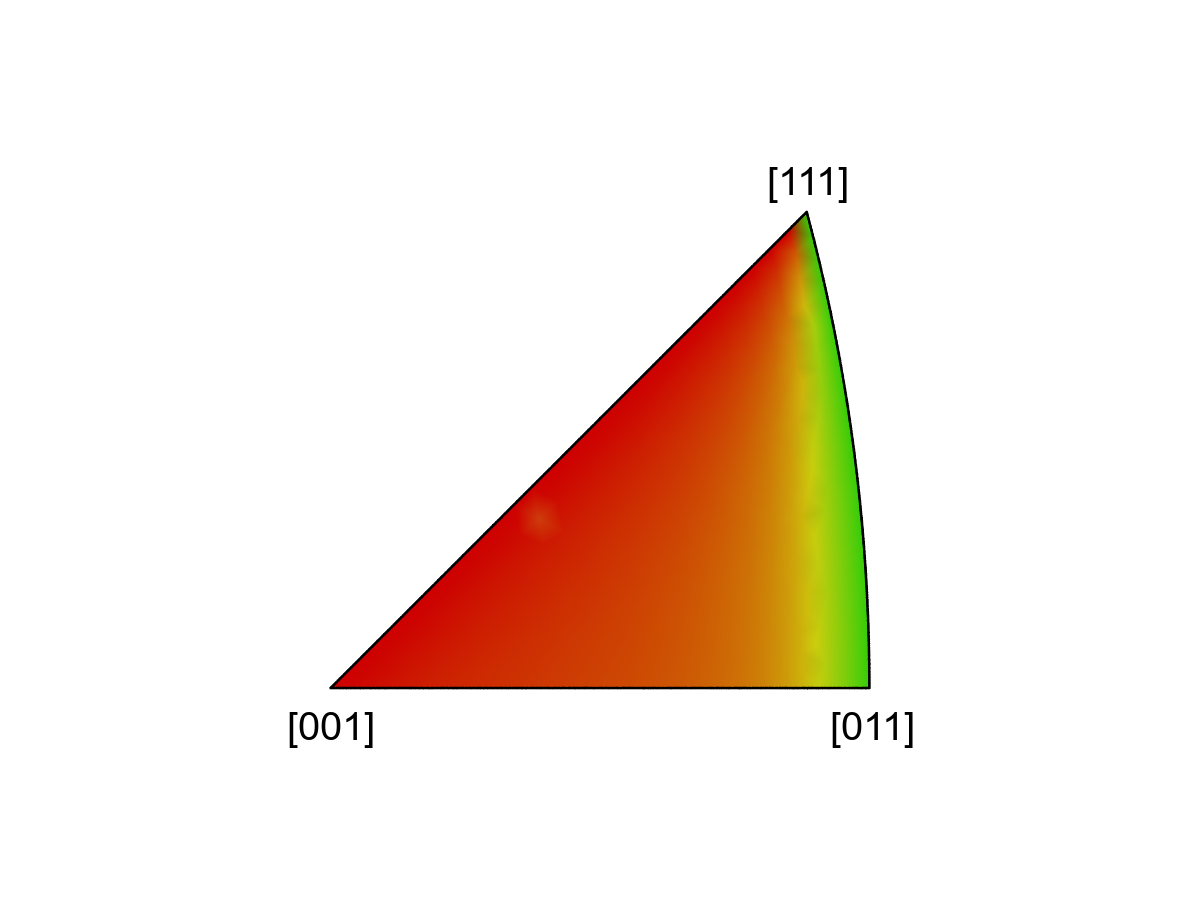

Tested with 4.2.1-7 on OSX, got below. Not sure what I did wrong?

[rquey]

Same version - I cannot reproduce this bug (on Linux).

[qdolle15]

Hi everyone !

I tried to do the same on my computer (Ubuntu 20.04 - Neper 4.2.1-12) and it gives me the following error at this stage :

neper -M stdtriangle.tess -cl 0.02 -statnode col_stdtriangle

Can someone help me ?

======================== N e p e r =======================
Info : A software package for polycrystal generation and meshing.
Info : Version 4.2.1-12
Info : Built with: gsl|muparser|opengjk|openmp|nlopt|libscotch (full)
Info : Running on 8 threads.
Info : https://neper.info
Info : Copyright (C) 2003-2021, and GNU GPL'd, by Romain Quey.
Info : No initialization file found (`/home/dolle/.neperrc').

Info : ---------------------------------------------------------------
Info : MODULE -M loaded with arguments:
Info : [ini file] (none)
Info : [com line] stdtriangle.tess -cl 0.02 -statnode col_stdtriangle

Info : ---------------------------------------------------------------
Info : Reading input data...
Info : - Reading arguments...
Info : Loading input data...
Info : - Loading tessellation...
Info : [i] Parsing file stdtriangle.tess'... Info : [i] Parsed file stdtriangle.tess'.
Info : Meshing...
Info : - Preparing... (cl = 0.02)
Info : - 0D meshing... 100%
Info : - 1D meshing... 100%
Info : - 2D meshing... 0% (0|0/ 0%| 0%| 0%)Error : > Meshing of face 1 failed
Abandon (core dumped)

[xshang93]

Did you check if Neper -M works? To me this looks like a Neper -M issue, possibly Gmsh not working.

[qdolle15]

Yes you're right,

When I use M module on a simple example, some "tmpXXXX-X.geo" are created while having the same error message.

What can I do with Gmsh to make it work ?

[xshang93]

Yes you're right,

When I use M module on a simple example, some "tmpXXXX-X.geo" are created while having the same error message.

What can I do with Gmsh to make it work ?

it's hard to diagnose, but you can check it here #493

Otherwise, on mac if I use 8 treads I would have this problem. Seeing that you are on Ubuntu this should not be the case, but it doesn't hurt to try export OMP_NUM_THREADS=1 before your commands so to only use one thread and see if this fix the problem for you.

[rquey]

@qdolle15, please make sure that you installed Gmsh properly (all tests should pass when you run ctest). If the problem persists, please open a new issue, as this issue is not related to your problem.

[qdolle15]

Ok thanks for your answers !
