Multiscale microstructure

[J-AKAZ]

Hello Romain,

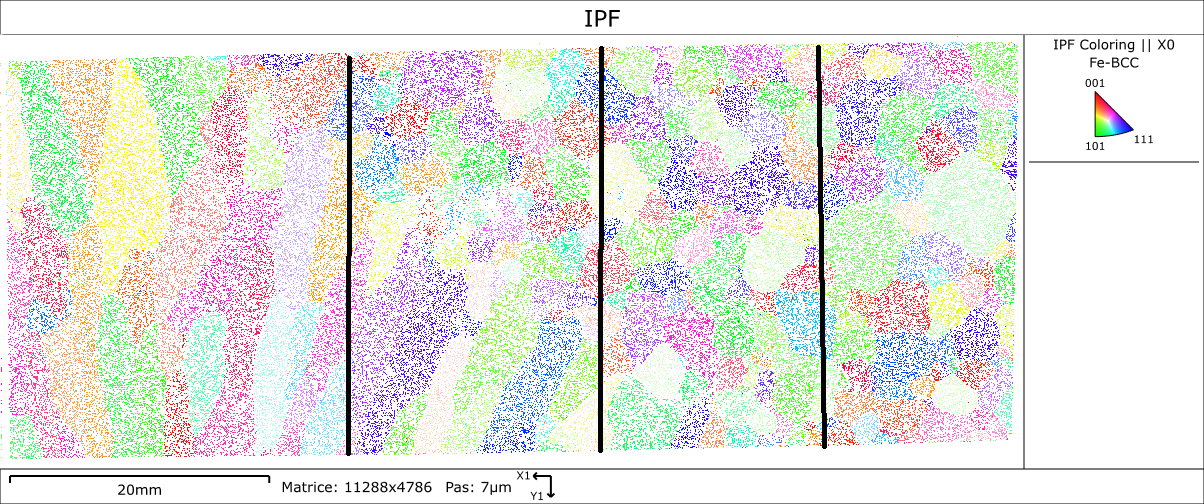

I want to create a microstructure using the following EBSD map bellow :

I divided this map in four parts. And and I created with Neper a 4 part vornoi microstructure using this command:
neper -T -n 4 -domain 'cube(0.03,0.08,0.03)' -morphooptiini "coo:file(coo1.txt),weight:0" -morpho "voronoi" -oridescriptor 'euler-roe' -format tess -reg 1 -o r1
the coo1 file is given bellow :
coo1.txt

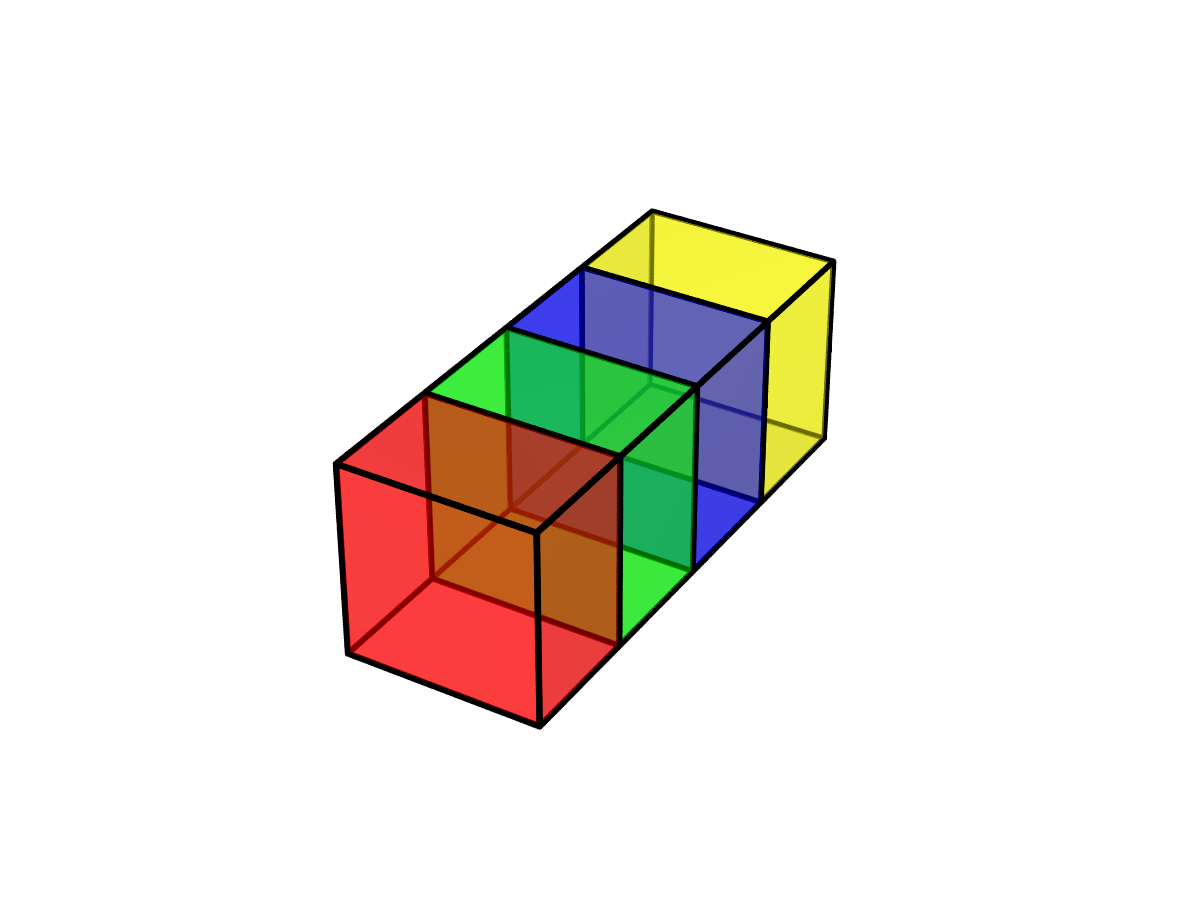

And I obtained the following microstructure :

Then in each part I create the number of daughter grain that corresponds to it :
neper -T -n "4::file(rafinnement.txt)" -domain 'cube(0.03,0.08,0.03)' -morphooptiini "coo:file(coo1.txt),weight:0" -morpho "voronoi" -oridescriptor 'euler-roe' -format tess,ori -reg 1 -o r2
The rafinnement.txt is given bellow :
rafinnement.txt

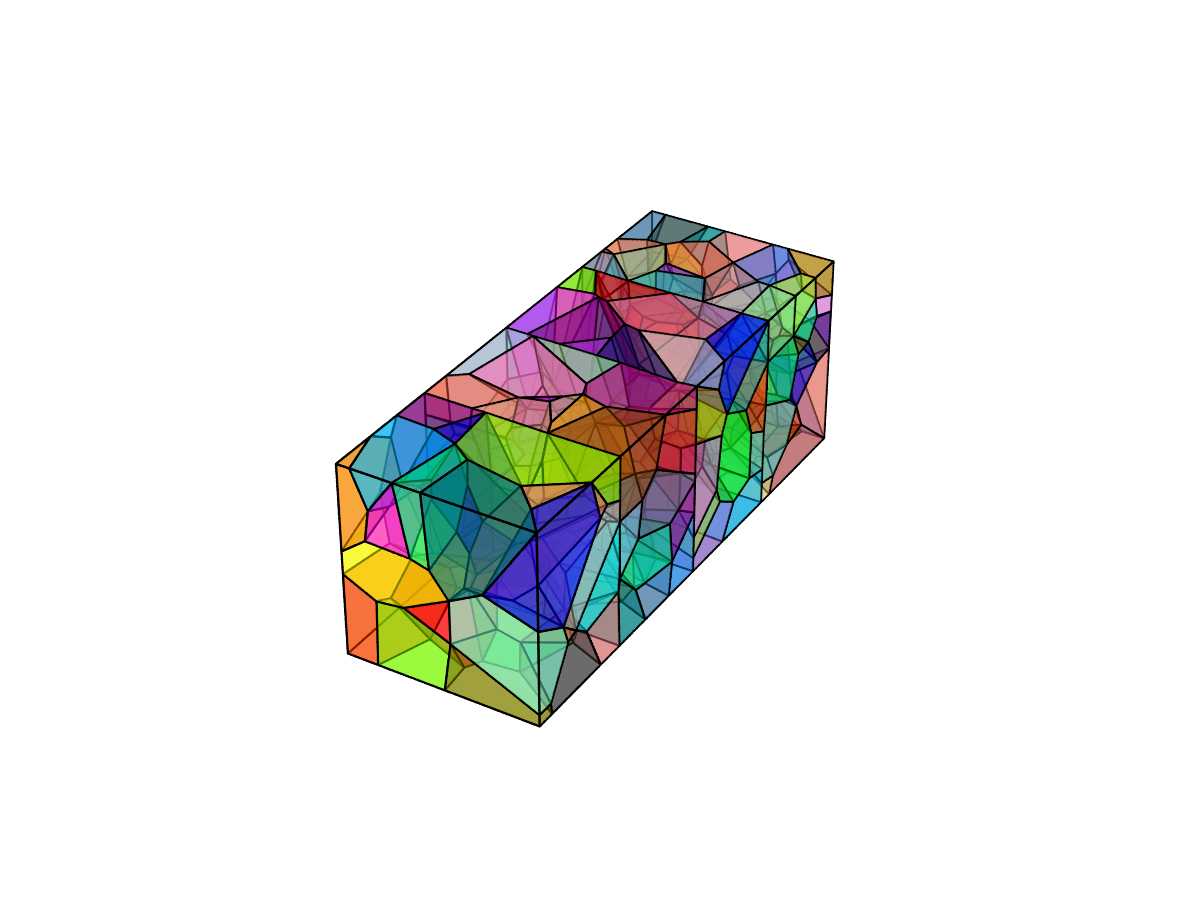

And I obtained the following microstructure :

the next step is to create blades inside each grain. I used the following command :
neper -T -n "4::from_morpho::file(raffinement.txt)" -domain 'cube(0.03,0.08,0.03)' -morphooptiini "coo:file(coo1.txt),weight:0" -morpho "voronoi::sphericity:lognormal(0.1,0.01)::lamellar(w=0.001)" -oridescriptor 'euler-roe' -format tess,vtk,ori -o D522_3_1
But it doesn't work. I get the terminal Neper output :
======================== N e p e r ======================= Info : A software package for polycrystal generation and meshing. Info : Version 4.1.2 Info : Built with: gsl|muparser|opengjk|openmp|nlopt Info : Running on 12 threads. Info : <https://neper.info> Info : Copyright (C) 2003-2020, and GNU GPL'd, by Romain Quey. Info : No initialization file found (/home/g20281/.neperrc').
Info : ---------------------------------------------------------------
Info : MODULE -T loaded with arguments:
Info : [ini file] (none)
Info : [com line] -n 4::from_morpho::file(raffinement.txt) -domain
cube(0.03,0.08,0.03) -morphooptiini coo:file(coo1.txt),weight:0
-morpho
voronoi::sphericity:lognormal(0.1,0.01)::lamellar(w=0.001)
-oridescriptor euler-roe -format tess,vtk,ori -o D522_3_1
Info : ---------------------------------------------------------------
Info : Reading input data...
Error : - -morpho lamellar(w=0.001)' requires -n from_morpho'.
Abandon
`
Could you help me please or give me some suggestions to create a similar microstructure as the EBSD map?
Thank you so much,

[rquey]

Sorry for the delayed response, but I would start by merging the 4 EBSD maps, as this is not a multiscale microstructure per se...
