Transformation command for complex geometry

[kmmm70]

Hi All,

I wonder how to use -transform to create a complex geometry model. I tried

neper -T -n 200 -transform "cut(sphere(24,3,6,5),sphere(10,3,6,5))" -domain "cube(48,6,12)" ===> it's OK.

neper -T -n 100 -transform "planecut(48,1,1,1)" -domain "cube(48,6,12)" ===> It's OK.

When I tried to combine them together with

neper -T -loadtess n200-id1.tess -transform "planecut(48,1,1,0)" ===> It's failed showing error.

How to use different transformation together to create complex geometry model?

Thanks in advance.

[rquey]

I'm not sure what's happening here, but you can use cut(hspace) instead of planecut (they are almost equivalent), and it will work:

$ neper -T -n 200 -transform "cut(sphere(24,3,6,5),sphere(10,3,6,5),hspace(48,1,1,0))" -domain "cube(48,6,12)"

[kmmm70]

Romain,

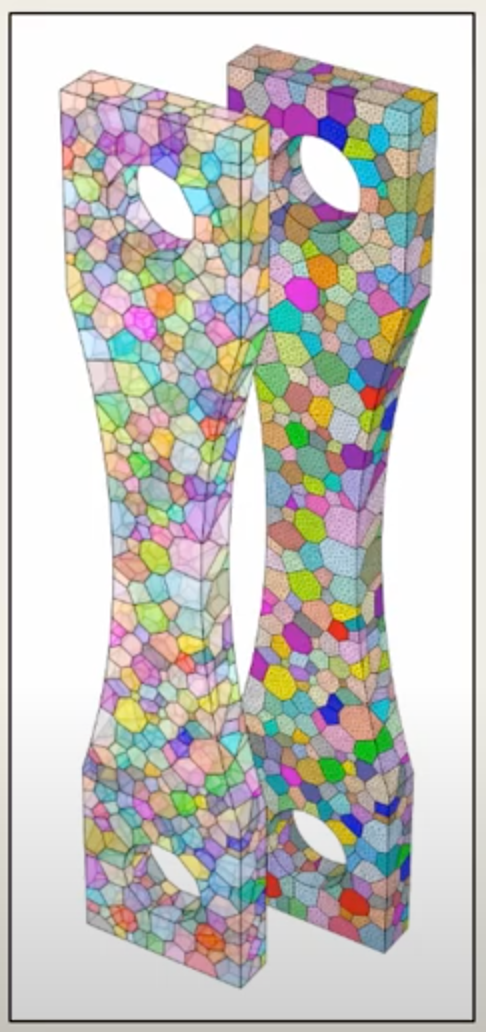

It's amazing. Much appreciate for your help. I found this picture from Not real engineering on youtube. Do you think I can manipulate to get that model using the combination of -transform "cut()" ?

Thanks a lot.

[kmmm70]

By the way, How can I replace the circles with square or rectangular shape?

[rquey]

This image was the image of the homepage before version 4. It is an (elongated) cube cut by 2 cylinders (for the holes) and 2 other cylinders for the gauge section. The circles cannot be replaced by squares or rectangles.

[kmmm70]

Romain,

I've got it. Thanks for your fast reply. Will you consider making it cut by the other shapes in the future?

[rquey]

Not in the near future. This is a limitation of the current algorithm.
