How should I retrieve the localization of the lines from its words

[ghost]

I am using this repo
I get the inference on the following image.

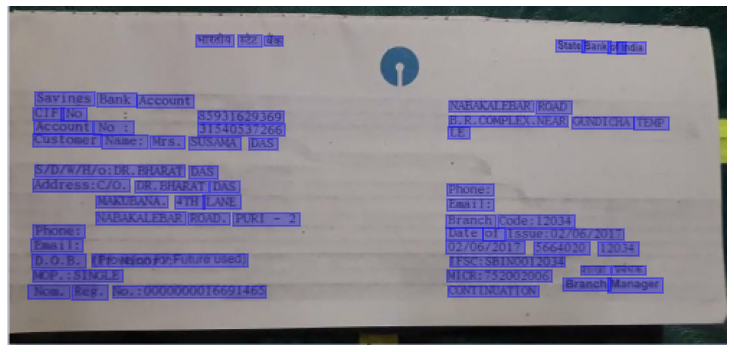

The following predicted image is shown below

import json

from doctr.io import DocumentFile

from doctr.models import ocr_predictor



model = ocr_predictor(pretrained=True)

# PDF

doc = DocumentFile.from_images("/content/passbook_82_0.jpeg")

# Analyze

result = model(doc)

# Export results in json

with open("/content/preds.json", "w") as f:

    json.dump(result.export(), f)

The following JSON file saved the coordinates and confidence value. Each word has a geometry that gives [[xmin, ymin], [xmax, ymax]] in relative coordinates format.

{"pages": [{"page_idx": 0, "dimensions": [294, 632], "orientation": {"value": null, "confidence": null}, "language": {"value": null, "confidence": null}, "blocks": [{"geometry": [[0.0341796875, 0.169921875], [0.9775390625, 0.8896484375]], "lines": [{"geometry": [[0.0341796875, 0.169921875], [0.9775390625, 0.8896484375]], "words": [{"value": "anrdla", "confidence": 0.2445085644721985, "geometry": [[0.11328125, 0.1708984375], [0.1923828125, 0.212890625]]}, {"value": "veedas", "confidence": 0.16714346408843994, "geometry": [[0.1845703125, 0.169921875], [0.2744140625, 0.2158203125]]}, {"value": "State", "confidence": 0.9990315437316895, "geometry": [[0.642578125, 0.1748046875], [0.6982421875, 0.2236328125]]}, {"value": "Bank", "confidence": 0.999847412109375, "geometry": [[0.6982421875, 0.1767578125], [0.7529296875, 0.2236328125]]}, {"value": "of", "confidence": 0.9996934533119202, "geometry": [[0.7548828125, 0.1796875], [0.783203125, 0.22265625]]}, {"value": "India", "confidence": 0.9772151708602905, "geometry": [[0.78125, 0.177734375], [0.8388671875, 0.2236328125]]}, {"value": "REGULAR", "confidence": 0.8577464818954468, "geometry": [[0.0380859375, 0.2744140625], [0.1318359375, 0.310546875]]}, {"value": "SAVINGS", "confidence": 0.994958758354187, "geometry": [[0.140625, 0.27734375], [0.2314453125, 0.310546875]]}, {"value": "BANK", "confidence": 0.9993945956230164, "geometry": [[0.240234375, 0.27734375], [0.296875, 0.3134765625]]}, {"value": "ACCOUNT", "confidence": 0.9985705018043518, "geometry": [[0.3056640625, 0.279296875], [0.39453125, 0.3125]]}, {"value": "DARANGAMELA", "confidence": 0.4595634639263153, "geometry": [[0.73046875, 0.283203125], [0.8720703125, 0.314453125]]}, {"value": "No", "confidence": 0.9307771921157837, "geometry": [[0.0869140625, 0.322265625], [0.1201171875, 0.3564453125]]}, {"value": "CIF", "confidence": 0.9934298992156982, "geometry": [[0.03515625, 0.3212890625], [0.083984375, 0.3583984375]]}, {"value": "88537466750", "confidence": 0.9332917332649231, "geometry": [[0.3037109375, 0.3232421875], [0.4443359375, 0.361328125]]}, {"value": "DARANGAMELA", "confidence": 0.5046369433403015, "geometry": [[0.7294921875, 0.328125], [0.87109375, 0.359375]]}, {"value": "-", "confidence": 0.9411769509315491, "geometry": [[0.1826171875, 0.361328125], [0.1923828125, 0.3740234375]]}, {"value": "Account", "confidence": 0.9907050728797913, "geometry": [[0.0390625, 0.3564453125], [0.130859375, 0.3896484375]]}, {"value": "No", "confidence": 0.9819487929344177, "geometry": [[0.138671875, 0.3544921875], [0.1796875, 0.390625]]}, {"value": "20306950151", "confidence": 0.23563283681869507, "geometry": [[0.3076171875, 0.35546875], [0.4404296875, 0.3876953125]]}, {"value": "Customer", "confidence": 0.9558802843093872, "geometry": [[0.0380859375, 0.38671875], [0.1435546875, 0.4189453125]]}, {"value": "Name:", "confidence": 0.9982724785804749, "geometry": [[0.15234375, 0.3876953125], [0.2177734375, 0.421875]]}, {"value": "RASHO", "confidence": 0.6698806285858154, "geometry": [[0.2783203125, 0.388671875], [0.3466796875, 0.4228515625]]}, {"value": "Ms.", "confidence": 0.9627761840820312, "geometry": [[0.2265625, 0.388671875], [0.2685546875, 0.423828125]]}, {"value": "MANDAL", "confidence": 0.998543381690979, "geometry": [[0.353515625, 0.3916015625], [0.4326171875, 0.4248046875]]}, {"value": "S/D/W/H/O:BISWAMITRA", "confidence": 0.8553118705749512, "geometry": [[0.04296875, 0.4755859375], [0.296875, 0.5126953125]]}, {"value": "MANDAL", "confidence": 0.9796141386032104, "geometry": [[0.3056640625, 0.4794921875], [0.3828125, 0.51171875]]}, {"value": "Address:VILL-", "confidence": 0.7488418221473694, "geometry": [[0.041015625, 0.517578125], [0.2041015625, 0.5517578125]]}, {"value": "-", "confidence": 0.9209287166595459, "geometry": [[0.21484375, 0.5244140625], [0.236328125, 0.5498046875]]}, {"value": "CHUCHUNGJULI", "confidence": 0.5298648476600647, "geometry": [[0.2841796875, 0.5244140625], [0.4267578125, 0.552734375]]}, {"value": "NO", "confidence": 0.9970822334289551, "geometry": [[0.2392578125, 0.51953125], [0.2724609375, 0.5546875]]}, {"value": "Phone:2:284238", "confidence": 0.8328949809074402, "geometry": [[0.7275390625, 0.5283203125], [0.8818359375, 0.5634765625]]}, {"value": "SIDDHINATHPUR", "confidence": 0.5255517959594727, "geometry": [[0.208984375, 0.5703125], [0.3681640625, 0.5986328125]]}, {"value": "P.0-", "confidence": 0.7063982486724854, "geometry": [[0.138671875, 0.5654296875], [0.19921875, 0.6044921875]]}, {"value": "TAMULPUR", "confidence": 0.992978572845459, "geometry": [[0.44140625, 0.5703125], [0.54296875, 0.6025390625]]}, {"value": "P.S-", "confidence": 0.9322847127914429, "geometry": [[0.3779296875, 0.568359375], [0.4345703125, 0.6044921875]]}, {"value": "Email:sbi.091470sb", "confidence": 0.41425037384033203, "geometry": [[0.7275390625, 0.5732421875], [0.9580078125, 0.611328125]]}, {"value": "DIST-", "confidence": 0.9592916369438171, "geometry": [[0.138671875, 0.61328125], [0.2109375, 0.650390625]]}, {"value": "BAKSA", "confidence": 0.9974198341369629, "geometry": [[0.2158203125, 0.61328125], [0.28515625, 0.650390625]]}, {"value": "ASSAM", "confidence": 0.9992387890815735, "geometry": [[0.2900390625, 0.61328125], [0.3603515625, 0.650390625]]}, {"value": "781360", "confidence": 0.9988314509391785, "geometry": [[0.3671875, 0.6123046875], [0.4453125, 0.6494140625]]}, {"value": "Branch", "confidence": 0.9992311596870422, "geometry": [[0.7255859375, 0.6201171875], [0.806640625, 0.6572265625]]}, {"value": "Code:91471", "confidence": 0.6900002956390381, "geometry": [[0.814453125, 0.6220703125], [0.939453125, 0.6611328125]]}, {"value": "Phone:", "confidence": 0.9992220997810364, "geometry": [[0.0390625, 0.65625], [0.1171875, 0.6943359375]]}, {"value": "Date", "confidence": 0.9955922961235046, "geometry": [[0.7236328125, 0.6630859375], [0.7822265625, 0.7021484375]]}, {"value": "of", "confidence": 0.9997377991676331, "geometry": [[0.787109375, 0.6630859375], [0.8212890625, 0.703125]]}, {"value": "Issue:30/06", "confidence": 0.8237747550010681, "geometry": [[0.8310546875, 0.66796875], [0.9716796875, 0.70703125]]}, {"value": "Email:", "confidence": 0.9961839914321899, "geometry": [[0.0380859375, 0.701171875], [0.115234375, 0.7392578125]]}, {"value": "40/06/2020", "confidence": 0.2974379360675812, "geometry": [[0.70703125, 0.6982421875], [0.8583984375, 0.7548828125]]}, {"value": "5529182", "confidence": 0.9492482542991638, "geometry": [[0.8798828125, 0.712890625], [0.9775390625, 0.75390625]]}, {"value": "D.0.B.", "confidence": 0.8802379369735718, "geometry": [[0.0380859375, 0.75], [0.1171875, 0.787109375]]}, {"value": "Minor):", "confidence": 0.9770660996437073, "geometry": [[0.177734375, 0.7451171875], [0.2705078125, 0.78515625]]}, {"value": "(If", "confidence": 0.4771254062652588, "geometry": [[0.1279296875, 0.7431640625], [0.173828125, 0.7880859375]]}, {"value": "IFSC:SBINOOO009147", "confidence": 0.5092097520828247, "geometry": [[0.7314453125, 0.7568359375], [0.93359375, 0.7919921875]]}, {"value": "MOP.:", "confidence": 0.9868963360786438, "geometry": [[0.0341796875, 0.7919921875], [0.103515625, 0.830078125]]}, {"value": "RIMLON1781002512", "confidence": 0.2585943341255188, "geometry": [[0.705078125, 0.798828125], [0.9072265625, 0.83984375]]}, {"value": "No.:0000000203836166", "confidence": 0.8759520649909973, "geometry": [[0.1669921875, 0.8408203125], [0.4189453125, 0.87890625]]}, {"value": "Nom.", "confidence": 0.9955904483795166, "geometry": [[0.0361328125, 0.84765625], [0.091796875, 0.8837890625]]}, {"value": "Reg.", "confidence": 0.9835382699966431, "geometry": [[0.0986328125, 0.8447265625], [0.1572265625, 0.8896484375]]}, {"value": "BranchoMana", "confidence": 0.3897829055786133, "geometry": [[0.6943359375, 0.8486328125], [0.7919921875, 0.8857421875]]}, {"value": "DATION", "confidence": 0.5874566435813904, "geometry": [[0.796875, 0.8515625], [0.8818359375, 0.888671875]]}]}], "artefacts": []}]}]}

I want to draw a bounding box on each line and save the crop line image in the folder using OpenCV. How can I do that?
as shown below.

[fg-mindee]

Hey again 👋

So to get the line-level aggregation, you have two options:

• using docTR dev build (or waiting for the next release), the output of the predictor is aggregated into lines. The method is robust to some extent, but I'd advise checking if it matches your expectations or not. To retrieve this aggregation, you will find it in the output at the parent level of words (cf. https://mindee.github.io/doctr/latest/using_models.html#what-should-i-do-with-the-output)
• discarding the aggregation made by docTR, take all the words all together and implement a small script to aggregate words into lines on your end (if you have one specific type of document / two column page / exotic cases, that might be the best option here)

Hope this helps, let me know if you have any other questions :)

[ghost]

@fg-mindee The main issue is that I am trying from yesterday but does not get any desired output

[charlesmindee]

Hi @hammadyounas2008,

you can use this snippet to display boxes on the source image:

from doctr.io import DocumentFile
from doctr.models import ocr_predictor

model = ocr_predictor(pretrained=True)
# PDF
doc = DocumentFile.from_pdf("path/to/your/doc.pdf").as_images()
# Analyze
result = model(doc)
result.show(doc)

If you want to display lines boxes and not just words boxes, you can go to utils/visualization.py and set words_only=False in the visualize_page function, it will display blocks and lines.

[fg-mindee]

Some precisions:

• until we publish next release, you need to install the package from source (dev mode)
• the words_only=False can be passed to result.show(doc, words_only=False) ;)
