Request support for [A5-14-0A] and [A5-08-01]

[holger-tangermann]

May I ask, if these 2 EEP profiles ([A5-14-0A] and [A5-08-01]) could be added. Description for both can be found in the EEPViewer (http://tools.enocean-alliance.org/EEPViewer/#)

Happy to help with testing them.

[mak-gitdev]

Hi @holger-tangermann,

Please have a look at the support-new-eeps branch.
I have an initial support for A5-08-01.
Just follow the instructions in the readme to replace the mapping.yaml file.

Please report then if everything is ok so it could be added to the next release. Thanks

[holger-tangermann]

Hi @mak-gitdev ,

thanks for the answer. I have successfully updated the mapping.yaml and tested the EEP A5-08-01.

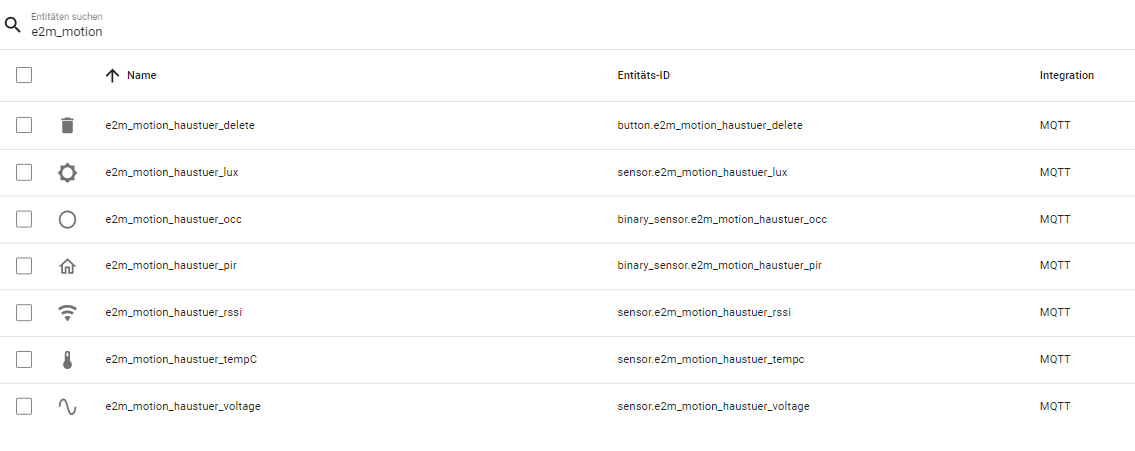

These are the entities created in HA.

Entities working and providing correct values (checked against a different smart home system):

• ..._lux (brightness)
• ..._pir (motion detection)
• ..._voltage (voltage of internal power supply)

Entities working with reasonable values, which I unforunately cannot check:

• ..._delete
• ..._rssi

Entities, which I cannot check, because they are not provided by my device.
..._tempC
..._occ

So for me my device works as expected. Thanks a lot for realizing it.

Is there also a possibility to ceate an initial support for the other EEP [A5-14-0A]?

[mak-gitdev]

delete and rssi are special entities generated by HA_enoceanmqtt. You don't have to test them.
Strange that tempC and occ are not generated by your device. It seems that all A5-08-01 should generate these values.
What is your device reference ? It could be an issue in the added support for A5-08-01.

Regarding A5-14-0A, it will require a new release so you just have to wait a little bit 😊

[holger-tangermann]

It seems that all A5-08-01 should generate these values. What is your device reference ? It could be an issue in the added support for A5-08-01.

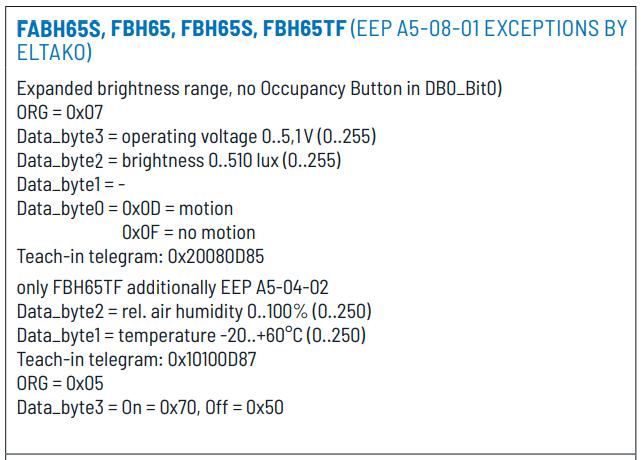

I do not think it is an issue with the added support. My device is an Eltako FABH65S (https://www.enocean-alliance.org/product/wireless-outdoor-motionbrightness-sensor-fabh65s-wg/). Eltako themselve write in the manual, that they "use A5-08-01 with exceptions".

[mak-gitdev]

Ok I see. Eltako devices ...

[chma73]

Hello @mak-gitdev could you finish the A5-14-0A integration? It's seems that open, close, alarm is working - but the window status tilted is not shown.

[mak-gitdev]

Hi @chma73,

This has been completed long tile ago.

There are two entities for the window states:

• states_2p which reports only open/closed states
• states_3p which reports open/closed/tilted states

So I supposed you are using the states_2p entity instead of the states_3p.

If you are using the states_3p entity and it still don't report the tilted state, then please report your log with debug enabled.

[chma73]

Hi @mak-gitdev,
I asked because it was not marked in the supported devices

now I see it with state 3 it works perfect thank you.

[mak-gitdev]

@chma73,

Perfect.

In the supported devices list, an unchecked box means that the EEP is supported but not tested.
I can now check A5-14-0A as you confirmed it works.

Please let me know if you have other working devices not checked in the list.

[chma73]

@mak-gitdev ah thanks for the explanation. wish you a happy new year.

[mak-gitdev]

@chma,

Thanks. Happy new year
